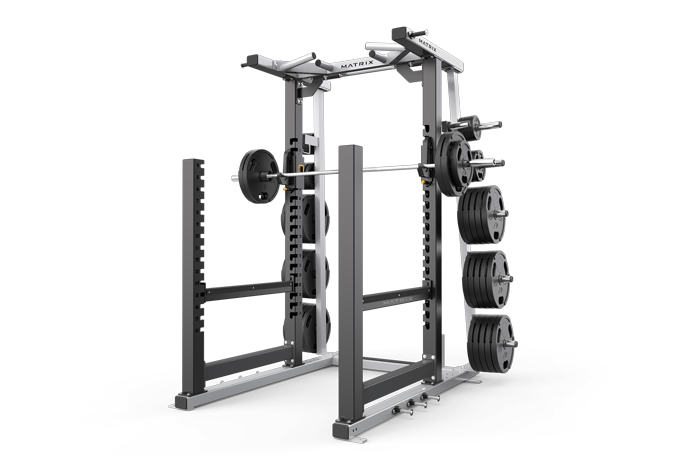

Matrix Commercial - MG-MR694-04 - 2015

Repair Parts for Matrix Commercial MG-MR694-04 MGPR89

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: MG-MR694-04

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
W 713807 1000308418 Weight Horn B4 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
W 713826 1000308444 Weight Horn Z5 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713838 1000308466 Weight Horn B2 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 Weight Horn B3 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
W 713950 1000309858 Weight Horn Z9 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
P 713986 1000310083 Pull Up B3 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 714008 1000310115 Z31 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
Z 714031 1000310307 Z16 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
714109 1000312099 Z17 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
714124 1000312155 Weight Horn Z7 NUT;HX;.375-16;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714127 1000312161 Z15 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
Z 714235 1000312700 Z14 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714538 1000315894 V23 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
717377 1000344562 Pull Up Bar V1 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717444 1000345210 B28 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

1
717930 1000348678 B30 1/4" ABS Guard No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717949 1000348824 Pull Up AB1A Weldment;Pull Up Bar No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718520 1000351185 Pull Up Bar Set Pull Up Bar Set;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718521 1000351186 Pull Up Bar Set Pull Up Bar Set;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718522 1000351187 Pull Up Bar Set Pull Up Bar Set;L No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719680 1000363753 V22 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V22 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719701 1000363994 V33 Decal;Warning;Sled;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719702 1000363997 V33 Decal;Warning;Sled;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
719762 1000365231 W Horn R AB1 Rear Right Plate WLDMT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719763 1000365232 W Horn L AB1 Rear Right Plate WLDMT No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719770 1000365316 Weight Horn B8 JM Series Band Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720107 1000368611 AB10 Weldment;MR Corner Bracket;Black Ridge No Model Compatibility List $163.90 / Each

2,3,4,5,6
720109 1000368620 W Storage R Set Weight Storage;Reversed;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720110 1000368621 W Storage R Set Weight Storage;Reversed;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720111 1000368622 W Storage R Set Weight Storage;Reversed;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720112 1000368634 W Storage L Set Weight Storage;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720113 1000368635 W Storage L Set Weight Storage;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720114 1000368636 W Storage L Set Weight Storage;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721073 1000380406 AB5 Front Post;LH;Black Ridge No Model Compatibility List $1149.17 / Each

4,5,6,12,13,14
721074 1000380407 AB6 Front Post;RH;Black Ridge No Model Compatibility List $1149.17 / Each

4,5,6,12,13,14
721172 1000381186 AB1 Base Connector Assy;MR47-04;Iced Silver No Model Compatibility List $900.74 / Each

3
721173 1000381187 AB1 Base Connector Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721174 1000381188 AB1 Base Connector Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721186 1000381201 AB12 Base Assy;MR47-04;Iced Silver No Model Compatibility List $1274.23 / Each

3
721187 1000381202 AB12 Base Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721188 1000381203 AB12 Base Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721200 1000381216 AB11 Base Assy;MR47-04;Iced Silver No Model Compatibility List $1274.23 / Each

3
721201 1000381217 AB11 Base Assy;MR47-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721202 1000381218 AB11 Base Assy;MR47-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721214 1000381230 B27 Band Holder;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721252 1000381405 AB4 WELDMENT, Right POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721253 1000381406 AB3 WELDMENT, RH REAR POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721254 1000381408 AB7 Upright Connector Assy;MR694-04;Iced Sil No Model Compatibility List $501.90 / Each

3
721255 1000381409 AB7 Upright Connector Assy;MR694-04;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721256 1000381410 AB7 Upright Connector Assy;MR694-04;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V21 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721829 1000385737 Not Shown Hardware Kit;Complete;MR694-04; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722170 1000388459 B24 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock 		9
722274 1000390401 B29 Band Peg Attachment;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722798 1000398634 AB8 Top Assy;MR690;Iced Silver No Model Compatibility List $566.12 / Each

1
722799 1000398635 AB8 Top Assy;MR690;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722800 1000398636 AB8 Top Assy;MR690;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722812 1000398649 AB9 Top Assy;MR690;Iced Silver No Model Compatibility List $566.12 / Each

1
722813 1000398650 AB9 Top Assy;MR690;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722814 1000398651 AB9 Top Assy;MR690;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
724745 1000426423 Safety Bar Set Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
