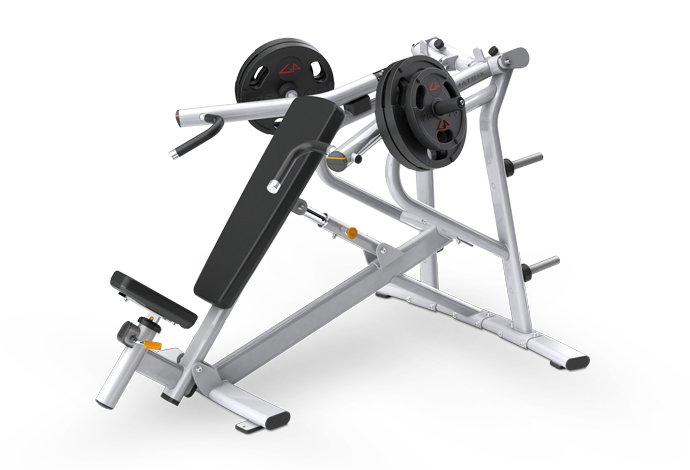

Matrix Commercial - MG-PL14 - 2014

Repair Parts for Matrix Commercial MG-PL14 PL211E

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL14

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 700122 000454-H J25 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
G 700308 000926-A G04 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
G 701159 004077-A2 G01 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Z 701465 004518-00 Z22 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Z 701599 004623-00 Z29 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Z 701836 004855-AC Z02 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701968 005007-00 Z13 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z25 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 701992 005031-AC Z28 WASHER;FLT;Diam.20.2XDiam.30.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
Z 702006 005043-7 Z27 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702030 005062-00 Z26 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
Z 702056 005084-00 Z07 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z05 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z12 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 702229 005354-00 D25 C-Clip;Internal;R-42 No Model Compatibility List $1.79 / Each

2
C 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
Z 702531 008523-B Z24 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
J 702670 009288-K J24 Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
D 702710 009355-B D11 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
B 705163 038449-A B30 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

2
Z 705461 049252-AB Z20 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
B 706373 061531-AA B20 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
V 707078 1000090043 V14 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
J 707084 1000090177 J23 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
D 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
Z 707946 1000097206 Z15 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708037 1000098086 C68 Spring Pin;;Diam.4x20;;; No Model Compatibility List $2.18 / Each

2,12,13,14
Z 708091 1000099499 Z03 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
Z 708453 1000102869 Z11 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
S 708654 1000104681 S20 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
Z 708658 1000104685 Z23 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Z 708662 1000104691 Z21 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

2
Z 708730 1000105174 Z17 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
D 709019 1000108308 D17 Cu Bushing;20x26x16t;GM46 No Model Compatibility List $9.80 / Each

8
V 709081 1000109127 V05 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
J 709730 1000202479 J03 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
J 709731 1000202480 J04 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
C 709732 1000202481 C80 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
Z 711692 1000222320 Z08 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
713545 1000304993 C23 Cover;Back Cover;;ABS No Model Compatibility List $38.99 / Each

9,4,5,6
D 713570 1000305197 D08 Axle, Swivel;Swivel;;20#;FW210-KM;Diam.1 No Model Compatibility List $20.25 / Each

8
D 713573 1000305213 D15 Axle, Swivel;Swivel;;20#;FW210-KM No Model Compatibility List $15.18 / Each

8
C 713593 1000305377 C14 Cover;Back Cover;;PA746;FW203-KM No Model Compatibility List $11.80 / Each

9,4,5,6
C 713596 1000305393 C17 Stopper Pin;;;45#;Chrome;FW203-KM No Model Compatibility List $18.56 / Each

7,12,13,14
C 713598 1000305397 C16 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
713599 1000305398 C15 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
C 713643 1000306098 C66 Plastic Cover;Adjust Machine;;ABS/PA757; No Model Compatibility List $3.35 / Each

9,4,5,6
A 713644 1000306099 AJ1 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
V 713703 1000306714 V04 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
Z 713874 1000309154 Z16 Screw;Socket Head;M10X1.5PX155L-20;;Hex No Model Compatibility List $8.42 / Each

2
V 714331 1000313739 V03 Adjustable Indication Decal;;;;;;;FW224- No Model Compatibility List $3.35 / Each

7,3
714761 1000317877 J14 PLASTIC LINER;Fixing Tube;;POM;;;GM43; No Model Compatibility List $5.04 / Each

9,3
V 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
D 717488 1000345448 D10 Foam;;;Diam.30.4x5.0tx375L;Grip;PL210 No Model Compatibility List $23.63 / Each

11
B 717493 1000345543 B08 Rubber Plate;Pedal Arm Support Set;;NBR; No Model Compatibility List $40.53 / Each

8,9,3
A 717494 1000345552 AT1 Seat Adjustment-Exreawork;;;Cr Plate;;PL No Model Compatibility List $11.80 / Each

3,12,13,14
H 717495 1000345567 H06 ADJ Rod;;;;;PL211; No Model Compatibility List $13.49 / Each

3
N 717499 1000345599 Not Shown Hardware Set;;;;;PL211;; No Model Compatibility List $168.97 / Each

1
D 717501 1000345601 D05 Axle, central;Swivel;;40CRMO;;PL211;; No Model Compatibility List $37.15 / Each

8
D 717502 1000345602 D07 SLEEVE;Swivel;;20#;Chrome;PL211;Diam.15x No Model Compatibility List $10.11 / Each

7,3,12,13,14
V 717505 1000345614 V02 Instructional Labe;;;;;;;PL211 No Model Compatibility List $15.18 / Each

1
717506 1000345615 Not Shown Manual set;Semi-Assy;;;;PL211;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717511 1000345659 C22 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

9,4,5,6
C 718622 1000352277 C67 Stopper Pin;;;20CrMo;;PL210-KM;Diam.8x46 No Model Compatibility List $11.80 / Each

12,13,14
V 718650 1000352553 V07 Decal;Weight;12LBS;;;;;starting resistan No Model Compatibility List $3.35 / Each

7,3
V 718652 1000352555 V09 Adjustable Indication Decal;Back Pad;;;; No Model Compatibility List $2.18 / Each

7,3,4,5,6,12,13,14
D 719254 1000358967 D09 End Cap;Pedal Arm;;PP;BL/Black C;Diam.76 No Model Compatibility List $3.35 / Each

8,9,3,4,5,6
719291 1000359389 2 Pedal Arm Set;;L;;PL211-KM;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719292 1000359395 1 Pedal Arm Set;;R;;PL211-KM;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719293 1000359401 6 base set;;;;;PL211-KM;;Iced Sliver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
3 719294 1000359407 3 Stabilizer Tube Set;Frame;;;PL211-KM;;Ic No Model Compatibility List $175.19 / Each

3
4 719295 1000359413 4 Adjustment Tube Set;;;;PL211-KM;;Iced Sl No Model Compatibility List $84.47 / Each

3
719296 1000359419 AB1 Frame Set;;;painting;;Iced Sliver;PL211- No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 719298 1000359425 AC1 base set;;;painting;;Iced Sliver;PL211-K No Model Compatibility List $618.51 / Each

3
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
Screw;SH;M10X1.5PX105L;;HS;;CHM;; 725410 070969 Z07 Screw;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $31.30 / Each

2
726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.66 / Each

2
Screw;SH;M10X1.5PX175L;;HS;;CHM;; 726766 084667 Z08 Screw;SH;M10X1.5PX175L;;HS;;CHM;; No Model Compatibility List $9.10 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L 726981 086451 Z24 Screw;Hex Socket;Round;M10x1.5Px25L No Model Compatibility List $1.12 / Each

2
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

1
Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

4,5,6,12,13,14
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

3
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
729261 See Pad Matrix C39 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
