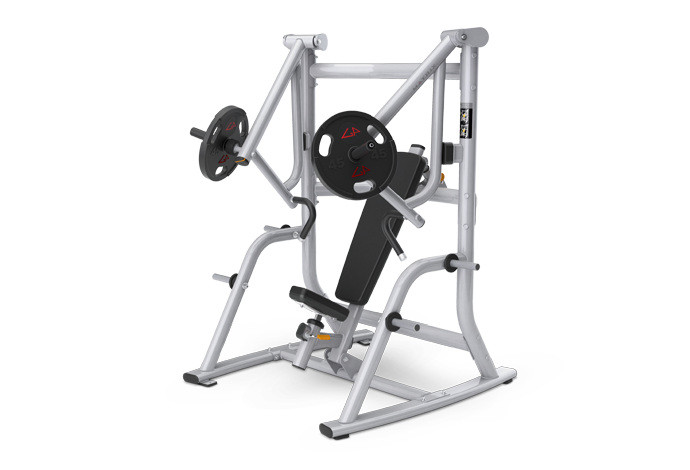

Matrix Commercial - MG-PL15 - 2014

Repair Parts for Matrix Commercial MG-PL15 PL204

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL15

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
B 700232 000751-C B18 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
T 700308 000926-A T12 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
H 700450 001405-A H14 End Cover;60 No Model Compatibility List $1.66 / Each

9
T 700461 001422-BA T24 End Cover;Ellipse;40x80x3.0t;MS20 No Model Compatibility List $3.64 / Each

9
D 700685 001791-AA D10 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
D 701159 004077-A2 D13 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Z 701599 004623-00 Z29 Screw;Phillip;BH;Tapped;4x12L;BED;Gap; No Model Compatibility List $2.00 / Each

2
Z 701660 004696-AB Z02 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701836 004855-AC Z11 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
G 701939 004975-00 G32 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701968 005007-00 Z12 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z19 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 701992 005031-AC Z27 WASHER;FLT;Diam.20.2XDiam.30.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
Z 702006 005043-7 Z32 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702014 005048-AC Z04 Washer;Flat;8.2x15.0x1.2T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702056 005084-00 Z10 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z07 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z14 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702229 005354-00 Z15 C-Clip;Internal;R-42 No Model Compatibility List $1.79 / Each

2
T 702505 008234-C T26 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
Z 702531 008523-B Z18 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
D 702710 009355-B D12 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702722 009372-E D11 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
B 702728 009381-A B17 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
Z 704014 020104-AC Z20 Screw;Hex Socket;Round;M10x1.5Px30L;Cr; No Model Compatibility List $3.64 / Each

2
Z 704034 020123-AC Z13 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 704074 020186-00 Z26 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Z 704193 020465-AB Z21 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
T 705163 038449-A T19 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

2
Z 705461 049252-AB Z24 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Z 705465 049256-AB Z16 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.79 / Each

2
B 706373 061531-AA B13 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
V 707078 1000090043 V07 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
H 707084 1000090177 H09 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
T 707822 1000096014 T11 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
Z 707946 1000097206 Z03 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708037 1000098086 Z08 Spring Pin;;Diam.4x20;;; No Model Compatibility List $2.18 / Each

2,12,13,14
Z 708091 1000099499 Z05 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
T 708093 1000099581 T21 End Cap;Plastic;GM49 No Model Compatibility List $2.13 / Each

9
D 708591 1000103978 D08 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
D 708592 1000103979 D09 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
S 708654 1000104681 S20 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
Z 708658 1000104685 Z01 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Z 708730 1000105174 Z17 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
T 709019 1000108308 T16 Cu Bushing;20x26x16t;GM46 No Model Compatibility List $9.80 / Each

8
V 709081 1000109127 V08 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
T 709730 1000202479 T20 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
T 709731 1000202480 T22 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
T 709732 1000202481 T23 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
709813 1000203469 Z31 Screw;RND;M10X1.5PX45L;-;HS;G12.9;CHM; No Model Compatibility List $3.35 / Each

2
709851 1000203851 Z25 Screw;SH;M10x110L-15L;-;HS;-;CHM;-;G12.9 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 711692 1000222320 Z09 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
C 713544 1000304992 C21 Back Pad;;PU;Black;;FW201-KM; No Model Compatibility List $147.00 / Each

4,5,6,12,13,14
713545 1000304993 T13 Cover;Back Cover;;ABS No Model Compatibility List $38.99 / Each

9,4,5,6
T 713570 1000305197 T30 Axle, Swivel;Swivel;;20#;FW210-KM;Diam.1 No Model Compatibility List $20.25 / Each

8
T 713573 1000305213 T29 Axle, Swivel;Swivel;;20#;FW210-KM No Model Compatibility List $15.18 / Each

8
C 713592 1000305375 C39 Seat Pad;Down;PU;Black;230MMx345MM;FW203 No Model Compatibility List $43.91 / Each

4,5,6,12,13,14
T 713593 1000305377 T25 Cover;Back Cover;;PA746;FW203-KM No Model Compatibility List $11.80 / Each

9,4,5,6
T 713596 1000305393 T14 Stopper Pin;;;45#;Chrome;FW203-KM No Model Compatibility List $18.56 / Each

7,12,13,14
T 713598 1000305397 T17 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
713599 1000305398 T18 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
T 713643 1000306098 T15 Plastic Cover;Adjust Machine;;ABS/PA757; No Model Compatibility List $3.35 / Each

9,4,5,6
A 713644 1000306099 AJ1 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
V 713703 1000306714 V03 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
Z 713874 1000309154 Z22 Screw;Socket Head;M10X1.5PX155L-20;;Hex No Model Compatibility List $8.42 / Each

2
Z 713888 1000309285 Z23 Screw;Hex Socket;Socket Head;M12X1.75PX3 No Model Compatibility List $3.35 / Each

2
714761 1000317877 H07 PLASTIC LINER;Fixing Tube;;POM;;;GM43; No Model Compatibility List $5.04 / Each

9,3
714868 1000319248 C21 Back Pad;;PU,Vesicant;Clay Red;;FW201-KM No Model Compatibility List $162.21 / Each

4,5,6,12,13,14
714869 1000319252 C21 Back Pad;;PU,Vesicant;Slate Blue;;FW201- No Model Compatibility List $162.21 / Each

4,5,6,12,13,14
714870 1000319257 C21 Back Pad;;PU,Vesicant;Beauty Red;;FW201- No Model Compatibility List $162.21 / Each

4,5,6,12,13,14
714871 1000319286 C39 Seat Pad;Down;PU,Vesicant;Clay Red;;FW20 No Model Compatibility List $45.60 / Each

12,13,14
714872 1000319287 C39 Seat Pad;Down;PU,Vesicant;Slate Blue;;FW No Model Compatibility List $45.60 / Each

12,13,14
714873 1000319288 C39 Seat Pad;Down;PU,Vesicant;Beauty Red;;FW No Model Compatibility List $45.60 / Each

12,13,14
V 715803 1000328440 V06 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
D 717488 1000345448 D16 Foam;;;Diam.30.4x5.0tx375L;Grip;PL210 No Model Compatibility List $23.63 / Each

11
717492 1000345520 AH2 Adjust set;Semi-Assy;back;;;PL204;; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
H 717495 1000345567 H12 ADJ Rod;;;;;PL211; No Model Compatibility List $13.49 / Each

3
D 717501 1000345601 D19 Axle, central;Swivel;;40CRMO;;PL211;; No Model Compatibility List $37.15 / Each

8
G 717502 1000345602 G26 SLEEVE;Swivel;;20#;Chrome;PL211;Diam.15x No Model Compatibility List $10.11 / Each

7,3,12,13,14
717511 1000345659 B12 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

9,4,5,6
A 717519 1000345724 AH1 Seat Adjustment-Exreawork;Adjustable;;Cr No Model Compatibility List $10.11 / Each

12,13,14
N 717521 1000345738 Not Shown Hardware Set;Semi-Assy;;;;PL210-KM; No Model Compatibility List $180.80 / Each

1
V 717522 1000345761 V02 Instructional Labe;;;;;Left-Rear;;PL204- No Model Compatibility List $15.18 / Each

1
V 717523 1000345762 V10 Adjustable Indication Decal;Adjustic;;;; No Model Compatibility List $2.18 / Each

7,3
717524 1000345763 Not Shown Manual;Assembly Manual;;;;PL204-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Z 718622 1000352277 Z06 Stopper Pin;;;20CrMo;;PL210-KM;Diam.8x46 No Model Compatibility List $11.80 / Each

12,13,14
V 718931 1000354353 V09 Decal;;15lbs;;;;;Starting Resistance;PL2 No Model Compatibility List $3.35 / Each

7,3,10
V 718932 1000354354 V11 Adjustable Indication Decal;;;;;;;PL204 No Model Compatibility List $2.18 / Each

7,3
D 719254 1000358967 D14 End Cap;Pedal Arm;;PP;BL/Black C;Diam.76 No Model Compatibility List $3.35 / Each

8,9,3,4,5,6
719270 1000359190 1 Frame Set;Semi-Assy;left;;;PL204;Iced Sl No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719271 1000359191 AB1 Frame Set;;L;painting;;Iced Sliver;PL204 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719272 1000359202 2 Frame Set;Semi-Assy;right;;;PL204;Iced S No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719273 1000359203 AB2 Frame Set;;R;painting;;Iced Sliver;PL204 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719274 1000359214 3 Pedal Arm set;Semi-Assy;left;;;PL204;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719275 1000359215 AD1 Pedal Arm Set;;L;painting;;Iced Sliver;P No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719276 1000359228 4 Pedal Arm set;Semi-Assy;right;;;PL204;Ic No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719277 1000359230 AD2 Pedal Arm Set;;R;painting;;Iced Sliver;P No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719278 1000359255 5 Seat set;Semi-Assy;mid;;;PL204;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
719279 1000359257 AT1 Seat Set;;M;painting;;Iced Sliver;PL204; No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
6 719281 1000359278 6 Adjustment Pin Assembly;Semi-Assy;back;; No Model Compatibility List $168.97 / Each

3,4,5,6,12,13,14
719283 1000359295 AG1 Connecting Set;Frame;U;painting;;Iced Sl No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719284 1000359312 AG5 Connecting Set;Frame;D;painting;;Iced Sl No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719286 1000359323 AG4 Connecting Set;Fixing;D;painting;;Iced S No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719287 1000359332 AG2 Connecting Set;Frame;;painting;;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock 		3
G 719336 1000359932 G28 Plug;;;PE;BL/Black C;;PL210-KM; No Model Compatibility List $1.33 / Each

4,5,6
719443 1000361554 7 Link set;Semi-Assy;down;;;PL204;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
Stopper;Pad;PL01 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $17.55 / Each

12,13,14
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

3
Rubber PadBlack;PL07KM-G3 728779 097335 C17 Rubber PadBlack;PL07KM-G3 No Model Compatibility List $8.42 / Each

4,5,6,12,13,14
G 728949 991668-AC G31 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
