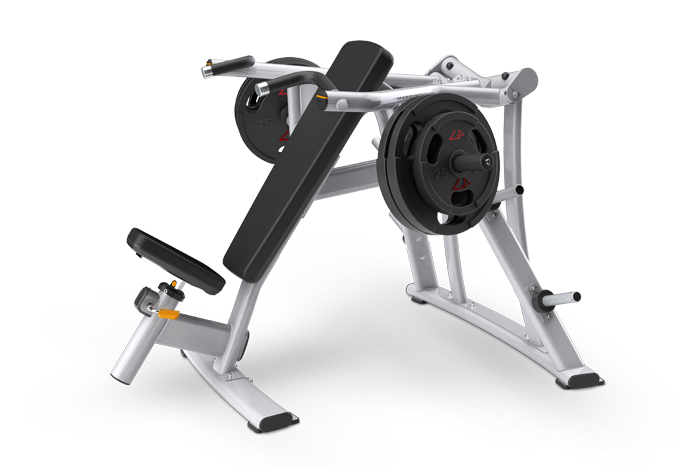

Matrix Commercial - MG-PL23 - 2014

Repair Parts for Matrix Commercial MG-PL23 PL06

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL23

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700447 001401-A B36 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
D 700448 001402-A D20 End Cap;Round No Model Compatibility List $1.79 / Each

9
End Cover;60 700450 001405-A Q04 End Cover;60 No Model Compatibility List $1.66 / Each

9
Rubber Stop;CAM 700519 001523-E G39 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
D 701159 004077-A2 D18 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Z 701470 004519-AE Z11 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
Z 701505 004539-AD Z03 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 701836 004855-AC D10 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
C 701943 004978-00 C35 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

2
D 701968 005007-00 D22 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z07 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702056 005084-00 Z31 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702098 005130-00 Z23 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D15 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Decal;Matrix Logo 702318 005990-E V06 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
Decal;Serial Number;Aluminum 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
Z 702505 008234-C Z27 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
D 702530 008522-C D12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Z 702531 008523-B Z06 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
D 702710 009355-B D16 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702722 009372-E D19 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
Adjust Pin Assembly;Yellow Knob 702944 013411-Z1G2 B32 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
Pull pin knob; Yellow 703902 019153-A B22 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
B 704001 020090-00 B20 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Screw;Hex Socket;Round;M8x1.25Px15L;Chromed 704004 020096-00 H07 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
D 704034 020123-AC D23 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 704074 020186-00 Z39 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Z 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Z 704186 020453-Z Z35 Washer;Flat;Diam.20.5xDiam.30x2.5t;;; No Model Compatibility List $3.35 / Each

2
D 704189 020459-00 D27 Washer;Flat;10.2X28.5X3.0T No Model Compatibility List $1.85 / Each

2
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
Z 705163 038449-A Z37 Clip;Tapped Hole;FE;M5;YZN No Model Compatibility List $9.10 / Each

2
Bushing;Brass 705562 050468-A H56 Bushing;Brass No Model Compatibility List $3.64 / Each

8
B 706373 061531-AA B19 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
C 707073 1000090024 C36 Screw;PH;M10X1.5PX30L;;;;;;SP No Model Compatibility List $8.42 / Each

2
Sticker;Weight;PL06 707074 1000090028 V02 Sticker;Weight;PL06 No Model Compatibility List $3.35 / Each

3
V 707078 1000090043 V18 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
Pull Pin Handle;Orange;TPP;137C;MS10 707084 1000090177 B41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
708037 1000098086 Z21 Spring Pin;;Diam.4x20;;; No Model Compatibility List $2.18 / Each

2,12,13,14
Z 708091 1000099499 Z29 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
Pull Pin Set;Orange Knob 708099 1000099693 H09 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
Z 708654 1000104681 Z19 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
C 708658 1000104685 C05 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
D 709019 1000108308 D47 Cu Bushing;20x26x16t;GM46 No Model Compatibility List $9.80 / Each

8
D 709078 1000108924 D26 Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $9.10 / Each

2
V 709081 1000109127 V29 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
Logo Label;MATRIX;BLACK WORD/WHITE BASE; 709507 1000200848 V02 Logo Label;MATRIX;BLACK WORD/WHITE BASE; No Model Compatibility List $3.35 / Each

3,4,5,6
J 709730 1000202479 J03 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
J 709731 1000202480 J04 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
C 709732 1000202481 C80 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
D 710215 1000207633 D24 Swivel Axle;20cm;PL01 No Model Compatibility List $76.96 / Each

8
Z 711692 1000222320 Z33 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
C 713544 1000304992 C21 Back Pad;;PU;Black;;FW201-KM; No Model Compatibility List $147.00 / Each

4,5,6,12,13,14
713545 1000304993 C81 Cover;Back Cover;;ABS No Model Compatibility List $38.99 / Each

9,4,5,6
C 713593 1000305377 C83 Cover;Back Cover;;PA746;FW203-KM No Model Compatibility List $11.80 / Each

9,4,5,6
C 713596 1000305393 C41 Stopper Pin;;;45#;Chrome;FW203-KM No Model Compatibility List $18.56 / Each

7,12,13,14
C 713598 1000305397 C43 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
713599 1000305398 C45 Spring;Recoil (constant force);Diam.2.0X No Model Compatibility List $1.66 / Each

2
C 713643 1000306098 C76 Plastic Cover;Adjust Machine;;ABS/PA757; No Model Compatibility List $3.35 / Each

9,4,5,6
A 713644 1000306099 AJ1 grip-Extrawork;Adjustable;;Cr Plate;FW20 No Model Compatibility List $35.46 / Each

3,11
V 713703 1000306714 V16 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
V 714331 1000313739 V23 Adjustable Indication Decal;;;;;;;FW224- No Model Compatibility List $3.35 / Each

7,3
714958 1000320479 B08 Support Plate;STOPPER PAD;;painting;;MAT No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
V 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
A 717494 1000345552 AT1 Seat Adjustment-Exreawork;;;Cr Plate;;PL No Model Compatibility List $11.80 / Each

3,12,13,14
717511 1000345659 B10 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

9,4,5,6
V 717820 1000347782 V04 Marking;;70x42mm;Black Word/Silver Base; No Model Compatibility List $1.66 / Each

3,4,5,6
N 717884 1000348240 Not Shown Hardware Set;Semi-Assy;;;;PL06B-KM; No Model Compatibility List $101.37 / Each

1
D 717912 1000348612 D11 End Cap;;;;BL/Black C;Diam.60;PL02B;PP+T No Model Compatibility List $5.90 / Each

9,4,5,6
718000 1000349162 1 Frame set;;;Iced Sliver;PL06KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718001 1000349163 2 Base Set;;;Iced Sliver;PL06KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718002 1000349164 3 Link Set;;front;Iced Sliver;PL06KM-G3;;S No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718003 1000349165 4 pedal arm set;;left;Iced Sliver;PL06KM-G No Model Compatibility List $253.47 / Each

8,9,3
718004 1000349166 5 pedal arm set;;right;Iced Sliver;PL06KM- No Model Compatibility List $253.47 / Each

8,9,3
718005 1000349167 6 seat set;;;Iced Sliver;PL06KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
718006 1000349168 1 Stabilizer Tube Set;;;Iced Sliver;PL06KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718175 1000349431 AB1 Frame Set;;;painting;;Iced Sliver;PL06KM No Model Compatibility List $844.97 / Each

3
718176 1000349438 AC3 CON Tube Set;Swivel Arm;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718177 1000349439 AC4 ConnectingTube;;Front-Rear;painting;;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718178 1000349440 AC5 Pull Pin Fixing Set;;;painting;;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
718322 1000350533 V25 Instructional Labe;Manual;;;;;English;PL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Z 718622 1000352277 Z25 Stopper Pin;;;20CrMo;;PL210-KM;Diam.8x46 No Model Compatibility List $11.80 / Each

12,13,14
V 718650 1000352553 V02 Decal;Weight;12LBS;;;;;starting resistan No Model Compatibility List $3.35 / Each

7,3
719181 1000356735 2 User frame set;Semi-Assy;;;;PL06;Iced Sl No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719184 1000356767 3 Connect Tube Set;Semi-Assy;;;;PL06B;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 719185 1000356782 AC3 CON Tube Set;SEAT PAD;;painting;;Iced Sl No Model Compatibility List $321.07 / Each

3,12,13,14
719188 1000356807 AC4 CON Tube Set;;Front-Rear;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
4 719191 1000356835 4 Pedal Arm set;Semi-Assy;left;;;PL06B;Ice No Model Compatibility List $217.98 / Each

8,9,3
719192 1000356851 5 Pedal Arm set;Semi-Assy;right;;;PL06B;Ic No Model Compatibility List $217.98 / Each

8,9,3
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Stopper;Pad;PL01 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $17.55 / Each

12,13,14
Cap;Tube;Elliptical;PL01 727016 086683 G01 Cap;Tube;Elliptical;PL01 No Model Compatibility List $3.35 / Each

9,3
Swivel Plate;Seat;PL01 727021 086712 T08 Swivel Plate;Seat;PL01 No Model Compatibility List $54.55 / Each

3,12,13,14
Cap;ADJ Base PL01 727022 086713 T12 Cap;ADJ Base PL01 No Model Compatibility List $3.35 / Each

9,3
Foam;For50.8 Food Pad;PL01 727027 086732 G04 Foam;For50.8 Food Pad;PL01 No Model Compatibility List $17.76 / Each

12,13,14
Swivel Mandrel;Seat ;PL01 727050 086902 T09 Swivel Mandrel;Seat ;PL01 No Model Compatibility List $27.79 / Each

12,13,14
Indication Decal;PL01 727051 086903 V03 Indication Decal;PL01 No Model Compatibility List $1.66 / Each

7,3
Air Shock;18kg;125L;PL01 727052 086904 R01 Air Shock;18kg;125L;PL01 No Model Compatibility List $31.88 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

1
Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

4,5,6,12,13,14
Fixing Plate;Seat ADJPL01 728182 093485 C22 Fixing Plate;Seat ADJPL01 No Model Compatibility List $15.42 / Each

3,12,13,14
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

3
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
728501 095114 D08 Supt Tube;Storage Horn;R;50.8x3.0tx253L No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Foam;Grip;28x5.0tx348L;PL06 728503 095120 D17 Foam;Grip;28x5.0tx348L;PL06 No Model Compatibility List $26.96 / Each

11
Hardware Kit;Semi-Assy;PL06 728505 095123 Not Shown Hardware Kit;Semi-Assy;PL06 No Model Compatibility List $198.04 / Each

1
Console Rear Cover;ABS/PA746;DG/80435;EP603 728507 095126 N02 Console Rear Cover;ABS/PA746;DG/80435;EP603 No Model Compatibility List $75.14 / Each

7,9
729012 Order Kit 1 AC1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AC7 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AC2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix C39 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
906040 Order Kit 5 AD2 Cover;Sensor;right;ABS/PA746;426C;;TM502 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,7
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
