Matrix Commercial - MG-PL76 - 2014

Repair Parts for Matrix Commercial MG-PL76 PL214

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: MG-PL76

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
G 700308 000926-A G04 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
Z 701836 004855-AC Z41 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701968 005007-00 Z13 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z21 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702030 005062-00 Z27 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
Z 702102 005132-00 Z15 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702531 008523-B Z23 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
D 702706 009347-B D52 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
Z 704319 022400-A Z33 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
B 706373 061531-AA B06 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
B 707084 1000090177 B62 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
708037 1000098086 Z09 Spring Pin;;Diam.4x20;;; No Model Compatibility List $2.18 / Each

2,12,13,14
Z 708453 1000102869 Z43 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Z 708471 1000102889 Z37 Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; No Model Compatibility List $2.18 / Each

2
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
Z 709136 1000110291 Z19 Screw;SH;M10x1.5Px90L;P-T20L;HS;CHM;G12. No Model Compatibility List $7.28 / Each

2
V 713703 1000306714 V04 Warning Label;;;;;;;Olympic Bench; No Model Compatibility List $8.42 / Each

1
713848 1000308754 V18 Logo Label;FW201-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714761 1000317877 C50 PLASTIC LINER;Fixing Tube;;POM;;;GM43; No Model Compatibility List $5.04 / Each

9,3
D 717426 1000345042 D70 Foam;;;Diam.31.8x5.0tx265L;Grip;PL214-KM No Model Compatibility List $18.56 / Each

11
N 717427 1000345060 Not Shown hardware set;;;;PL214-KM; No Model Compatibility List $135.17 / Each

1
B 717428 1000345062 B41 Axle;;;42CrMo;;PL214-KM;Frame set; No Model Compatibility List $67.57 / Each

8,3
H 717429 1000345063 H50 Axle;ADJ;Up;42CrMo;;PL214-KM; No Model Compatibility List $60.81 / Each

8
L 717430 1000345064 L30 Axle;Hanging Rod;;42CrMo;;PL214-KM; No Model Compatibility List $43.91 / Each

8,3
D 717431 1000345065 D72 SLEEVE;FIX;;20#;NKL;PL214-KM; No Model Compatibility List $50.67 / Each

3
V 717432 1000345074 V51 Adjustable Indication Decal;;PL214-KM; No Model Compatibility List $1.66 / Each

7,3
V 717490 1000345505 V56 Instructional Labe;Manual;;;;;English;PL No Model Compatibility List $15.18 / Each

1
H 717495 1000345567 H06 ADJ Rod;;;;;PL211; No Model Compatibility List $13.49 / Each

3
717511 1000345659 C02 Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 No Model Compatibility List $15.18 / Each

9,4,5,6
P 717885 1000348243 P53 Rubber Pad;Link Arm;;NBR;BL/Black C;;PL2 No Model Compatibility List $40.53 / Each

3,4,5,6,12,13,14
P 717891 1000348398 P55 PEDAL;Foot Pad;D;;;;PL214-KM;PU coating; No Model Compatibility List $152.07 / Each

8,9,3,12,13,14
Q 717912 1000348612 Q05 End Cap;;;;BL/Black C;Diam.60;PL02B;PP+T No Model Compatibility List $5.90 / Each

9,4,5,6
Z 718622 1000352277 Z05 Stopper Pin;;;20CrMo;;PL210-KM;Diam.8x46 No Model Compatibility List $11.80 / Each

12,13,14

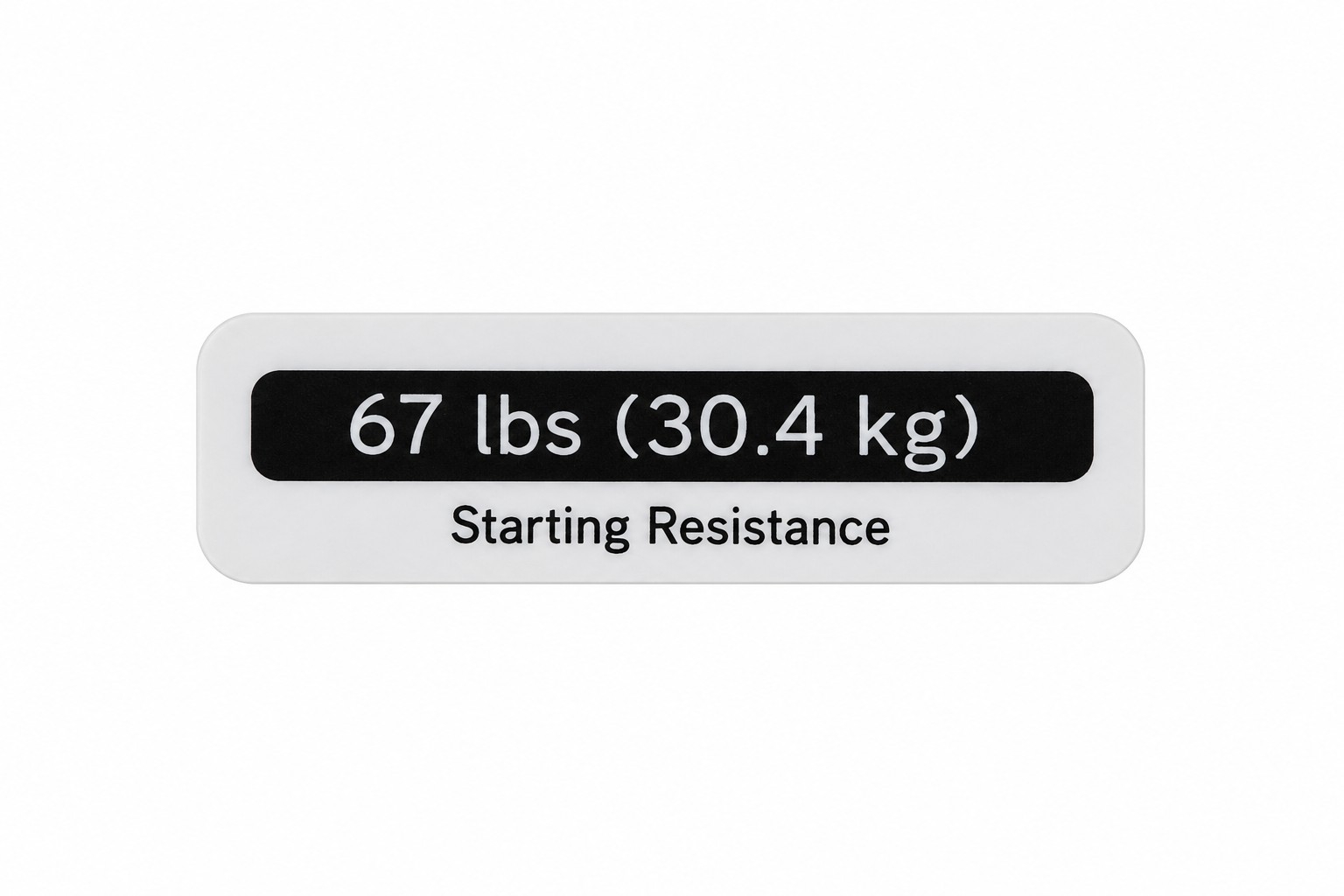

V 718647 1000352542 V42 Decal;Weight;67lbs(30.4KG);;;;;Starting No Model Compatibility List $3.35 / Each

7,3
719194 1000356882 AC3 base set;;;painting;;Iced Sliver;PL214-K No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719195 1000356888 AP3 PEDAL SET;;;painting;;Iced Sliver;PL214- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
719196 1000356898 1 Frame Set;Semi-Assy;;;;PL214-KM;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719197 1000356914 2 Pedal Arm set;Semi-Assy;;;;PL214-KM;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
719198 1000356932 3 Adjust set;Semi-Assy;down;;;PL214-KM;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719199 1000356955 4 Adjust set;Semi-Assy;up;;;PL214-KM;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719201 1000356983 5 Storage Horn Set;Semi-Assy;;;;PL214-KM;I No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
725029 101265 H16 BEARING;BALL;6004ZZ;20X42X12T;;TPI;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L 726981 086451 Z24 Screw;Hex Socket;Round;M10x1.5Px25L No Model Compatibility List $1.12 / Each

2
Swivel Arm Axle;20x138.4L;PL03 727031 086775 D12 Swivel Arm Axle;20x138.4L;PL03 No Model Compatibility List $22.72 / Each

8,3
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
729261 See Pad Matrix J10 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
