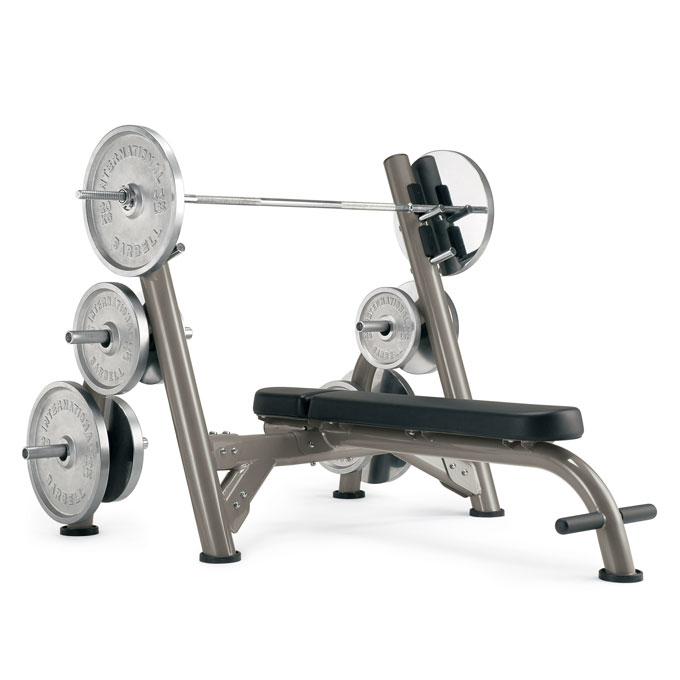

Matrix Commercial - MX-FW10 - 2002

Repair Parts for Matrix Commercial MX-FW10 FW13

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW10

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700146 000515-A E20 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700154 000524-A E14 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $38.32 / Each

2,9,3,12,13,14
B 700226 000737-D B12 Foam;Foot pad No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700232 000751-C E19 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
B 700307 000925-B B13 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

9
B 700447 001401-A B23 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
E 700451 001406-A E13 End Cover;89 No Model Compatibility List $1.79 / Each

9
700645 001757-BB not shown Pad, Back;Cabernet;FW80 Foam No Model Compatibility List $397.28 / Each

4,5,6,12,13,14
700646 001757-BM not shown Back Pad;Snap red;FW80 No Model Compatibility List $397.28 / Each

4,5,6,12,13,14
700660 001767-BB not shown Head Pad;Liquor Red;FW81 FOAM No Model Compatibility List $129.90 / Each

12,13,14
700661 001767-BM not shown Head Pad;Snap red;FW81 No Model Compatibility List $126.85 / Each

12,13,14
Z 701522 004555-AB Z21 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr; 701524 004556-AB Z35 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

2
Screw;Sink Hex Socket;M8x1.25Px25L 701537 004567-AB E15 Screw;Sink Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
E 701654 004693-AD E16 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701760 004780-AC Z09 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
Z 701761 004781-00 Z17 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere; No Model Compatibility List $9.10 / Each

2
Z 701787 004801-Z Z18 Screw;Hex Socket;BH;M10x1.5Px75L No Model Compatibility List $3.35 / Each

2
Z 701792 004808-AF Z19 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701801 004815-AB Z11 Screw;Umbrella Hex Scoket;M10x1.5Px115L No Model Compatibility List $8.42 / Each

2
Z 701836 004855-AC Z10 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701901 004929-00 Z16 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z12 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
E 701939 004975-00 E15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Washer;Spring;12.2x21.5x3.0t 701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z14 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702010 005046-AC Z15 Washer;Flat;8.4x15.5x2.0t;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;13x26x2.5T;Chromed 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702367 006554-C V01 Decal;Weight No Model Compatibility List $3.35 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
E 702528 008460-E E17 Cover;Frame;L;Arcylic;;;;;FW11 ACRYLIC FIBER No Model Compatibility List $222.77 / Each

9,3,4,5,6
E 702529 008461-A E22 Cover;Frame;R;Arcylic;;;;;FW11 ACRYLIC FIBER No Model Compatibility List $169.13 / Each

9,3,4,5,6
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
702932 013393-Z1 not shown PAD KIT (BLACK) FW10B-G2 No Model Compatibility List $582.35 / Each

4,5,6,12,13,14
702933 013393-Z3 not shown PAD KIT (CABERNET) FW10B-G2 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
n 703455 014756-A not shown Hardware Pack No Model Compatibility List $341.41 / Each

4,5,6
E 703702 015822-EA E11 Storage Hook;Frame;Left;FW11 Chromed No Model Compatibility List $365.14 / Each

7,3,12,13,14
E 703703 015823-EA E12 Storage Hook;Frame;Right;FW11 Chromed No Model Compatibility List $365.14 / Each

7,3,12,13,14
Screw;Hex Socket;Round;M12x1.75Px25L;Adh 704030 020119-A E18 Screw;Hex Socket;Round;M12x1.75Px25L;Adh No Model Compatibility List $1.79 / Each

2
Screw;Hex Socket;Round;M10x1.5Px120L;Chromed 704037 020125-A Z14 Screw;Hex Socket;Round;M10x1.5Px120L;Chromed No Model Compatibility List $10.35 / Each

7,2,12,13,14
B 704104 020254-AB B20 Screw;Hex Socket;Flat;M8x1.25Px30L;Adher No Model Compatibility List $3.35 / Each

2
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Z 704193 020465-AB Z13 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
704194 020465-abB Z08 Flat Washer, 6.2 x 12 x 1.0T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704833 025549-B AB1 Painting;Frame Set;;FW10BG2;;;;FW10B;FW1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704852 025579-B AE1 Painting;SupportFrameSet;R;FW10BG2;;;;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704853 025580-B AE2 Painting;SupportFrameSet;L;FW10BG2;;;;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704870 025621-B AG2 Painting;DisassemblyIntensityStrengtheni No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704882 025650-B AG1 Painting;CON Tube Set;;;;;;FW10B;FW10B-A No Model Compatibility List $0.00 / Each
Out Of Stock 		3
705081 035771-A not shown ASSEMBLY MANUAL;FW10B;FW10B-V40A EP67-US(ENGLISH) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Foot Pad;Rubber;GM151 705367 048970-BA B05 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
SCREW;SH;M10X1.5PX120L;;HS;;CHM;; 705461 049252-AB Z13 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Hardware Pack 705996 058045-A not shown Hardware Pack No Model Compatibility List $41.78 / Each

4,5,6
706030 058204-AA AB1 Painting;Frame Set;;;;;;FW13;FW13-AB1; No Model Compatibility List $628.68 / Each

3
706032 058207-AA AE1 Painting;SupportFrameSet;R;PFW13-G2;;;;F No Model Compatibility List $1057.19 / Each

3
706033 058208-AA AE2 Painting;SupportFrameSet;L;PFW13-G2;;;;F No Model Compatibility List $1057.19 / Each

3
706148 059576-A not shown Manual;Assembly;;;FW13-V40A No Model Compatibility List $16.64 / Each

3
Sticker;Weight;Blank;FW13 706974 067756-B V03 Sticker;Weight;Blank;FW13 No Model Compatibility List $3.35 / Each

3
Storage Horn Set;FW13;Cr Plate 706977 067769-AA E24 Storage Horn Set;FW13;Cr Plate No Model Compatibility List $97.66 / Each

3
Sticker ;Storage;PL02 707078 1000090043 V13 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
Connecting Tube Set 707222 1000091269 AG1 Connecting Tube Set No Model Compatibility List $610.22 / Each

3
708467 1000102884 E17 Screw;Hex Socket;Stopper;Cone;M8x1.25Px8 No Model Compatibility List $1.79 / Each

2
708476 1000102896 B09 Screw;Thin Head;M8x1.25Px30L;-;HS;-;CHM; No Model Compatibility List $1.66 / Each

2
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
E 709137 1000110295 E18 Weight Storage Horn No Model Compatibility List $93.89 / Each

3
n 710425 1000210197 not shown HEAD PAD;PU;BLACK No Model Compatibility List $76.65 / Each

4,5,6,12,13,14
Elastomer;Plastic;; 712128 1000226826 E22 Elastomer;Plastic;; No Model Compatibility List $70.77 / Each

9
Elastomer;Plastic;; 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
Hanging Rod;U;FW13;45# 712143 1000226886 E23 Hanging Rod;U;FW13;45# No Model Compatibility List $37.78 / Each

3
713615 1000305763 E08 Hanging Rod;;Up;45#;FW13-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Manual;;;English;;FW13BKM-G3 715800 1000328430 Not Shown Manual;;;English;;FW13BKM-G3 No Model Compatibility List $10.11 / Each

1
Decal;Weight;5lbs;;;;;FW13B-KM 715801 1000328438 V10 Decal;Weight;5lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
Decal;Weight;10lbs;;;;;FW13B-KM 715802 1000328439 V11 Decal;Weight;10lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
Decal;Weight;25lbs;;;;;FW13B-KM 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
717978 1000349133 2 Support rods;;right;Iced Sliver;FW13B;;S No Model Compatibility List $794.27 / Each

3
717979 1000349134 1 Support rods;;left;Iced Sliver;FW13B;;Se No Model Compatibility List $794.27 / Each

3
718145 1000349367 AB1 Frame Set;;;painting;;Iced Sliver;FW13B; No Model Compatibility List $473.17 / Each

3
CON Tube Set;;;painting;;Iced Sliver;FW1 718146 1000349370 AG1 CON Tube Set;;;painting;;Iced Sliver;FW1 No Model Compatibility List $135.17 / Each

3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Hardware;Semi-Assy;FW13-AZ2A 727381 088930 Not Shown Hardware;Semi-Assy;FW13-AZ2A No Model Compatibility List $131.09 / Each

1
Screw;FH;M8X1.25PX30L;;HS;;CHM;; 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
