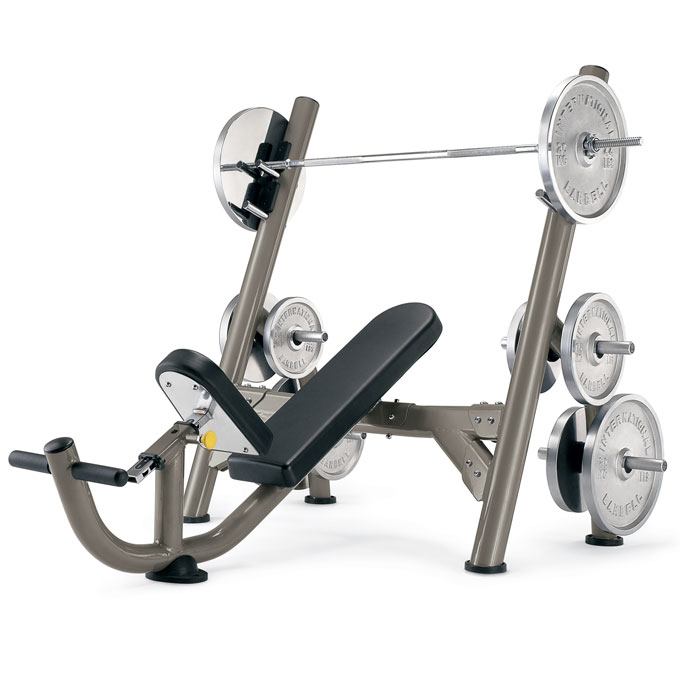

Matrix Commercial - MX-FW11 - 2002

Repair Parts for Matrix Commercial MX-FW11 FW14

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW11

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700140 000509-E B30 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700146 000515-A E20 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700154 000524-A E14 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $38.32 / Each

2,9,3,12,13,14
B 700226 000737-D B15 Foam;Foot pad No Model Compatibility List $9.10 / Each

9,3,12,13,14
E 700232 000751-C E19 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
B 700307 000925-B B16 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

9
B 700447 001401-A B17 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
E 700451 001406-A E13 End Cover;89 No Model Compatibility List $1.79 / Each

9
700645 001757-BB not shown Pad, Back;Cabernet;FW80 Foam No Model Compatibility List $397.28 / Each

4,5,6,12,13,14
700646 001757-BM not shown Back Pad;Snap red;FW80 No Model Compatibility List $397.28 / Each

4,5,6,12,13,14
Screw;Round;Hex Socket;M12x1.75Px25L 701520 004553-AB Z01 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Z 701522 004555-AB Z24 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr; 701524 004556-AB Z35 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

2
Screw;Sink Hex Socket;M8x1.25Px25L 701537 004567-AB E15 Screw;Sink Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
E 701661 004697-AD E16 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Z 701742 004764-00 Z17 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere No Model Compatibility List $2.00 / Each

2
Z 701760 004780-AC Z09 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
Z 701784 004797-AD Z22 Screw;Umbrella Hex Scoket;M10x1.5Px70L No Model Compatibility List $8.42 / Each

2
Z 701792 004808-AF Z19 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701801 004815-AB Z11 Screw;Umbrella Hex Scoket;M10x1.5Px115L No Model Compatibility List $8.42 / Each

2
Set Screw;M8x1.25Px10L 701830 004849-00 G30 Set Screw;M8x1.25Px10L No Model Compatibility List $2.00 / Each

2
701831 004849-A Z10 Screw;Stopper;M8x1.25Px10L;Adhere; M8X1.25PX10L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 701901 004929-00 Z16 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z12 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
E 701939 004975-00 E15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701941 004976-00 Z21 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Washer;Spring;Lock;8.2x15.4x2.0t 701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Washer;Spring;12.2x21.5x3.0t 701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating 701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
B 701978 005015-00 B35 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z14 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702010 005046-AC Z15 Washer;Flat;8.4x15.5x2.0t;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;13x26x2.5T;Chromed 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702367 006554-C V01 Decal;Weight No Model Compatibility List $3.35 / Each

7,3
n 702393 006621-B not shown Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
B 702505 008234-C B24 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
E 702528 008460-E E17 Cover;Frame;L;Arcylic;;;;;FW11 ACRYLIC FIBER No Model Compatibility List $222.77 / Each

9,3,4,5,6
E 702529 008461-A E22 Cover;Frame;R;Arcylic;;;;;FW11 ACRYLIC FIBER No Model Compatibility List $169.13 / Each

9,3,4,5,6
Z 702531 008523-B Z23 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
702934 013394-Z1G2 not shown PAD KIT (BLACK) FW11B-G2 No Model Compatibility List $688.09 / Each

4,5,6,12,13,14
702935 013394-Z3G2 not shown PAD KIT (CABERNET) FW11B-G2 No Model Compatibility List $603.23 / Each

12,13,14
B 702965 013422-Z1G2 B37 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
E 703702 015822-EA E11 Storage Hook;Frame;Left;FW11 Chromed No Model Compatibility List $365.14 / Each

7,3,12,13,14
E 703703 015823-EA E12 Storage Hook;Frame;Right;FW11 Chromed No Model Compatibility List $365.14 / Each

7,3,12,13,14
B 703874 018882-A B12 Foot Pad;76.2 No Model Compatibility List $18.15 / Each

9,3,12,13,14
Pull pin knob; Yellow 703902 019153-A B22 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
703908 019222-BA not shown Pad, Seat; Black FW80 Foam No Model Compatibility List $219.13 / Each

4,5,6,12,13,14
703909 019222-BB not shown Pad, Seat; Cabernet FW80 Foam No Model Compatibility List $205.95 / Each

12,13,14
n 703910 019222-BM not shown Pad, Seat;Snap Red;FW80 Foam No Model Compatibility List $205.95 / Each

12,13,14
Screw;Hex Socket;Round;M10x1.5Px120L;Chromed 704037 020125-A Z14 Screw;Hex Socket;Round;M10x1.5Px120L;Chromed No Model Compatibility List $10.35 / Each

7,2,12,13,14
B 704039 020126-DB B23 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
B 704041 020127-A B33 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
Z 704052 020139-AD Z20 Screw;Sink Hex Socket ;M10x1.5Px20L No Model Compatibility List $3.35 / Each

2
704103 020254-A B20 Screw;Hex Socket;M8x1.25Px30L;Chromed No Model Compatibility List $3.35 / Each

7,2,12,13,14
B 704104 020254-AB B20 Screw;Hex Socket;Flat;M8x1.25Px30L;Adher No Model Compatibility List $3.35 / Each

2
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Z 704193 020465-AB Z13 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
704194 020465-abB Z08 Flat Washer, 6.2 x 12 x 1.0T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704649 024625-A not shown HARDWARE KIT SET PFW11B-1 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
704834 025550-B AB1 Painting;Frame Set;;FW11BG2;;;;FW11B;FW1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704854 025581-B AE1 Painting;SupportFrameSet;R;FW11BG2;;;;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704855 025582-B AE2 Painting;SupportFrameSet;L;FW11BG2;;;;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704870 025621-B AG2 Painting;DisassemblyIntensityStrengtheni No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 704877 025636-AA AB2 Seat Welding Set;FW11 No Model Compatibility List $204.72 / Each

12,13,14
704883 025651-B AG1 Painting;DisassemblyConnectingSet ;;;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704890 025678-AA E21 PEDAL(PAINT) CHAMPAGE(FW11-E17) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,4,5,6
705082 035772-B not shown Assembly Manual No Model Compatibility List $16.64 / Each

3
Foot Pad;Rubber;GM151 705367 048970-BA B05 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
SCREW;SH;M10X1.5PX120L;;HS;;CHM;; 705461 049252-AB Z13 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Hardware Pack 705997 058046-A not shown Hardware Pack No Model Compatibility List $302.59 / Each

4,5,6
706031 058205-AA AB1 Main Frame Set - FW14 No Model Compatibility List $637.39 / Each

3
706034 058209-AA AE1 Support Frame Set - Right FW14-G2 No Model Compatibility List $1003.44 / Each

3
706035 058210-AA AE2 Support Frame Set - Left FW14-G2 No Model Compatibility List $1003.44 / Each

3
706149 059578-A not shown ASSEMBLY MANUAL mx-fw14 No Model Compatibility List $16.64 / Each

3
Hardware Kit, FW13/14/15 706651 064175-A not shown Hardware Kit, FW13/14/15 No Model Compatibility List $83.46 / Each

1
Sticker;Weight;A;FW13 706973 067755-B V05 Sticker;Weight;A;FW13 No Model Compatibility List $3.35 / Each

3
Sticker;Weight;Blank;FW13 706974 067756-B V03 Sticker;Weight;Blank;FW13 No Model Compatibility List $3.35 / Each

3
Storage Horn Set;FW13;Cr Plate 706977 067769-AA E24 Storage Horn Set;FW13;Cr Plate No Model Compatibility List $97.66 / Each

3
B 706986 067941-C B31 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
B 707066 1000090006 B19 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
Sticker ;Storage;PL02 707078 1000090043 V13 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
Pull Pin Handle;Orange;TPP;137C;MS10 707084 1000090177 B41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
Connecting Tube Set 707222 1000091269 AG1 Connecting Tube Set No Model Compatibility List $610.22 / Each

3
B 707974 1000097265 B18 Sleeve;Seat Tube No Model Compatibility List $9.75 / Each

3,12,13,14
Pull Pin Set;Seat;Orange Knob 708071 1000098871 B41 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $40.64 / Each

12,13,14
Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP 708091 1000099499 Z16 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
Screw;Set;M8x1.25Px10L;-;HS;-;CHM;BP;-;P 708468 1000102885 E12 Screw;Set;M8x1.25Px10L;-;HS;-;CHM;BP;-;P No Model Compatibility List $1.85 / Each

2
Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; 708474 1000102894 E08 Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; No Model Compatibility List $1.79 / Each

2
708476 1000102896 B09 Screw;Thin Head;M8x1.25Px30L;-;HS;-;CHM; No Model Compatibility List $1.66 / Each

2
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
E 709137 1000110295 E18 Weight Storage Horn No Model Compatibility List $93.89 / Each

3
n 710423 1000210195 not shown BACK PAD;-;PU;BLACK;-; No Model Compatibility List $250.04 / Each

4,5,6,12,13,14
SEAT PAD;-;PU;BLACK;-; 710424 1000210196 J30 SEAT PAD;-;PU;BLACK;-; No Model Compatibility List $125.92 / Each

4,5,6,12,13,14
BACK PAD;-;PU;RED;-; 710435 1000210265 J31 BACK PAD;-;PU;RED;-; No Model Compatibility List $250.04 / Each

4,5,6,12,13,14
SEAT PAD;-;PU;RED;-; 710436 1000210266 J30 SEAT PAD;-;PU;RED;-; No Model Compatibility List $116.58 / Each

12,13,14
BACK PAD;-;PU;MIST BLUE;-; 710441 1000210285 J31 BACK PAD;-;PU;MIST BLUE;-; No Model Compatibility List $483.31 / Each

4,5,6,12,13,14
SEAT PAD;-;PU;MIST BLUE;-; 710442 1000210286 J30 SEAT PAD;-;PU;MIST BLUE;-; No Model Compatibility List $241.64 / Each

12,13,14
BACK PAD;-;PU;CLAY RED;-; 710448 1000210305 J31 BACK PAD;-;PU;CLAY RED;-; No Model Compatibility List $483.31 / Each

4,5,6,12,13,14
SEAT PAD;-;PU;CLAY RED;-; 710449 1000210306 J30 SEAT PAD;-;PU;CLAY RED;-; No Model Compatibility List $241.64 / Each

12,13,14
Elastomer;Plastic;; 712128 1000226826 E22 Elastomer;Plastic;; No Model Compatibility List $70.77 / Each

9
Elastomer;Plastic;; 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
Hanging Rod;U;FW13;45# 712143 1000226886 E23 Hanging Rod;U;FW13;45# No Model Compatibility List $37.78 / Each

3
713615 1000305763 E08 Hanging Rod;;Up;45#;FW13-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Decal;Weight;5lbs;;;;;FW13B-KM 715801 1000328438 V10 Decal;Weight;5lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
Decal;Weight;10lbs;;;;;FW13B-KM 715802 1000328439 V11 Decal;Weight;10lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
Decal;Weight;25lbs;;;;;FW13B-KM 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
Manual;;;English;;FW14BKM-G3 715805 1000328448 Not Shown Manual;;;English;;FW14BKM-G3 No Model Compatibility List $10.11 / Each

1
Pull Pin Set;;;;FW15B-KM;; 716536 1000337154 AB3 Pull Pin Set;;;;FW15B-KM;; No Model Compatibility List $33.77 / Each

12,13,14
Frame set;;;Iced Sliver;FW14B;;Service 717980 1000349135 3 Frame set;;;Iced Sliver;FW14B;;Service No Model Compatibility List $437.68 / Each

3
717981 1000349136 2 Support rods;;right;Iced Sliver;FW14B;;S No Model Compatibility List $794.27 / Each

3
717982 1000349137 1 Support rods;;left;Iced Sliver;FW14B;;Se No Model Compatibility List $794.27 / Each

3
718147 1000349372 AG1 CON Tube Set;;;painting;;Iced Sliver;FW1 No Model Compatibility List $185.87 / Each

3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
727364 088837 not shown Manual;Assembly;FW14KM-G3 No Model Compatibility List $17.94 / Each

3
Hardware;Semi-Assy;FW14KM-G3 727365 088840 Not Shown Hardware;Semi-Assy;FW14KM-G3 No Model Compatibility List $187.38 / Each

1
728035 092790 J31 Back Pad;LA Slate Gray;FW80KM-G3 No Model Compatibility List $421.59 / Each

4,5,6,12,13,14
728036 092791 J30 Seat Pad;LA Slate Gray;FW80KM-G3 No Model Compatibility List $238.26 / Each

12,13,14
728565 095343 AE2 LEFT SUPPORT FRAME No Model Compatibility List $1.30 / Each

3
RIGHT SUPPORT FRAME 728566 095344 AE1 RIGHT SUPPORT FRAME No Model Compatibility List $1.30 / Each

3
Screw;FH;M8X1.25PX30L;;HS;;CHM;; 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AH03 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
