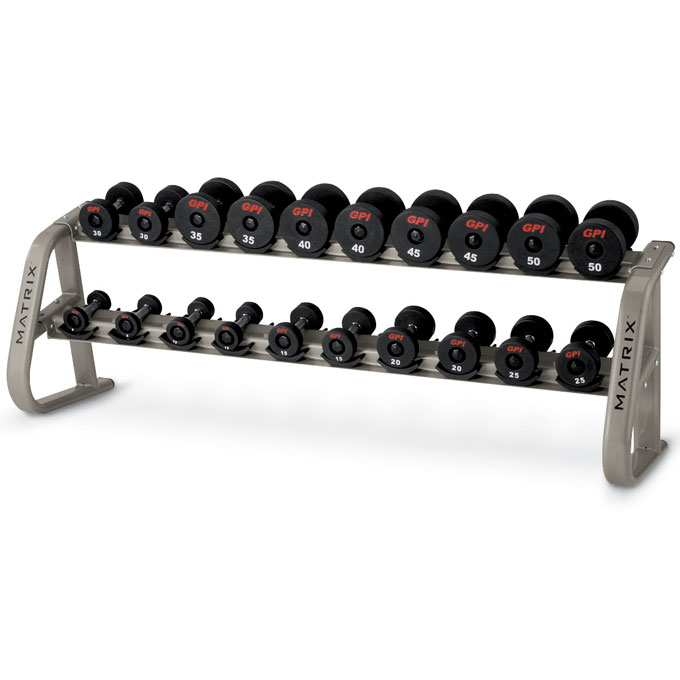

Matrix Commercial - MX-FW91 - 2002

Repair Parts for Matrix Commercial MX-FW91 FW91

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW91

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700249 000776-A G05 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
G 700308 000926-A G04 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
G 701545 004573-AE G11 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Screw;Hex Socket;BH;M10x1.5Px25L;Adhere 701758 004780-00 Z05 Screw;Hex Socket;BH;M10x1.5Px25L;Adhere No Model Compatibility List $2.00 / Each

2
D 701760 004780-AC D27 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701784 004797-AD D24 Screw;Umbrella Hex Scoket;M10x1.5Px70L No Model Compatibility List $8.42 / Each

2
D 701792 004808-AF D25 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
D 701914 004943-00 D21 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
D 701936 004972-Z D26 Insert Nut;ALS7-616-150(0.02-0.15); ALS7-616-150(0.02-0.15) No Model Compatibility List $1.66 / Each

2
Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) 701941 004976-00 L04 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701981 005017-00 D23 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
D 702100 005131-00 D22 Washer;Flat;10.5x18x2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Insert Nail;1/8'X7.5L(4-1); 702296 005499-00 V19 Insert Nail;1/8'X7.5L(4-1); No Model Compatibility List $1.66 / Each

1
702317 005990-D V09 Label(FW94-V02D) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Decal;Matrix Logo 702318 005990-E V06 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
Decal;Serial Number;Aluminum 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
n 703458 014759-A not shown Hardware Pack No Model Compatibility List $105.56 / Each

4,5,6
703691 015811-A AG1 DUMBBELLS PLACE SET(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
703692 015811-AB AG1 DUMBBELLS PLACEMENT SET(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
703693 015811-AC AG1 DUMBBELLS PLACEMENT SET(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
703694 015811-AD AG1 DUMBBELLS PLACEMENT SET(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,4,5,6,12,13,14
703870 018874-BA D30 Foot Pad No Model Compatibility List $1.66 / Each

9,3,12,13,14
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704848 025572-A AD1 SUPPORT FRAME WELDING SET (CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704849 025572-AB AD1 SUPPORT FRAME WELDING SET (PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704850 025572-AC AD1 SUPPORT FRAME WELDING SET (SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704851 025572-AD AD1 SUPPORT FRAME WELDING SET (ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
SUPPORT FRAME SET - Left FW91-G2- Pol. Titan 704858 025585-B AD1 SUPPORT FRAME SET - Left FW91-G2- Pol. Titan No Model Compatibility List $816.37 / Each

3
704859 025586-B AD2 SUPPORT FRAME SET - Right FW91-G2- Pol. Titan No Model Compatibility List $816.37 / Each

3
704866 025610-B AG2 Support Frame Set No Model Compatibility List $1.30 / Each

3
705086 035777-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
hardware set;;2;;FW90/91;; 706635 064018-A Not Shown hardware set;;2;;FW90/91;; No Model Compatibility List $10.11 / Each

1
Rubber Pad;Fixing;GM40 707824 1000096017 Not Shown Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

12,13,14
Screw;Hex Socket;BH;M10x1.5Px70L;Cr Plat 708460 1000102876 Z05 Screw;Hex Socket;BH;M10x1.5Px70L;Cr Plat No Model Compatibility List $5.80 / Each

2
Screw;Hex Socket;BH;M10x1.5Px120L;Cr Pla 708462 1000102878 Z06 Screw;Hex Socket;BH;M10x1.5Px120L;Cr Pla No Model Compatibility List $6.73 / Each

2
Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; 708471 1000102889 G11 / Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; No Model Compatibility List $2.18 / Each

2
RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) 708658 1000104685 D26 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
714884 1000319422 Not Shown Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $16.87 / Each

3
Support rods;;;Iced Sliver;FW91KM-G3;;Se 717973 1000349128 1 Support rods;;;Iced Sliver;FW91KM-G3;;Se No Model Compatibility List $219.67 / Each

3
Support rods;;right;Iced Sliver;FW91KM-G 717974 1000349129 2 Support rods;;right;Iced Sliver;FW91KM-G No Model Compatibility List $163.90 / Each

3
718141 1000349360 AG3 Support Rack Set;;M;painting;;Iced Slive No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
727951 092173 Not Shown Manual;Assembly;FW91 No Model Compatibility List $17.94 / Each

3
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
Decal, Dumbbell rack, LA Fit 729745 ZMS4004494 Not Shown Decal, Dumbbell rack, LA Fit No Model Compatibility List $27.01 / Each
Out Of Stock 		7,3,4,5,6
View Drawing
