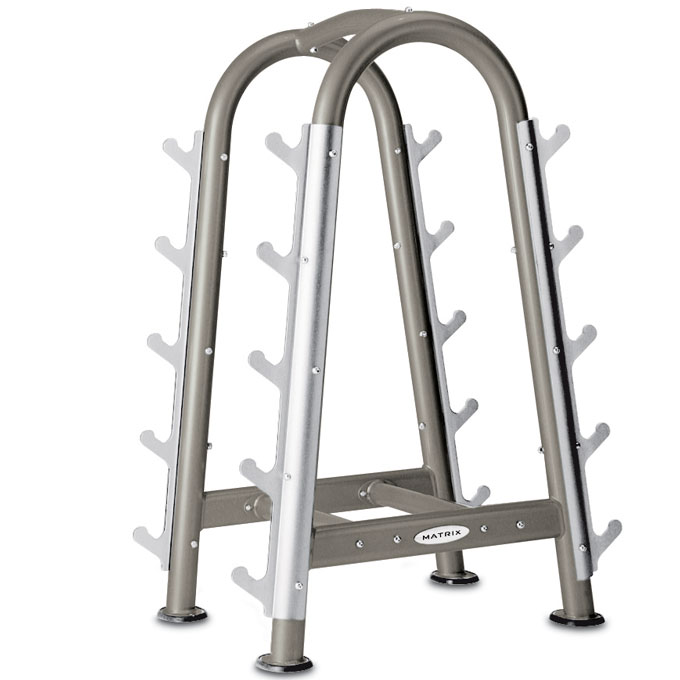

Matrix Commercial - MX-FW93 - 2002

Repair Parts for Matrix Commercial MX-FW93 FW96

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW93

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700166 000554-A B12 Foot pad;Rubber No Model Compatibility List $14.46 / Each

9,3,12,13,14
ROUND HEX SOCKET SCREW M10X1.5PX75L 701466 004518-AB C20 ROUND HEX SOCKET SCREW M10X1.5PX75L No Model Compatibility List $8.42 / Each

2
Screw;Hex Socket;M8x1.25Px15L;Cr 701653 004693-AC H15 Screw;Hex Socket;M8x1.25Px15L;Cr No Model Compatibility List $2.44 / Each

2
B 701654 004693-AD B13 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
G 701787 004801-Z G08 Screw;Hex Socket;BH;M10x1.5Px75L No Model Compatibility List $3.35 / Each

2
B 701799 004814-AB B08 Screw;Umbrella Hex Socket;M10x1.5Px100L No Model Compatibility List $18.23 / Each

2
G 701914 004943-00 G09 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) 701939 004975-00 F03 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
G 701981 005017-00 G07 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
G 704193 020465-AB G06 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;10.2x22.0x2.0T;Chromed 704206 020479-A E33 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704843 025559-AA AB1 Frame, Main No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704878 025640-A B07 Hook, Bar Storage, Left, Chromed No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
704881 025646-A B06 Hook, Bar Storage, Right, Chromed No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
705087 035779-B not shown Assembly Manual No Model Compatibility List $16.64 / Each

3
705950 056844-A not shown Assembly Manual No Model Compatibility List $16.64 / Each

3
Hardware Pack 705998 058047-A not shown Hardware Pack No Model Compatibility List $83.46 / Each

4,5,6
706028 058197-AA AB1 Frame Set - Left No Model Compatibility List $1.30 / Each

3
706029 058198-AA AB2 Frame Set - Right No Model Compatibility List $1.30 / Each

3
hardware set;;2;;FW96;; 706652 064176-A Not shown hardware set;;2;;FW96;; No Model Compatibility List $33.77 / Each

1
A 707602 1000093600 AG1 Connecting Tube Set;Lower No Model Compatibility List $325.60 / Each

3
G 707604 1000093606 G04 Connecting Tube Set;Upper No Model Compatibility List $186.91 / Each

3
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Hanging Rod;45#;Cr Plate;FW96 712032 1000225334 B11 Hanging Rod;45#;Cr Plate;FW96 No Model Compatibility List $29.30 / Each

3
Elastomer;Plastic;; 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
717975 1000349130 1 Frame set;;left;Iced Sliver;FW96KM-G3;;S No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717976 1000349131 2 Frame set;;Right;iced sliver;fw96km-g3 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718143 1000349364 AG4 CON Tube Set;;U;painting;;Iced Sliver;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718144 1000349365 AG1 CON Tube Set;;D;painting;;Iced Sliver;FW No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
Screw;FH;M8X1.25PX30L;;HS;;CHM;; 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
