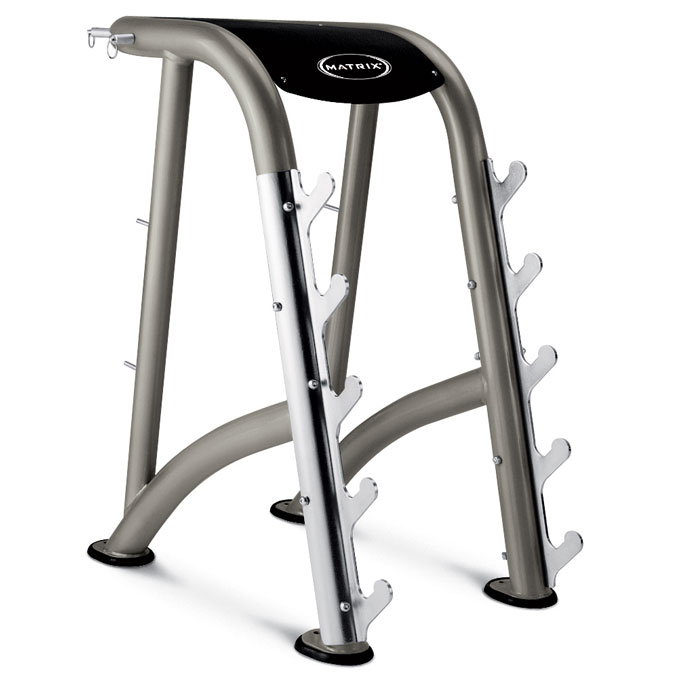

Matrix Commercial - MX-FW95 - 2002

Repair Parts for Matrix Commercial MX-FW95 FW97

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: MX-FW95

Version: 2002

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700166 000554-A B13 Foot pad;Rubber No Model Compatibility List $14.46 / Each

9,3,12,13,14
Screw;Sink Hex Socket;M8x1.25Px25L 701537 004567-AB E15 Screw;Sink Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Screw;Hex Socket;M8x1.25Px15L;Cr 701653 004693-AC H15 Screw;Hex Socket;M8x1.25Px15L;Cr No Model Compatibility List $2.44 / Each

2
B 701654 004693-AD B31 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;BH;M6x1.0Px15L;Cr 701682 004714-AC G25 Screw;Hex Socket;BH;M6x1.0Px15L;Cr No Model Compatibility List $1.66 / Each

2
B 701683 004714-AD B30 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
B 701799 004814-AB B33 Screw;Umbrella Hex Socket;M10x1.5Px100L No Model Compatibility List $18.23 / Each

2
B 701834 004853-AC B32 Set Screw;M6X1.0PX5L;Chrome No Model Compatibility List $1.79 / Each

7,2,12,13,14
Nut;Nylon;M6x1.0P;Zinc 701893 004925-00 B57 Nut;Nylon;M6x1.0P;Zinc No Model Compatibility List $2.00 / Each

2
B 701914 004943-00 B36 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B37 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
B 701981 005017-00 B35 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 702252 005380-A B15 Hanging Ring No Model Compatibility List $3.64 / Each

1
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
B 702526 008458-E B09 LEFT WEIGHT STORAGE HOOK 8.0T SPC No Model Compatibility List $473.64 / Each

3
B 702527 008459-E B10 RIGHT WEIGHT STORAGE HOOK 8.0T SPC No Model Compatibility List $473.64 / Each

3
B 702661 009259-B B14 Connecting Rod;Hang Ring;;SS41;;;;;FW95 No Model Compatibility List $3.64 / Each

3
B 702731 009384-B B11 Support Rod;;;SS41;;;;;FW95 No Model Compatibility List $3.35 / Each

3
B 702732 009385-B B12 Support Rod;Hang Ring;;SS41;;;;;FW95 No Model Compatibility List $9.10 / Each

3
B 704193 020465-AB B34 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704655 024631-A not shown HARDWARE KIT SET PFW95-1 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
704826 025543-AA AB1 FRAME WELDING SET CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704827 025543-AB AB1 FRAME WELDING SET PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704828 025543-AC AB1 FRAME WELDING SET SILK PEARL No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704829 025543-AD AB1 FRAME WELDING SET ANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
705949 056843-A KIT Assembly Manual No Model Compatibility List $16.64 / Each

3
706027 058196-AA AB1 Frame Set - FW97-AB1;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 706477 062620-AA B16 Rubber Pad;Accent;FW95 No Model Compatibility List $58.40 / Each

4,5,6,12,13,14
Hanging Rod;45#;Cr Plate;FW96 712032 1000225334 B11 Hanging Rod;45#;Cr Plate;FW96 No Model Compatibility List $29.30 / Each

3
Elastomer;Plastic;; 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
717977 1000349132 AB11 Frame set;;;Iced Sliver;FW97KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719680 1000363753 V15 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720234 1000369810 Not Shown Label set;Semi-Assy;;;English/French;FW9 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720311 1000371356 V27 Series no. Label;;;;PETP;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722606 1000395438 B16 Cushion;Accent Plate;;PVC;BL/Black C;3.0 No Model Compatibility List $133.48 / Each

3,4,5,6
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
727510 089676 V41 Manual;Assembly;FW97 No Model Compatibility List $17.94 / Each

3
727511 089685 Not Shown Label Set;Semi-Assy;FW97-SNAP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
728804 097525 AB11 MAIN FRAME SET No Model Compatibility List $2.60 / Each

3
Screw;FH;M8X1.25PX30L;;HS;;CHM;; 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
