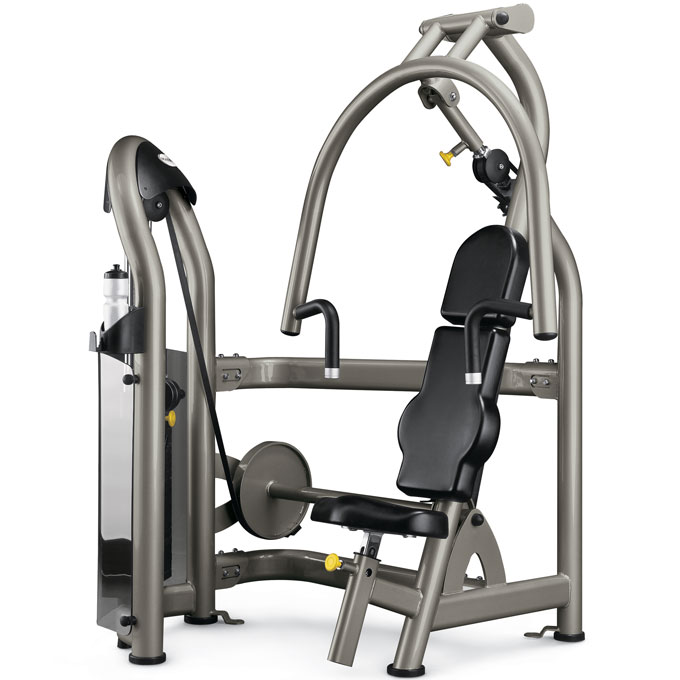

Matrix Commercial - MX-S10 - 2002-2004

Repair Parts for Matrix Commercial MX-S10 GM02

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: MX-S10

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
C 700140 000509-E C37 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700168 000569-B D10 Foam Grip:30.4x5.0tx325L No Model Compatibility List $23.01 / Each

11
B 700256 000791-B B24 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700450 001405-A Q04 End Cover;60 No Model Compatibility List $1.66 / Each

9
C 700457 001415-BA C49 End Cover;Seat Tube Sleeve;Nylon No Model Compatibility List $1.72 / Each

9,3,12,13,14
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
H 700518 001522-B H09 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
J 700539 001564-AA J13 Sleeve;Seat Post Tube No Model Compatibility List $2.24 / Each

3,12,13,14
700577 001711-CA J04 Pad, Seat(BLACK) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700578 001711-CB J04 Pad, Seat(RED) Pad, Seat (CABERNET) No Model Compatibility List $185.07 / Each

12,13,14
700579 001711-CD J04 Pad, Seat,(PURLISH RED) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700580 001711-CE J04 Pad, Seat,(GRAY) Pad, Seat, (STONE) No Model Compatibility List $185.07 / Each

12,13,14
700581 001711-CF J04 Pad, Seat,(BROWN) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700582 001711-CG J04 Pad, Seat,(BLACKLISH GREEN) FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
700606 001740-CB J06 Pad, Back(RED) FOAM No Model Compatibility List $275.21 / Each

4,5,6,12,13,14
700607 001740-CC J06 Pad, Back(BLUE) FOAM No Model Compatibility List $275.21 / Each

4,5,6,12,13,14
700608 001740-CD J06 Pad, Back(PURLISH RED) FOAM No Model Compatibility List $275.21 / Each

4,5,6,12,13,14
700609 001740-CE J06 Pad, Back(GRAY) FOAM No Model Compatibility List $275.21 / Each

4,5,6,12,13,14
700610 001740-CF J06 Pad, Back(BROWN) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700611 001740-CG J06 Pad, Back(BLACKLISH GREEN) FOAM No Model Compatibility List $275.21 / Each

4,5,6,12,13,14
700654 001764-CB J05 Pad, Head(RED) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700655 001764-CC J05 Pad, Head(BLUE) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700656 001764-CD J05 Pad, Head(PURLISH RED) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700657 001764-CE J05 Head Pad;Vesicant;GY;GM02 FOAM No Model Compatibility List $185.07 / Each

12,13,14
700658 001764-CF J05 Head Pad;Vesicant;Brown;GM02 FOAM No Model Compatibility List $185.07 / Each

12,13,14
700659 001764-CG J05 Head Pad;Vesicant;Glackish Green;GM02 FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
F 701159 004077-A2 F11 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
H 701183 004118-00 H12 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
F 701394 004449-00 F12 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.79 / Each

2
F 701470 004519-AE F17 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F13 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B26 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Screw;Round;Hex Socket;M12x1.75Px25L 701520 004553-AB Z01 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701568 004601-AC B27 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701622 004641-A C50 Screw;Umbrella Cross Tapped;5x20L No Model Compatibility List $2.00 / Each

2
B 701668 004702-00 B25 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
C 701670 004703-AF C39 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
C 701683 004714-AD C52 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Oval;M8X1.25PX20L 701694 004720-AH Z08 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
G 701760 004780-AC G11 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701763 004785-AC D11 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
Screw;BH;M10X1.5PX15L;;HS;;CHM;;BP 701773 004793-AD H13 Screw;BH;M10X1.5PX15L;;HS;;CHM;;BP No Model Compatibility List $0.88 / Each

2
H 701774 004793-AE H13 Screw;Hex Socket;BH;M10x1.5Px15L;Adhere No Model Compatibility List $2.91 / Each

2
701789 004804-00 G14 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

7,2,12,13,14
D 701806 004821-AB D30 Screw;Umbrella Hex Socket;M10x1.5Px95L No Model Compatibility List $8.97 / Each

2
701833 004851-00 D19 Set Screw;M5x0.8Px5L;Cr No Model Compatibility List $1.43 / Each

2
D 701836 004855-AC D15 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Screw;Umbrella Hex Scoket;M8x1.25Px20L 701841 004859-00 L05 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
G 701914 004943-00 G15 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 701916 004945-00 D31 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701937 004973-00 B29 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
B 701939 004975-00 B21 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
Washer;Spring;SW6 6.1x12.2x1.5t;Chromed 701963 005004-AE Z102 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
D 701968 005007-00 D17 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F19 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla 702000 005040-00 G35 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702057 005084-AB F18 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H16 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
Washer;5.3x10x0.6T 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
702178 005220-00 Z20 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
702205 005312-B not shown HARDWARE KIT(2), MX-S10 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 702217 005330-00 B28 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702426 006852-A not shown Manual, Assembly, MX-S10 No Model Compatibility List $11.86 / Each

3
Bushing;Fixed Plate 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F03 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702647 009220-G D08 SWIVEL ARM AXLE CENTER, 20X270L No Model Compatibility List $25.35 / Each

8,3
702663 009278-B H08 ADJUSTABLE AXLE CENTER, S45C No Model Compatibility List $10.56 / Each

8
C 702682 009306-E C51 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $3.74 / Each

8,15
H 702684 009308-B H16 Swivel Axle;Adjustment Sleeve;;SCM4;;Zn Plate;; No Model Compatibility List $15.34 / Each

8,3
D 702704 009344-D D18 Sleeve;Axle;10mm No Model Compatibility List $8.71 / Each

8,3
D 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
K 702773 009642-F K03 Bayonet;Weight Plate;17 Aperture No Model Compatibility List $52.23 / Each

3
H 702944 013411-Z1G2 H15 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
A 702950 013414-Z1 AF3 BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702958 013420-Z1 Q02 UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $73.92 / Each

9
Upper Cover Set 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
702960 013421-Z1 AH1 Adjustment SLEEVE(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
702961 013421-Z2 AH1 Adjustment SLEEVE(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
702962 013421-Z3 AH1 Adjustment SLEEVE(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
702963 013421-Z4 AH1 Adjustment SLEEVE(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Adjustment Sleeve (Polarized Titanium) GM02-G2 702964 013421-ZG2 AH1 Adjustment Sleeve (Polarized Titanium) GM02-G2 No Model Compatibility List $125.94 / Each

3
C 702965 013422-Z1G2 C40 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
Adjust Pin Assembly;ROM;Yellow 702966 013422-ZG2 G24 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
702967 013425-Z1 AD1 Frame, Input Arm(CHAMPAGNE) No Model Compatibility List $489.45 / Each

3,4,5,6
702968 013425-Z2 AD1 Frame, Input Arm(PLATINUM) No Model Compatibility List $489.45 / Each

3
702969 013425-Z3 AD1 Frame, Input Arm(SILK PEARL) No Model Compatibility List $489.45 / Each

3
A 702970 013425-Z4 AD1 Frame, Input Arm(ANTHRACITE) No Model Compatibility List $489.45 / Each

7,3,4,5,6,12,13,14
Arm Frame Set; 702971 013425-ZG2 AD1 Arm Frame Set; No Model Compatibility List $747.84 / Each

3
702972 013426-Z1 not shown Pad Kit(ANTHRACITE) No Model Compatibility List $645.32 / Each

7,4,5,6,12,13,14
702973 013426-Z2 not shown Pad Kit(BROWN) No Model Compatibility List $645.32 / Each

12,13,14
702974 013426-Z3 not shown Pad Kit(CABERNET) No Model Compatibility List $645.32 / Each

12,13,14
702975 013426-Z4 not shown Pad Kit(MIST) No Model Compatibility List $645.32 / Each

12,13,14
702976 013426-Z5 not shown Pad Kit(GLADE) No Model Compatibility List $645.32 / Each

12,13,14
702977 013426-Z6 not shown Pad Kit(AMETHYST) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
702978 013426-Z7 not shown Pad Kit(STONE) No Model Compatibility List $645.32 / Each

12,13,14
A 703193 013499-Z AJ2 Seat Post Set No Model Compatibility List $232.05 / Each

12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
Metal Pin; Pull Pin 703464 014788-E B02 Metal Pin; Pull Pin No Model Compatibility List $36.48 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
703654 015784-A AH2 Tube, Adjustable Assembly, CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
703655 015784-AB AH2 Tube, Adjustable Assembly, PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703656 015784-AC AH2 Tube, Adjustable Assembly, SILK PEARL No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703657 015784-AD AH2 Tube, Adjustable AssemblyANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
D 703867 018864-AA D24 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
Pull pin knob; Yellow 703902 019153-A B22 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
Screw;Seat Stopper;M8x1.25Px20L 704039 020126-DB Z30 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Screw;Hex Socket;Round;M8X1.25PX12L 704041 020127-A X05 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
Screw;Phillip;BH;Tapped;4x30L; 704074 020186-00 Q32 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Insert Nut;NLS7-580-5.7 704171 020410-A B29 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
G 704193 020465-AB G12 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;10.2X20.0X2.0T;Chromed 704204 020478-AC Z03 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
F 704299 022363-A F07 Axle;Cam; SCM4;20X962L;GM02 No Model Compatibility List $56.29 / Each

8
Axle;Swivel Arm;GM02 704307 022381-A D08 Axle;Swivel Arm;GM02 No Model Compatibility List $58.40 / Each

8,3
Sleeve;SS41;Chrome Plate 704315 022394-B D18 Sleeve;SS41;Chrome Plate No Model Compatibility List $16.87 / Each

7,3,12,13,14
Spring Pin;5x30L 704319 022400-A C40 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
704446 024100-Z1 AC1 Frame, Base(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704447 024100-Z2 AC1 Frame, Base(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704448 024100-Z3 AC1 Frame, Base(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704449 024100-Z4 AC1 Frame, Base(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704450 024100-ZG2 AC1 Base Frame (Polarized Titanium), GM02-G2 No Model Compatibility List $1.30 / Each

3
704451 024101-Z1 AF1 Frame, Cam(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704452 024101-Z2 AF1 Frame, Cam(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704453 024101-Z3 AF1 Frame, Cam(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704454 024101-Z4 AF1 Frame, Cam(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Cam Frame Set;GM02-G2 704455 024101-ZG2 AF1 Cam Frame Set;GM02-G2 No Model Compatibility List $779.66 / Each

3
704456 024102-Z1 AB1 Frame, Main(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704457 024102-Z2 AB1 Frame, Main(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704458 024102-Z3 AB1 Frame, Main(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704459 024102-Z4 AB1 Frame, Main(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704460 024102-ZG2 AB1 Main Frame (Polarized Titanium) GM02-G2 No Model Compatibility List $1.30 / Each

3
Hardware Pack 704632 024590-A not shown Hardware Pack No Model Compatibility List $292.84 / Each

4,5,6
704732 025449-A AG1 Tube, Connecting, Upper Assembly,CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704733 025449-AB AG1 Tube, Connecting, Upper Assembly,PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704734 025449-AC AG1 Tube, Connecting, Upper Assembly,SILK PEARL No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704735 025449-AD AG1 Tube, Connecting, Upper Assembly, ANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704736 025450-A AG2 GM02 LOWER CONNECTING WELDING SET, CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
704737 025450-AB AG2 GM02 LOWER CONNECTING WELDING SETPLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
704738 025450-AC AG2 GM02 LOWER CONNECTING WELDING SET, SILK PEARL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
704739 025450-AD AG2 GM02 LOWER CONNECTING WELDING SET, ANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,4,5,6,12,13,14
Upper Connecting Tube Set, Color: Polarized Titanium 704784 025462-AD AG1 Upper Connecting Tube Set, Color: Polarized Titanium No Model Compatibility List $363.12 / Each

3
704787 025465-AD AG2 Lower Connecting Tube Set, Color: Polarized Titanium No Model Compatibility List $363.12 / Each

3
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
705089 035783-A not shown ASSEMBLY MANUAL;GM02-V40A EP67-US(ENGLISH) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Washer;Flat;12.5X20.0X1.0T;Chromed 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Cap;Hole Plug;FW158 706480 062626-AA D08 Cap;Hole Plug;FW158 No Model Compatibility List $1.66 / Each

9
Hardware; 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
B 706954 067544-A B23 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
Top Weight Plate Set 707050 069002-AA AK1 Top Weight Plate Set No Model Compatibility List $226.02 / Each

3
End Cover;Seat Tube Sleeve 707066 1000090006 B19 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
Pull Pin Handle;Orange;TPP;137C;MS10 707084 1000090177 B41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
C 707964 1000097255 C31 Sleeve;Seat Tube No Model Compatibility List $14.25 / Each

3,12,13,14
Bearing;Ball;6200ZZ;30X10X9; 708035 1000098076 H11 Bearing;Ball;6200ZZ;30X10X9; No Model Compatibility List $8.29 / Each

8
Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP 708091 1000099499 Z16 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
H 708099 1000099693 H15 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl 708444 1000102860 F12 Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl No Model Compatibility List $0.70 / Each

2
Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M10x1.5Px80L;Cr P 708450 1000102866 H56 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
Screw;Hex Socket;Round;M10x1.5Px100L;Cr 708451 1000102867 Z04 Screw;Hex Socket;Round;M10x1.5Px100L;Cr No Model Compatibility List $12.95 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr 708453 1000102869 B14 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl 708473 1000102893 C57 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
Screw;Hex Head;M5x0.8Px15L;Zn;Adhere 708478 1000102898 B27 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
Washer;Internal Teeth;5.3x10.0x0.6t;BE 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
Circlip;External C Type;S-12;BED 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
Circlip;E Type;;E-15;Cr Plate 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
RVN;NLS7-580-5.7;Pattern;YZN 708656 1000104683 F12 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 708674 1000104704 F13 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 708677 1000104708 C52 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.60 / Each

2
Screw;BH;M12x1.75Px110L;HS;CHM;BP;G8.8 708682 1000104716 D30 Screw;BH;M12x1.75Px110L;HS;CHM;BP;G8.8 No Model Compatibility List $13.42 / Each

2
Washer;FLT;6.2x13.0x1.0t;CHM 708686 1000104723 Z31 Washer;FLT;6.2x13.0x1.0t;CHM No Model Compatibility List $0.13 / Each

2
Washer;WW;20.7x29.1x0.3t;65Mn;BAN 708689 1000104726 Z69 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
Pin;Spring;5x30L;OXIDIZE 708710 1000105038 H09 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
Plastic Cover;-;POM;-;;;GM02C; 709730 1000202479 J03 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
Sleeve;65.0X124; 709731 1000202480 J04 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
Plastic Cover;Rubber 709732 1000202481 C80 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
Grip;-;ABS;-;;;GM02C; 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $35.52 / Each

11
Plastic Cover;ABS;BL;GM02C 709734 1000202489 B05 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $6.81 / Each

9
Stopper Piece;Chair;-;45;CHM;GM02C; 709735 1000202490 J10 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $46.10 / Each

1
Spring;RCL;2.0X13;40MN;CHM; 709736 1000202491 J12 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
Spring;RCL;2.0X13;40MN;CHM; 709737 1000202492 J13 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
709738 1000202498 Not Shown DOCUMENTATION;MANUAL;ASSEMBLY;-;-;GM02C; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Spec Label;Seat Adjustment;GM02C 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $4.91 / Each

12,13,14
Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; 709860 1000204043 Z04 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.70 / Each

2
Direction Label;Seat Adjustment 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $2.57 / Each

12,13,14
710418 1000210177 AJ2 SEAT SET;SA;-;GM02C;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
710427 1000210200 J05 HAND PAD;-;PU;BLACK;-; No Model Compatibility List $62.04 / Each

4,5,6,12,13,14
J 710432 1000210213 J06 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $113.15 / Each

4,5,6,12,13,14
J 710444 1000210289 J04 SEAT PAD;-;PU;MIST BLUE;-; No Model Compatibility List $84.47 / Each

12,13,14
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
Stopper Piece;Pedal Arm;-;SPHC;CHM;GM02K 710573 1000211078 H08 Stopper Piece;Pedal Arm;-;SPHC;CHM;GM02K No Model Compatibility List $45.14 / Each

8,9,3
Ring;-;-;SPHC;CHM;GM02KM-G3; 710574 1000211079 H10 Ring;-;-;SPHC;CHM;GM02KM-G3; No Model Compatibility List $5.82 / Each

1
STOPPER SET;SA;SERVICE PARTS;GM02KM-G3;; 710584 1000211106 Not Shown STOPPER SET;SA;SERVICE PARTS;GM02KM-G3;; No Model Compatibility List $118.33 / Each

1
Stopper Piece;Pulley-;SPHC;CHM;GM02KM-G 710586 1000211112 H18 Stopper Piece;Pulley-;SPHC;CHM;GM02KM-G No Model Compatibility List $17.97 / Each

8
Belt Pulley Set;SA;-;GM20C-KM;-;-; 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $109.49 / Each

8,15
Adjust set;Semi-Assy;;Service;;GM30C;; 710720 1000212618 K07 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
Screw;SH;M5x25L;-;HS;-;CHM;BP;-; 711692 1000222320 H06 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
Up Weight Plate Set-Exreawork;;;;;GM02C; 714792 1000318300 AK1 Up Weight Plate Set-Exreawork;;;;;GM02C; No Model Compatibility List $192.63 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
Superstructure group;Semi-Assy;;;;GM01;P 716649 1000338414 7 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718023 1000349190 1 Frame set;;;Iced Sliver;GM02C;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718024 1000349191 2 Base Set;;;Iced Sliver;GM02C;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Swivel arm set;;;Iced Sliver;GM02C;;Ser 718025 1000349192 3 Swivel arm set;;;Iced Sliver;GM02C;;Ser No Model Compatibility List $506.97 / Each

3
718026 1000349193 4 Cam Weldment;;;Iced Sliver;GM02C;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718027 1000349194 5 Swivel Housing Set;;;Iced Sliver;GM02C;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718196 1000349485 C75 Cove support frame;;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718197 1000349486 AG1 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718198 1000349487 AG2 CON Tube Set;;D;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Cover set;Semi-Assy;;Arcylic;;GM06;;incl 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
Stopper set;Guide Rod;;painting;;;MS20; 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Spring;Compression;1.3x12.7x38Lx7;SWP; 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
Cover;Cam;GM02 725746 075604 Q12 Cover;Cam;GM02 No Model Compatibility List $2.94 / Each

9
Adjustment Tube Set;SA;-;GM02C-KM;-;-; 725938 078457 AH2 Adjustment Tube Set;SA;-;GM02C-KM;-;-; No Model Compatibility List $327.21 / Each

3
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
Illustration Decal;GM02 726909 085971 V01 Illustration Decal;GM02 No Model Compatibility List $36.14 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AH03 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729032 Order Kit 7 Q01 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock 		9,10
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729647 ZMS4003259 Not Shown Decal, QR, G3-S10 Chest Press No Model Compatibility List $5.90 / Each

7,3
M10-1.50, 80mm, 10.9, Z BHSCS 729798 ZMS4005412 F17 M10-1.50, 80mm, 10.9, Z BHSCS No Model Compatibility List $33.77 / Each

1
729799 ZMS4005413 H10 M10-1.5 Class 8 Hex Nut No Model Compatibility List $2.18 / Each

2
906040 Order Kit 5 10 Cover;Sensor;right;ABS/PA746;426C;;TM502 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,7
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
