Matrix Commercial - MX-S22 - 2002-2004

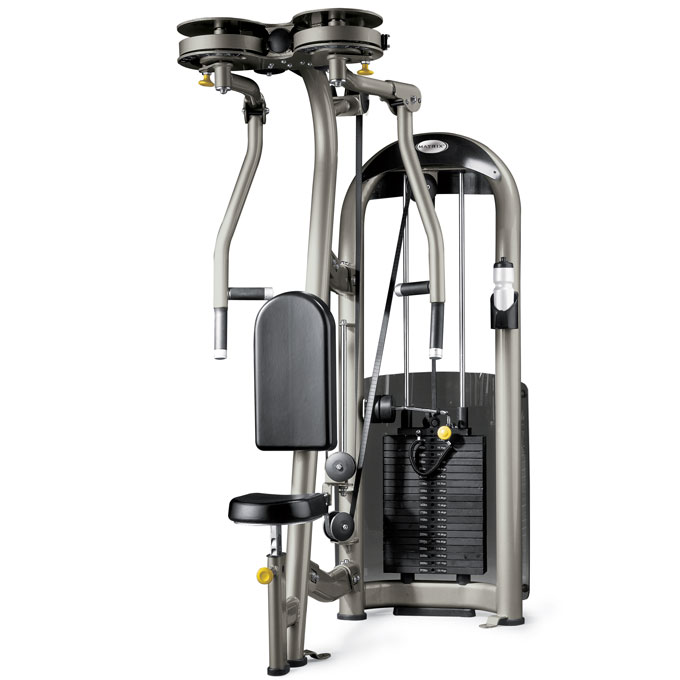

Repair Parts for Matrix Commercial MX-S22 GM15

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: MX-S22

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - B40 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
Cover;Snug;S45C;Cr Plate;GM01 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
C 700140 000509-E C32 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700145 000514-C C21 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700179 000589-C D19 Foam Grip;30.4x5.0tx105L; No Model Compatibility List $10.84 / Each

11
D 700180 000590-C D20 Foam Grip;30.4x5.0x110L No Model Compatibility List $10.84 / Each

11
B 700256 000791-B B17 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
C 700457 001415-BA C49 End Cover;Seat Tube Sleeve;Nylon No Model Compatibility List $1.72 / Each

9,3,12,13,14
Long Guide Rubber Plate;POM 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
F 700518 001522-B F09 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
F 700519 001523-E F22 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 700525 001528-B D31 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.79 / Each

2,8,9,3
D 700550 001587-C D16 Sleeve;Stopper;PVC;BL;GM15 PVC(BLACK) No Model Compatibility List $2.44 / Each

3,4,5,6
700612 001742-BB J06 Back Pad;Vesicant;RD;GM05 BACK PAD (CABERNET) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700613 001742-BC J06 Back Pad;Vesicant;BE;GM05 GM05-P46CB No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700614 001742-BD J06 Back Pad;Vesicant;Purple Red;GM05 FOAM(GM05-P46BD No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700615 001742-BE J06 Back Pad;Vesicant;GY;GM05 FOAM(GM05-P46BE) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700616 001742-BF J06 Back Pad;Vesicant;Brown;GM05 FOAM(GM05-P46BF) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700617 001742-BG J06 Back Pad;Vesicant;Glackish Green;GM05 FOAM(GM05-P46BG) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700654 001764-CB J05 Pad, Head(RED) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700655 001764-CC J05 Pad, Head(BLUE) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700656 001764-CD J05 Pad, Head(PURLISH RED) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
700657 001764-CE J05 Head Pad;Vesicant;GY;GM02 FOAM No Model Compatibility List $185.07 / Each

12,13,14
700658 001764-CF J05 Head Pad;Vesicant;Brown;GM02 FOAM No Model Compatibility List $185.07 / Each

12,13,14
700659 001764-CG J05 Head Pad;Vesicant;Glackish Green;GM02 FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
F 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701192 004139-A F24 Bearing;Linear;SME20WW(THOMSON);;;DING X No Model Compatibility List $217.28 / Each

8
Screw;Phillip;BH;M4x0.7Px12L;Gap; 701288 004356-00 E33 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M8x1.25Px20L;Cr 701436 004482-AB B43 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
F 701437 004482-AC F14 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F17 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
Screw;Hex Socket;Round;M5X0.8PX25L;Chromed 701488 004531-00 D28 Screw;Hex Socket;Round;M5X0.8PX25L;Chromed No Model Compatibility List $0.21 / Each

7,2,12,13,14
F 701493 004534-AC F18 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Screw;Round;Hex Socket;M12x1.75Px25L 701520 004553-AB Z01 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701568 004601-AC B34 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701617 004636-AC B27 Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

2
C 701622 004641-A C50 Screw;Umbrella Cross Tapped;5x20L No Model Compatibility List $2.00 / Each

2
D 701668 004702-00 D33 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
C 701683 004714-AD C35 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Oval;Hex Socket;M8x1.25Px20L 701727 004750-00 Z01 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
C 701760 004780-AC C29 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701763 004785-AC D25 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
701764 004786-00 C31 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
701789 004804-00 G14 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

7,2,12,13,14
C 701808 004823-A C25 OVAL HEX SOCKET SCREW M10*1.5P*125L(TEETH:30L) No Model Compatibility List $7.31 / Each

2
D 701836 004855-AC D18 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701937 004973-00 B24 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
B 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
D 701968 005007-00 D27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F21 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C31 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Washer;Flat;5.2X16.0X1.0T;;BZN; 701986 005024-A P37 Washer;Flat;5.2X16.0X1.0T;;BZN; No Model Compatibility List $1.66 / Each

2
Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702057 005084-AB F20 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D26 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702146 005180-A C40 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
C 702147 005181-A C41 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
Washer;Wavy;26.0x35.0x0.3T 702177 005219-00 E66 Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
702215 005323-B not shown HARDWARE KIT(2) MX-S22 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Tinnamen Nut 702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
F 702226 005351-00 F23 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.79 / Each

4,5,6
D 702234 005359-00 D29 C-Clip;External;S-12 No Model Compatibility List $2.00 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702394 006622-D V06 Decal;Angle Adjustic;Left;MX-S22;GM15 No Model Compatibility List $4.16 / Each

7,3
V 702395 006623-D V07 Decal;Angle Adjustic;Right;MX-S22;GM15 No Model Compatibility List $3.85 / Each

7,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
Bushing;Fixed Plate 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F13 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
702522 008450-E B44 Snug Plate;Cover;U;SPC;;Zn Plate(BL);;GM SP 1.5MM No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
Washer;Swivel Axle;;;SS41;;Cr;;; 702530 008522-C F21 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702540 008550-C F11 Cover;Cam;SUS304;;Plate;;GM15 No Model Compatibility List $231.61 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
D 702606 008968-B D17 Sleeve;Inner Axle Sleeve No Model Compatibility List $8.22 / Each

8,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
B 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
702678 009301-G D22 Swivel Axle;Pedal Arm;;SCM4;;;;;GM15 SCM4 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
C 702682 009306-E C36 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $3.74 / Each

8,15
D 702689 009314-C D23 Swivel Axle;S45C;GM15B No Model Compatibility List $48.72 / Each

8
F 702697 009328-I F12 Guide Rail;Slipping Sleeve;;SUJ-2;20x58 No Model Compatibility List $83.95 / Each

9,3,12,13,14
D 702708 009352-C D15 SWIVEL ARM STOPPER MAST 12X73L SS41(M{) No Model Compatibility List $4.97 / Each

3
D 702710 009355-B D35 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702717 009361-C D32 Washer;Swivel Axle;;SS21;;;;;GM15 SS21 No Model Compatibility List $3.15 / Each

2,8
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
K 702771 009639-IB K06 15POUNDS WEIGHT PLATE GM01-K06 No Model Compatibility List $83.95 / Each

3
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
B 702944 013411-Z1G2 B02 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
BELT FIXER SET-1 702950 013414-Z1 F20 BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702958 013420-Z1 Q02 UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $73.92 / Each

9
Upper Cover Set 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
C 702965 013422-Z1G2 C40 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
N 702966 013422-ZG2 Not Shown Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14

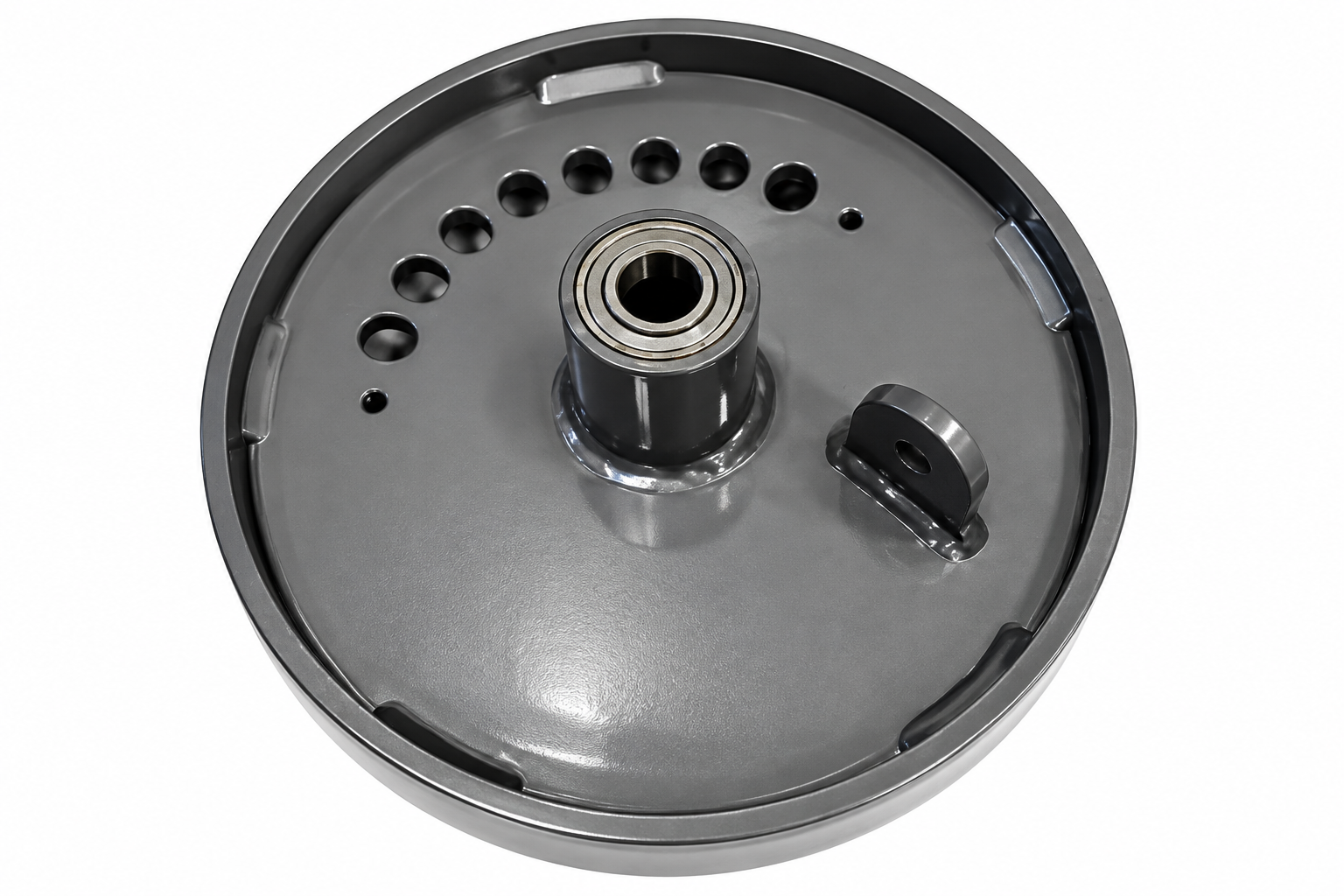

703219 013514-ZL AF1 Frame, Cam, Left(CHAMPAGNE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
703220 013514-ZL2 AF1 Frame, Cam, Left(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703221 013514-ZL3 AF1 Frame, Cam, Left(SILK PEARL) GM15 No Model Compatibility List $487.53 / Each

3
703222 013514-ZL4 AF1 Frame, Cam, Left(ANTHRACITE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Left Cam Frame (Polarized Titanium), GM15BG2 703223 013514-ZLBG2 AF1 Left Cam Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $554.06 / Each

3

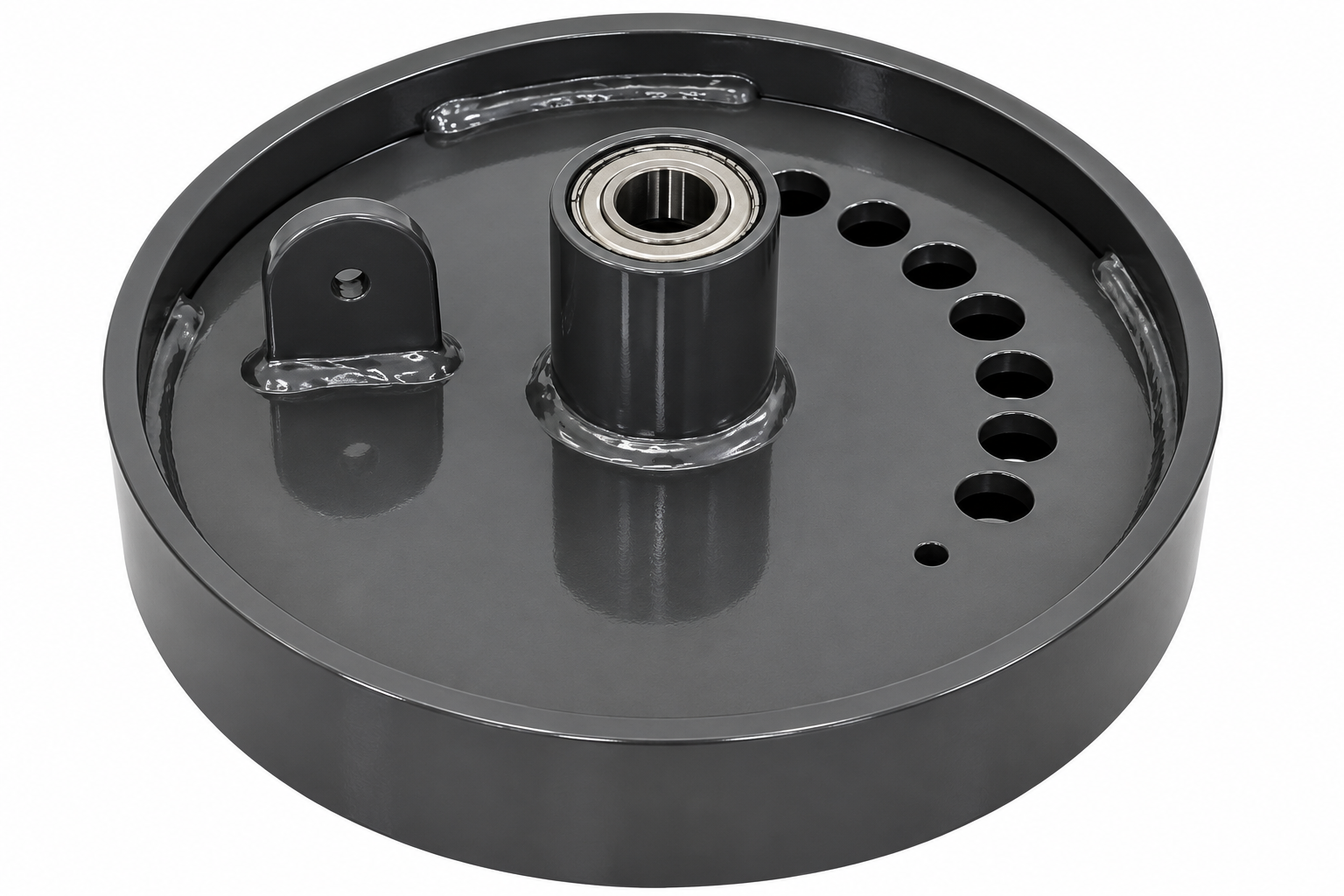

703224 013514-ZR AF2 Frame, Cam, Right(CHAMPAGNE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
703225 013514-ZR2 AF2 Frame, Cam, Right(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703226 013514-ZR3 AF2 Frame, Cam, Right(SILK PEARL) GM15 No Model Compatibility List $487.53 / Each

3
703227 013514-ZR4 AF2 Frame, Cam, Right(ANTHRACITE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Right Cam Frame (Polarized Titanium), GM15BG2 703228 013514-ZRBG2 AF2 Right Cam Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $554.06 / Each

3

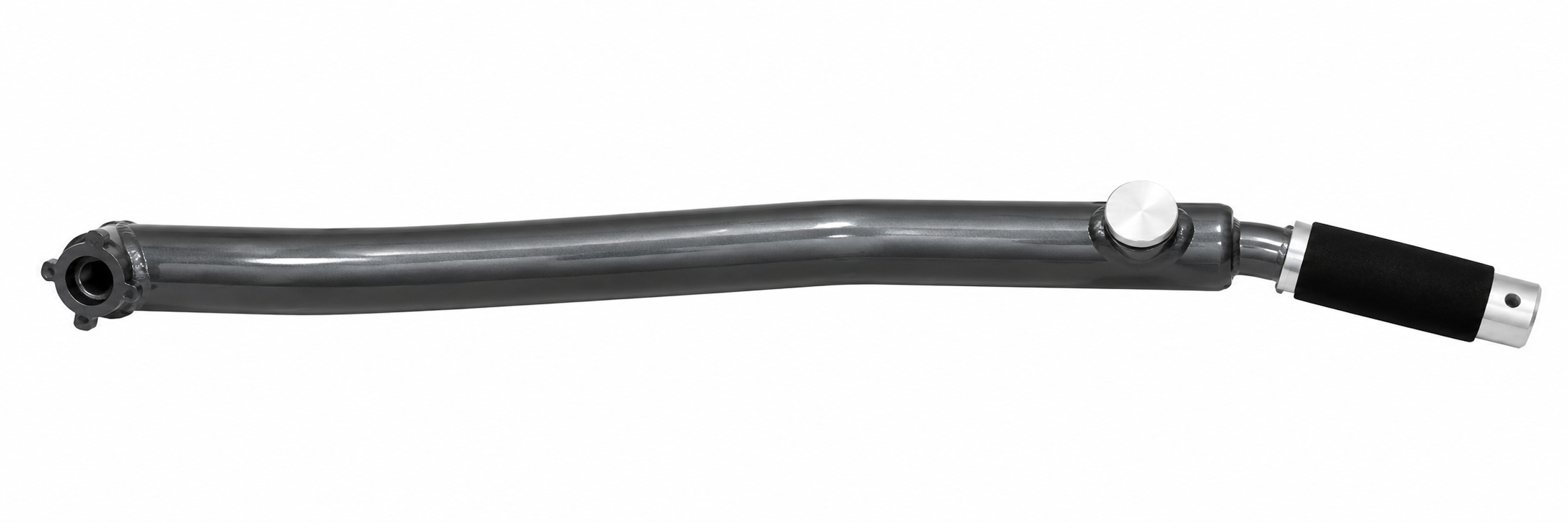

703229 013515-ZL AD3 Frame, Arm, Left Lower GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703230 013515-ZL2 AD3 Frame, Arm, Left Lower(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703231 013515-ZL3 AD3 Frame, Arm, Left Lower(SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703232 013515-ZL4 AD3 Frame, Arm, Left Lower(ANTHRACITE) GM15 No Model Compatibility List $490.67 / Each

7,3,4,5,6,12,13,14
Lower Left Arm Frame (Polarized Titanium), GM15BG2 703233 013515-ZLBG2 AD3 Lower Left Arm Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $747.97 / Each

3

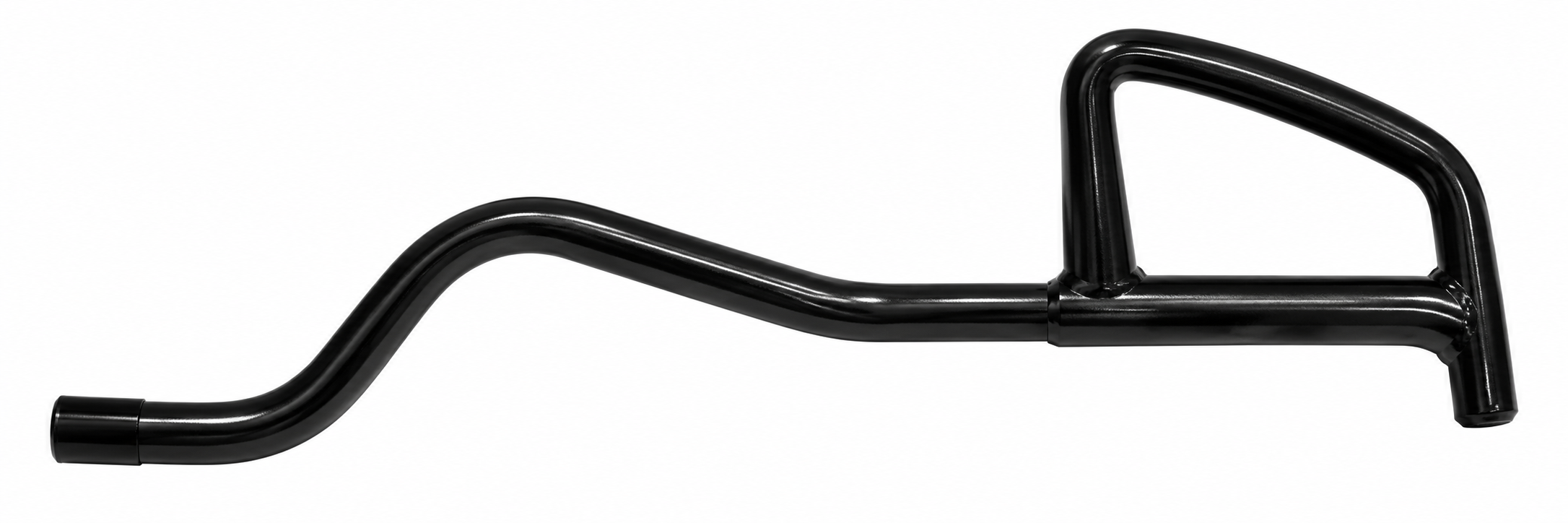

703234 013515-ZR AD4 Frame, Arm, Right Lower GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703235 013515-ZR2 AD4 Frame, Arm, Right Lower(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703236 013515-ZR3 AD4 Frame, Arm, Right Lower(SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703237 013515-ZR4 AD4 Frame, Arm, Right Lower(ANTHRACITE) GM15 No Model Compatibility List $490.67 / Each

7,3,4,5,6,12,13,14
Lower-Right Arm Frame (Polarized Titanium), GM15BG2 703238 013515-ZRBG2 AD4 Lower-Right Arm Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $747.97 / Each

3
703239 013516-Z1 not shown Pad Kit(BLACK) GM15 No Model Compatibility List $500.11 / Each

4,5,6,12,13,14
703240 013516-Z2 not shown Pad Kit(BROWN) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
703241 013516-Z3 not shown Pad Kit(CABERNET) GM15 No Model Compatibility List $500.11 / Each

12,13,14
703242 013516-Z4 not shown Pad Kit(MIST) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
703243 013516-Z5 not shown Pad Kit(GLADE) GM15 No Model Compatibility List $500.11 / Each

12,13,14
703244 013516-Z6 not shown Pad Kit(AMETHYST) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
703245 013516-Z7 not shown Pad Kit(STONE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
A 703246 013517-Z1 AF3 Pulley, Sliding, Assembly GM15(CHAMPAGNE) No Model Compatibility List $564.59 / Each

8,3,4,5,6
703247 013517-Z2 AF3 Pulley, Sliding, Assembly GM15(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
703248 013517-Z3 AF3 Pulley, Sliding, Assembly GM15(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
703249 013517-Z4 AF3 Pulley, Sliding, Assembly GM15(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,3,4,5,6,12,13,14
A 703250 013519-Z AJ1 Vertical Seat Post;GM15 No Model Compatibility List $351.10 / Each

12,13,14
703251 013520-Z AK1 TOP WEIGHT PLATE GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703252 013521-ZL2 AD1 Frame, Arm, Left Upper(PLATINUM) GM15 No Model Compatibility List $380.67 / Each

3
703253 013521-ZL3 AD1 Frame, Arm, Left Upper(SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703254 013521-ZR2 AD2 Frame, Arm, Right Upper(PLATINUM) GM15 No Model Compatibility List $380.67 / Each

3
703255 013521-ZR3 AD2 Frame, Arm, Right Upper(SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
703628 015763-A AC2 Cam, Upper, Assembly PGM15-1CHAMPAGNE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
703629 015763-AB AC2 Cam, Upper, Assembly PGM15B-1PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703630 015763-AC AC2 Cam, Upper, Assembly PGM15C-1SILK PEARL No Model Compatibility List $244.17 / Each

3
703631 015763-AD AC2 Cam, Upper, Assembly PGM15D-1ANTHRACITE No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
703687 015807-AA C19 LOWER CAM FIXING PLATE(PAINT) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703688 015807-AB C19 LOWER CAM FIXING PLATE(PAINT) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703689 015807-AC C19 LOWER CAM FIXING PLATE(PAINT) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703690 015807-AD C19 LOWER CAM FIXING PLATE(PAINT) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Weight Plate Set;15 Lbs;Dry Bearing 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
B 703902 019153-A B41 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
Screw;Hex Socket;Round;M10x1.5Px85L;Adhe 704009 020099-00 X11 Screw;Hex Socket;Round;M10x1.5Px85L;Adhe No Model Compatibility List $3.95 / Each

2
Screw;Seat Stopper;M8x1.25Px20L 704039 020126-DB Z30 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Screw;Hex Socket;Round;M8X1.25PX12L 704041 020127-A X05 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
Screw;Phillip;BH;Tapped;4x30L; 704074 020186-00 Q32 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Insert Nut;NLS7-580-5.7 704171 020410-A B29 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704193 020465-AB C30 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704255 021778-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
D 704317 022398-E D24 Washer;Swivel Axle;SS41; No Model Compatibility List $4.06 / Each

2,8
704536 024124-Z1 AC1 Frame, Base(CHAMPAGNE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704537 024124-Z2 AC1 Frame, Base(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704538 024124-Z3 AC1 Frame, Base(SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704539 024124-Z4 AC1 Frame, Base(ANTHRACITE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Base Frame (Polarized Titanium), GM15BG2 704540 024124-ZBG2 AC1 Base Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $1.30 / Each

3
704541 024125-Z1 AB1 Frame, Main (CHAMPAGNE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704542 024125-Z2 AB1 Frame, Main(PLATINUM) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704543 024125-Z3 AB1 Frame, Main (SILK PEARL) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704544 024125-Z4 AB1 Frame, Main (ANTHRACITE) GM15 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Hardware Pack 704647 024608-A not shown Hardware Pack No Model Compatibility List $137.59 / Each

4,5,6
Cam Set Mounting Plate, G2S22, Polarized Titanium 704729 025430-B AC2 Cam Set Mounting Plate, G2S22, Polarized Titanium No Model Compatibility List $239.51 / Each

2,3
704768 025458-A AG1 Tube, Connecting, Upper, Assembly PGM15-1(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704769 025458-AB AG1 Tube, Connecting, Upper, Assembly PGM15B-1(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704770 025458-AC AG1 Tube, Connecting, Upper, Assembly PGM15C-1(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704771 025458-AD AG1 Tube, Connecting, Upper, Assembly PGM15D-1(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704772 025459-A AG2 Tube, Connecting, Lower, Assembly PGM15-1(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704773 025459-AB AG2 Tube, Connecting, Lower, Assembly PGM15B-1(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704774 025459-AC AG2 Tube, Connecting, Lower, Assembly PGM15C-1(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704775 025459-AD AG2 Tube, Connecting, Lower, Assembly PGM15D-1(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Washer;Swivel Axle;Chromed 704895 025755-AA D24 Washer;Swivel Axle;Chromed No Model Compatibility List $20.18 / Each

7,2,8,12,13,14
F 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
Washer;Flat;12.5X20.0X1.0T;Chromed 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Hardware; 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
GM15G2 Top Weight Plate 707047 068986-AA AK1 GM15G2 Top Weight Plate No Model Compatibility List $243.05 / Each

3
End Cover;Seat Tube Sleeve 707066 1000090006 B19 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
Connecting Frame Set;Lower 707605 1000093615 AG2 Connecting Frame Set;Lower No Model Compatibility List $608.82 / Each

3
Cam Frame Plate;Upper;Welding;GM15B 707609 1000093670 AC2 Cam Frame Plate;Upper;Welding;GM15B No Model Compatibility List $530.01 / Each

3
Sleeve;Seat Tube 707969 1000097260 C22 Sleeve;Seat Tube No Model Compatibility List $16.20 / Each

3,12,13,14
Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP 708091 1000099499 Z16 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
B 708099 1000099693 B02 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M10x1.5Px80L;Cr P 708450 1000102866 H56 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr 708453 1000102869 B14 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl 708473 1000102893 C57 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
Screw;Hex Head;M5x0.8Px15L;Zn;Adhere 708478 1000102898 B27 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
Washer;Internal Teeth;5.3x10.0x0.6t;BE 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
Circlip;External C Type;S-12;BED 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
Circlip;External C Type;S-30;BED 708486 1000102912 M14 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
Circlip;E Type;;E-15;Cr Plate 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Cam Frame Plate;Lower;Painting;GM15B 708552 1000103315 C19 Cam Frame Plate;Lower;Painting;GM15B No Model Compatibility List $290.37 / Each

3
RVN;NLS7-580-5.7;Pattern;YZN 708656 1000104683 F12 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP 708666 1000104695 H60 Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP No Model Compatibility List $2.57 / Each

2
Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 708674 1000104704 F13 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
Washer;WW;26.0x35.0x0.3t;65Mn;BAN 708690 1000104727 Z20 Washer;WW;26.0x35.0x0.3t;65Mn;BAN No Model Compatibility List $0.65 / Each

2
Pin;Spring;10X70;OXIDIZE 708711 1000105039 K06 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
Plastic Cover;-;POM;-;;;GM02C; 709730 1000202479 J03 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
Sleeve;65.0X124; 709731 1000202480 J04 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
Plastic Cover;Rubber 709732 1000202481 C80 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
Grip;-;ABS;-;;;GM02C; 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $35.52 / Each

11
Plastic Cover;ABS;BL;GM02C 709734 1000202489 B05 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $6.81 / Each

9
Stopper Piece;Chair;-;45;CHM;GM02C; 709735 1000202490 J10 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $46.10 / Each

1
Spring;RCL;2.0X13;40MN;CHM; 709736 1000202491 J12 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
Spring;RCL;2.0X13;40MN;CHM; 709737 1000202492 J13 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
Spec Label;Seat Adjustment;GM02C 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $4.91 / Each

12,13,14
Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; 709860 1000204043 Z04 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.70 / Each

2
Increment Weight Support Base Set-SA;; 709915 1000204514 AL1 Increment Weight Support Base Set-SA;; No Model Compatibility List $67.57 / Each

3
Adjust set;SA;U;GM10KM-G3;;; 709916 1000204515 AL2 Adjust set;SA;U;GM10KM-G3;;; No Model Compatibility List $67.57 / Each

1
710427 1000210200 J05 HAND PAD;-;PU;BLACK;-; No Model Compatibility List $62.04 / Each

4,5,6,12,13,14
J 710428 1000210205 J06 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $107.67 / Each

4,5,6,12,13,14
Guide Rail;19x1280L 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 710559 1000210967 K09 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $211.93 / Each

3
710600 1000211200 AC1 Seat Frame Set;SA;-;GM15C-KM;-;-; No Model Compatibility List $1.30 / Each

3,12,13,14
710601 1000211201 AJ1 SEAT SET;SA;-;GM15C;-;-; No Model Compatibility List $359.16 / Each

12,13,14
Belt Pulley Set;SA;-;GM20C-KM;-;-; 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $109.49 / Each

8,15
Top Weight Plate Set;Painting;GM15B 712933 1000231571 AK4 Top Weight Plate Set;Painting;GM15B No Model Compatibility List $101.37 / Each

3
Warning Label;-;-;-;PC;-;- 713028 1000232600 V23 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
719574 1000362622 Q01 Cover set;Semi-Assy;back;Arcylic;;GM15;; No Model Compatibility List $415.97 / Each

9,4,5,6
Stopper set;Guide Rod;;painting;;;MS20; 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Pedal Arm set;Semi-Assy;right down;;;GM1 720433 1000372773 5 Pedal Arm set;Semi-Assy;right down;;;GM1 No Model Compatibility List $119.96 / Each

8,9,3
Axle, central;Swivel Arm;;45#;White Zinc 721628 1000384824 D22 Axle, central;Swivel Arm;;45#;White Zinc No Model Compatibility List $18.23 / Each

8,3
A 722219 1000389176 AD1 pedal arm set;;left up;Polarized Titaniu No Model Compatibility List $152.07 / Each

8,9,3
pedal arm set;;right up;Polarized Titani 722226 1000389358 AD2 pedal arm set;;right up;Polarized Titani No Model Compatibility List $152.07 / Each

8,9,3
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
A 722985 1000402068 AD2 Pedal Arm set;Semi-Assy;left down;Polari No Model Compatibility List $119.96 / Each

8,9,3
Cam Set;L;Painting;GM15B 725284 069196 AF1 Cam Set;L;Painting;GM15B No Model Compatibility List $336.28 / Each

1
Cam Set;R;Painting;GM15B 725285 069200 AF2 Cam Set;R;Painting;GM15B No Model Compatibility List $336.28 / Each

1
Cap;Insert Nut;ABS;MS151-KM 725444 071337 B18 Cap;Insert Nut;ABS;MS151-KM No Model Compatibility List $0.31 / Each

2,9
Illustration Decal;ENG;GM15B 726144 080209 V01 Illustration Decal;ENG;GM15B No Model Compatibility List $33.46 / Each

7,3
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
727221 087865 6 Cam Set;Left No Model Compatibility List $605.67 / Each

1
Cam Set;Right 727222 087866 7 Cam Set;Right No Model Compatibility List $605.67 / Each

1
728764 096889 1 Main Frame Set No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Decal, QR, G3-S22 Rear Delt/Fly 729651 ZMS4003263 Not Shown Decal, QR, G3-S22 Rear Delt/Fly No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
