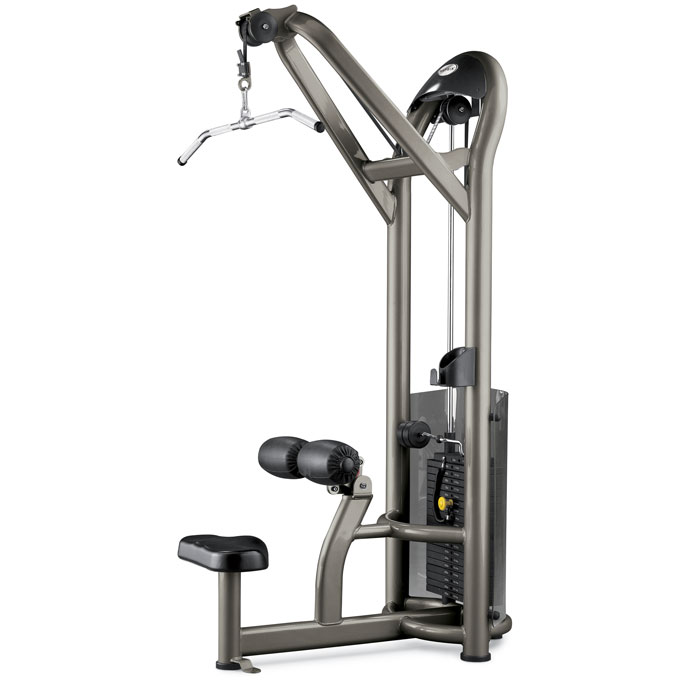

Matrix Commercial - MX-S30 - 2002-2004

Repair Parts for Matrix Commercial MX-S30 GM01

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: MX-S30

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700139 000508-D B21 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
B 700256 000791-B B33 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700448 001402-A Q05 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
700504 001516-CA H06 Pad, Round(BLACK) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700505 001516-CB H06 Pad, Round(RED) No Model Compatibility List $170.56 / Each

12,13,14
700506 001516-CD H06 Pad, Round(PURLISH RED) No Model Compatibility List $170.56 / Each

12,13,14
700507 001516-CE H06 Pad, Round(GRAY) No Model Compatibility List $170.56 / Each

12,13,14
700508 001516-CF H06 Pad, Round(BROWN) No Model Compatibility List $170.56 / Each

12,13,14
700509 001516-CG H06 Pad, Round(BLACKLISH GREEN) No Model Compatibility List $170.56 / Each

4,5,6,12,13,14
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700519 001523-E B19 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
700577 001711-CA B25 Pad, Seat(BLACK) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700578 001711-CB B25 Pad, Seat(RED) Pad, Seat (CABERNET) No Model Compatibility List $185.07 / Each

12,13,14
700579 001711-CD B25 Pad, Seat,(PURLISH RED) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700580 001711-CE B25 Pad, Seat,(GRAY) Pad, Seat, (STONE) No Model Compatibility List $185.07 / Each

12,13,14
700581 001711-CF B25 Pad, Seat,(BROWN) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700582 001711-CG B25 Pad, Seat,(BLACKLISH GREEN) FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701288 004356-00 B45 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
Screw;Round;Hex Socket;M8X1.25PX15L 701430 004479-00 Z07 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
B 701436 004482-AB B29 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F10 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F09 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
K 701496 004535-AC K20 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Screw;Round;Hex Socket;M12x1.75Px25L 701520 004553-AB Z01 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Screw;Hex;M5x0.8Px15L;Black Zinc; 701567 004601-AB B50 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.91 / Each

2,4,5,6
B 701568 004601-AC B31 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701668 004702-00 B23 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Oval;M8X1.25PX20L 701694 004720-AH Z08 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
Screw;Oval;Hex Socket;M8x1.25Px20L 701727 004750-00 Z01 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
B 701760 004780-AC B26 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
H 701763 004785-AC H10 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
701770 004790-AB F49 Screw;BH;M6X1.0PX20L;;HS;;CHM;; No Model Compatibility List $2.63 / Each

2
Screw;Hex Socket;BH;M6x1.0Px20L;Adhere 701798 004812-A Z08 Screw;Hex Socket;BH;M6x1.0Px20L;Adhere No Model Compatibility List $2.00 / Each

2
F 701836 004855-AC F55 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
NUT;NLK;M5X0.8P;;CHM;; 701892 004924-AB F13 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.66 / Each

2
F 701914 004943-00 F11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701937 004973-00 B24 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
B 701939 004975-00 B30 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
F 701963 005004-AE F51 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
H 701968 005007-00 H12 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F14 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla 702000 005040-00 G35 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702040 005070-00 F50 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702057 005084-AB F48 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H11 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
Washer;5.3x10x0.6T 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
702204 005311-B not shown HARDWARE KIT(2) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 702217 005330-00 B56 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702370 006563-A V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702382 006610-B V02 Decal;Foot Pad Adjustable;GM01 No Model Compatibility List $3.35 / Each

7,9,3,12,13,14
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702423 006788-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
F 702520 008448-D F12 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
B 702536 008546-F B49 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
H 702671 009289-F H07 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
F 702711 009356-B F54 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
F 702721 009371-E F53 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
702725 009378-B F13 Pressing Rod;S45C No Model Compatibility List $6.29 / Each

3
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
H 702944 013411-Z1G2 H09 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
702945 013413-Z1 AB1 Frame, Main (CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
702946 013413-Z2 AB1 Frame, Main (PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
702947 013413-Z3 AB1 Frame, Main (SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
702948 013413-Z4 AB1 Frame, Main (ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
702949 013413-ZG2 AB1 Main Frame (Polarized Titanium), GM01-G2 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
F 702950 013414-Z1 F01 BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
702951 013416-Z1 not shown Pad Kit(OBSIDIAN) No Model Compatibility List $526.27 / Each

12,13,14
702952 013416-Z2 not shown Pad Kit(BROWN) No Model Compatibility List $526.27 / Each

12,13,14
702953 013416-Z3 not shown Pad Kit(CABERNET) No Model Compatibility List $526.27 / Each

12,13,14
702954 013416-Z4 not shown Pad Kit(MIST) No Model Compatibility List $526.27 / Each

12,13,14
702955 013416-Z5 not shown Pad Kit(GLADE) No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
702956 013416-Z6 not shown Pad Kit(AMETHYST) No Model Compatibility List $526.27 / Each

12,13,14
702957 013416-Z7 not shown Pad Kit(STONE) No Model Compatibility List $526.27 / Each

12,13,14
Q 702958 013420-Z1 Q02 UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $73.92 / Each

9
Upper Cover Set 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703462 014783-G AF5 Pulley Set;GM01 No Model Compatibility List $112.68 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
A 703667 015793-A AF1 Belt Connecting Link Set No Model Compatibility List $23.63 / Each

15,3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
Pull pin knob; Yellow 703902 019153-A B22 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
Screw;Hex Socket;Round;M10x1.25Px20L;Chromed 704001 020090-00 G38 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) 704023 020112-A B63 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

2
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Nut;Hex;M8X1.25P;SS41;CHM;; 704166 020379-00 C58 Nut;Hex;M8X1.25P;SS41;CHM;; No Model Compatibility List $1.01 / Each

2
Insert Nut;NLS7-580-5.7 704171 020410-A B29 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
Washer;Flat;M10.2X25PX2.0T;Chromed 704193 020465-AB Z03 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Clamp;External C-Shaped;S-50;BED; 704223 020643-A T15 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.79 / Each

4,5,6
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704441 024099-Z AH1 Thigh Pad Assembly(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
704442 024099-Z2 AH1 Thigh Pad Assembly(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
704443 024099-Z3 AH1 Thigh Pad Assembly(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
704444 024099-Z4 AH1 Thigh Pad Assembly(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Thigh Pad Assembly (Polarized Titanium), GM01-G2 704445 024099-ZG2 AH1 Thigh Pad Assembly (Polarized Titanium), GM01-G2 No Model Compatibility List $231.71 / Each

3,12,13,14
Hardware Pack 704646 024607-A not shown Hardware Pack No Model Compatibility List $149.86 / Each

4,5,6
F 705011 029145-AA F52 Foam;25.4x5.0tx476L No Model Compatibility List $25.30 / Each

1
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
Hardware; 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
B 706954 067544-A B28 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
Pull Pin Handle;Orange;TPP;137C;MS10 707084 1000090177 B41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
InstructionLabel;French;GM01KM-G3 708086 1000099234 V01 InstructionLabel;French;GM01KM-G3 No Model Compatibility List $37.31 / Each

1
H 708099 1000099693 H09 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M10x1.5Px80L;Cr P 708450 1000102866 H56 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr 708453 1000102869 B14 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
Washer;Internal Teeth;5.3x10.0x0.6t;BE 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
Circlip;External C Type;S-30;BED 708486 1000102912 M14 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
Circlip;E Type;;E-15;Cr Plate 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Screw;BH;M6x1.0Px20L;HS;CHM;BP;G8.8 708650 1000104673 H16 Screw;BH;M6x1.0Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $2.18 / Each

2
RVN;NLS7-580-5.7;Pattern;YZN 708656 1000104683 F12 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 708674 1000104704 F13 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

2
F 708676 1000104707 F52 Screw;Hex Socket;Round;M8x1.5Px125L;Adh No Model Compatibility List $3.35 / Each

2
Pin;Spring;10X70;OXIDIZE 708711 1000105039 K06 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
Pin set;Semi-Assy;;;;GM01KM-G3;Yellow; 710305 1000208754 H09 Pin set;Semi-Assy;;;;GM01KM-G3;Yellow; No Model Compatibility List $67.57 / Each

12,13,14
BACK PAD;-;PU;BLACK;-; 710428 1000210205 J02 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $107.67 / Each

4,5,6,12,13,14
B 710444 1000210289 B25 SEAT PAD;-;PU;MIST BLUE;-; No Model Compatibility List $84.47 / Each

12,13,14
K 710557 1000210965 K09 Guide Rail;19x1890L No Model Compatibility List $262.03 / Each

9
Adjust set;Semi-Assy;;Service;;GM30C;; 710720 1000212618 K07 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
Screw;SH;M5x25L;-;HS;-;CHM;BP;-; 711692 1000222320 H06 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
711984 1000224684 Z12 Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713428 1000302949 K26 Weight Plate Set;Weight Plate;-;painting No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714742 1000317753 K03 Weight Plate;;Up;SPHC;;GM26; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714790 1000318298 3 Up Weight Plate Set-Exreawork;;;;;GM26; No Model Compatibility List $217.98 / Each

3
Up Weight Plate Set-Exreawork;;;;;GM01; 714794 1000318302 AK1 Up Weight Plate Set-Exreawork;;;;;GM01; No Model Compatibility List $229.81 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
716636 1000337956 Q02 Superstructure;;;ABS/Turn Print;Purple;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Superstructure group;Semi-Assy;;;;GM01;P 716649 1000338414 7 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
Stopper Ring;Guide Rod;;;Chrome;GM41;; 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
718050 1000349224 1 Frame set;;;Iced Sliver;GM01KM-G3;;Servi No Model Compatibility List $1.30 / Each

3
Foot Adjustable Set;;;Iced Sliver;GM01KM 718051 1000349225 AH11 Foot Adjustable Set;;;Iced Sliver;GM01KM No Model Compatibility List $202.77 / Each

9,3
Handle set;Semi-Assy;;;;GM01B;; 719071 1000355590 1 Handle set;Semi-Assy;;;;GM01B;; No Model Compatibility List $152.07 / Each

11
Spring;Compression;1.2x12.9x65Lx12N;65 719252 1000358938 C40 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
719571 1000362603 Q30 Cover set;;Big;;;GM01;; No Model Compatibility List $621.89 / Each

9
Stopper set;Guide Rod;;painting;;;MS20; 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
720185 1000369167 V60 Warning Label;Frame;;;PC;;English/French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Buffer Block;;;PA66+30%GF;;;GM102; 720548 1000373578 F03 Buffer Block;;;PA66+30%GF;;;GM102; No Model Compatibility List $3.02 / Each

1
Buffer Block;;;PA66+GF30%;;;GM102; 720549 1000373579 F04 Buffer Block;;;PA66+GF30%;;;GM102; No Model Compatibility List $3.02 / Each

1
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
722747 1000398334 AB01 Frame Set;Semi-Assy;;Iced Sliver;;;GM01E No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722995 1000402188 V05 EN LABEL;;0.123mm;;;;;GM01E No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723816 1000412623 5 Steel Rope Set;;;;;;Semi-finshed product No Model Compatibility List $62.50 / Each

3
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Round Pad;200;Black;GM01 725999 079186 D20 Round Pad;200;Black;GM01 No Model Compatibility List $54.05 / Each

4,5,6,12,13,14
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726228 080811 F52 Screw;Socket Head;M10X1.5PX55L-15L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock 		2
WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC 726517 082535 X33 WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC No Model Compatibility List $1.66 / Each

2
Handlebar Set 726567 083007 F08 Handlebar Set No Model Compatibility List $289.87 / Each

11
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
726619 083529 4 Cover set;Semi-Assy;up;;;PGM01-SNAP;; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
726745 084555 AF7 Grip ?FSemi-Assy;GM01 No Model Compatibility List $108.13 / Each

11
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
Decal, Instructional; G3S30 726908 085970 V01 Decal, Instructional; G3S30 No Model Compatibility List $33.46 / Each

7,3
Round Pad;Slate Blue;200;GM01KM 727265 088185 B20 Round Pad;Slate Blue;200;GM01KM No Model Compatibility List $57.43 / Each

12,13,14
727339 088646 V21 Assembly;Manual;GM01-G3 No Model Compatibility List $17.65 / Each

3
ADJ Rod;Weight Plate;Exrta-Work;CrPlate 727864 091696 K04 ADJ Rod;Weight Plate;Exrta-Work;CrPlate No Model Compatibility List $78.18 / Each

3
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AH03 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Decal, QR, G3-S30 Lat Pulldown 729649 ZMS4003261 Not Shown Decal, QR, G3-S30 Lat Pulldown No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
