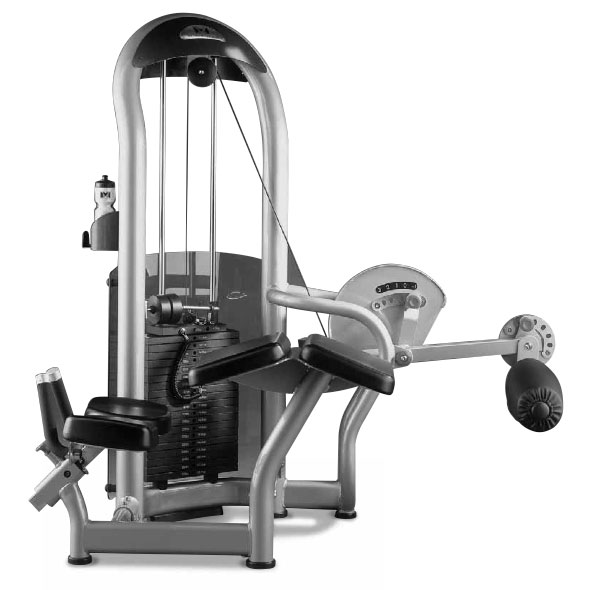

Matrix Commercial - MX-S73 - 2002-2004
Repair Parts for Matrix Commercial MX-S73 GM16
Brand: Matrix Commercial
Category: Single Station
Type: Strength Systems
Model Name: MX-S73
Version: 2002-2004
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700109 | 000431-EB | Q01 | Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) | No | Model Compatibility List | $333.03 / Each |
||
 |
700122 | 000454-H | B40 | Cover;Snug;S45C;Cr Plate;GM01 | No | Model Compatibility List | $9.10 / Each |
||
 |
700128 | 000477-B | D28 | Cover;Axle;Rubber;GM02 | No | Model Compatibility List | $1.66 / Each |
||
 |
700139 | 000508-D | C17 | Foot Pad;Rubber;60mm | No | Model Compatibility List | $5.15 / Each |
||
 |
700140 | 000509-E | B21 | Foot Pad;Rubber;89mm | No | Model Compatibility List | $9.10 / Each |
||
 |
700141 | 000510-D | C18 | Foot Pad;Rubber;76.2mm | No | Model Compatibility List | $5.69 / Each |
||
 |
700162 | 000542-C | B22 | Foot pad;Weight Plate;Rubber;GM01 | No | Model Compatibility List | $25.51 / Each |
||
 |
700182 | 000592-B | J05 | Foam Grip;31.8x5.0x140L | No | Model Compatibility List | $13.47 / Each |
||
 |
700256 | 000791-B | B26 | Water Bottle Holder | No | Model Compatibility List | $13.47 / Each |
||
 |
700275 | 000845-F | T29 | Sleeve;60x60;Delrin;GM19 | No | Model Compatibility List | $3.64 / Each |
||
 |
700307 | 000925-B | B08 | End Cap;M38.1x3.0T | No | Model Compatibility List | $1.79 / Each |
||
 |
700338 | 001006-DA | C19 | SEAT POST TUBE BUSHING PVC+ RUBBER,238L | No | Model Compatibility List | $12.48 / Each |
||
 |
700398 | 001240-F | Q07 | Pad;Swivel Axle Label;GM03 | No | Model Compatibility List | $1.79 / Each |
||
 |
700448 | 001402-A | Q10 | End Cap;Round | No | Model Compatibility List | $1.79 / Each |
||
 |
700452 | 001407-A | B09 | End-Cover;Square Tube;GM03 | No | Model Compatibility List | $1.66 / Each |
||
 |
700457 | 001415-BA | C49 | End Cover;Seat Tube Sleeve;Nylon | No | Model Compatibility List | $1.72 / Each |
||
 |
700492 | 001508-E | K24 | Long Guide Rubber Plate;POM | No | Model Compatibility List | $27.48 / Each |
||
 |
700493 | 001509-D | Q05 | Fix Rubber Block;Cover;Rubber;GM01 | No | Model Compatibility List | $1.79 / Each |
||
 |
700494 | 001510-B | K11 | Grommet;Guide Rod | No | Model Compatibility List | $1.79 / Each |
||
 |
700496 | 001512-C | Q03 | Cover;Pulley;ABS;GM01 ABS | No | Model Compatibility List | $1.79 / Each |
||
 |
700497 | 001513-A | K07 | Rubber Block;Shock Absorb | No | Model Compatibility List | $8.55 / Each |
||
| 700499 | 001515-CA | D22 | Pad, Round;600;Vesicant;BL;GM03 FOAM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700500 | 001515-CD | D22 | Pad, Round;600;Vesicant;Purplish Red;GM03 FOAM | No | Model Compatibility List | $248.64 / Each |
|||
| 700501 | 001515-CE | D22 | Pad, Round;600;Vesicant;GY;GM03 600Pad, Round (STONE) | No | Model Compatibility List | $248.64 / Each |
|||
| 700502 | 001515-CF | D22 | Pad, Round;600;Vesicant;Brown;GM03 FOAM | No | Model Compatibility List | $248.64 / Each |
|||
| 700503 | 001515-CG | D22 | Pad, Round;600;Vesicant;Blackish Green;GM FOAM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
700517 | 001521-E | L08 | Stopper Block;Incremental Rubber | No | Model Compatibility List | $2.44 / Each |
||
 |
700518 | 001522-B | B25 | Stopper Block;Rubber | No | Model Compatibility List | $3.64 / Each |
||
 |
700519 | 001523-E | F10 | Rubber Stop;CAM | No | Model Compatibility List | $3.64 / Each |
||
 |
700520 | 001525-B | D43 | Rubber Pad;Stopper | No | Model Compatibility List | $1.79 / Each |
||
 |
700521 | 001526-D | Q06 | Bolt;Cover;M8x1.25Px40L | No | Model Compatibility List | $2.52 / Each |
||
 |
700539 | 001564-AA | J13 | Sleeve;Seat Post Tube | No | Model Compatibility List | $2.24 / Each |
||
 |
700548 | 001585-F | F28 | Rubber Stop | No | Model Compatibility List | $1.79 / Each |
||
 |
700630 | 001746-DA | J08 | Pad, Prostrate,BL;GM16 (BLACK) | No | Model Compatibility List | $227.03 / Each |
||
| 700631 | 001746-DB | J08 | Pad, Prostrate,RD;GM16 (CABERNET) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700632 | 001746-DC | J08 | Pad, Prostrate,BE;GM16 (MIST) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700633 | 001746-DD | J08 | Pad, Prostrate,Purple Red;GM (AMETHYST) | No | Model Compatibility List | $227.03 / Each |
|||
| 700634 | 001746-DE | J08 | Pad, Prostrate,GY;GM16 (STONE) | No | Model Compatibility List | $227.03 / Each |
|||
| 700635 | 001746-DF | J08 | Pad, Prostrate,Brown;GM16 (DESERT) | No | Model Compatibility List | $227.03 / Each |
|||
| 700636 | 001746-DG | J08 | Pad, Prostrate,Blackish Green (GLADE) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
700647 | 001760-CA | J09 | Pad, Hand; ;BL;GM16 (BLACK) | No | Model Compatibility List | $138.81 / Each |
||
| 700648 | 001760-CB | J09 | Pad, Hand; ;RD;GM16 (CABERNET) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700649 | 001760-CC | J09 | Pad, Hand; ;BE;GM16 (MIST) | No | Model Compatibility List | $138.81 / Each |
|||
| 700650 | 001760-CD | J09 | Pad, Hand; ;Purple Red;GM16 (AMETHYST) | No | Model Compatibility List | $138.81 / Each |
|||
| 700651 | 001760-CE | J09 | Pad, Hand; ;GY;GM16 (STONE) | No | Model Compatibility List | $138.81 / Each |
|||
| 700652 | 001760-CF | J09 | Pad, Hand; ;Brown;GM16 (BROWN) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700653 | 001760-CG | J09 | Pad, Hand; Blackish Green;(GLADE) | No | Model Compatibility List | $138.81 / Each |
|||
 |
701159 | 004077-A2 | F09 | Ball Bearing;6004ZZ;20X42X12T;;SKF;;; | No | Model Compatibility List | $20.05 / Each |
||
 |
701182 | 004116-00 | K14 | Bearing;Dry;Weight Stack | No | Model Compatibility List | $3.64 / Each |
||
 |
701183 | 004118-00 | D18 | Bearing;Dry;Flange;LEF-2015 LFF-2015 | No | Model Compatibility List | $3.64 / Each |
||
 |
701187 | 004126-A | C47 | Dry Bearing;Flange;LEF-1015 LFF-1015 | No | Model Compatibility List | $3.35 / Each |
||
 |
701288 | 004356-00 | E33 | Screw;Phillip;BH;M4x0.7Px12L;Gap; | No | Model Compatibility List | $2.00 / Each |
||
 |
701430 | 004479-00 | Z07 | Screw;Round;Hex Socket;M8X1.25PX15L | No | Model Compatibility List | $2.00 / Each |
||
 |
701431 | 004479-ABX | F10 | Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A | No | Model Compatibility List | $2.00 / Each |
||
 |
701436 | 004482-AB | B43 | Screw;Hex Socket;Round;M8x1.25Px20L;Cr | No | Model Compatibility List | $2.00 / Each |
||
 |
701437 | 004482-AC | F12 | Screw;Hex Socket;Round;M8x1.25Px20L;BED; | No | Model Compatibility List | $2.00 / Each |
||
 |
701465 | 004518-00 | J53 | Screw;SH;M10X1.5PX75L;;HS;;CHM;; | No | Model Compatibility List | $3.64 / Each |
||
 |
701470 | 004519-AE | F17 | Screw;Round;Hex Socket;M10x1.5Px80L | No | Model Compatibility List | $4.94 / Each |
||
 |
701491 | 004533-AD | Z26 | Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP | No | Model Compatibility List | $3.35 / Each |
||
 |
701493 | 004534-AC | F13 | Screw;Hex Socket;Round;M5x0.8Px35L | No | Model Compatibility List | $2.18 / Each |
||
 |
701496 | 004535-AC | B49 | Screw;Hex Socket;Round;M8x1.25Px30L | No | Model Compatibility List | $3.64 / Each |
||
 |
701498 | 004536-00 | Z58 | Screw;Hex Socket;Round;M8X1.25PX15L | No | Model Compatibility List | $4.00 / Each |
||
 |
701506 | 004541-AC | E13 | Screw;Hex Socket;Round;M8x1.25Px45L;Chromed | No | Model Compatibility List | $3.64 / Each |
||
 |
701520 | 004553-AB | Z01 | Screw;Round;Hex Socket;M12x1.75Px25L | No | Model Compatibility List | $9.10 / Each |
||
 |
701522 | 004555-AB | H65 | Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A | No | Model Compatibility List | $4.00 / Each |
||
 |
701524 | 004556-AB | Z35 | Screw;Hex Socket;Round;M12x1.75Px25L;Cr; | No | Model Compatibility List | $1.79 / Each |
||
 |
701546 | 004574-AC | D43 | Screw;Hex Socket;Sink;M8x1.25Px15L | No | Model Compatibility List | $1.22 / Each |
||
 |
701568 | 004601-AC | B33 | Screw;Hex;M5x0.8Px15L | No | Model Compatibility List | $1.22 / Each |
||
| 701594 | 004620-AD | B27 | OVAL-TAPPING PHILLIP SCREW 4X12L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
701605 | 004627-00 | N40 | Screw;Phillip;BH;Tapped;5x12L | No | Model Compatibility List | $2.00 / Each |
||
 |
701622 | 004641-A | C50 | Screw;Umbrella Cross Tapped;5x20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701660 | 004696-AB | B07 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
701668 | 004702-00 | C21 | Screw;Flat Hex Socket;M8x1.25Px20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701674 | 004708-AD | L14 | Screw;Umbrella Hex Scoket;M5x0.8Px16L | No | Model Compatibility List | $1.79 / Each |
||
 |
701682 | 004714-AC | G25 | Screw;Hex Socket;BH;M6x1.0Px15L;Cr | No | Model Compatibility List | $1.66 / Each |
||
 |
701693 | 004720-AC | L09 | Screw;Hex Socket;Umbrella;M8x1.25Px20L; | No | Model Compatibility List | $4.00 / Each |
||
 |
701694 | 004720-AH | Z08 | Screw;Hex Socket;Oval;M8X1.25PX20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701760 | 004780-AC | C22 | Screw;Umbrella Hex Scoket;M10x1.5Px25L | No | Model Compatibility List | $4.00 / Each |
||
 |
701763 | 004785-AC | D45 | Screw;Hex Socket;BH;M12x1.75Px30L;Adhere | No | Model Compatibility List | $9.10 / Each |
||
| 701764 | 004786-00 | C31 | Screw;Hex Socket;BH;CrMo;M10x1.5Px25L | No | Model Compatibility List | $3.64 / Each |
|||
| 701789 | 004804-00 | C36 | Screw;Oval Hex Socket;M10x1.5Px100L;Chromed | No | Model Compatibility List | $9.41 / Each |
|||
 |
701820 | 004842-00 | Z07 | Set Screw;M6x1.0Px8L(Bed) | No | Model Compatibility List | $1.79 / Each |
||
| 701833 | 004851-00 | D44 | Set Screw;M5x0.8Px5L;Cr | No | Model Compatibility List | $1.43 / Each |
|||
 |
701834 | 004853-AC | H17 | Set Screw;M6X1.0PX5L;Chrome | No | Model Compatibility List | $1.79 / Each |
||
 |
701835 | 004855-A | E15 | Set Screw;M6X1.0PX4L(Chromed) | No | Model Compatibility List | $11.05 / Each |
||
 |
701836 | 004855-AC | J07 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
 |
701863 | 004885-00 | J03 | Nut;Hex;M10x1.5P | No | Model Compatibility List | $2.00 / Each |
||
| 701887 | 004917-00 | B42 | Nut;Cap;M8x1.25P;Black Zinc | No | Model Compatibility List | $0.75 / Each |
|||
 |
701888 | 004918-00 | L51 | Nut;Cap;M8x1.25P;BP | No | Model Compatibility List | $0.34 / Each |
||
 |
701898 | 004926-AC | C26 | Nut;Self Locking;M8x1.25P;Cr;Nylon Insert | No | Model Compatibility List | $2.00 / Each |
||
 |
701914 | 004943-00 | F18 | Nut;Nylon;M10x1.5P;Cr Plate; | No | Model Compatibility List | $2.00 / Each |
||
 |
701915 | 004944-00 | F60 | Nut;Nylon;M5x0.8P;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
701916 | 004945-00 | C23 | Nut;Nylon;M12x1.75P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
701937 | 004973-00 | B41 | Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) | No | Model Compatibility List | $1.90 / Each |
||
 |
701939 | 004975-00 | B43 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
||
 |
701960 | 005003-00 | L13 | Washer;Spring; SW5 5.1X9.3X1.3T | No | Model Compatibility List | $2.00 / Each |
||
 |
701968 | 005007-00 | D47 | Washer;Spring;12.2x21.5x3.0t | No | Model Compatibility List | $2.00 / Each |
||
 |
701978 | 005015-00 | L11 | Washer;Spring;SW8 8.2X13.5X2.0T | Yes | Model Compatibility List | $2.00 / Each |
||
 |
701980 | 005016-00 | F15 | Washer;Spring;5.1x9.3x1.3t;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
701981 | 005017-00 | C24 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
 |
701983 | 005019-00 | U14 | Washer;Lock;SW6 6.1X10.0X1.2T | No | Model Compatibility List | $2.00 / Each |
||
 |
702000 | 005040-00 | G35 | Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla | No | Model Compatibility List | $1.85 / Each |
||
 |
702056 | 005084-00 | Z35 | Washer;Flat;5.3X10.0X1.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
702057 | 005084-AB | F14 | Washer;Flat;5.3x10x1.0T;Zinc Plating | No | Model Compatibility List | $0.34 / Each |
||
 |
702098 | 005130-00 | L10 | Washer;Flat;8.4x15.5x1.6T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
702102 | 005132-00 | D46 | Washer;Flat;13x26x2.5T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
702117 | 005144-AC | Z02 | Washer;Flat;10.2X35.0X2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
702119 | 005145-AC | K18 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
702126 | 005152-A | T32 | Washer;Flat;6.4x11x1.6T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
 |
702146 | 005180-A | B51 | Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; | No | Model Compatibility List | $0.34 / Each |
||
 |
702147 | 005181-A | B50 | Washer;5.3x10x0.6T | No | Model Compatibility List | $0.31 / Each |
||
 |
702155 | 005191-00 | H20 | Washer;Teflon;20.2X30X1T | No | Model Compatibility List | $3.64 / Each |
||
 |
702178 | 005220-00 | Z20 | Washer;Wavy;20.7x29.1x.3T | No | Model Compatibility List | $2.00 / Each |
||
 |
702217 | 005330-00 | B34 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
||
 |
702242 | 005367-00 | K15 | C-Clip;External;S-30 | No | Model Compatibility List | $4.00 / Each |
||
 |
702250 | 005377-00 | K13 | Clamp;E-Shaped Ring;E-15 | No | Model Compatibility List | $0.65 / Each |
||
 |
702308 | 005847-A | K21 | Lanyard;Weight Selection Pin | No | Model Compatibility List | $20.05 / Each |
||
 |
702316 | 005984-G | V04 | Decal;Upper Cover | No | Model Compatibility List | $25.51 / Each |
||
 |
702392 | 006620-D | V03 | Decal;Weight Plate;10LBS | No | Model Compatibility List | $27.59 / Each |
||
 |
702397 | 006625-B | V02 | Decal;Hand Pad Adjustic;MX-S73;GM16 | No | Model Compatibility List | $1.64 / Each |
||
 |
702398 | 006626-B | V06 | Decal;cam adjustable;GM16 | No | Model Compatibility List | $3.74 / Each |
||
 |
702400 | 006628-A | V07 | Decal;Foot Pad Adjustable;MX-S72;GM09 | No | Model Compatibility List | $2.73 / Each |
||
 |
702406 | 006650-B | V15 | Decal;Weight Plate;2.5P;GM06 | No | Model Compatibility List | $3.15 / Each |
||
| 702435 | 006863-A | not shown | Assembly Manual, MX-S73 | No | Model Compatibility List | $11.86 / Each |
|||
 |
702505 | 008234-C | C65 | Bushing;Fixed Plate | No | Model Compatibility List | $9.10 / Each |
||
 |
702520 | 008448-D | F08 | Fix Plate;Pulley;;SPC;;BED;;GM01 | No | Model Compatibility List | $3.15 / Each |
||
 |
702523 | 008450-G | B44 | Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm | No | Model Compatibility List | $1.53 / Each |
||
 |
702530 | 008522-C | D15 | Washer;Swivel Axle;;;SS41;;Cr;;; | No | Model Compatibility List | $3.64 / Each |
||
 |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
 |
702533 | 008543-F | D19 | Cover;Adjustable Foot Pad;;SUS304;;electroplate | No | Model Compatibility List | $169.23 / Each |
||
 |
702542 | 008552-C | F11 | Cover;Cam;SUS304;;Plate;;GM16 | No | Model Compatibility List | $189.02 / Each |
||
 |
702546 | 008589-F | B42 | Fixing Horn Plate;Cover;D;SPC;;Zn Plate | No | Model Compatibility List | $1.01 / Each |
||
 |
702646 | 009219-D | K05 | Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 | No | Model Compatibility List | $6.79 / Each |
||
| 702652 | 009227-E | F43 | Fix Cap;Pulley; | No | Model Compatibility List | $4.58 / Each |
|||
 |
702671 | 009289-F | D17 | Adjustable Axle;Back Pad ;GM03 | No | Model Compatibility List | $3.64 / Each |
||
 |
702681 | 009305-I | D21 | SWIVEL ARM AXLE CENTER SCM4 20X272L | No | Model Compatibility List | $37.52 / Each |
||
 |
702690 | 009317-CB | D14 | Balance Plate;SS41;GM03 | No | Model Compatibility List | $123.92 / Each |
||
 |
702702 | 009339-C | D42 | Fix Ring;Round Pad;GM03 | No | Model Compatibility List | $14.12 / Each |
||
 |
702704 | 009344-D | B52 | Sleeve;Axle;10mm | No | Model Compatibility List | $8.71 / Each |
||
 |
702710 | 009355-B | J14 | Stopper Mast;Foam;AL6061;GM02 | No | Model Compatibility List | $3.64 / Each |
||
 |
702719 | 009365-00 | K16 | Pin;Spring;10x70L | No | Model Compatibility List | $3.64 / Each |
||
 |
702722 | 009372-E | J06 | Cap;Grip;GM02 | No | Model Compatibility List | $13.36 / Each |
||
 |
702772 | 009641-F | K03 | Bayonet;Weight Plate;20 Aperture | No | Model Compatibility List | $46.10 / Each |
||
 |
702944 | 013411-Z1G2 | B38 | Adjust Pin Assembly;Yellow Knob | No | Model Compatibility List | $31.64 / Each |
||
 |
702958 | 013420-Z1 | Q02 | UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $73.92 / Each |
||
 |
702959 | 013420-ZG2-2 | Q02 | Upper Cover Set | No | Model Compatibility List | $73.92 / Each |
||
 |
702965 | 013422-Z1G2 | C16 | Adjustment Knob Set;Seat;Yellow | No | Model Compatibility List | $36.48 / Each |
||
 |
702966 | 013422-ZG2 | G24 | Adjust Pin Assembly;ROM;Yellow | No | Model Compatibility List | $36.48 / Each |
||
| 703000 | 013437-ZG2 | K04 | Top Weight Plate;GM03 | No | Model Compatibility List | $243.05 / Each |
|||
| 703256 | 013522-Z | AD1 | Frame, Arm(CHAMPAGNE) GM16 | No | Model Compatibility List | $650.39 / Each |
|||
| 703257 | 013522-Z2 | AD1 | Frame, Arm(PLATINUM) GM16 | No | Model Compatibility List | $650.39 / Each |
|||
| 703258 | 013522-Z3 | AD1 | Frame, Arm(SILK PEARL) GM16 | No | Model Compatibility List | $650.39 / Each |
|||
| 703259 | 013522-ZG2 | AD1 | Arm Frame, Polarized Titanium [G2S73] D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703260 | 013523-Z | AF1 | Frame, Cam Assembly | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703261 | 013523-Z2 | AF1 | Frame, Cam Assembly(PLATINUM) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703262 | 013523-Z3 | AF1 | Frame, Cam Assembly(SILK PEARL) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703263 | 013523-Z4 | AF1 | Frame, Cam Assembly(ANTHRACITE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703264 | 013523-ZG2 | AF1 | Cam Frame Set, Polarized Titanium [G2S73] | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||

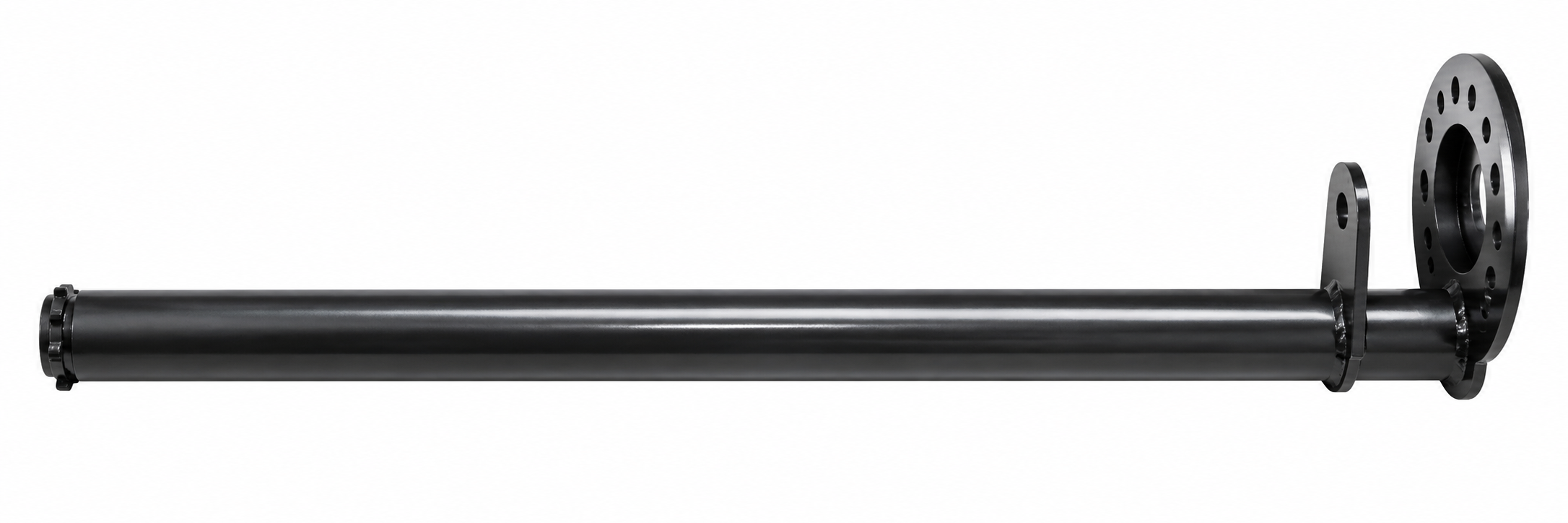

| 703265 | 013525-Z | AD2 | Kicker Shaft Assembly(CHAMPAGNE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703266 | 013525-Z2 | AD2 | Kicker Shaft Assembly(PLATINUM) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703267 | 013525-Z3 | AD2 | Kicker Shaft Assembly(SILK PEARL) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 703268 | 013525-Z4 | AD2 | Kicker Shaft Assembly(ANTHRACITE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
![Kicker Shaft Kits, Polarized Titanium [G2S73]](https://s3-us-west-2.amazonaws.com/files-hydra/Johnson/Part%20Pictures/013525-ZG2%20.jpg) |
703269 | 013525-ZG2 | AD2 | Kicker Shaft Kits, Polarized Titanium [G2S73] | No | Model Compatibility List | $657.38 / Each |
||
| 703270 | 013526-Z1 | not shown | Pad Kit(BLACK) | No | Model Compatibility List | $980.12 / Each |
|||
| 703271 | 013526-Z2 | not shown | Pad Kit(BROWN) | No | Model Compatibility List | $980.12 / Each |
|||
| 703272 | 013526-Z3 | not shown | Pad Kit(CABERNET) | No | Model Compatibility List | $980.12 / Each |
|||
| 703273 | 013526-Z4 | not shown | Pad Kit(MIST) | No | Model Compatibility List | $980.12 / Each |
|||
| 703274 | 013526-Z5 | not shown | Pad Kit(GLADE) | No | Model Compatibility List | $980.12 / Each |
|||
| 703275 | 013526-Z6 | not shown | Pad Kit(AMETHYST) | No | Model Compatibility List | $980.12 / Each |
|||
| 703276 | 013526-Z7 | not shown | Pad Kit(STONE) | No | Model Compatibility List | $980.12 / Each |
|||
| 703451 | 014748-A | not shown | Hardware Kit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
703459 | 014780-H | AF4 | Pulley Set;GM01 | No | Model Compatibility List | $91.23 / Each |
||
 |
703464 | 014788-E | B02 | Metal Pin; Pull Pin | No | Model Compatibility List | $36.48 / Each |
||
 |
703640 | 015771-A | AL1 | Weight Storage Horn Set | No | Model Compatibility List | $37.62 / Each |
||
 |
703641 | 015772-A | AL2 | Incremental Weight Adjustment Rod;GM01 | No | Model Compatibility List | $34.40 / Each |
||
 |
703685 | 015805-AA | L07 | Incremental Weight Plate;2.5LBS;Painting;Black;GM06 | No | Model Compatibility List | $25.30 / Each |
||
 |
703737 | 015942-AA | K06 | Weight Plate Set;10 Lbs;Dry Bearing | No | Model Compatibility List | $42.22 / Each |
||
 |
703867 | 018864-AA | D24 | Cover;Axle | No | Model Compatibility List | $3.41 / Each |
||
 |
703897 | 019118-AA | D44 | Cover;Round Pad;Left;GM03 | No | Model Compatibility List | $3.35 / Each |
||
 |
703898 | 019119-AA | D45 | Cover;Round Pad;Right;GM03 | No | Model Compatibility List | $3.64 / Each |
||
 |
703901 | 019151-AA | K17 | Rubber Bumper;Weight Stack | No | Model Compatibility List | $3.64 / Each |
||
 |
703902 | 019153-A | B22 | Pull pin knob; Yellow | No | Model Compatibility List | $6.79 / Each |
||
 |
704001 | 020090-00 | G38 | Screw;Hex Socket;Round;M10x1.25Px20L;Chromed | No | Model Compatibility List | $4.00 / Each |
||
 |
704007 | 020098-AD | Z02 | Screw;Hex Socket;Round;M10x1.5Px70L;Cr; | No | Model Compatibility List | $9.10 / Each |
||
 |
704027 | 020115-AE | Z01 | Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T | No | Model Compatibility List | $9.28 / Each |
||
 |
704038 | 020126-C | Z03 | Screw;Set;M8X1.25PX20L;;;;CHM;;BP;STOP | No | Model Compatibility List | $1.66 / Each |
||
 |
704039 | 020126-DB | Z30 | Screw;Seat Stopper;M8x1.25Px20L | No | Model Compatibility List | $1.79 / Each |
||
 |
704041 | 020127-A | X05 | Screw;Hex Socket;Round;M8X1.25PX12L | No | Model Compatibility List | $1.79 / Each |
||
 |
704043 | 020127-AC | C45 | Screw;SH;M8X1.25PX12L;;HS;;CHM;; | No | Model Compatibility List | $1.79 / Each |
||
 |
704137 | 020304-AC | F16 | Screw;Hex Socket;M10X1.5PX35L;Cr Plate | No | Model Compatibility List | $2.00 / Each |
||
 |
704168 | 020393-AB | C05 | Nut;AC;M8X1.25P;SS41;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
704171 | 020410-A | B29 | Insert Nut;NLS7-580-5.7 | No | Model Compatibility List | $9.13 / Each |
||
 |
704191 | 020464-A | G27 | Washer;Flat;6.0X12.0X1.0T;;CHM; | No | Model Compatibility List | $1.66 / Each |
||
 |
704193 | 020465-AB | C23 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
704204 | 020478-AC | Z03 | Washer;Flat;10.2X20.0X2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
704223 | 020643-A | D47 | Clamp;External C-Shaped;S-50;BED; | No | Model Compatibility List | $1.79 / Each |
||
 |
704232 | 020699-A | V13 | Rivet;1/8X12.5L | No | Model Compatibility List | $1.79 / Each |
||
 |
704284 | 022231-A | C13 | Pad Frame Stabilizer | No | Model Compatibility List | $1.79 / Each |
||
 |
704296 | 022316-A | D46 | Sleeve;Round Pad;60X4.0TX560L;GM03 | No | Model Compatibility List | $16.64 / Each |
||
 |
704309 | 022383-A | D21 | Swivel Arm Axle, SCM4, 20 x 272L | No | Model Compatibility List | $39.96 / Each |
||
 |
704315 | 022394-B | D18 | Sleeve;SS41;Chrome Plate | No | Model Compatibility List | $16.87 / Each |
||
 |
704316 | 022395-B | D50 | Sleeve;Axle;20X40MM | No | Model Compatibility List | $3.64 / Each |
||
 |
704319 | 022400-A | C40 | Spring Pin;5x30L | No | Model Compatibility List | $3.64 / Each |
||
 |
704321 | 022402-B | T17 | End Cap;Rear Determination | No | Model Compatibility List | $1.66 / Each |
||
| 704545 | 024127-Z1 | AC1 | Frame, Base(CHAMPAGNE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704546 | 024127-Z2 | AC1 | Frame, Base(PLATINUM) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704547 | 024127-Z3 | AC1 | Frame, Base(SILK PEARL) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704548 | 024127-Z4 | AC1 | Frame, Base(ANTHRACITE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704549 | 024127-ZG2 | AC1 | Base Frame, Polarized Titanium [G2S73] | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704550 | 024128-Z1 | AB1 | Frame, Main (CHAMPAGNE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704551 | 024128-Z2 | AB1 | Frame, Main(PLATINUM) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704552 | 024128-Z3 | AB1 | Frame, Main (SILK PEARL) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704553 | 024128-Z4 | AB1 | Frame, Main (ANTHRACITE) GM16 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704554 | 024128-ZG2 | AB1 | Main Frame (Polarized Titanium), GM16-G2 | No | Model Compatibility List | $1.30 / Each |
|||
 |
704639 | 024600-A | not shown | Hardware Pack | No | Model Compatibility List | $290.00 / Each |
||
| 704780 | 025461-A | AG1 | Tube, Connecting Assembly PGM16-1(CHAMPAGNE) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704781 | 025461-AB | AG1 | Tube, Connecting Assembly PGM16B-1(PLATINUM) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704782 | 025461-AC | AG1 | Tube, Connecting Assembly PGM16C-1(SILK PEARL) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704783 | 025461-AD | AG1 | Tube, Connecting Assembly PGM16D-1(ANTHRACITE) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 704792 | 025473-AD | AG1 | Linkage Tube, Polarized Titanium [G2S73] | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
704998 | 028632-AE | Z14 | Screw;SH;M10X1.5PX45L-12L ;;HS;;CHM;;P-T | No | Model Compatibility List | $3.35 / Each |
||
 |
705014 | 029160-AA | T15 | End Cap;Handlebar | No | Model Compatibility List | $1.79 / Each |
||
 |
705025 | 029963-A | V20 | Sticker;Warning | No | Model Compatibility List | $1.66 / Each |
||
| 705052 | 033302-AA | AJ3 | ADJ Set;Hand Pad;Exrta-Work;Cr Piate;GM16 | No | Model Compatibility List | $943.93 / Each |
|||
| 705060 | 033409-AA | F44 | Pulley set-Exreawork;-;-;-;FW63 | No | Model Compatibility List | $16.87 / Each |
|||
 |
705079 | 035711-A | F07 | Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** | No | Model Compatibility List | $13.68 / Each |
||
| 705099 | 035797-A | not shown | ASSEMBLY MANUAL;GM16-US(ENGLISH) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
705359 | 048946-BA | Z56 | Disc;Plastic Interior | No | Model Compatibility List | $3.64 / Each |
||
 |
705360 | 048947-BA | Z55 | Disc;Plastic Exterior | No | Model Compatibility List | $3.64 / Each |
||
 |
705389 | 049043-AA | C26 | Cap;S50.0x75.0;2.0t.3.0t tube | No | Model Compatibility List | $3.35 / Each |
||
 |
705390 | 049044-AA | T05 | Cap;30x60x3.0t;GM154 | No | Model Compatibility List | $1.79 / Each |
||
 |
705428 | 049145-AA | T30 | Sleeve;Rubber | No | Model Compatibility List | $8.42 / Each |
||
 |
705432 | 049152-A | C18 | Swing Arm Stop;Rubber | No | Model Compatibility List | $8.42 / Each |
||
 |
705459 | 049249-00 | Z07 | Screw;SH;M10X1.5PX65L;;HS;;CHM;; | No | Model Compatibility List | $3.35 / Each |
||
 |
705462 | 049253-AA | Z04 | Screw;SH;M6X1.0PX10L;;HS;;ZN;; | No | Model Compatibility List | $1.66 / Each |
||
 |
705465 | 049256-AB | Z03 | Screw;Hex Socket;Round;M10x1.5Px20L;Cr; | No | Model Compatibility List | $1.79 / Each |
||
 |
705466 | 049258-00 | Z07 | Screw;SH;M10X1.5PX100L;;HS;;CHM; | No | Model Compatibility List | $1.66 / Each |
||
 |
705533 | 050250-A | T11 | Sleeve;Round Pad;60X4.0TX170L;GM152 | No | Model Compatibility List | $3.35 / Each |
||
 |
705540 | 050304-B | H07 | Adjustment Axle;Back Pad ;45#;GM152 | No | Model Compatibility List | $8.42 / Each |
||
 |
705542 | 050314-A | F24 | Axle;20X130MM | No | Model Compatibility List | $16.87 / Each |
||
 |
705559 | 050411-B | Z18 | Spacer 15x21.5 CHM | No | Model Compatibility List | $9.10 / Each |
||
 |
705560 | 050412-A | Z19 | Fix Sleeve;Rope;15x19.5L;Zn Plate;GM88 | No | Model Compatibility List | $1.66 / Each |
||
 |
705562 | 050468-A | H56 | Bushing;Brass | No | Model Compatibility List | $3.64 / Each |
||
 |
705721 | 055342-A | E10 | Lat Bar;Aluminum | No | Model Compatibility List | $292.94 / Each |
||
 |
706156 | 059630-A | K05 | ADJ Rod;Weight Plate;SS41;20Aperture;GM1 | No | Model Compatibility List | $88.74 / Each |
||
 |
706157 | 059631-B | V02 | Warning Sticker;GM162-KM | No | Model Compatibility List | $9.10 / Each |
||
 |
706158 | 059632-A | V05 | Decal;Weight Stack;GM162 | No | Model Compatibility List | $23.63 / Each |
||
 |
706161 | 059634-AA | K12 | Rubber Pad;GM155 | No | Model Compatibility List | $8.42 / Each |
||
 |
706164 | 059670-AA | K02 | Weight Plate;10P;Black;GM153 | No | Model Compatibility List | $70.95 / Each |
||
 |
706373 | 061531-AA | B06 | Leveler;Foot Pad;FW151 | No | Model Compatibility List | $14.56 / Each |
||
 |
706452 | 062381-AA | M04 | Cap;Square Tube;FW162 | No | Model Compatibility List | $3.54 / Each |
||
 |
706462 | 062450-B | Z24 | Screw;Shoulder;10XM8X24L;Chromed | No | Model Compatibility List | $9.10 / Each |
||
 |
706480 | 062626-AA | D08 | Cap;Hole Plug;FW158 | No | Model Compatibility List | $1.66 / Each |
||
 |
706532 | 063070-A | G24 | Hook Snap | No | Model Compatibility List | $9.10 / Each |
||
 |
706539 | 063236-A | F13 | Screw;SH;M8X1.25PX22L;;HS;;CHM;; | No | Model Compatibility List | $3.64 / Each |
||
 |
706633 | 064015-A | Not Shown | Hardware; | No | Model Compatibility List | $31.72 / Each |
||
 |
706812 | 065793-BA | T16 | Pull Pin Set;leg Pad;FW165 | No | Model Compatibility List | $8.42 / Each |
||
 |
706831 | 065988-A | V09 | Decal; Adjustable;FW165 | No | Model Compatibility List | $8.42 / Each |
||
 |
706954 | 067544-A | D42 | Screw;Phillip;M4X0.7PX12L | No | Model Compatibility List | $2.00 / Each |
||
 |
706986 | 067941-C | H12 | Cap;25x50x3.0T;GM20 | No | Model Compatibility List | $1.79 / Each |
||
 |
707057 | 069022-AA | AK1 | Top Weight Plate Set | No | Model Compatibility List | $248.12 / Each |
||
 |
707066 | 1000090006 | B19 | End Cover;Seat Tube Sleeve | No | Model Compatibility List | $3.64 / Each |
||
 |
707084 | 1000090177 | B41 | Pull Pin Handle;Orange;TPP;137C;MS10 | No | Model Compatibility List | $9.10 / Each |
||
 |
707588 | 1000093550 | AJ1 | Handlebar Asembly | No | Model Compatibility List | $500.60 / Each |
||
 |
707886 | 1000096613 | F03 | Steel Rope;GM167 | No | Model Compatibility List | $127.92 / Each |
||
 |
707890 | 1000096713 | F05 | Steel Rope;Press Rope Hand;Extrawork;44; | No | Model Compatibility List | $149.16 / Each |
||
 |
707891 | 1000096714 | F10 | Steel Rope;4.8x4325mm LOOS;GM167 | No | Model Compatibility List | $126.70 / Each |
||
 |
707892 | 1000096715 | F11 | Extrawork;Steel Rope;Press The End;GM167 | No | Model Compatibility List | $108.19 / Each |
||
 |
707970 | 1000097261 | C19 | Sleeve;Seat Tube | No | Model Compatibility List | $10.84 / Each |
||
| 708072 | 1000098872 | B34 | Pull Pin Set;Seat;Orange Knob | No | Model Compatibility List | $36.48 / Each |
|||
 |
708091 | 1000099499 | Z16 | Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP | No | Model Compatibility List | $1.66 / Each |
||
 |
708099 | 1000099693 | B38 | Pull Pin Set;Orange Knob | No | Model Compatibility List | $73.92 / Each |
||
 |
708446 | 1000102862 | B24 | Screw;Hex Socket;Round;M8x1.25Px30L;Cr P | No | Model Compatibility List | $2.00 / Each |
||
 |
708450 | 1000102866 | H56 | Screw;Hex Socket;Round;M10x1.5Px80L;Cr P | No | Model Compatibility List | $0.86 / Each |
||
 |
708454 | 1000102870 | L14 | Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate | No | Model Compatibility List | $0.42 / Each |
||
 |
708466 | 1000102883 | B33 / | Screw;Hex Socket;Stopper;Cone;M6x1.0Px6L | No | Model Compatibility List | $1.66 / Each |
||
 |
708469 | 1000102887 | B24 | Screw;Hex Socket;Countersunk;M8x1.25Px16 | No | Model Compatibility List | $2.18 / Each |
||
 |
708471 | 1000102889 | G11 / | Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; | No | Model Compatibility List | $2.18 / Each |
||
 |
708473 | 1000102893 | C57 | Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl | No | Model Compatibility List | $1.38 / Each |
||
 |
708478 | 1000102898 | B27 | Screw;Hex Head;M5x0.8Px15L;Zn;Adhere | No | Model Compatibility List | $0.21 / Each |
||
 |
708483 | 1000102909 | B50 | Washer;Internal Teeth;5.3x10.0x0.6t;BE | No | Model Compatibility List | $0.10 / Each |
||
 |
708489 | 1000102915 | K12 | Circlip;E Type;;E-15;Cr Plate | No | Model Compatibility List | $0.86 / Each |
||
 |
708656 | 1000104683 | F12 | RVN;NLS7-580-5.7;Pattern;YZN | No | Model Compatibility List | $0.96 / Each |
||
 |
708657 | 1000104684 | B06 | RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $3.35 / Each |
||
 |
708661 | 1000104689 | Z21 | Screw;RND;M10x1.5Px115L;HS;G8.8;CHM | No | Model Compatibility List | $8.42 / Each |
||
 |
708674 | 1000104704 | F13 | Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.04 / Each |
||
 |
708689 | 1000104726 | Z69 | Washer;WW;20.7x29.1x0.3t;65Mn;BAN | No | Model Compatibility List | $2.00 / Each |
||
 |
708710 | 1000105038 | H09 | Pin;Spring;5x30L;OXIDIZE | No | Model Compatibility List | $3.64 / Each |
||
 |
708711 | 1000105039 | K06 | Pin;Spring;10X70;OXIDIZE | No | Model Compatibility List | $3.54 / Each |
||
 |
708815 | 1000106129 | B34 | Adjustment Pin Assembly;Seat;Yellow Knob | No | Model Compatibility List | $54.73 / Each |
||
 |
708855 | 1000106270 | AF1 | Pulley Frame Set;Painting | No | Model Compatibility List | $81.38 / Each |
||
 |
709155 | 1000110518 | V01 | Sticker;LOGO;PVC;FW151D-KM | No | Model Compatibility List | $8.42 / Each |
||
 |
709156 | 1000110525 | Not Shown | Manual;Assembly;GM167D-KM | No | Model Compatibility List | $17.45 / Each |
||
 |
709157 | 1000110527 | V01 | Instruction Sticker;A;English;GM167D-KM | No | Model Compatibility List | $66.51 / Each |
||
 |
709158 | 1000110528 | V02 | Instruction Sticker;B;English;GM167D-KM | No | Model Compatibility List | $66.51 / Each |
||
 |
709159 | 1000110529 | V03 | Instruction Sticker;C;English;GM167D-KM | No | Model Compatibility List | $66.51 / Each |
||
| 709615 | 1000201728 | AB1 | Main Frame Set ;Painting;GM167 | No | Model Compatibility List | $1008.23 / Each |
|||
 |
709616 | 1000201730 | AG5 | Connecting Frame Tube Set;U;GM167 | No | Model Compatibility List | $73.35 / Each |
||
| 709660 | 1000201922 | AG1 | Upper Frame Connecting Tube Set 1;U;Painting;A GM | No | Model Compatibility List | $230.75 / Each |
|||
| 709661 | 1000201923 | AG2 | Upper Frame Connecting Tube Set 2;U;Painting;B GM | No | Model Compatibility List | $247.29 / Each |
|||
| 709662 | 1000201924 | AG3 | Lower Frame Connecting Tube Set 1;D;Painting;A | No | Model Compatibility List | $76.91 / Each |
|||
| 709663 | 1000201925 | AB7 | Frame Support Tube Set 1;Painting;GM1 | No | Model Compatibility List | $266.99 / Each |
|||
 |
709664 | 1000201926 | AG4 | Lower Frame Connecting Tube Set 2;D;Painting;B | No | Model Compatibility List | $72.46 / Each |
||
 |
709665 | 1000201927 | AB2 | Supt Base Set;Weight Plate;Painting;GM15 | No | Model Compatibility List | $84.14 / Each |
||
| 709666 | 1000201928 | AC6 | Press Frame Set 1;Base;Painting;GM167 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
709667 | 1000201929 | AC3 | Press Frame Set 2;Painting;GM1 | No | Model Compatibility List | $227.99 / Each |
||
| 709668 | 1000201930 | AC4 | Seat Welding Set;Painting;GM167 | No | Model Compatibility List | $253.47 / Each |
|||
| 709669 | 1000201931 | AC5 | Base Welding Set; Leg Stretch ;Painti | No | Model Compatibility List | $207.17 / Each |
|||
 |
709670 | 1000201932 | T16 | Adjust Tube;Painting;GM167-KM | No | Model Compatibility List | $70.43 / Each |
||
 |
709671 | 1000201933 | 13 | Grip Frame Set;Painting;GM167 | No | Model Compatibility List | $110.60 / Each |
||
| 709672 | 1000201934 | 14 | Press Arm Set;Painting;GM167 | No | Model Compatibility List | $168.97 / Each |
|||
| 709673 | 1000201935 | AG6 | Frame Support Tube Set 2;ConTube;high Pull;GM167 | No | Model Compatibility List | $192.50 / Each |
|||
 |
709674 | 1000201936 | AG7 | Connecting Frame Tube Welding Set;D;GM167 | No | Model Compatibility List | $116.66 / Each |
||
 |
709675 | 1000201937 | AG8 | Connecting Frame Tube Welding Set 2;U;GM167 | No | Model Compatibility List | $171.29 / Each |
||
 |
709676 | 1000201938 | 19 | Top Weight Plate Set, Includes Bayonet;10LBS;GM153 | No | Model Compatibility List | $269.33 / Each |
||
 |
709677 | 1000201940 | 21 | Guide Rod Stop Set;SA;;GM167D-KM;SERVICE PARTS;;; | No | Model Compatibility List | $215.18 / Each |
||
 |
709678 | 1000201941 | AH4 | Leg Pad Adjustment Frame Set;Welding;Painting Set;Leg Pad; | No | Model Compatibility List | $153.63 / Each |
||
 |
709679 | 1000201942 | AH5 | Fix Axle;Welding Set;Painting;Leg Pad;GM | No | Model Compatibility List | $148.98 / Each |
||
 |
709680 | 1000201943 | AH6 | Fix Tube;Welding Painting Set;Leg Pad;GM | No | Model Compatibility List | $114.27 / Each |
||
| 709681 | 1000201944 | AH7 | Adjustment Tube;Welding Set;Cr Plate;Back Pad;G | No | Model Compatibility List | $292.11 / Each |
|||
 |
709682 | 1000201945 | AH1 | ThighPad Adjustment Frame;Stretch;Painting;GM152 | No | Model Compatibility List | $1247.40 / Each |
||
 |
709683 | 1000201947 | AN1 | Lower Frame Pull Tube;Welding Set;Painting;GM1 | No | Model Compatibility List | $261.38 / Each |
||
 |
709684 | 1000201948 | AT1 | Press BackPad Frame Set;Welding Set;Painting;Back Pad;G | No | Model Compatibility List | $278.64 / Each |
||
 |
709685 | 1000201949 | AT2 | Press SeatPad Adjustment Frame Set;Welding Set;Painting;Seat Pad;G | No | Model Compatibility List | $345.72 / Each |
||
 |
709686 | 1000201950 | 39 | LegPad Tube Set;Welding Set;Painting;GM167 | No | Model Compatibility List | $483.89 / Each |
||
 |
709687 | 1000201951 | AT8 | Support Tube Set;Welding Set;Painting;Back Pad; | No | Model Compatibility List | $490.05 / Each |
||
 |
709688 | 1000201952 | AF2 | BackPad ROM Frame Welding Set;Cam;GM167 | No | Model Compatibility List | $528.40 / Each |
||
 |
709707 | 1000202200 | H30 | Pad Adjustment Handle;Cr Plate;Back Pad;GM167 | No | Model Compatibility List | $667.16 / Each |
||
 |
709708 | 1000202201 | H53 | ADJ Plate;Back Pad;GM167 | No | Model Compatibility List | $667.76 / Each |
||
 |
709709 | 1000202202 | H29 | Pad Adjustment Handle;Back Pad;GM167 | No | Model Compatibility List | $656.37 / Each |
||
 |
709710 | 1000202203 | AT3 | Fix Tube;Welding Set;Seat Pad;GM167 | No | Model Compatibility List | $216.09 / Each |
||
 |
709711 | 1000202204 | 35 | Arm Tube Set;Welding Set;Seat Pad;GM167 | No | Model Compatibility List | $345.62 / Each |
||
 |
709712 | 1000202206 | AT9 | Press SeatPad Frame Set;Welding Set;Seat Pad;Painting;G | No | Model Compatibility List | $411.63 / Each |
||
 |
710034 | 1000206196 | Q02 | Cover;F;Painting;B;GM167 | No | Model Compatibility List | $648.54 / Each |
||
| 710035 | 1000206197 | Q03 | Cover;F;Painting;C;GM167 | No | Model Compatibility List | $648.36 / Each |
|||
| 710036 | 1000206198 | Q01 | Cover;F ;Painting;A;GM167 | No | Model Compatibility List | $585.60 / Each |
|||
 |
710551 | 1000210900 | AT5 | Fix Tube Set;Welding Set;Painting;Back Pad;G | No | Model Compatibility List | $169.49 / Each |
||
 |
710559 | 1000210967 | K09 | GUIDE ROD;-;GR;WP;GM03KM-G3; | No | Model Compatibility List | $211.93 / Each |
||
 |
710720 | 1000212618 | K07 | Adjust set;Semi-Assy;;Service;;GM30C;; | No | Model Compatibility List | $63.86 / Each |
||
 |
714793 | 1000318301 | AK1 | Up Weight Plate Set-Exreawork;;;;;GM03; | No | Model Compatibility List | $226.43 / Each |
||
| 716625 | 1000337889 | V08 | LOGO Label;Cap;Planet Fitness;Black Word | No | Model Compatibility List | $13.49 / Each |
|||
 |
716649 | 1000338414 | 7 | Superstructure group;Semi-Assy;;;;GM01;P | No | Model Compatibility List | $64.19 / Each |
||
| 718109 | 1000349285 | AB1 | Frame set;;;Iced Sliver;GM16KM-G3;;Servi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 718110 | 1000349286 | AD1 | Swivel arm set;;;Iced Sliver;GM16KM-G3; | No | Model Compatibility List | $592.77 / Each |
|||
| 718111 | 1000349287 | AD2 | Foot Adjustable Set;;;Iced Sliver;GM16KM | No | Model Compatibility List | $348.11 / Each |
|||
| 718112 | 1000349288 | AF1 | CAM SET;;;Iced Sliver;GM16KM-G3;;Service | No | Model Compatibility List | $518.80 / Each |
|||
| 718113 | 1000349289 | AJ2 | Handle Set;;;Iced Sliver;GM16KM-G3;;Serv | No | Model Compatibility List | $295.72 / Each |
|||
| 718251 | 1000349637 | AC1 | base set;;;painting;;Iced Sliver;GM16KM- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 718252 | 1000349638 | AG1 | CON Tube Set;;;painting;;Iced Sliver;GM1 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
719573 | 1000362619 | Q01 | Cover set;Semi-Assy;;Arcylic;;GM03;;incl | No | Model Compatibility List | $630.34 / Each |
||
 |
719669 | 1000363588 | AB5 | Stopper set;Guide Rod;;painting;;;MS20; | No | Model Compatibility List | $35.46 / Each |
||
 |
720426 | 1000372591 | K10 | Adjustable Pin;Weight Plate;;42CrMo;Chro | No | Model Compatibility List | $54.73 / Each |
||
 |
721052 | 1000380094 | F10 | Karabiner Spring Snap;;9(45mmx90mm);Sta | No | Model Compatibility List | $24.91 / Each |
||
 |
722509 | 1000393222 | B39 | Spring;Compression;1.3x12.7x38Lx7;SWP; | No | Model Compatibility List | $1.66 / Each |
||
 |
725360 | 070554 | F20 | Grip;AL;Market;MS153 | No | Model Compatibility List | $127.74 / Each |
||
 |
725410 | 070969 | Z07 | Screw;SH;M10X1.5PX105L;;HS;;CHM;; | No | Model Compatibility List | $31.30 / Each |
||
 |
725411 | 070970 | Z01 | Screw;SH;M10X1.5PX80L;;HS;;CHM;; | No | Model Compatibility List | $112.29 / Each |
||
 |
725583 | 073572 | F17 | Pulley; 90mm | No | Model Compatibility List | $44.28 / Each |
||
 |
725584 | 073573 | F21 | Pulley; 115mm | No | Model Compatibility List | $42.17 / Each |
||
| 725768 | 076184 | D21 | Swivel Arm Axle;GM16 | No | Model Compatibility List | $20.88 / Each |
|||
| 725769 | 076186 | Q30 | Cover;GM16 | No | Model Compatibility List | $219.34 / Each |
|||
| 725770 | 076189 | Not Shown | Manual;Assembly;GM16 | No | Model Compatibility List | $17.65 / Each |
|||
| 725771 | 076194 | Q37 | Stopper Plate;;GM16 | No | Model Compatibility List | $1.66 / Each |
|||
 |
725996 | 079123 | B46 | Placard Holder | No | Model Compatibility List | $34.94 / Each |
||
 |
726047 | 079527 | B47 | Screw;Hex Socket;Umbrella;;;M8x1.25Px18L | No | Model Compatibility List | $2.18 / Each |
||
| 726145 | 080210 | V01 | Sticker;Illustration;GM16 | No | Model Compatibility List | $33.46 / Each |
|||
 |
726234 | 080870 | T34 | Clamp;External C-Shaped;Black; | No | Model Compatibility List | $3.35 / Each |
||
 |
726547 | 082721 | C44 | ADJ Fix Plate;Leg Pad;GM167 | No | Model Compatibility List | $13.39 / Each |
||
 |
726548 | 082732 | D09 | Swivel Axle;GM167 | No | Model Compatibility List | $8.42 / Each |
||
 |
726551 | 082747 | K03 | Guide Rail;Cr Plate;GM167 | No | Model Compatibility List | $89.54 / Each Out Of Stock |
||
 |
726552 | 082749 | K04 | Guide Rail;Cr Plate;GM167 | No | Model Compatibility List | $18.54 / Each |
||
 |
726553 | 082776 | T33 | Hook L ;GM167 | No | Model Compatibility List | $8.42 / Each |
||
 |
726555 | 082840 | I04 | Foam;GM167 | No | Model Compatibility List | $9.72 / Each |
||
 |
726556 | 082847 | F06 | Cam Cover;GM167 | No | Model Compatibility List | $79.30 / Each |
||
 |
726557 | 082861 | KIT | Hardware Pack | No | Model Compatibility List | $387.04 / Each |
||
 |
726558 | 082865 | D12 | Sleeve;GM167 | No | Model Compatibility List | $21.89 / Each |
||
 |
726561 | 082872 | Z17 | Axle;GM167 | No | Model Compatibility List | $9.93 / Each |
||
 |
726578 | 083064 | Z68 | Fix Plate;GM167 | No | Model Compatibility List | $63.05 / Each |
||
| 726607 | 083458 | Z62 | Washer;Lock;8.2x13.5x2.0t | No | Model Compatibility List | $2.00 / Each |
|||
 |
726620 | 083532 | V08 | Sticker;Cover;Up;AL;SNAP-GM01 | No | Model Compatibility List | $25.56 / Each |
||
| 726628 | 083706 | B13 | Foam#GM167 | No | Model Compatibility List | $1.61 / Each |
|||
 |
726707 | 084241 | Z06 | Screw Set;M6X1.0PX5L;BP;POT | No | Model Compatibility List | $0.39 / Each |
||
 |
726708 | 084244 | D22 | 600 Round Pad, Black | No | Model Compatibility List | $94.61 / Each |
||
 |
726764 | 084665 | Z10 | Screw;SH;M10X1.5PX140L;;HS;;CHM;; | No | Model Compatibility List | $8.42 / Each |
||
 |
726765 | 084666 | Z04 | Screw;SH;M10X1.5PX160L;;HS;;CHM;; | No | Model Compatibility List | $8.42 / Each |
||
 |
726766 | 084667 | Z08 | Screw;SH;M10X1.5PX175L;;HS;;CHM;; | No | Model Compatibility List | $9.10 / Each |
||
| 726802 | 084914 | Not Shown | Hardware;GM16-G3 | No | Model Compatibility List | $131.92 / Each |
|||
| 726803 | 084919 | C30 | Axle;Pin;FW52 | No | Model Compatibility List | $11.57 / Each |
|||
 |
726868 | 085728 | 7 | Cover set;Semi-Assy;GM01 | No | Model Compatibility List | $81.28 / Each |
||
| 726927 | 086032 | Q38 | Bolt;Cover;GM16 | No | Model Compatibility List | $2.34 / Each |
|||
 |
726963 | 086254 | Z05 | Ring;Q235;GM167 | No | Model Compatibility List | $8.42 / Each |
||
| 727000 | 086611 | V06 | Series no. Decal;GM167 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
727001 | 086613 | V08 | Decal; Adjustable;GM167 | No | Model Compatibility List | $3.35 / Each |
||
 |
727002 | 086616 | Z09 | Screw;SH;M12X1.75PX152L;;HS;;CHM;; | No | Model Compatibility List | $9.10 / Each |
||
| 727257 | 088125 | Not Shown | Sleeve;Black;GM16KM-G3 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 727855 | 091551 | V10 | InstructionLabel;JP;GM16KM-G3 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
728517 | 095167 | E09 | Foam;Elastomer;BL;31.8x5.0tx170L;GM167K | No | Model Compatibility List | $3.64 / Each |
||
 |
728549 | 095286 | Z06 | Space Ring;Q235;GM167-KM | No | Model Compatibility List | $9.72 / Each |
||
| 728977 | N/A | AC1 | Console Mast,Old version (4 holes on front) | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729125 | Part of Kit 13 | AH1 | Link Arm;Right;Panting;MM330;EP212 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729127 | Part of Kit 14 | E08 | Crank Pin Sleeve;Aluminum Casting;EP525- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729137 | Part of Kit 19 | E08 | Crank Sleeve;Pedal Arm;-;-;ADC12; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729141 | Part of Kit 21 | R01 | Axle;Transmission;42CRMO;-;-; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729161 | Part of Kit 35 | N30 | Plastic Cover;Quick Key;ABS/PA746;137C/ | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729164 | Part of Kit 39 | AI1 | LegPad Tube Set;Welding Set;Painting;GM167 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729261 | See Pad Matrix | J01 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729661 | ZMS4003273 | Not Shown | Decal, QR, G3-S73 Prone Leg Curl | No | Model Compatibility List | $6.37 / Each |
|||
|
|
|||||||||
Address
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
Hydra Fitness Exchange © 2024. All Rights Reserved.
