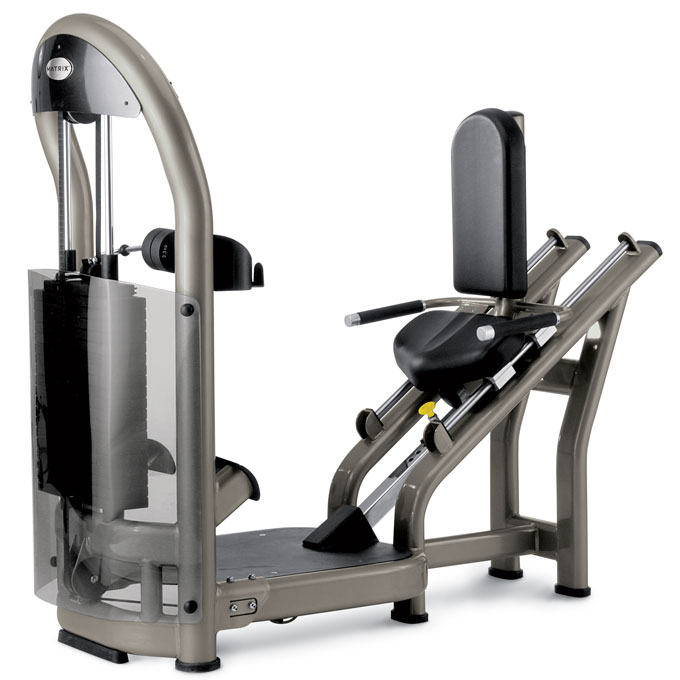

Matrix Commercial - MX-S77 - 2002-2004

Repair Parts for Matrix Commercial MX-S77 GM19

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: MX-S77

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - F42 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700140 000509-E B19 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700162 000542-C B21 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
C 700165 000553-A C19 Foot Pad;Rubber;%50x100;GM19 No Model Compatibility List $5.17 / Each

9,3,12,13,14
T 700192 000610-A T09 Foam Grip;25.4x5.0t x 215L No Model Compatibility List $11.36 / Each

11
B 700256 000791-B B20 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
T 700275 000845-F T08 Sleeve;60x60;Delrin;GM19 No Model Compatibility List $3.64 / Each

3
Cap;Tube;PVC;FW91 700308 000926-A B10 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
Q 700309 000926-AA Q05 Cap;Tube;BL;FW91 No Model Compatibility List $1.66 / Each

9,3
T 700440 001384-BA T33 Rubber Pad;Rubber;76x67x6;BL;GM19 76X67X6(RUBBER ANTHRACITE) No Model Compatibility List $3.35 / Each

7,4,5,6,12,13,14
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
End-Cover;Square Tube;GM03 700452 001407-A B09 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Long Guide Rubber Plate;POM 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
H 700518 001522-B H05 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
H 700519 001523-E H06 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
700577 001711-CA J02 Pad, Seat(BLACK) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700578 001711-CB J02 Pad, Seat(RED) Pad, Seat (CABERNET) No Model Compatibility List $185.07 / Each

12,13,14
700579 001711-CD J02 Pad, Seat,(PURLISH RED) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700580 001711-CE J02 Pad, Seat,(GRAY) Pad, Seat, (STONE) No Model Compatibility List $185.07 / Each

12,13,14
700581 001711-CF J02 Pad, Seat,(BROWN) FOAM No Model Compatibility List $185.07 / Each

12,13,14
700582 001711-CG J02 Pad, Seat,(BLACKLISH GREEN) FOAM No Model Compatibility List $185.07 / Each

4,5,6,12,13,14
700612 001742-BB J01 Back Pad;Vesicant;RD;GM05 BACK PAD (CABERNET) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700613 001742-BC J01 Back Pad;Vesicant;BE;GM05 GM05-P46CB No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700614 001742-BD J01 Back Pad;Vesicant;Purple Red;GM05 FOAM(GM05-P46BD No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700615 001742-BE J01 Back Pad;Vesicant;GY;GM05 FOAM(GM05-P46BE) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
700616 001742-BF J01 Back Pad;Vesicant;Brown;GM05 FOAM(GM05-P46BF) No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
700617 001742-BG J01 Back Pad;Vesicant;Glackish Green;GM05 FOAM(GM05-P46BG) No Model Compatibility List $265.56 / Each

4,5,6,12,13,14
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
Screw;Phillip;BH;M4x0.7Px12L;Gap; 701288 004356-00 E33 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A 701431 004479-ABX F10 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F11 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F15 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
701494 004535-00 B28 ROUND HEX SOCKET SCREW, M8X1.25PX30L (Chromed) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
K 701496 004535-AC K13 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Screw;Round;Hex Socket;M12x1.75Px25L 701520 004553-AB Z01 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
T 701546 004574-AC T31 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701617 004636-AC B27 Screw;Umbrella Cross Tapped;4x15L No Model Compatibility List $1.66 / Each

2
C 701668 004702-00 C42 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
B 701683 004714-AD B45 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Oval;M8X1.25PX20L 701694 004720-AH Z08 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
C 701760 004780-AC C47 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
C 701763 004785-AC C51 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
701789 004804-00 C44 Screw;Oval Hex Socket;M10x1.5Px100L;Chromed No Model Compatibility List $9.41 / Each

7,2,12,13,14
T 701836 004855-AC T32 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F10 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Nut;Nylon;M5x0.8P;Chromed 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701937 004973-00 B48 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.90 / Each

2
B 701939 004975-00 B41 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
C 701968 005007-00 C53 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C45 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla 702000 005040-00 G35 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702057 005084-AB L12 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702124 005148-A C52 Washer;Flat;13x35x2.5T;Chromed D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $0.36 / Each

7,2,12,13,14
Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
Washer;5.3x10x0.6T 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
B 702217 005330-00 B34 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
C 702270 005425-AB C21B SCREW;SET;M5X0.8PX8L;;;;ZN;; No Model Compatibility List $0.52 / Each

2
Lanyard;Weight Selection Pin 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702379 006583-A V01 Decal;Operation Instruction - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $15.00 / Each

7,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
Decal;Serial Number;Aluminum 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702436 006864-A not shown Assembly Manual, MX-S77 No Model Compatibility List $11.86 / Each

3
F 702520 008448-D F03 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
B 702682 009306-E B18 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $3.74 / Each

8,15
T 702711 009356-B T34 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
T 702721 009371-E T10 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
K 702771 009639-IB K06 15POUNDS WEIGHT PLATE GM01-K06 No Model Compatibility List $83.95 / Each

3
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
T 702944 013411-Z1G2 T38 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
Q 702958 013420-Z1 Q02 UPPER COVER(INCLUDING ALUMINUM BADGE) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $73.92 / Each

9
Upper Cover Set 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
Adjust Pin Assembly;ROM;Yellow 702966 013422-ZG2 G24 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
703307 013536-Z1 AH1 ADJUSTING TUBE SET(CHAMPAGNE) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
703308 013536-Z2 AH1 ADJUSTING TUBE SET(PLATINUM) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703309 013536-Z3 AH1 ADJUSTING TUBE SET(SILK PEARL) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
703310 013536-Z4 AH1 ADJUSTING TUBE SET(ANTHRACITE) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
Adjusting Tube Set (Polarized Titanium), GM19-G2 703311 013536-ZG2 AH1 Adjusting Tube Set (Polarized Titanium), GM19-G2 No Model Compatibility List $163.15 / Each

3
703312 013537-Z1 not shown PAD KIT(ANTHRACITE) GM19 No Model Compatibility List $500.11 / Each

7,4,5,6,12,13,14
703313 013537-Z2 not shown PAD KIT(BROWN) GM19 No Model Compatibility List $500.11 / Each

12,13,14
703314 013537-Z3 not shown PAD KIT(CABERNET) GM19 No Model Compatibility List $500.11 / Each

12,13,14
703315 013537-Z4 not shown PAD KIT(MIST) GM19 No Model Compatibility List $500.11 / Each

12,13,14
703316 013537-Z5 not shown PAD KIT(GLADE) GM19 No Model Compatibility List $500.11 / Each

12,13,14
703317 013537-Z6 not shown PAD KIT(AMETHYST) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
703318 013537-Z7 not shown PAD KIT(STONE) GM19 No Model Compatibility List $500.11 / Each

12,13,14
F 703459 014780-H F40 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
F 703463 014784-G F41 Pulley Set;GM06 No Model Compatibility List $106.37 / Each

8
Metal Pin; Pull Pin 703464 014788-E B02 Metal Pin; Pull Pin No Model Compatibility List $36.48 / Each

3,12,13,14
K 703465 014793-D K10 Pin;Weight Plate Selector;Red Knob No Model Compatibility List $26.05 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
Weight Plate Set;15 Lbs;Dry Bearing 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
Pull pin knob; Yellow 703902 019153-A B22 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
703911 019235-A C20 RUBBER STOPPER RUBBER No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Stopper;Rubber 703912 019235-B C20 Stopper;Rubber No Model Compatibility List $3.95 / Each

1
C 703913 019239-B C49 Stopper Plate;Upper;Rubber;GM19 No Model Compatibility List $4.94 / Each

3
H 704004 020096-00 H07 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
Screw;Hex Socket;Sink;M8x1.25Px20L;Adher 704051 020137-AB C48 Screw;Hex Socket;Sink;M8x1.25Px20L;Adher No Model Compatibility List $1.53 / Each

2
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Insert Nut;NLS7-580-5.7 704171 020410-A B29 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704193 020465-AB C46 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;10.2x22.0x2.0T;Chromed 704206 020479-A E33 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
704219 020632-B not shown HARDWARE KIT HARDWARE KITS GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704275 022204-A B45 Rear Upper Cover Snug Piece No Model Compatibility List $1.01 / Each

9
C 704325 022411-B C60 Axle;Slip-Stopper;SS41;10X59L;GM06 No Model Compatibility List $3.74 / Each

8
704565 024133-Z1 AB1 FRAME SET GM19(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704566 024133-Z2 AB1 FRAME SET GM19(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704567 024133-Z3 AB1 FRAME SET GM19(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704568 024133-Z4 AB1 FRAME SET GM19(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704569 024133-ZG2 AB1 Main Frame Set, GM19-G2 (Polarized Titanium) No Model Compatibility List $1138.83 / Each

3
704570 024135-Z1 AT1 SEART FRAME SET(CHAMPAGNE) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704571 024135-Z2 AT1 SEART FRAME SET(PLATINUM) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704572 024135-Z3 AT1 SEART FRAME SET(SILK PEARL) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704573 024135-Z4 AT1 SEART FRAME SET(ANTHRACITE) GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704574 024135-ZG2 AT1 Seat Frame Set (Polarized Titanium), GM19-G2 No Model Compatibility List $1039.95 / Each

3,12,13,14
704709 025383-A AC1 GM19BASE FRAME WELDING SET(PAINT) PGM19-1(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
704710 025383-AB AC1 GM19BASE FRAME WELDING SET(PAINT) PGM19B-1(PLATINUM) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704711 025383-AC AC1 GM19BASE FRAME WELDING SET(PAINT) PGM19C-1(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
704712 025383-AD AC1 GM19BASE FRAME WELDING SET(PAINT) PGM19D-1(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
704804 025507-A AC2 GM19PEDAL WELDING SET PGM19-1(CHAMPAGNE) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,4,5,6
704805 025507-AB AC2 GM19PEDAL WELDING SET PGM19B-1(PLATINUM No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
704806 025507-AC AC2 GM19PEDAL WELDING SET PGM19C-1(SILK PEARL) No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
704807 025507-AD AC2 GM19PEDAL WELDING SET PGM19D-1(ANTHRACITE) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,9,4,5,6,12,13,14
B 704808 025510-A B17 Pedal Set;Painting;GM19 No Model Compatibility List $57.38 / Each

8,9
705044 033100-B AC1 Base Frame, Polarized Titanium (G2S77) No Model Compatibility List $1.30 / Each

3
Pedal Set;Painting;GM19-G2 705054 033308-B AC2 Pedal Set;Painting;GM19-G2 No Model Compatibility List $234.65 / Each

8,9
705062 034231-C AH1 Adjustable Set;;;;;????;??;GM19 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
Hardware Kit 705326 047038-A not shown Hardware Kit No Model Compatibility List $81.72 / Each

1
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
Pull Pin Handle;Orange;TPP;137C;MS10 707084 1000090177 B41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
707215 1000091237 AC2 Pedal Set;Painting;GM19-G2 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
K 707527 1000093249 K17 Screw;BH;M8X1.25PX25L;;HS;G8.8;NKL;;BP No Model Compatibility List $2.00 / Each

2
Pull Pin Set;Orange Knob 708084 1000099214 12 Pull Pin Set;Orange Knob No Model Compatibility List $36.48 / Each

12,13,14
T 708099 1000099693 T38 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M10x1.5Px80L;Cr P 708450 1000102866 H56 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr 708453 1000102869 B14 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
708470 1000102888 B11 Screw;Hex Socket;Countersunk;M8x1.25Px35 No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl 708473 1000102893 C57 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; 708475 1000102895 B32 Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; No Model Compatibility List $1.66 / Each

2
Screw;Hex Head;M5x0.8Px15L;Zn;Adhere 708478 1000102898 B27 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
Washer;Internal Teeth;5.3x10.0x0.6t;BE 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
Circlip;E Type;;E-15;Cr Plate 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
RVN;NLS7-580-5.7;Pattern;YZN 708656 1000104683 F12 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP 708669 1000104698 Z12 Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP No Model Compatibility List $8.03 / Each

2
Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 708674 1000104704 F13 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 708677 1000104708 C52 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.60 / Each

2
708683 1000104717 C48 Screw;FH;M8x20L;-;HS;-;CHM;BP;G8.8; No Model Compatibility List $2.39 / Each

2
708687 1000104724 H07 Washer;FLT;13.0x35.0x2.5t;CHM No Model Compatibility List $1.30 / Each

2
709113 1000109833 C44 Screw;RND;M10x25L;-;HS;-;CHM;BP;G12.9; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
C 709515 1000200928 C21A BEARING;BAL;KS255 PP;KS255 PP;INA; No Model Compatibility List $270.37 / Each

8
C 709516 1000200929 C50 GUIDE RAIL;F;RCP;GR;GM19 LEG PRESS; No Model Compatibility List $489.19 / Each

9
C 709908 1000204314 C21C BEARING HOUSING;SLIPPING FRAME;SHLMA25UU No Model Compatibility List $168.97 / Each

8,3,12,13,14
709909 1000204315 C21 SLIPPING SLEEVE SET;SA;-;GM19KM-G3;;; No Model Compatibility List $481.62 / Each

3,12,13,14
710073 1000206676 Not Shown Protected Pad;;PU,Vesicant;Black;PURE GY No Model Compatibility List $18.56 / Each

4,5,6,12,13,14
J 710428 1000210205 J01 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $107.67 / Each

4,5,6,12,13,14
J 710444 1000210289 J02 SEAT PAD;-;PU;MIST BLUE;-; No Model Compatibility List $84.47 / Each

12,13,14
K 710562 1000210970 K09 Guide Rail;19x1070L No Model Compatibility List $155.74 / Each

9
Adjust set;Semi-Assy;;Service;;GM30C;; 710720 1000212618 K07 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
Up Weight Plate Set-Exreawork;;;;;GM01; 714794 1000318302 AK1 Up Weight Plate Set-Exreawork;;;;;GM01; No Model Compatibility List $229.81 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
Superstructure group;Semi-Assy;;;;GM01;P 716649 1000338414 7 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718127 1000349303 1 Frame set;;;Iced Sliver;GM19KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718128 1000349304 2 seat set;;;Iced Sliver;GM19KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
718266 1000349668 AC1 base set;;;painting;;Iced Sliver;GM19KM- No Model Compatibility List $1.30 / Each

3
Cover set;Semi-Assy;;Arcylic;;GM06;;incl 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
Stopper set;Guide Rod;;painting;;;MS20; 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
Adjustable Pin;Weight Plate;;42CrMo;Chro 720426 1000372591 K15 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725311 069751 Not Shown Semi-Assy;Hardware;MX-S77-ML;GM19 No Model Compatibility List $160.42 / Each

1
725932 078427 T33 Rubber Pad;(Rubber BLACK);GM19-G3 No Model Compatibility List $9.83 / Each

4,5,6,12,13,14
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726564 082955 V01 Illustration Decal;ENG;GM19 No Model Compatibility List $33.46 / Each

7,3
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
729012 Order Kit 1 4 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AM01 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AH03 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729260 See Notes C21 Linear Bearing, SH25UU (INA); REPLACE ALL 4 BEARINGS IF REPLACING 1. SEE SEAT BEARING REPLACEMENT INSTRUCTIONS! No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6,12,13,14
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729664 ZMS4003276 Not Shown Decal, QR, G3-S77 Calf Press No Model Compatibility List $6.37 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
