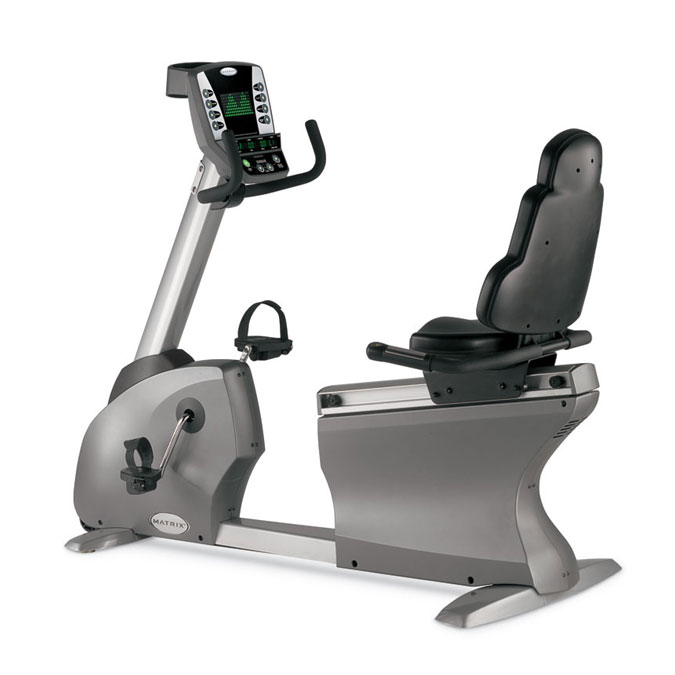

Matrix Commercial - R5x-05-G2 - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000007-B 700005 000007-B L01 Transport Wheel;Nylon+30%FIBER;74;BL;CB32 No Model Compatibility List $7.00 / Each

8
000334-F 700090 000334-F D64 Cover;Back Pad Set;;ABS;;BL;;RB50 No Model Compatibility List $38.50 / Each

9,4,5,6,12,13,14
000437-CC 700114 000437-CC C14 Upper Console Mast Cover;Center;Nylon;(MATRIX GRAY) No Model Compatibility List $2.80 / Each

7,9
000632-CA 700203 000632-CA C35 Foam Grip; 22.0 PIPEX3TX445L(BLACK) No Model Compatibility List $13.10 / Each

4,5,6,11
000730-CA 700224 000730-CA D77 Foam Grip;Handlebar;Dipping;22x3tx320L No Model Compatibility List $10.78 / Each

12,13,14,11
000868-A 700285 000868-A P11 End Protect Cap;EP-1113;Black Yes Model Compatibility List $1.28 / Each

9,4,5,6
000870-A 700286 000870-A N36 Hole Plug;Rubber;19mm;Black - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $1.28 / Each

4,5,6
000932-E 700313 000932-E N28 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.28 / Each

9,4,5,6
000956-AA 700322 000956-AA C36 Tube End Cap; 1(RB50B-C16A) No Model Compatibility List $1.28 / Each

9,3
001126-C 700357 001126-C D79 End Cap;Pulse Grips;Inner No Model Compatibility List $1.46 / Each

9,12,13,14,11
001127-C 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $3.08 / Each

9,12,13,14,11
001143-B 700370 001143-B Q05 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $7.00 / Each

8,9
001170-00 700379 001170-00 H06 Stopper Wheel;Seat Yes Model Compatibility List $5.80 / Each

8,12,13,14
001246-A 700401 001246-A D13 Bushing;U-Shaped No Model Compatibility List $7.00 / Each

8
001568-E 700540 001568-E Q03 Console Mast Boot; PVC No Model Compatibility List $13.66 / Each

7
001583-AA 700547 001583-AA C13 Front Grip Sleeve; PVC No Model Compatibility List $2.58 / Each

3,11
700567 001673-00 P21 KSS Power Wire Buckle;SR-6P3 No Model Compatibility List $1.28 / Each

4,5,6
001679-00 700570 001679-00 P17 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $1.90 / Each

2
001937-A 700699 001937-A P20 E-PORT Circuit Board Set;Contain PCB Board No Model Compatibility List $8.60 / Each

7,4,5,6
002018-D 700715 002018-D P10 Lower Console Cable Wire No Model Compatibility List $22.86 / Each

7,4,5,6
002090-C 700738 002090-C P10 Upper Console Cable Wire No Model Compatibility List $12.48 / Each

7,4,5,6
002222-ER 700766 002222-ER N/A TV Power Wire;1350L;SCD-026A;RB80; Yes Model Compatibility List $8.98 / Each

4,5,6
002316-D 700787 002316-D P07 Hand Pulse Cable;600(H6657R1-2+110*F ENDX2) D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $6.48 / Each

9,4,5,6,12,13,14
002358-A 700799 002358-A P27 Pulse Grip Wire;600(H6657R1-2+110*F ENDX2) No Model Compatibility List $6.48 / Each

9,4,5,6,12,13,14,11
002570-F 700862 002570-F P22 Connecting Cable;Heart Rate Sensor Rail;1375(H6657P-2)X4 No Model Compatibility List $13.88 / Each

9,4,5,6,12,13,14
002577-H 700865 002577-H N29 Connecting Wire;Heart Rate Board;250mm No Model Compatibility List $6.70 / Each

4,5,6,12,13,14
002579-C 700866 002579-C P23 Heart Rate Connecting Cable for Console; 800(H6657R1-2)X4 No Model Compatibility List $9.68 / Each

7,4,5,6,12,13,14
002639-G 700881 002639-G P05 Electronic Control Set Connecting Wire; 350(3.96-5P VH WHITE+HL20P-03) No Model Compatibility List $6.48 / Each

7,4,5,6
002644-E 700886 002644-E P19 Power Connection Changing Wire;850(XAP-02V-1+H6657R1-2) No Model Compatibility List $6.48 / Each

4,5,6
002668-E 700890 002668-E P26 Earphone Extended Line;185(3.5 Three-D E No Model Compatibility List $20.52 / Each

7,9,12,13,14
002720-F 700910 002720-F P12 TV Power Wire;1250(XAP-02V-1+SMR-02V-B) No Model Compatibility List $7.42 / Each

4,5,6
002721-D 700911 002721-D P13 TV Signal Wire; 1250(RG-6)X2 No Model Compatibility List $15.68 / Each

4,5,6
003196-C 700997 003196-C N51 Membrane Switch;Right;MATRIX U5/R5/E5;ES No Model Compatibility List $10.68 / Each

4,5,6
003198-A 700998 003198-A N53 Membrane Switch;Left;MATRIX U5/R5/E5;ES No Model Compatibility List $10.68 / Each

4,5,6
003203-B 701002 003203-B N54 Membrane Switch;Down;MATRIX U5/R5/E5;MKS/ES No Model Compatibility List $11.54 / Each

4,5,6
003383-A 701032 003383-A P18 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $7.00 / Each

1
701073 003569-A P14 Middle Connect Transform;F Type;F-A005(-N No Model Compatibility List $2.58 / Each

1
003874-F 701108 003874-F R02 Small Pulley; 65x38L SS41 No Model Compatibility List $25.90 / Each

8
003883-E 701114 003883-E R03 Drive Axle Pulley;Nylon;30% FIBER No Model Compatibility List $30.88 / Each

8,10
003979-B 701132 003979-B U11 Spring;Idler Yes Model Compatibility List $5.08 / Each

2,8
004050-A 701146 004050-A T09 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $28.06 / Each

8,9
004075-A3 701158 004075-A3 R08 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $7.36 / Each

8
004080-00 701163 004080-00 U07 Ball Bearing;6203ZZ;17X40X12T;;TPI;;; No Model Compatibility List $8.60 / Each

8
004081-A2 701165 004081-A2 R09 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $12.22 / Each

8
004082-A2 701166 004082-A2 T07 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $16.84 / Each

8
701167 004083-00 U05 Ball Bearing 6206ZZ No Model Compatibility List $0.00 / Each
Out Of Stock
8
004091-00 701171 004091-00 R10 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $23.76 / Each

8
004153-00 701200 004153-00 R19 Poly-V Belt; 500-J6(CARLISLE) No Model Compatibility List $42.10 / Each

15
004168-00 701210 004168-00 R20 Drive Belt;Poly-V;440-J8 No Model Compatibility List $42.10 / Each

15,10
004326-00 701265 004326-00 S14 Screw;Phillip;Round;M5x0.8Px8L; No Model Compatibility List $1.54 / Each

2
004329-00 701268 004329-00 U12 Screw;Phillip;Round;M5x0.8Px10L; No Model Compatibility List $1.54 / Each

2
004339-00 701275 004339-00 N26 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $1.54 / Each

2
004355-00 701286 004355-00 H08 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $1.54 / Each

2
004356-00 701288 004356-00 Q10 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004398-00 701350 004398-00 C38 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $1.38 / Each

2
004447-AB 701390 004447-AB S12 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.10 / Each

2
004456-00 701402 004456-00 D40 Screw;Round;Hex Socket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004457-00 701403 004457-00 R15 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.38 / Each

2
004484-AB 701442 004484-AB C30 Screw;Round;Hex Socket; M8X1.25PX50L(30L) No Model Compatibility List $1.28 / Each

2
004526-AB 701480 004526-AB D41 Screw;Round;Hex Socket;M6X1.0PX30L No Model Compatibility List $1.38 / Each

2
701536 004566-Z H11 Screw;Plain;Hex Socket; M5X0.8PX10L No Model Compatibility List $0.00 / Each
Out Of Stock
2
004569-00 701541 004569-00 H13 Screw;Plain;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.54 / Each

2
004616-00 701585 004616-00 Q06 Screw;Umbrella Cross Tapped;4x12L No Model Compatibility List $1.54 / Each

2
701625 004646-Z H03 Screw;Round;Tapped Crisscross; 3X10L No Model Compatibility List $0.00 / Each
Out Of Stock
2
004647-00 701626 004647-00 D74 Screw;Phillip;Round;3x12L No Model Compatibility List $1.38 / Each

2
004651-00 701630 004651-00 C31 Screw;Round;PH;Tapped;3X10L No Model Compatibility List $2.58 / Each

2
004653-AB 701632 004653-AB C25 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.42 / Each

2
004693-AD 701654 004693-AD C37 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.28 / Each

2
004704-A 701671 004704-A D57 Screw;Flat Hex Socket;M8x1.25Px15L;BED; No Model Compatibility List $1.28 / Each

2
004717-Z 701686 004717-Z R17 Screw;Oval;Hex Socket; M6X1.0PX12L No Model Compatibility List $6.48 / Each

2
004730-00 701713 004730-00 H09 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $1.54 / Each

2
004754-00 701729 004754-00 J33 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.38 / Each

2
004767-00 701743 004767-00 L02 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.38 / Each

2
701753 004776-Z J31 Screw;Oval;Hex Socket; M10X1.5PX20L No Model Compatibility List $0.00 / Each
Out Of Stock
2
004845-00 701824 004845-00 D39 Set Screw;M12x1.75Px12.0L No Model Compatibility List $1.28 / Each

2
004860-00 701843 004860-00 T19 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.38 / Each

2
004874-AB 701853 004874-AB D58 Screw;Flat Hex Socket;M8x1.25Px15L;BED No Model Compatibility List $1.38 / Each

2
004880-00 701858 004880-00 N27 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $1.54 / Each

2,4,5,6
004892-00 701870 004892-00 S09 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 L04 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004933-00 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.38 / Each

2
004935-00 701909 004935-00 D36 Nut;Nylon;M6X1.0P No Model Compatibility List $1.54 / Each

2
004957-00 701924 004957-00 R06 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $2.80 / Each

2
004968-00 701931 004968-00 S04 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
004973-00 701937 004973-00 C37 Insert Nut;Brass;ALS7-580-3.3(0.5-3.3) No Model Compatibility List $1.46 / Each

2
701953 004989-Z R07 Key;Round;Dual-End;6X6X15L No Model Compatibility List $1.28 / Each

9
005003-00 701960 005003-00 D43 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $1.54 / Each

2
701977 005014-Z D55 Washer;Spring; SW8 8.0X17.0X1.5T No Model Compatibility List $0.00 / Each
Out Of Stock
2
005035-00 701997 005035-00 C24 Washer;Flat;8.2x18x1.4T No Model Compatibility List $1.54 / Each

2
005067-00 702037 005067-00 S03 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.22 / Each

2,4,5,6
702043 005072-Z H12 Washer;Flat; 6.5X13X1.5T No Model Compatibility List $0.00 / Each
Out Of Stock
2
005078-00 702050 005078-00 S11 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005080-00 702052 005080-00 R16 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005082-00 702054 005082-00 H07 Washer;Flat;5.0x16.0x1.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005096-Z 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.38 / Each

2
005102-00 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005154-A 702127 005154-A Q09 Washer;Flat;5.0X10.0X1.0T;Stainless No Model Compatibility List $1.38 / Each

2
005165-00 702136 005165-00 D81 Washer;Arc;8.2x18x1.5T No Model Compatibility List $1.54 / Each

2
005330-00 702217 005330-00 Q07 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005352-00 702227 005352-00 R12 C-Clip;Internal;R-35 No Model Compatibility List $1.54 / Each

2
005356-00 702231 005356-00 R13 C-Clip;Internal;R-47 No Model Compatibility List $1.54 / Each

2
005357-00 702232 005357-00 U06 C-Clip;Internal;R-62 No Model Compatibility List $2.58 / Each

2
005365-00 702240 005365-00 U09 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005367-00 702242 005367-00 U08 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005482-C 702287 005482-C D35 Spring;Compress;Adjust;SWPB; No Model Compatibility List $7.00 / Each

2
006185-C 702329 006185-C V02 Label;Cover;;;;BL/RD;;CB32B No Model Compatibility List $18.34 / Each

9
006291-D 702342 006291-D V01 Aluminum Rail Decal; RB50-V01D No Model Compatibility List $2.58 / Each

7,9,3
006656-A 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
007747-C 702467 007747-C T06 Fix Plate;Crank;;SPC;1.5t;Zn Plate;;CB32 No Model Compatibility List $1.38 / Each

8,3
007768-D 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.38 / Each

2,3
007806-D 702471 007806-D N22 Contact Plate;Pulse Sensor No Model Compatibility List $2.94 / Each

3,4,5,6,12,13,14
702476 007875-E B28 Fix Plate;Side Cover;2 Hole;SPC 1.6T No Model Compatibility List $2.58 / Each

9,3
702477 007878-B Q08 Fix Plate;Side Cover;2 Hole;SPC 2.0T No Model Compatibility List $2.58 / Each

9,3
007919-C 702482 007919-C H02 Fix Plate;Aluminum Rail;;SPC;6.0t;;;RB50 No Model Compatibility List $7.00 / Each

9,3
008418-00 702516 008418-00 U04 Bracket;Spring Adjustment No Model Compatibility List $1.46 / Each

2,3,4,5,6
008702-J 702572 008702-J T03 Crank Bearing Fixing Base;Right; No Model Compatibility List $11.20 / Each

8,3
008703-G 702573 008703-G T04 Crank Bearing Fixing Base;Left; No Model Compatibility List $11.20 / Each

8,3
008704-D 702574 008704-D T05 Nut;Crank;Left;SS41;%32;;;;CB32 No Model Compatibility List $1.38 / Each

2,8
008706-C 702575 008706-C T13 Nut;Crank ;Right;SS41;%32;;;;CB32 No Model Compatibility List $2.80 / Each

2,8
008708-D 702576 008708-D T18 Nut;Rim;;SS41;%32;;;;CB32 No Model Compatibility List $7.66 / Each

2
008721-J 702577 008721-J T15 Ring;Pedal Assembly;Front;SS41;31.8;;;;CB32 SS41(ZINC PLATING) No Model Compatibility List $6.48 / Each

8,9,3
008722-G 702578 008722-G T16 Ring;Pedal Assembly;Rear;SS41;31.8 No Model Compatibility List $6.48 / Each

8,9,3
008770-A 702587 008770-A H05 Seat Axle;Stopper;;SS41;12.0x85L;Zn Plate;;; Yes Model Compatibility List $6.80 / Each

3,8
009585-B 702765 009585-B D34 Adjustment Block;Position;;S45C;16x93.5L;Zn Pl No Model Compatibility List $24.68 / Each

1
012818-00 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $463.30 / Each

8
013561-BE 703333 013561-BE N04 Upper Control Board No Model Compatibility List $483.06 / Each

7
013782-AB 703367 013782-AB S08 Lower Control Board;Generator;H002 Yes Model Compatibility List $491.38 / Each

7,8
014275-A 703406 014275-A T02 Pedal Axle Pulley Set; 235;CB32 CB32-AT1A No Model Compatibility List $41.96 / Each

8,9
014386-I 703412 014386-I Not Shown Hardware Kit;RB50B-AZ5B No Model Compatibility List $38.14 / Each

1
014724-A 703449 014724-A T08 Pedal Set;With Strap Yes Model Compatibility List $56.14 / Each

8,9
015256-AC 703545 015256-AC J02 Front Stabilizer Set;Right; TUBE PAINTING(SILVER-GRAY PU COLOR) No Model Compatibility List $53.36 / Each

3
015257-AC 703547 015257-AC J03 Front Stabilizer Set;Left; TUBE PAINTING(SILVER-GRAY PU COLOR) No Model Compatibility List $53.36 / Each

3
703548 015258-AD J01 Rear Stabilizer Set;(SILVER-GRAY PU COLOR) No Model Compatibility List $220.42 / Each

1
015351-AA 703556 015351-AA AD1 Seat Slide Set; RB50 No Model Compatibility List $125.20 / Each

12,13,14
016003-Z 703755 016003-Z R01 Drive Axle Set No Model Compatibility List $344.60 / Each

8,10
017151-F 703804 017151-F N21 Grip;Sensor No Model Compatibility List $6.48 / Each

11
020699-A 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
023174-Z 704345 023174-Z AN2 Pulse Sensor Set No Model Compatibility List $42.38 / Each

12,13,14
025053-AA 704679 025053-AA AD2 Seat Back Pad Tube Set; RB50(BLACK PLAIN GLASS) No Model Compatibility List $152.50 / Each

3,4,5,6,12,13,14
026034-Z 704908 026034-Z R04 Fixed Bearing Housing Set; MX-R5X(RB50B) No Model Compatibility List $25.90 / Each

8
026035-Z 704909 026035-Z AD5 HR Handlebar Set;Includes HR Grips; MX-R5X(RB50B) No Model Compatibility List $131.74 / Each

7,12,13,14,11
026037-Z 704910 026037-Z T01 Pedal Axle Set No Model Compatibility List $148.00 / Each

8,9
026040-Z 704911 026040-Z R05 Slide Bearing Housing Set No Model Compatibility List $20.98 / Each

8
026042-ZR 704912 026042-ZR Q01 Side Cover Set;Right No Model Compatibility List $228.78 / Each

9
026045-Z 704913 026045-Z AC2 TV Bracket Set w/ Cables; MX-R5X(RB50B)SHARP 13 Yes Model Compatibility List $202.26 / Each

2,3,4,5,6
029032-AA 705006 029032-AA D62 Back Pad Set;RB80/RB81 USED Yes Model Compatibility List $228.84 / Each

4,5,6,12,13,14
029033-AA 705007 029033-AA D60 Seat Pad Set;RB80/RB81 Used Yes Model Compatibility List $192.66 / Each

12,13,14
036124-Z1 705106 036124-Z1 AC1 Console Mast Set; MX-R5X(RB50B) No Model Compatibility List $231.82 / Each

7
038447-A 705161 038447-A N38 Console Connect Wire; 150mm No Model Compatibility List $38.98 / Each

7,4,5,6
039173-AA 705227 039173-AA D70 Seat Position Tooth Plate;BL;;;;R No Model Compatibility List $53.74 / Each

3,12,13,14
055138-Z 705682 055138-Z D30 Seat Roller Set Yes Model Compatibility List $72.78 / Each
8,12,13,14
065248-A 706754 065248-A P15 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
1000108777 709055 1000108777 L03 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $1.54 / Each

2
1000230001 712638 1000230001 D38 Snap Ring;External;S-10; No Model Compatibility List $1.38 / Each

2
1000387880 722130 1000387880 T01 Pedal Axle Set;;;include of crank;;H-3X/ No Model Compatibility List $322.90 / Each

8,9
0000083655 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $327.60 / Each

12,13,14
0000083902 726668 0000083902 182 Bottle Holder;Console Back No Model Compatibility List $106.06 / Each

4,5,6,7
726919 085999 D04 Seat Adjustable Grip Set;RB50 No Model Compatibility List $42.88 / Each

12,13,14,11
0000090518 727707 0000090518 66 Pedal Set Yes Model Compatibility List $56.14 / Each

8,9
r5x-pvs-hw 1019999 r5x-pvs-hw 0 1 Used Matrix Commercial Recumbent PVS TV LCD and Remote w Mounting Bracket - R5x-05-G2 - MRB50B - 2005 No Model Compatibility List $149.00 / Each

7
View Drawing
