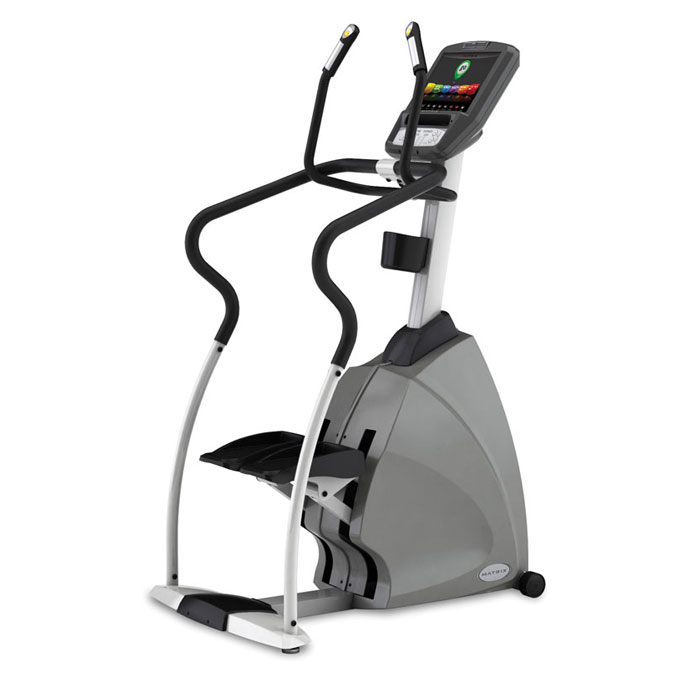

Matrix Commercial - S7xe-01-G4 - 2009

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
001113-00 700352 001113-00 L01 Sleeve;Mobile Wheel Yes Model Compatibility List $4.46 / Each

3,8
002460-B 700831 002460-B P03 Keypad Ground Wire;250L;(FDFNYD2-250-1+5.0 No Model Compatibility List $6.48 / Each

9,4,5,6,12,13,14
002680-B 700895 002680-B P08 ECB EXT Wire;200L;(3.96-5P WHVH+HL20P-03 No Model Compatibility List $6.48 / Each

4,5,6
003378-00 701031 003378-00 P25 Ferrite Core No Model Compatibility List $10.08 / Each

1
003386-A 701033 003386-A P10 Ferrite Core;T31x16x19-C No Model Compatibility List $10.20 / Each

1
004081-A2 701165 004081-A2 R04 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $12.22 / Each

8
004161-00 701205 004161-00 R12 Drive Belt;Poly-V;380-J8 Yes Model Compatibility List $42.10 / Each

15,10
004364-00 701300 004364-00 P54 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $1.54 / Each

2
004459-00 701405 004459-00 B50 BOLT M5X0.8X10 CHM No Model Compatibility List $2.84 / Each

2
004464-00 701414 004464-00 Q27 Screw;Round;Hex;M6X10;Zn-BL No Model Compatibility List $1.38 / Each

2
004467-AB 701417 004467-AB R14 Screw;Hex Socket;Round;M6x1.0Px50L;;Zn-B No Model Compatibility List $0.46 / Each

2
004468-00 701418 004468-00 E38 Screw;Hex Socket;Round;M6x1.0Px25L;;Zn-B No Model Compatibility List $1.38 / Each

2
004472-00 701423 004472-00 S10 Screw;Hex Socket;Round;M6x1.0Px16L;Adher No Model Compatibility List $1.28 / Each

2
004493-00 701449 004493-00 Z01 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.38 / Each

2
004620-AF 701595 004620-AF Q22 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $1.54 / Each

2
004624-00 701600 004624-00 Q28 Screw;Umbrella Cross Tapped;4x20L;Gap; No Model Compatibility List $1.54 / Each

2
004647-00 701626 004647-00 G22 Screw;Phillip;Round;3x12L No Model Compatibility List $1.38 / Each

2
004725-AD 701704 004725-AD Z10 Screw;Hex Socket;BH;Stainless;M8x1.25Px45L No Model Compatibility List $1.24 / Each

2
004763-00 701740 004763-00 L06 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere No Model Compatibility List $1.54 / Each

2
004763-AD 701741 004763-AD Z05 Screw;Hex Socket;BH;Stainess;M8x1.25Px16 No Model Compatibility List $1.28 / Each

2
004883-00 701861 004883-00 S08 Nut;Hex;M6x1.0P No Model Compatibility List $1.54 / Each

2
004926-00 701897 004926-00 T10 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004931-00 701904 004931-00 S06 Nut;Locking;Nylon;1/4"'-20UNC No Model Compatibility List $1.22 / Each

2
004979-00 701944 004979-00 C42 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.38 / Each

2
004980-A 701945 004980-A B41 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) No Model Compatibility List $1.38 / Each

2
004991-00 701955 004991-00 T08 Key;Round;Dual-End;6X6X20L No Model Compatibility List $1.82 / Each

9
005012-00 701974 005012-00 Z02 Washer;Lock; M8.0X13X2T No Model Compatibility List $1.54 / Each

2
005013-00 701975 005013-00 S03 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $1.54 / Each

2
005029-00 701991 005029-00 R16 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005042-00 702004 005042-00 L05 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005072-00 702042 005072-00 E42 Washer;Flat;6.5x13.0x1.5T;Black Zinc No Model Compatibility List $1.28 / Each

2,4,5,6
005075-00 702046 005075-00 S07 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005077-00 702049 005077-00 S04 Washer;Flat;6.2X12X1.0T;Black Zinc No Model Compatibility List $1.42 / Each

2,4,5,6
005080-00 702052 005080-00 P59 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005126-00 702094 005126-00 B51 Washer;Flat;5.0X18.0X1.5T;Black Zinc No Model Compatibility List $1.28 / Each

2,4,5,6
005127-00 702095 005127-00 T11 Washer;Flat;M25.5x38x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005220-00 702178 005220-00 R15 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005222-00 702180 005222-00 L07 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005228-00 702185 005228-00 E45 Washer;Wavy;25.5x34.0x2.0T;Nylon No Model Compatibility List $1.54 / Each

2,4,5,6
005330-00 702217 005330-00 Q25 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005365-00 702240 005365-00 R03 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 T09 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005377-00 702250 005377-00 E33 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
006078-00 702325 006078-00 P56 Decal;Grounding;TM08 No Model Compatibility List $1.46 / Each

7,3
007768-D 702470 007768-D R13 Fix Plate;Eye Bolt No Model Compatibility List $1.38 / Each

2,3
009475-B 702743 009475-B E19 Bushing;Cu MS;34;EP49 No Model Compatibility List $7.00 / Each

8
011855-A 702840 011855-A Q16 Connecting Plate;Side Cover No Model Compatibility List $1.24 / Each

9,3
018627-A 703848 018627-A Q24 Washer;Flat;5.2X10.0X1.0T;;BZN; No Model Compatibility List $1.54 / Each

2
020016-00 703966 020016-00 P58 Screw;Phillip;BH;M5x0.8Px30L No Model Compatibility List $1.54 / Each

2
020016-AB 703967 020016-AB Q21 Screw;Phillip;BH;Stainess;M5x0.8Px30L; No Model Compatibility List $1.28 / Each

2
020226-00 704095 020226-00 S05 Bolt;Eye Hook;1/4"-20UNCX60;Zn-BL No Model Compatibility List $2.58 / Each

2
020298-00 704130 020298-00 Z07 Screw;Hex Socket;M8X40;Zn-BL No Model Compatibility List $1.48 / Each

2
027982-B 704977 027982-B V04 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $19.46 / Each

7,9,3
056006-A 705750 056006-A P05 Grip Pulse Extension Wire;1000(5.0 OWzP) No Model Compatibility List $7.00 / Each

4,5,6,12,13,14,11
056225-A 705777 056225-A P18 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $6.48 / Each

4,5,6
706043 058677-AA AC3 Painting;Handlebar Set;CN/GY;;F;;CS08 No Model Compatibility List $0.00 / Each
Out Of Stock
11
058692-C 706044 058692-C E13 Fix Axle;S45C;20x116L;CS08; No Model Compatibility List $8.92 / Each

8
058693-CA 706045 058693-CA E14 Fix Axle;;;SS41;;;;;TM27;TM27-B61B No Model Compatibility List $2.44 / Each

8
058694-DA 706046 058694-DA E15 Stopper Pad;PU;Black;CS08; No Model Compatibility List $14.32 / Each

4,5,6,12,13,14
058695-B 706047 058695-B E16 Spring;Stretch;SWPA;3.2x41.0x210.0Lx54 Yes Model Compatibility List $78.10 / Each

2
058710-AA 706049 058710-AA G03 Lower Handlebar Set No Model Compatibility List $104.72 / Each

11
058716-AA 706051 058716-AA AJ1 Stabilizer;Rear;-NGY;;F;;RB72 No Model Compatibility List $250.54 / Each

1
058725-D 706053 058725-D L02 Transport Wheel Axle;;SS41;15.88x430L;Anti-Rust; No Model Compatibility List $15.36 / Each

8
058731-BA 706054 058731-BA Q03 Console Mast Boot;PVC;RB41 No Model Compatibility List $13.02 / Each

7
058733-CA 706055 058733-CA Q04 Cover;Frame;RR;ABS/PA746;PANTONE 425C;RB No Model Compatibility List $40.48 / Each

9,3
058735-A 706056 058735-A 11 Pulley Axle Set;RB79 No Model Compatibility List $92.74 / Each

8
706057 058736-B R01 Axle Center;Flywheelf20x117L;SCM440;CS08 No Model Compatibility List $0.00 / Each
Out Of Stock
8
706058 058737-A R02 PULLEY;POLY-V;;;NYLON 6+30%FIBER;J8F235; No Model Compatibility List $0.00 / Each
Out Of Stock
8
058738-A 706059 058738-A R11 Drive Belt;Poly-V;390-J12 Yes Model Compatibility List $45.74 / Each

15,10
706060 058740-G T01 Axle,Transimission;;;SCM440;;CS08;f25.5x No Model Compatibility List $0.00 / Each
Out Of Stock
8
058741-A 706061 058741-A T02 Bearing;Tapered Roller;BPFL-5;Huei Yuan No Model Compatibility List $27.70 / Each

8
059060-AA 706094 059060-AA C22 Handlebar Connection Cover;CN/GY;;;;CS07 No Model Compatibility List $76.74 / Each

9,11
059332-00 706129 059332-00 JM01 Generator;242;600W 600rpm 2.5A;JM07 Yes Model Compatibility List $524.00 / Each

8
060244-C 706209 060244-C P04 TV Signal Wire;1850L;(5CF)x2;CS08; No Model Compatibility List $15.98 / Each

4,5,6
060362-A 706232 060362-A AC4 Idler Set No Model Compatibility List $17.56 / Each

8
706233 060364-B T03 PULLEY;POLY-V;;;NYLON 6+30%FIBER;J12F235 No Model Compatibility List $0.00 / Each
Out Of Stock
8
706237 060382-AA AE4 Painting;Pedal Arm Set;BL;;L;;CS06 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
062770-AA 706493 062770-AA AE3 Painting;Pedal;MATRIX;silver gray; No Model Compatibility List $141.80 / Each

8,9
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
067662-A 706968 067662-A E46 Screw;Wagon;M10x1.5Px135L(Tooth15L);Adhe No Model Compatibility List $2.02 / Each

2
067787-A 706979 067787-A Q17 Fixing Plate;Side Cover No Model Compatibility List $8.58 / Each

9,3
067950-AB 706987 067950-AB Z03 Screw;Lock;Stainess;M6x1.0Px36L; No Model Compatibility List $0.26 / Each

2
068522-AA 707032 068522-AA C14 FOAM GRIP;31.8x3tx430L;BL;CS08; No Model Compatibility List $15.42 / Each

11
710393 1000210068 Not Shown DOCUMENTATION;INSERT;ASSEMBLY;HARDWARE P No Model Compatibility List $0.00 / Each
Out Of Stock
3
711075 1000216357 Q02 Cover;;right;ABS PA746;Carbon-Gray; No Model Compatibility List $0.00 / Each
Out Of Stock
9
1000216360 711077 1000216360 9 Shield Set;Left;CS11B; No Model Compatibility List $308.12 / Each

3
711078 1000216362 Q01 Cover;;left;ABS PA746;Carbon-Gray; No Model Compatibility List $0.00 / Each
Out Of Stock
9
1000216363 711079 1000216363 10 Shield Set;Right;CS11B; No Model Compatibility List $308.12 / Each

3
711081 1000216381 Q15 PLASTIC PLATE;ABS/PA T;BL;H-3x/5x/7x-03- No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
1000221258 711554 1000221258 Z06 Washer;ARC;8.2X19.0X1.5T;SST; No Model Compatibility List $1.38 / Each

2
1000223181 711826 1000223181 AQ1 Side cover, both left and right No Model Compatibility List $625.20 / Each

9
712557 1000229491 T07 WASHER;FLT;TFN;Diam.25.8XDiam.38X1.5T;PT No Model Compatibility List $5.18 / Each

2
1000232960 713082 1000232960 S02 Control Board;Generator;;H001;ErP-S100;; Yes Model Compatibility List $421.18 / Each

7,8
1000308343 713795 1000308343 E47 Nut;Hex;M10X1.5P,SST;G10;Stainless Steel No Model Compatibility List $1.28 / Each

2
1000308344 713796 1000308344 E44 Washer;Flat;10.2x25.0x1.5t;SST; No Model Compatibility List $1.28 / Each

2
714670 1000316894 J21 Adjustable Leveler;;;;;50L w/o Rotation; No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000366596 719883 1000366596 E40 Screw;Socket Head;M5x0.8Px12L;;Hex Socke No Model Compatibility List $1.10 / Each

2
720004 1000367748 AD9 Overlay Set;Quickly Key;right;;CS11C;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
720005 1000367751 AD8 Overlay Set;Quickly Key;left;;CS11C;; No Model Compatibility List $0.00 / Each
Out Of Stock
9
720373 1000372129 Z09 Screw;Button Head;M5x0.8Px15L;;Phillip;S No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000385348 721752 1000385348 Q05 Cover;Frame;;PVC;BL/Black C;;CS11C; No Model Compatibility List $15.58 / Each

9,3,4,5,6
722151 1000388144 E43 Spacer;;;Stainless;NKL;E-3x/5x/7x-03-F; No Model Compatibility List $0.00 / Each
Out Of Stock
2,3,4,5,6
722297 1000390817 E24 Pedal;;;PP-3015;BL/Black C;;MX-S5x-F; No Model Compatibility List $23.98 / Each

8,9,4,5,6
1000390818 722298 1000390818 E30 Pedal Pad;;;NR+SBR1502;BL/Black C;;MX-S5 No Model Compatibility List $21.98 / Each

8,9,4,5,6,12,13,14
723236 1000405685 T21 Timing Pully Set;;right;;CS11; No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000408091 723551 1000408091 E24 Pedal Set;;Right/Left;;CS11-SBOM;; Yes Model Compatibility List $145.58 / Each

8,9
103296 725256 103296 E20 Bushing No Model Compatibility List $7.36 / Each

8
069859 725319 069859 AP1 Filter Board Yes Model Compatibility List $43.04 / Each

1
069904 725322 069904 P63 Ferrite; Cord;FH0650B;CB32-P16A No Model Compatibility List $2.58 / Each

4,5,6
725373 070696 G02 Painting;Arm Rest Set;BL;BLACK PLAIN;LU; No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
725374 070697 G01 Painting;Upper Handlebar;BL;PLAIN;R;CS08 No Model Compatibility List $0.00 / Each
Out Of Stock
11
726204 080701 P54 Cable Clamp;KSS UC-04 No Model Compatibility List $31.82 / Each

4,5,6
726224 0000080784 C25 Cover;Screw;PVC;BL;CB62; No Model Compatibility List $1.28 / Each

2,9
726296 081275 E41 Screw;Hex Socket;Round;M6x1.0Px55L(Tooth No Model Compatibility List $0.78 / Each

2
726540 082661 B39 Screw;Wagon;M8x1.25Px20L;BLACK No Model Compatibility List $0.54 / Each

2,4,5,6
726549 082734 P59 Washer;Senated;M5.3X10X0.6;Zinc Plate No Model Compatibility List $1.38 / Each

2,3
726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.38 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
726615 083505 AE5 Idler Set;CS08; No Model Compatibility List $26.92 / Each

8
083790 726646 083790 AG1 Handlebar Set No Model Compatibility List $132.10 / Each

11
084533 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.38 / Each

2
727267 088198 AC1 Console Mast Set;painting;MATRIX/SL/GY;C No Model Compatibility List $0.00 / Each
Out Of Stock
7
727268 088210 Z34 Manual;Assembly;English;MX-S5X-F No Model Compatibility List $12.32 / Each

3
727269 088213 P12 AC Power Switch Set;950L(KST FLDNY-250x2 No Model Compatibility List $93.60 / Each

4,5,6
727270 088227 P01 Console Cable;1000L;22AWG;6.3KG;MX-S No Model Compatibility List $36.42 / Each

7,4,5,6
727305 088465 C15 Pulse Sensor Wire;950L(TKP H66030R1-06x2 No Model Compatibility List $30.32 / Each

4,5,6,12,13,14
0000088923 727375 0000088923 C11 Bottle Holder Set;Console Mast;ABS/PA746;BL Yes Model Compatibility List $11.94 / Each

7
727376 088924 P20 Battery Connect Wire;1000L(JST VHR-2Nx2) No Model Compatibility List $15.60 / Each

7,4,5,6,12,13,14
727434 089167 P13 Wire;Filter Power;500L(KST FLDNY2-250),J No Model Compatibility List $15.60 / Each

4,5,6
727457 089431 1 Console Mast Set;MX-S5X-F No Model Compatibility List $441.48 / Each

7
727458 089432 2 Handlebar Set;MX-S5X-F;US;CS11 No Model Compatibility List $397.72 / Each

11
727523 089758 P13 Pushbutton Switch;R13-513B2B;H5x-F; No Model Compatibility List $15.66 / Each

4,5,6
727546 089860 P27 Cap;C-SAFE;NYION 6/6;BL;T1x; No Model Compatibility List $6.48 / Each

9
727712 090548 N201 GRIP;SENSOR;U;ABS/PA746;BL;I5X; No Model Compatibility List $0.00 / Each
Out Of Stock
11
727713 090549 N202 GRIP;Sensor;down;ABS/PA746;;BL;EP76; No Model Compatibility List $0.00 / Each
Out Of Stock
11
0000090779 727748 0000090779 N24 Control Board;Quick Key No Model Compatibility List $7.00 / Each

7,9
727775 090902 3 Lower Pedal Arm Set;MX-S5X-F;US;CS11 No Model Compatibility List $334.94 / Each

8,9,3
727776 090904 4 Upper Pedal Arm Set;MX-S5X-F;US;CS11 No Model Compatibility List $256.72 / Each

8,9,3
727777 090906 5 Pedal Set;MX-S5X-F;US;CS11 No Model Compatibility List $457.70 / Each

8,9
727778 090913 10 Side Cover Set;Right;MX-S5X-F;US;CS11 No Model Compatibility List $316.68 / Each

9
727779 090915 12 Pedal Transmission Set;MX-S5X-F;US;CS11 No Model Compatibility List $951.92 / Each

8,9
727780 090916 T20 Timing Pully Set;;Left;;CS11; No Model Compatibility List $136.48 / Each

1
727789 090960 E27 TYRE CHAIN;PU;CS08-E27; No Model Compatibility List $0.00 / Each
Out Of Stock
1
727790 090982 8 E-PORT Fix Plate Set;MX-S5X-F;US;CS11 No Model Compatibility List $108.82 / Each

3
727809 091128 P07 ECB Load Wire;200L;(3.96-2P}vVH+HL20P-02) No Model Compatibility List $6.00 / Each

4,5,6
727867 091704 AC15 Grip;Sensor GriP;R;US;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
11
727868 091705 AC16 RIGHT HR SNESOR WIRE;US;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
7,4,5,6,12,13,14
727869 091706 AC17 Grip;Sensor GriP;L;US;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
11
727870 091707 AC18 RIGHT HR SNESOR WIRE;L;US;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
7,4,5,6,12,13,14
728080 093057 6 Upper Handlebar Set;Right;tMX-S5X_6;US;CS08 No Model Compatibility List $115.74 / Each

11
728081 093058 7 Upper Handlebar Set;Left;MX-S5X_6;US;CS08 No Model Compatibility List $115.74 / Each

11
728088 093119 7 Pulse Sensor Set No Model Compatibility List $98.26 / Each

12,13,14
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728169 093378 38 Nut;Nylon;M6x1.0P;;Zn-BL No Model Compatibility List $1.28 / Each

2
728196 093587 AZ8 Hardware Kit (8):Yellow No Model Compatibility List $3.74 / Each

1
728197 093588 AZ2 Hardware Kit (2):White No Model Compatibility List $8.20 / Each

1
728198 093589 AZ4 Hardware Kit (4):Green No Model Compatibility List $3.74 / Each

1
728199 093590 AZ6 Hardware Kit (6):Orange No Model Compatibility List $7.96 / Each

1
728200 093591 AZ3 Hardware Kit (3):Black No Model Compatibility List $4.76 / Each

4,5,6
728201 093592 AZ7 Hardware Kit (7):Red No Model Compatibility List $1.96 / Each

1
728205 093616 AZ5 SEMI-ASSY;HARDWARE;BLUE STICKER;H5X-F; No Model Compatibility List $0.00 / Each
Out Of Stock
1
728613 095636 AL3 Transport Wheel Set;MX-E1x;EP95 No Model Compatibility List $8.16 / Each

8
View Drawing
