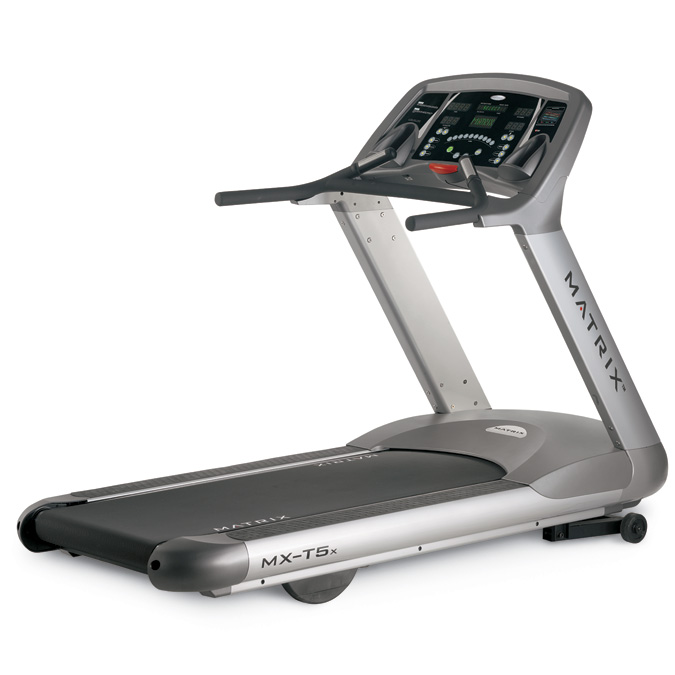

Matrix Commercial - T5x-06-G3-110 - 2006-2008

Repair Parts for Matrix Commercial T5x-06-G3-110 TM65D

Brand: Matrix Commercial

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T5x-06-G3-110

Version: 2006-2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Switch
  • Wires And Cables
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700020 000035-D L01 Transport Wheel;Nylon;100;BL;TM65 Yes Model Compatibility List $9.10 / Each

8
G 700123 000466-AA G14 Sleeve;Grip;;TPR;;BL;;TM65C No Model Compatibility List $3.64 / Each

3,11
Q 700163 000549-B Q08 Foot pad;Frame;Left;Rubber;;;;TM65 No Model Compatibility List $101.30 / Each

9,3,12,13,14
Q 700164 000550-B Q09 Foot pad;Frame;Right;Rubber;;;;TM65 No Model Compatibility List $101.30 / Each

9,3,12,13,14
N 700209 000675-00 N92 Foam Tape;50x25x2t;;;;;Double;JHTSTD No Model Compatibility List $1.79 / Each

1
B 700239 000760-E B37 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
B 700243 000765-D B40 Elastomer;Running Deck;Rubber;Black;TM65 RUBBER(SHORT A 40) No Model Compatibility List $14.59 / Each

3,4,5,6
N 700284 000867-A N16 Hole plug;Nylon66;HP-13;BLack No Model Compatibility List $1.66 / Each

4,5,6
N 700286 000870-A N74 Hole Plug;Rubber;19mm;Black - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $1.66 / Each

4,5,6
H 700290 000875-00 H09 Bumper;Base Frame Yes Model Compatibility List $1.66 / Each

3
M 700296 000885-C M38 Rubber Pad;Motor;Anti-Shake Yes Model Compatibility List $16.74 / Each

10,12,13,14
N 700313 000932-E N12 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

9,4,5,6
N 700350 001103-C N37 Infrared Shelter;PMMA;Marron/Transparent No Model Compatibility List $3.35 / Each

1
N 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
H 700404 001256-A H12 End-Cap;Square;Elevation Rack;45x45x2.5t No Model Compatibility List $1.66 / Each

9,4,5,6,10
M 700417 001295-B M09 Insulating Sleeve;Screw;ABS 10.2X14/24X7L No Model Compatibility List $1.79 / Each

2,3
Q 700434 001370-EA Q04 Side Rail;Frame;PVC(BLACK);TM65C-Q04E; No Model Compatibility List $43.29 / Each

9,3,4,5,6
Q 700531 001541-A Q25 Velcro;18X80MM;TM69 18X80MM No Model Compatibility List $3.35 / Each

1
700560 001653-BB C14 Cover Layering;D;BL/L=40MM;TM41 No Model Compatibility List $1.66 / Each

9
700570 001679-00 P39 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
N 700686 001792-BA N10 Earphone Buckle Ring;ABS;TM65 No Model Compatibility List $3.35 / Each

1
P 700747 002127-A P02 BS Wire;60L;12AWG;Black;TM86; No Model Compatibility List $1.79 / Each

4,5,6
P 700756 002185-D P07 Safety Key Cable, T4 No Model Compatibility List $31.54 / Each

9,4,5,6
P 700798 002357-C P94 Pulse Grip Wire;1000,820(TKP-2510-6P+SM No Model Compatibility List $10.24 / Each

4,5,6,12,13,14,11
P 700812 002389-C P47 Power Wire;Wave Filter;80+100(250kzx2+Y Ty No Model Compatibility List $24.86 / Each

4,5,6

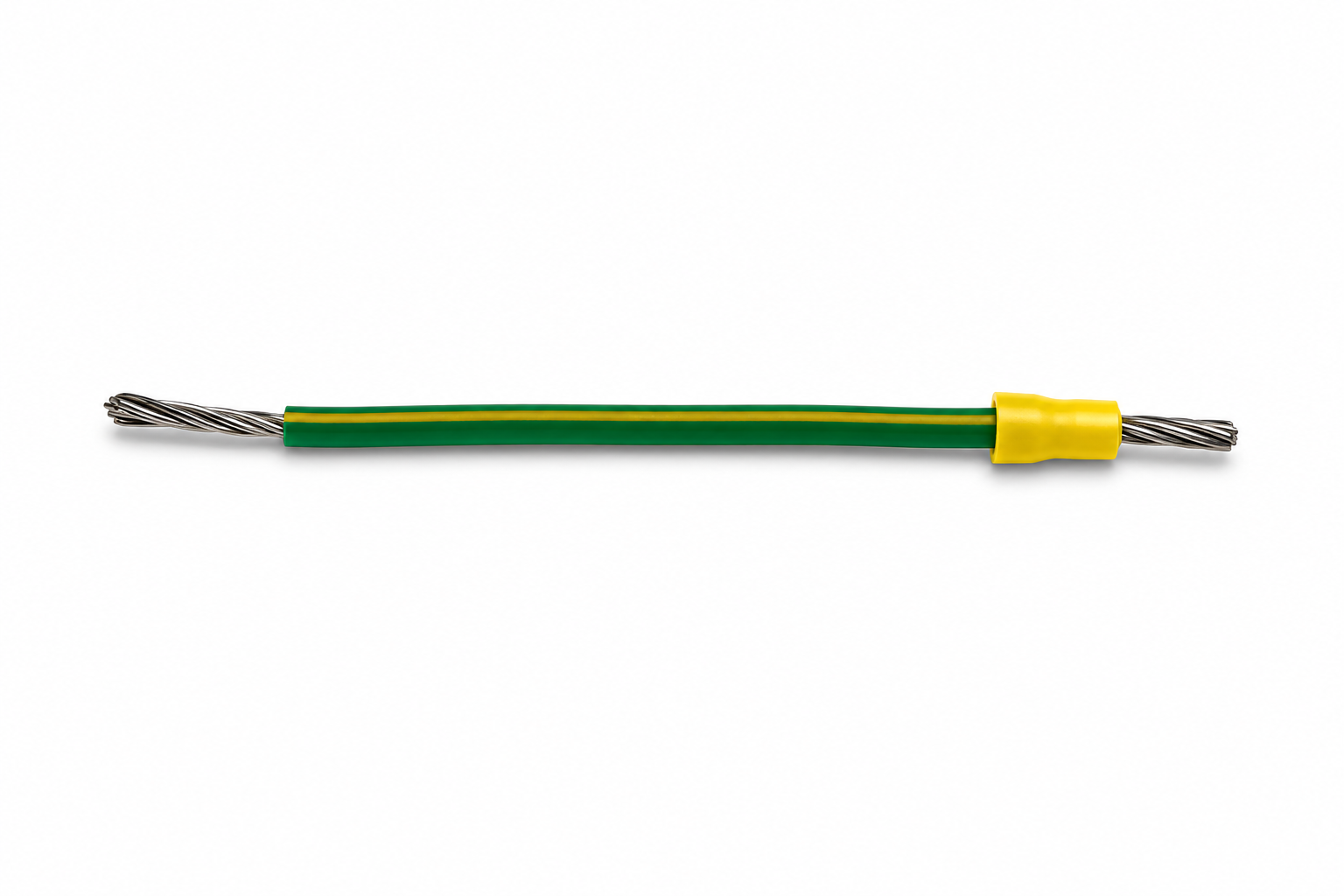

P 700813 002390-D P50 Ground Wire;Wave Filter;60(5 O Type Ter No Model Compatibility List $3.64 / Each

4,5,6
P 700820 002417-O P03 Console Cable;2100(IDC 7820-B500x2+1.58-1 No Model Compatibility List $91.23 / Each

7,4,5,6
P 700825 002433-C P06 Key Connecting Wire;100 (FC-10PX2)28AWG;TM65 No Model Compatibility List $8.42 / Each

9,4,5,6
P 700830 002459-B P125 Ground Wire;Membrane Switch;1200(FDFNYD2 No Model Compatibility List $17.34 / Each

4,5,6
P 700852 002519-B P30 POWER WIRE 350(H7725P-02+H7725R-02) No Model Compatibility List $43.81 / Each

4,5,6
P 700857 002550-D P119 Extended Line;Cooling Fan;350(TKP-9357- No Model Compatibility List $12.38 / Each

8,9
P 700859 002555-C P48 Power Wire;CTL Board;150(MDFNYD5-250lQz+Y T No Model Compatibility List $8.42 / Each

4,5,6
P 700860 002556-C P49 Power Wire;CTL Board;150(MDFNYD5-250lQz+Y T No Model Compatibility List $8.42 / Each

4,5,6
P 700867 002580-F P21 Connecting Wire;Grip Pulse;200(2510-3P+XAP-04V- 200(2510-3P+XAP-0 No Model Compatibility List $8.81 / Each

4,5,6,12,13,14,11
P 700873 002592-A P102 Grip Pulse Extended Ground Wire;150(MDFN 150(MDFNYD2-250-1+R1.25-5+1.58-1P) No Model Compatibility List $8.42 / Each

9,4,5,6,12,13,14,11
P 700874 002594-D P14 Connecting Wire;Pulse Grip;350(731kzX2+-SMP-2V-BC);TM 350(731 F*ENDX2+-SMP-2V-BC) No Model Compatibility List $8.53 / Each

9,4,5,6,12,13,14,11
P 700889 002667-G P20 Earphone Signal Wire;500(XAP-03V-1+MIC k No Model Compatibility List $16.43 / Each

4,5,6
P 700891 002669-D P32 Earphone Extended Line Wire;60(3.5 Three-D E No Model Compatibility List $25.45 / Each

7,9,4,5,6,12,13,14
P 700900 002699-C P08 Infrared Rays Transmitting Set;200(XAP-0 200(XAP-02V-1+PCB+LED BLUE) No Model Compatibility List $8.42 / Each

1
P 700913 002727-A P104 TV Signal Wire;3020(RG-6)X2;TM65-P104A Yes Model Compatibility List $40.98 / Each

4,5,6
P 700920 002764-A P19 Cardio Signal Wire;450(RJ-45-8P+XAP-08V- No Model Compatibility List $26.88 / Each

4,5,6
P 700923 002769-B P18 C-SAFE Signal Wire;450(RJ-45-8P+XAP-08V- No Model Compatibility List $25.45 / Each

4,5,6
J 700924 002782-C JT06 Power Cord;External(USA);3000,14AWG;110V(non-nema) Yes Model Compatibility List $72.98 / Each

4,5,6
N 700982 003144-A N05 Membrane Washer;TM69 No Model Compatibility List $3.64 / Each

2
N 700989 003179-A N05 Membrane Switch;Small(N]);TM65 TM65 SMALL(TM65-N92A) No Model Compatibility List $8.42 / Each

4,5,6
P 701015 003336-A P105 Power Switch;RF-1004;20A/125V Yes Model Compatibility List $27.35 / Each

4,5,6
P 701021 003347-00 P106 Circuit Breaker;Current;ZE-700 20A/250V; Yes Model Compatibility List $28.73 / Each

4,5,6
P 701027 003371-C P92 Power Socket;CE;100+250+80+Cord;TM65C Yes Model Compatibility List $36.48 / Each

4,5,6
M 701039 003404-B M51 Inductance;Choke;1.7mH/25A 70;70;TM65C-M51B; No Model Compatibility List $91.23 / Each

1
P 701062 003534-B P109 Cooling Fan;110V;TM65C No Model Compatibility List $74.70 / Each

8
P 701063 003535-A P110 Cooling Fan;220V;TM65C No Model Compatibility List $69.16 / Each

8
701073 003569-A P99 Middle Connect Transform;F Type;F-A005(-N No Model Compatibility List $3.35 / Each

1
M 701100 003824-D M04 Flywheel;Motor No Model Compatibility List $68.64 / Each

8,10
P 701266 004327-00 P108 Screw;Round Phillips;M5x0.8Px12L No Model Compatibility List $1.66 / Each

2
N 701275 004339-00 N93 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
N 701281 004350-00 N11 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $2.00 / Each

2
P 701284 004351-00 P114 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

2
701286 004355-00 C51 Screw;Oval;PH; M4X0.7PX10L No Model Compatibility List $2.00 / Each

2
N 701288 004356-00 N46 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
M 701295 004361-00 M64 Screw;Phillip;BH;M4x0.7Px10L;Ni;Gap; No Model Compatibility List $9.10 / Each

2
N 701307 004368-00 N52 Screw;Phillip;BH;M5x0.8Px20L; No Model Compatibility List $1.79 / Each

2
Q 701316 004372-00 Q61 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

2
M 701333 004385-AB M18 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.79 / Each

2
M 701336 004386-00 M18 Screw;Phillip;BH;M5x0.8Px10L;BED; No Model Compatibility List $1.79 / Each

2
Q 701375 004425-B Q50 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

2
Q 701383 004437-AA Q63 Screw;Phillip;Plain;M5X0.8PX13L No Model Compatibility List $1.79 / Each

2
P 701388 004445-00 P34 Screw;Round Hex Socket;M4x0.7Px10L No Model Compatibility List $1.66 / Each

2
C 701397 004451-AD C11 Screw;Round Hex Socket;M5x0.8Px20L No Model Compatibility List $1.66 / Each

2
Q 701401 004454-00 Q51 Screw;Round;Hex Socket;M5X0.8PX15L No Model Compatibility List $1.79 / Each

2
U 701415 004465-00 U19 Screw;Hex Socket;Round;M6x1.0Px12L;;Zn-B Yes Model Compatibility List $1.79 / Each

2
M 701440 004483-00 M59 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
R 701450 004495-00 R07 Screw;Round;Hex Socket;M10X1.5PX100L No Model Compatibility List $3.64 / Each

2
Q 701453 004500-00 Q52 Screw;Hex Socket;Round;M8x1.25Px40L No Model Compatibility List $1.79 / Each

2
R 701482 004528-00 R11 Screw;Hex Socket;Round;M6x1.0Px35L No Model Compatibility List $1.79 / Each

2
R 701483 004529-00 R08 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $1.79 / Each

2
H 701510 004545-A H10 Screw;Round;Hex Socket;3/8'X45L;Yrw10MM; D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

2
M 701511 004546-A M20 Screw;Round;Hex Socket;3/8'X45L;Yrw10MM; No Model Compatibility List $1.66 / Each

2
B 701531 004562-AB B57 Screw;Hex Socket;Sink;Stainess;M8x1.25Px35L No Model Compatibility List $1.79 / Each

2
701551 004579-AB C09 Screw;Sink Hex Socket;M8x1.25Px25L;Cr Pl No Model Compatibility List $1.79 / Each

2
M 701561 004592-00 M20 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

2
N 701576 004610-00 N93 Screw;Phillip;BH;Tapped;3x25L No Model Compatibility List $1.79 / Each

2
Q 701591 004620-00 Q53 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

2,12,13,14
701605 004627-00 Q54 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
Q 701607 004628-00 Q58 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.59 / Each

2,12,13,14
N 701613 004632-00 N91 Screw;Phillip;BH;Tapped;4x16L No Model Compatibility List $2.00 / Each

2
B 701614 004633-00 B65 Screw;Phillip;BH;Tapped;5x10L;;Zn-BL No Model Compatibility List $1.85 / Each

2
N 701615 004635-A N63 Screw;Oval Tapping;3x7L No Model Compatibility List $2.00 / Each

2,12,13,14
Q 701619 004637-A Q55 Screw;Umbrella Cross Tapped;5x38L No Model Compatibility List $1.66 / Each

2
N 701628 004649-00 N45 Screw;Phillip;Round;3x6L;Black;Gap;;Zn- No Model Compatibility List $1.66 / Each

2,4,5,6
M 701638 004668-00 M14 Screw;Wagon;3/8-16UNCx30L No Model Compatibility List $1.66 / Each

2
U 701642 004676-00 U21 Bolt;Eye Hook;1/4"-20UNCx45L No Model Compatibility List $2.00 / Each

2
C 701670 004703-AF C10 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
M 701695 004721-00 M12 Screw;Hex Socket;BH;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
701731 004757-00 L03 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
C 701737 004762-00 C50 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.00 / Each

2
M 701745 004768-00 M68 Screw;Oval;Hex Socket;BH;M8X1.25PX15L No Model Compatibility List $1.79 / Each

2
U 701822 004843-00 U29 Set Screw;M8X1.25PX25L No Model Compatibility List $1.66 / Each

2
N 701858 004880-00 N94 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
U 701862 004884-00 U30 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
U 701875 004902-00 U20 Nut;Hex;1/4"-20UNC;;Zn-BL No Model Compatibility List $1.79 / Each

2
P 701889 004922-00 P115 Nut;Nylon;M3x0.5P No Model Compatibility List $1.79 / Each

2
M 701897 004926-00 M13 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
H 701900 004928-00 H13 Nut;Nylon;M12x1.75P No Model Compatibility List $4.00 / Each

2
U 701905 004932-00 U27 Nut;Nylon;M8X1.25P(BED) No Model Compatibility List $1.66 / Each

2
M 701908 004934-00 M15 Nut;Nylon;3/8'-16UNC No Model Compatibility List $1.59 / Each

2
R 701913 004942-00 R13 Nut;Nylon;M10x1.5P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Q 701933 004971-A Q60 Fastener;5;Nut Buckle No Model Compatibility List $1.66 / Each

2
B 701938 004974-00 B62 Insert Nut;Brass;ALS7-610-4.2(0.5-4.2) No Model Compatibility List $1.90 / Each

2
M 701957 004996-A M36 Key;Round;Dual-End;6x6x35L No Model Compatibility List $1.66 / Each

9
M 701964 005005-00 M60 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
C 701965 005005-AC C52 Washer;Split;8.2X15.4X2.0T;;BZN; No Model Compatibility List $1.79 / Each

2
701967 005006-00 R09 Washer;Spring;SW10 10.2x18.4x2.5t No Model Compatibility List $2.00 / Each

2
U 701975 005013-00 U32 Washer;Spring;6.0x10.0x1.5t No Model Compatibility List $2.00 / Each

2
L 702004 005042-00 L02 Washer;Flat;8.2X30.0X2.0T;Black Zinc Yes Model Compatibility List $2.00 / Each

2,4,5,6
M 702011 005047-00 M16 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
H 702023 005057-00 H11 Washer;Flat;12.7x23x2.2T No Model Compatibility List $1.66 / Each

2
R 702030 005062-00 R10 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

7,2,12,13,14
B 702045 005074-00 B64 Washer;Flat;6.5x19x2.0T No Model Compatibility List $1.85 / Each

2
U 702046 005075-00 U23 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702051 005079-00 Z50 Washer;Flat;5.2X12X1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
N 702053 005081-00 N55 Washer;Flat;5.2x18.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
N 702061 005089-00 N79 Washer;Flat;4x10x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
M 702075 005108-00 M17 Washer;Flat;10.5x18.0x2.0T No Model Compatibility List $2.00 / Each

2
U 702111 005139-A U26 Washer;Flat;8.2x16x1.4;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
C 702112 005139-AB C13 Washer;Flat;8.2x16.0x1.4T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
M 702118 005145-A M61 Washer;Flat;8.2x19.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702137 005168-00 B66 Washer;Arc;5.5x20x1.5T No Model Compatibility List $1.66 / Each

2
702153 005189-00 M35 Washer;Teflon;10.5x25x1.0T No Model Compatibility List $2.00 / Each

2
M 702162 005199-B M21 Washer;Teflon;13.2x26x1.0T No Model Compatibility List $1.66 / Each

2
N 702164 005201-B N61 Washer;Flat;Nylon;8.0x15.0x3.0T No Model Compatibility List $1.66 / Each

2
N 702168 005209-A N90 Washer;Teflon;4x8x3.0T No Model Compatibility List $1.66 / Each

2
702178 005220-00 H14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
M 702179 005221-00 M43 Washer;Wavy;12.7X18X0.2T No Model Compatibility List $1.66 / Each

2,4,5,6
Q 702217 005330-00 Q56 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
U 702290 005491-B U15 Spring;SWPB;3.0x23.13Nx72L;Antirust No Model Compatibility List $41.37 / Each

2
N 702293 005496-B N64 Spring;Shift;SWPB;0.4x6x27L No Model Compatibility List $8.42 / Each

2
N 702294 005497-C N43 Safety Key Spring, T4 No Model Compatibility List $3.64 / Each

2,9
B 702296 005499-00 B58 Insert Nail;1/8'X7.5L(4-1); No Model Compatibility List $1.66 / Each

1
V 702319 006005-B V09 Decal;Console Mast No Model Compatibility List $12.27 / Each

7,3
V 702341 006287-D V05 Label;Side Rail;;AL;;;;TM65C No Model Compatibility List $8.71 / Each

9
V 702411 006656-A V33 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
P 702459 007546-A P111 Fix Plate;Fan;;Zn Plate;1t;;;TM65C No Model Compatibility List $3.35 / Each

8,3
N 702462 007614-A N73 POS Plate;Safety;;SPC;0.6;Zn Plate;;TM69 No Model Compatibility List $1.66 / Each

9,3
P 702468 007766-B P113 Fix Plate;Power Socket;;SPC;1t;;;TM65-P25B No Model Compatibility List $1.66 / Each

3,4,5,6
N 702471 007806-D N22 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
U 702524 008452-B U28 Stopper;Idler;;SPC;5.0t;;;JW01 SPC No Model Compatibility List $9.75 / Each

8
H 702563 008644-A H16 Pin;Elevation;;SS41;16;;;;TM65 No Model Compatibility List $8.42 / Each

10,12,13,14
H 702564 008652-A H18 Pin;Hairpin Cotter;2x33L;ZNC No Model Compatibility List $1.79 / Each

12,13,14
B 702566 008681-A B51 Fix Block;Side Rail;;SS41;25;;;;TM86 SS41 No Model Compatibility List $3.64 / Each

9
J 702858 012862-00 JAM03 Speed Sensor Set No Model Compatibility List $42.72 / Each
Out Of Stock 		1
M 702871 013001-A M02 Elevation Motor;1/6HP;1300LB/115V 124mm Yes Model Compatibility List $456.27 / Each
Out Of Stock 		10
J 702873 013012-A JM14 Elevation Motor;1/6HP;1300LB/230V T5 No Model Compatibility List $456.27 / Each

10
N 703358 013719-A2 N89 RIGHT KEYBOARD SET;AFD2X-1CI;JD04-A01A No Model Compatibility List $3.35 / Each

9
M 703359 013724-C2X M08 Motor Control Board;ACD3X-2F V1.29 DCI NON - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $1.30 / Each

7,4,5,6,10
M 703360 013725-C2 M08 Motor Control Board;ASR-ACD4X-2L;V1.30;220V No Model Compatibility List $1.30 / Each

7,4,5,6,10
N 703382 014039-A N41 Button only - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $9.10 / Each

1
n 703390 014095-E not shown Hardware Pack No Model Compatibility List $15.81 / Each

4,5,6
n 703393 014110-A not shown Hardware Pack No Model Compatibility List $22.83 / Each

4,5,6
A 703408 014303-A AN5 Semi-Assy;Interactioner Set;Strip;EP23 EP23-1(W/TEXTURE) No Model Compatibility List $67.57 / Each

4,5,6
A 703437 014666-F AR1 Front Roller Set;3.5 Inch - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $547.53 / Each

8
A 703440 014680-E AR2 Rear Roller Set;3.5 Inch No Model Compatibility List $365.01 / Each

8
B 703504 015051-A B52 Fix Plate;Power Socket No Model Compatibility List $40.87 / Each

3,4,5,6
Q 703514 015084-AA Q18 Console Mast Cover;Left No Model Compatibility List $62.43 / Each

7,9
Q 703515 015085-AA Q19 Console Mast Cover;Right No Model Compatibility List $62.43 / Each

7,9
N 703516 015120-AB N36 E-Port Fix Base;BL;;;;TM65 CHAMPAGNE(TM65-N36) No Model Compatibility List $14.90 / Each

3,4,5,6
Q 703521 015132-AA Q13 Arm Rest Cover;CN/GY;;;;TM65 VISION CARBON GRAY COLOR No Model Compatibility List $29.46 / Each

9,3
Q 703522 015133-AA Q14 Arm Rest Cover;CN/GY;;;;TM65 VISION CARBON GRAY COLOR No Model Compatibility List $35.36 / Each

9,3
Q 703523 015134-AA Q15 Arm Rest Cover;CN/GY;;;;TM65 VISION CARBON GRAY COLOR No Model Compatibility List $35.36 / Each

9,3
Q 703527 015139-AA Q22 Fix Plate;Velcro D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $13.08 / Each

3
703528 015142-AA C06 Console Mast Set;Left No Model Compatibility List $520.88 / Each

7
C 703529 015143-AA C08 Console Mast Set;Right No Model Compatibility List $520.88 / Each

7
B 703535 015162-AA B44 End Cap;Reinforce;Left;TM65C SPCC 3.0T No Model Compatibility List $21.89 / Each

9
B 703536 015163-AA B45 End Cap;Reinforce;Right;TM65C SPCC 3.0T No Model Compatibility List $21.89 / Each

9
C 703550 015267-AE C21 Fixing Plate;Right TV No Model Compatibility List $17.86 / Each

3,4,5,6
A 703716 015882-AA AG1 Arm Rest;Dipping;;;TM65C PVC(DIPPING) No Model Compatibility List $419.59 / Each

3,12,13,14
703718 015886-AA AN2 TV Rack Support plate No Model Compatibility List $172.07 / Each

3,4,5,6
A 703719 015886-AB AN2 TV RACK INTENSITY STRENGTHENING PLATE NICKEL PLATING No Model Compatibility List $172.07 / Each

3,4,5,6
A 703720 015887-AA AN3 Console Frame Set No Model Compatibility List $158.78 / Each

7,3
B 703803 017124-C B43 End Cap;Reinforce Tube No Model Compatibility List $12.97 / Each

9,3
C 703823 018141-AE C20 Fixing Plate;TV;Left No Model Compatibility List $16.74 / Each

3,4,5,6
N 703966 020016-00 N56 Screw;Phillip;BH;M5x0.8Px30L No Model Compatibility List $2.00 / Each

2
N 703967 020016-AB N51 Screw;Phillip;BH;Stainess;M5x0.8Px30L; No Model Compatibility List $1.66 / Each

2
N 704089 020210-AC N14 Screw;Round;Tapping;3x20L No Model Compatibility List $1.79 / Each

2,12,13,14
Q 704158 020364-00 Q64 Screw;Oval;Phillips;M4x12L No Model Compatibility List $1.79 / Each

2
M 704203 020478-00 M17 Washer;Flat;10.2x20.0x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 704295 022311-A C55 Pin;Spring;M3X10L No Model Compatibility List $1.66 / Each

2,12,13,14
A 704953 026674-Z AG1 Handlebar Set No Model Compatibility List $497.28 / Each

11
M 704954 026676-Z M01 Drive Motor Set Yes Model Compatibility List $1277.61 / Each

10
Q 704955 026677-ZL Q11 Side Rail Set;Left No Model Compatibility List $449.62 / Each

9
T 705065 034566-A T03 Remote Control;Infrared(Include Wire);Fe No Model Compatibility List $38.95 / Each

7,4,5,6
T 705066 034567-B T04 Adaptor;100-240,47-63Hz,DC12V,5A,2000;T No Model Compatibility List $136.79 / Each

4,5,6
B 705131 037990-A B38 Electricity Wood Board;80.0x240.0x1.0t;T No Model Compatibility List $42.28 / Each

1
N 705136 038073-A N01 LCD OVERLAY PVC HALFTONE PRINTING No Model Compatibility List $91.23 / Each

1
N 705137 038074-A N47 LCD OVERLAY PVC HALFTONE PRINTING No Model Compatibility List $18.23 / Each

1
N 705138 038075-A N51 LCD OVERLAY PVC HALFTONE PRINTING No Model Compatibility List $18.23 / Each

1
M 705140 038118-A M46 Ground Wire;Motor;240L;(KST RVS3-5)x2;TM No Model Compatibility List $9.41 / Each

4,5,6,10
N 705145 038200-A N07 MEMBRANCE KEY(W/RECREATION FUNCTION) TM65C/TM69C 110V BIG No Model Compatibility List $54.73 / Each
Out Of Stock 		9
V 705146 038204-A V02 Motor Cover Decal, Aluminum-Matrix [T5x-06] No Model Compatibility List $27.92 / Each

7,9,3,10
n 705149 038218-B not shown Owners Manual No Model Compatibility List $14.61 / Each

1
705150 038234-BA M44 PVC Sleeve Tube;NYLON;TM14-P29B; PU No Model Compatibility List $1.66 / Each

3
N 705185 039056-A N04 Overlay(Entertainment)FIT TEST;TM65D-N04 No Model Compatibility List $54.73 / Each

1
N 705208 039104-A N40 OVERLAY;TM65D-2KM(ENG);TM65D-N40A-02 No Model Compatibility List $91.23 / Each

1
P 705225 039170-A P123 TV Power Wire;290(H7725P-02);TM65D-P123B No Model Compatibility List $20.18 / Each

4,5,6
P 705226 039171-B P124 TV Power Wire;120(SCD-026 PIN2.1);TM65D No Model Compatibility List $12.17 / Each

4,5,6,12,13,14
H 705463 049254-AC H10 Screw;Hex Socket;Round;M12x1.75Px80L No Model Compatibility List $1.79 / Each

2
N 705759 056048-AA N53 Screw;Phillip;Umbrella;Big;;M5x0.8Px12L; No Model Compatibility List $1.66 / Each

2
Q 705760 056049-A Q59 Screw;Phillip;BH;Tapped;5x8L; No Model Compatibility List $1.66 / Each

2
N 706066 058840-Z01UP N26 Console Cover Set;English(TM65D-2KM) No Model Compatibility List $681.20 / Each

7,9
N 706067 058840-ZA N26 Console Set Including Handlebars No Model Compatibility List $1.30 / Each

7,11
A 706152 059611-Z AH1 Elevation Foot Frame Set No Model Compatibility List $312.21 / Each

9,3,10
B 706312 061162-AC B68 Screw;Hex Socket;Sink;M8x1.25Px40L No Model Compatibility List $4.00 / Each

2
n 706750 065218-A not shown Manual;Assembly;TM65D-2KM(ENG);TM65D-V50 No Model Compatibility List $17.03 / Each

3
P 706754 065248-A P116 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
A 706874 066502-AA AU2 Idle Pulley Set(Extrawork);JW01(Plate) No Model Compatibility List $57.30 / Each

8,3
M 710578 1000211092 M50 FILTER;20A;125/250V;ROHS;-; Yes Model Compatibility List $167.23 / Each

1
P 712497 1000229192 P82 POWER CORD SET;10-ft;NEMA;(90 Unit, 90 Outlet) Yes Model Compatibility List $76.65 / Each

4,5,6
P 713929 1000309675 P11 Overcurrent Breaker;15A;125V/250V;RFMB-1 No Model Compatibility List $8.42 / Each

4,5,6
P 714757 1000317845 P35 Power Switch;ON-OFF;W/ Light;125V/250V;2 Yes Model Compatibility List $27.35 / Each

4,5,6
R 716933 1000340398 R04 Belt;POLY-V;;310-J12;Halftone;GATES Yes Model Compatibility List $91.23 / Each

15
A 718635 1000352475 AN4 Switch Clip Set;Safety;;Red; No Model Compatibility List $36.48 / Each

2,9,4,5,6
P 719169 1000356655 P82 External PWR Wire Set;10 feet;;;;;;US;TM526; Yes Model Compatibility List $102.93 / Each

3,4,5,6,9
724289 1000417248 B35 Finished treadmill deck;Timber;616x1340x No Model Compatibility List $302.48 / Each

3
726543 082684 B68 SCREW;FH;M8X1.25PX80L;;HS;SSTSUS304;BAN; No Model Compatibility List $3.64 / Each

2
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
726659 083870 N34 TV Back Cover(Paint);Vision Carbon Gray No Model Compatibility List $74.70 / Each

9,4,5,6
726662 083886 Q05 Painting;End Cap;CN/GY+PU;;L;;TM65C No Model Compatibility List $83.93 / Each

9
726663 083887 Q06 Painting;End Cap;CN/GY+PU;;R;;TM65C No Model Compatibility List $83.93 / Each

9
726664 083888 Q12 Painting;Arm Rest Cover;CN/GY+PU;;;;TM65 No Model Compatibility List $56.55 / Each

9,3
727346 088712 C54 Oval Hex Socket Screw, M5 x 0.8P x 45L;Chromed No Model Compatibility List $2.63 / Each

7,2,12,13,14
727805 091091 2 Elastomer Set;Running Deck;Front;Red No Model Compatibility List $27.35 / Each

3
728276 093962 M22 Pin;Elevation;Clevis;SCM440x15x65L;Runner Gold No Model Compatibility List $9.10 / Each

10,12,13,14
728373 0000094429 - Power Cord Set;15-ft;NEMA (90 unit, 180 outlet) No Model Compatibility List $164.24 / Each

4,5,6
728387 094489 R05 Running Belt;Wax;554X3330X2.5T;TM65 No Model Compatibility List $686.11 / Each

15
728978 N/A Separately U24 Order 026678-Z No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729048 Order N21 N20 Upper Pulse Grip Shell No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14,11
729095 Part of AR1 R03 PULLEY, BIG, 168.0 DIA., TM65 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729247 part of U03 U24 IDLER,NYLON No Model Compatibility List $0.00 / Each
Out Of Stock 		8
Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
Electronic board Display (Used) 1001732 059429-AC 0 1 Electronic board Display (Used) No Model Compatibility List $349.00 / Each
Out Of Stock 		1
TENSION WHEEL SET MX-T4(TM69B) (Used) 1001736 026678-Z 0 1 TENSION WHEEL SET MX-T4(TM69B) (Used) No Model Compatibility List $69.99 / Each
Out Of Stock 		1
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
P 1007186 1000317845 P35 1 Power Switch On Off Yes Model Compatibility List $28.99 / Each

24
Power Cord 110VAC 1008492 0000094429 0 1 Power Cord 110VAC No Model Compatibility List $149.00 / Each

1
P 1001058 1000229192 P82 Power Cord Yes Model Compatibility List $39.99 / Each

6
Treadmill walking belt. 1037135 0000094489 Treadmill walking belt. Yes Model Compatibility List $223.50 / Each
Out Of Stock 		23
M 701260 004321-00 M64 Round Head Screw M4x0.7Px10L (New) No Model Compatibility List $12.99 / Each

1
EMI Line Filter w/ Power & GND Wire 1005408 003530-A or 002386-B or 067538-A EMI Line Filter w/ Power & GND Wire Yes Model Compatibility List $49.99 / Each

4,5,6,42
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
