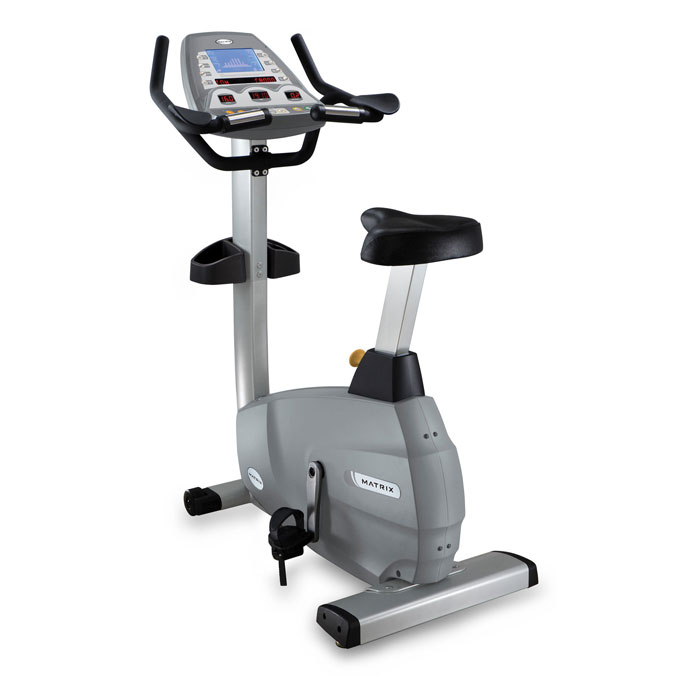

Matrix Commercial - U1x-G4 - 2009

Repair Parts for Matrix Commercial U1x-G4 CB50,CB85

Brand: Matrix Commercial

Category: Upright

Type: Stationary Bikes

Model Name: U1x-G4

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Arm/pedal
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
5 700158 000537-BA 58 Adjustable Foot Pad Set;CB61 No Model Compatibility List $13.26 / Each

9,3,12,13,14
8 700358 001127-C 87 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
5 701146 004050-A 56 Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

8,9
8 701160 004078-A2 86 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

8
4 701207 004162-00 47 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $57.49 / Each

15,10
6 701308 004369-00 60 Screw;Phillip;BH;M5x0.8Px15L;BED; No Model Compatibility List $2.00 / Each

2
5 701311 004369-AH 57 Screw;Phillip;BH;Stainess;M5x0.8Px15L; No Model Compatibility List $1.79 / Each

2
3 701411 004462-AF 36 Screw;Hex Socket;Round;M6x1.0Px15L;BED;A No Model Compatibility List $1.79 / Each

2
6 701489 004533-00 64 Screw;Hex Socket;Round;M8x1.25Px65L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
8 701660 004696-AB 83 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
6 701723 004743-00 62 Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) No Model Compatibility List $1.66 / Each

2
3 701740 004763-00 35 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere Yes Model Compatibility List $2.00 / Each

2
7 701897 004926-00 78 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
5 701927 004964-00 54 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
4 701961 005004-00 42 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $2.00 / Each

2
3 701999 005037-00 34 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $1.79 / Each

2
7 702017 005052-00 79 Washer;Flat;8.0x16.0x1.0T;Black Zinc No Model Compatibility List $1.66 / Each

2,4,5,6
3 702128 005155-A 38 Washer;Flat;6.2x12.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
3 702180 005222-00 33 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $2.00 / Each

2,4,5,6
5 702193 005239-00 53 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
6 702241 005366-00 63 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
702275 005438-00 40 Spring;Foot Lock Latch;16x2.0x50Lx12N Yes Model Compatibility List $2.00 / Each

2,9,3
3 702517 008420-00 39 Adjustment Plate;Tension;6Hole No Model Compatibility List $1.66 / Each

3
4 703809 017657-00 41 Spacer;Generator Shoulder;Right Yes Model Compatibility List $1.90 / Each

2,8,3,4,5,6
5 705139 038076-A 51 Matrix Decal No Model Compatibility List $15.78 / Each

7,3
5 705768 056109-AE 59 Screw;Hex;M8X1.25PX20L;;HS;CRMO;CHM;;BP;S Yes Model Compatibility List $1.79 / Each

2
6 705777 056225-A 68 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

4,5,6
7 706754 065248-A 73 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
8 706799 065640-A 81 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $2.00 / Each

2
5 709103 1000109595 55 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $3.82 / Each

8,9,3,4,5,6
N 717744 1000347305 Not Shown Battery;With Protect circuit;;;;7.4V 148 No Model Compatibility List $182.49 / Each
Out Of Stock 		4,5,6
2 719731 1000364363 2 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $168.97 / Each

8
Seat Post 725511 072308 77 Seat Post No Model Compatibility List $353.57 / Each

12,13,14
Sleeve; Seat Tube; Nylon; Black 725512 072313 75 Sleeve; Seat Tube; Nylon; Black No Model Compatibility List $12.27 / Each

3,4,5,6,12,13,14
Boot;Seat Tube;PVC;BL;CB66; 725513 072346 76 Boot;Seat Tube;PVC;BL;CB66; No Model Compatibility List $14.61 / Each

3,12,13,14
Front Stabilizer End Cap;Left 725514 072350 70 Front Stabilizer End Cap;Left No Model Compatibility List $8.42 / Each

9
Front Stabilizer End Cap;Right 725515 072351 71 Front Stabilizer End Cap;Right No Model Compatibility List $8.42 / Each

9
726115 080058 Q28 Rubber;1.0t;CB66; No Model Compatibility List $8.42 / Each

1
726116 080059 97 Rear Cover 2 Hole Fixing Plate;CST;RB85; No Model Compatibility List $1.66 / Each

9,3
726196 080690 69 Digital Console Wire Set;2500L(AMP 8P8C No Model Compatibility List $29.30 / Each

7,4,5,6
726197 080691 82 Grip Sensor Wire;950L;JST SMP-02V-BC+(JS No Model Compatibility List $9.10 / Each

4,5,6,11
726198 080692 44 Generator Wire;550L;JST VHR-5+MOLEX 4202 No Model Compatibility List $13.18 / Each

7,8,4,5,6,12,13,14
726199 080693 45 Generator Load Wire;550L;ST VHR-4+TKP HL No Model Compatibility List $12.27 / Each

7,8,4,5,6,12,13,14
726200 080694 70 TV Signal Wire;Below;1050L;(5CF)x2;CB66; No Model Compatibility List $18.15 / Each

4,5,6
726201 080695 71 TV PWR Wire;Below;1050L;(TKP H6630R1-04) No Model Compatibility List $14.30 / Each

4,5,6
726423 081746 Q31 Screw;Phillip;BH;Stainess;M5x0.8Px30L;Bl No Model Compatibility List $1.66 / Each

2
726611 083464 AZ4 Hardware6;RB123B No Model Compatibility List $0.00 / Each
Out Of Stock 		1
726626 083674 U10 Screw;Hex Socket;Round;M5x0.8Px15L;Gap;; No Model Compatibility List $1.66 / Each

2
726812 085182 Q33 Screw;Phillip;Round;M4x0.7Px10L;Zn-BL; No Model Compatibility List $1.66 / Each

2
726849 085631 17 Lower Control Board Set;CB66-KM No Model Compatibility List $773.37 / Each

7
726851 085652 20 Drive Axle Set;KM;CB66 No Model Compatibility List $230.98 / Each

8,10
727582 090134 10 Front Transport Wheel Set;MX-U1x;CB85 No Model Compatibility List $30.84 / Each

8
727583 090136 9 Rear Stabilizer Set; MX-R1x; RB302 No Model Compatibility List $414.39 / Each

1
Manual;Manipulate;English;MX-R1x; 727594 090162 115 Manual;Manipulate;English;MX-R1x; No Model Compatibility List $18.15 / Each

1
727635 090270 18 Console Mast Set;MX-U1x;CB85 No Model Compatibility List $242.45 / Each

7
727637 090274 D06 Seat Pad;Black;LS-A26;Triple;CB66 No Model Compatibility List $155.84 / Each

4,5,6,12,13,14
727638 090275 AD3 Seat Pad Pull Pin set;M16;orange;U1x No Model Compatibility List $48.41 / Each

12,13,14
727639 090277 17 Handlebar Set;Semi-Assy;U1x-01;CB85 No Model Compatibility List $486.33 / Each

11
727640 090280 15 Grip;Sensor GriP;C8000;CB66 No Model Compatibility List $45.24 / Each

11
727648 090289 12 Cover Set;Frame;R;MX-U1x;CB85 No Model Compatibility List $173.50 / Each

9,3
Model Decal;MX-U1x 727651 090294 101 Model Decal;MX-U1x No Model Compatibility List $16.64 / Each

7,3
727652 090295 3 Cover Set;Frame;L;MX-U1x;CB85 No Model Compatibility List $192.56 / Each

9,3
727653 090298 10 Generator Set;MX-U1x;CB85 No Model Compatibility List $675.97 / Each

8
727654 090300 19 Idler Set;MX-U1x;CB85 No Model Compatibility List $87.91 / Each

8
727655 090306 Not Shown Carton;Frame;1030x450x790mm;MX-U1x No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

8,9
727841 091256 21 Rear Stabilizer End Cap Set, Left;MX-R1x No Model Compatibility List $12.82 / Each

9
727842 091257 22 Rear Stabilizer End Cap Set, Right;MX-R1 No Model Compatibility List $12.17 / Each

9
727848 091263 31 Sticker;Aperture;TV Rack;CB85;SBOM No Model Compatibility List $8.42 / Each

4,5,6
727850 091265 33 E-port Fixing Plate Set;MX-R1x;RB302 No Model Compatibility List $8.42 / Each

3
727910 092037 19 Cup Holder Set;CB85;SBOM; No Model Compatibility List $39.44 / Each

1
N 729455 ZMS3000424 Not Shown Power Supply-12 Volt A/C Adapter No Cord No Model Compatibility List $122.77 / Each

4,5,6
N 729456 ZMS3000429 Not Shown US Power Cord for 12-Volt Power Supply No Model Compatibility List $72.98 / Each

4,5,6
N 729484 ZMS4000424 Not Shown BUSHING FOR G7 REWORK No Model Compatibility List $3.35 / Each

8
Foot Pedal Set w/Strap 9/16” 1004804 0000090518 0 1 Foot Pedal Set w/Strap 9/16” Yes Model Compatibility List $56.99 / Each

31
