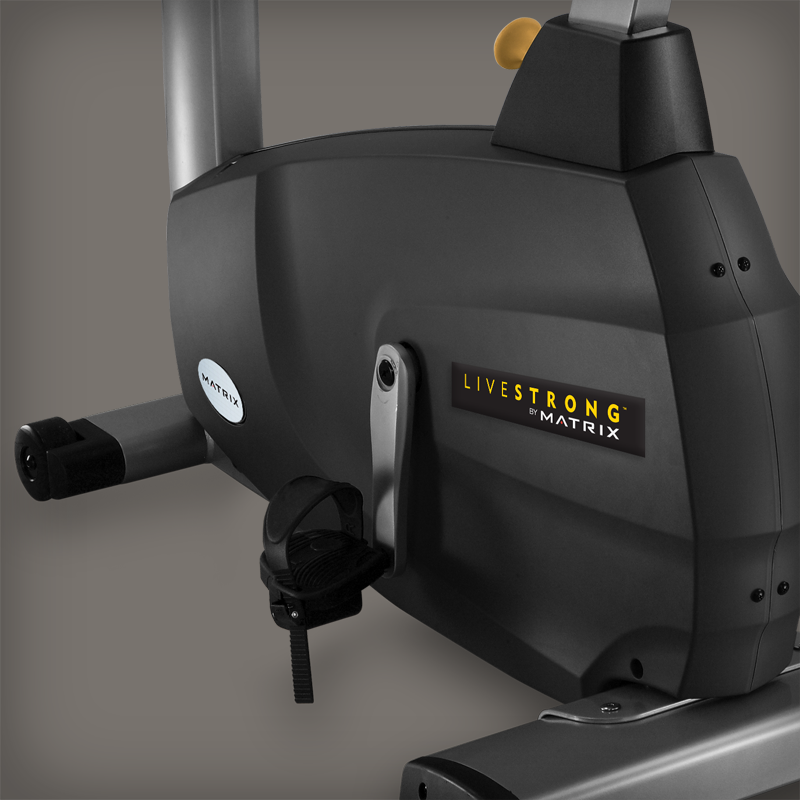

Matrix Commercial - U1x-LS - N/A

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000537-BA 700158 000537-BA 55 Adjustable Foot Pad Set;CB61 No Model Compatibility List $10.20 / Each

9,3,12,13,14
000693-A 700214 000693-A 190 Foam Tape;Double Sided;25x16x1t No Model Compatibility List $1.28 / Each

1
000932-E 700313 000932-E 181 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.28 / Each

9,4,5,6
001126-C 700357 001126-C P25 End Cap;Pulse Grips;Inner No Model Compatibility List $1.46 / Each

9,12,13,14,11
001127-C 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $3.08 / Each

9,12,13,14,11
003393-A 701035 003393-A P21 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $2.80 / Each

1
004050-A 701146 004050-A Not Shown Pedal Strap Set(includes both sides);Rub No Model Compatibility List $28.06 / Each

8,9
004162-00 701207 004162-00 R05 Drive Belt;Poly-V;400-J8 Yes Model Compatibility List $44.22 / Each

15,10
701277 004344-A W51 Screw;Round Phillips;M4x0.7Px15L No Model Compatibility List $1.28 / Each

2
004350-00 701281 004350-00 P10 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $1.54 / Each

2
004369-AH 701311 004369-AH Not Shown Screw;Phillip;BH;Stainess;M5x0.8Px15L; No Model Compatibility List $1.38 / Each

2
004370-00 701312 004370-00 N93 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $1.54 / Each

2
004462-AF 701411 004462-AF Z10 Screw;Hex Socket;Round;M6x1.0Px15L;BED;A No Model Compatibility List $1.38 / Each

2
004533-00 701489 004533-00 M06 Screw;Hex Socket;Round;M8x1.25Px65L;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
004628-00 701607 004628-00 P07 Screw;Oval Tapping;Phillip;5x15L No Model Compatibility List $1.22 / Each

2,12,13,14
004696-AB 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004743-00 701723 004743-00 C20 Screw;Hex Socket;BH;M8x1.25Px60L(Tooth20) No Model Compatibility List $1.28 / Each

2
004763-00 701740 004763-00 E12 Screw;Hex Socket;BH;M8x1.25Px16L;Adhere No Model Compatibility List $1.54 / Each

2
004925-ZAB 701896 004925-ZAB Z103 Nut;Nlk;M6X1.0P;;CHM;; No Model Compatibility List $1.38 / Each

2
004926-00 701897 004926-00 D34 Nut;Nylon;M8x1.25P No Model Compatibility List $1.54 / Each

2
004957-00 701924 004957-00 R09 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $2.80 / Each

2
004964-00 701927 004964-00 R13 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
004979-00 701944 004979-00 B39 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.38 / Each

2
004980-A 701945 004980-A B21 Insert Nut;Hex;NHS-580-3.0(M5X0.8P) No Model Compatibility List $1.38 / Each

2
004986-00 701950 004986-00 R12 Key;Round;Dual-End;6x6x10L; No Model Compatibility List $1.38 / Each

9
005004-00 701961 005004-00 Z06 Washer;Spring;Lock;SW6 6.1x12.2x1.5t No Model Compatibility List $1.54 / Each

2
005004-AE 701963 005004-AE Z102 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.42 / Each

7,2,12,13,14
005037-00 701999 005037-00 Z17 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $1.38 / Each

2
005052-00 702017 005052-00 79 Washer;Flat;8.0x16.0x1.0T;Black Zinc No Model Compatibility List $1.28 / Each

2,4,5,6
005075-AB 702047 005075-AB Z101 Washer;Flat;6.2X16.0X2.0T;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
005155-A 702128 005155-A H24 Washer;Flat;6.2x12.0x2.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
005222-00 702180 005222-00 D30 Washer;Wavy;16.7x22.5x0.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005239-00 702193 005239-00 R18 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $1.54 / Each

2
005365-00 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 T11 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
005438-00 702275 005438-00 L15 Spring;Foot Lock Latch;16x2.0x50Lx12N No Model Compatibility List $1.54 / Each

2,9,3
008418-00 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.46 / Each

2,3,4,5,6
017657-00 703809 017657-00 U05 Spacer;Generator Shoulder;Right No Model Compatibility List $1.46 / Each

2,8,3,4,5,6
020196-A 704079 020196-A C24 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $3.08 / Each

2
020205-00 704084 020205-00 P57 Screw;Phillip;Round;3x8L;Gap;;Zn-BL No Model Compatibility List $1.28 / Each

2
038076-A 705139 038076-A 100 Matrix Decal No Model Compatibility List $12.14 / Each

7,3
040828-AB 705319 040828-AB Z100 Screw;BH;M6X1.0PX25L;;HS;;CHM;; No Model Compatibility List $1.28 / Each

2
049265-A 705471 049265-A 178 Screw;Phillip;Round;3x5L;Gap;;Zn-BL No Model Compatibility List $1.28 / Each

2
056109-AE 705768 056109-AE Z04 Screw;Hex;M8X1.25PX20L;;HS;CRMO;CHM;;BP;S No Model Compatibility List $1.38 / Each

2
056225-A 705777 056225-A 53 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $6.48 / Each

4,5,6
065248-A 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
065640-A 706799 065640-A 183 Screw;Round Cross Tapped;M3X30L No Model Compatibility List $1.54 / Each

2
1000109595 709103 1000109595 T04 Crank Arm Cover;Round;Plastic;Black No Model Compatibility List $2.94 / Each

8,9,3,4,5,6
1000347305 717744 1000347305 Not Shown Battery;With Protect circuit;;;;7.4V 148 No Model Compatibility List $140.38 / Each

4,5,6
1000364363 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $129.98 / Each

8
072308 725511 072308 77 Seat Post No Model Compatibility List $271.98 / Each

12,13,14
072313 725512 072313 75 Sleeve; Seat Tube; Nylon; Black No Model Compatibility List $9.44 / Each

3,4,5,6,12,13,14
072346 725513 072346 76 Boot;Seat Tube;PVC;BL;CB66; No Model Compatibility List $11.24 / Each

3,12,13,14
072350 725514 072350 70 Front Stabilizer End Cap;Left No Model Compatibility List $6.48 / Each

9
072351 725515 072351 71 Front Stabilizer End Cap;Right No Model Compatibility List $6.48 / Each

9
726115 080058 Q28 Rubber;1.0t;CB66; No Model Compatibility List $6.48 / Each

1
726116 080059 97 Rear Cover 2 Hole Fixing Plate;CST;RB85; No Model Compatibility List $1.28 / Each

9,3
726184 080675 180 Membrane Keypad;Left;plane 4Keys;RB85 No Model Compatibility List $14.58 / Each

9,12,13,14
726185 080676 181 Membrane Keypad;Right;plane 4Keys;RB85 No Model Compatibility List $14.58 / Each

9,12,13,14
726186 080677 182 Membrane Keypad;Down;plane 7Keys;RB85 No Model Compatibility List $26.54 / Each

9,12,13,14
726196 080690 69 Digital Console Wire Set;2500L(AMP 8P8C No Model Compatibility List $22.54 / Each

7,4,5,6
726197 080691 82 Grip Sensor Wire;950L;JST SMP-02V-BC+(JS No Model Compatibility List $7.00 / Each

4,5,6,11
726198 080692 44 Generator Wire;550L;JST VHR-5+MOLEX 4202 No Model Compatibility List $10.14 / Each

7,8,4,5,6,12,13,14
726199 080693 45 Generator Load Wire;550L;ST VHR-4+TKP HL No Model Compatibility List $9.44 / Each

7,8,4,5,6,12,13,14
726200 080694 70 TV Signal Wire;Below;1050L;(5CF)x2;CB66; No Model Compatibility List $13.96 / Each

4,5,6
726201 080695 71 TV PWR Wire;Below;1050L;(TKP H6630R1-04) No Model Compatibility List $11.00 / Each

4,5,6
726204 080701 P54 Cable Clamp;KSS UC-04 No Model Compatibility List $31.82 / Each

4,5,6
726222 080773 185 Data Load Wire;200L;(JST/XAP-14)x2;RB85; No Model Compatibility List $16.62 / Each

4,5,6
726230 080834 186 Display Board Wire;100L;JST XHP-5+JST XA No Model Compatibility List $6.48 / Each

4,5,6
726231 080835 187 Cardio Wire;250L;RJ-45HSG 8P+JST XAP-5;R No Model Compatibility List $12.56 / Each

4,5,6
726232 080836 188 C-Safe Wire;250L;RJ-45HSG 8P+JST XAP-8;R No Model Compatibility List $13.66 / Each

4,5,6
726422 081745 Q53 Screw;Umbrella Cross;M5x0.8Px8L;Stainless No Model Compatibility List $1.28 / Each

2
726423 081746 Q31 Screw;Phillip;BH;Stainess;M5x0.8Px30L;Bl No Model Compatibility List $1.28 / Each

2
726433 081788 184 Plastic;3x20L No Model Compatibility List $1.28 / Each

9
726467 082041 Not Shown Hardware;RB85 No Model Compatibility List $6.48 / Each

1
726611 083464 AZ4 Hardware6;RB123B No Model Compatibility List $0.00 / Each
Out Of Stock
1
726626 083674 U10 Screw;Hex Socket;Round;M5x0.8Px15L;Gap;; No Model Compatibility List $1.28 / Each

2
084533 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.38 / Each

2
726812 085182 Q33 Screw;Phillip;Round;M4x0.7Px10L;Zn-BL; No Model Compatibility List $1.28 / Each

2
726849 085631 17 Lower Control Board Set;CB66-KM No Model Compatibility List $594.90 / Each

7
726851 085652 20 Drive Axle Set;KM;CB66 No Model Compatibility List $177.68 / Each

8,10
086147 726942 086147 AE3 Pedal Arm Swivel Set No Model Compatibility List $106.22 / Each

8,9,3
726949 086174 192 LCM Module Wire Set;WIRE+CORD;CB66 No Model Compatibility List $13.88 / Each

4,5,6
727559 089923 15 Hand Pulse Grip;No Quick Key;U5x-F; No Model Compatibility List $28.06 / Each

9,12,13,14,11
727582 090134 10 Front Transport Wheel Set;MX-U1x;CB85 No Model Compatibility List $23.72 / Each

8
727583 090136 9 Rear Stabilizer Set; MX-R1x; RB302 No Model Compatibility List $318.76 / Each

1
727635 090270 18 Console Mast Set;MX-U1x;CB85 No Model Compatibility List $186.50 / Each

7
727637 090274 D06 Seat Pad;Black;LS-A26;Triple;CB66 No Model Compatibility List $119.88 / Each

4,5,6,12,13,14
727638 090275 AD3 Seat Pad Pull Pin set;M16;orange;U1x No Model Compatibility List $37.24 / Each

12,13,14
727639 090277 17 Handlebar Set;Semi-Assy;U1x-01;CB85 No Model Compatibility List $374.10 / Each

11
727643 090284 171 Cover;Console Faceplate;ABS;MX CL/GY;U1x-01; No Model Compatibility List $27.64 / Each

7,9,3,4,5,6
727644 090285 172 Cover;Console Back;ABS;MX CL/GY;U1x-01; No Model Compatibility List $27.22 / Each

7,9,4,5,6
090286 727645 090286 173 Battery Cover;ABS;Gray(80435);U1x-01; No Model Compatibility List $2.58 / Each

9
727653 090298 10 Generator Set;MX-U1x;CB85 No Model Compatibility List $519.98 / Each

8
727654 090300 19 Idler Set;MX-U1x;CB85 No Model Compatibility List $67.62 / Each

8
0000090518 727707 0000090518 66 Pedal Set Yes Model Compatibility List $56.14 / Each

8,9
727841 091256 21 Rear Stabilizer End Cap Set, Left;MX-R1x No Model Compatibility List $9.86 / Each

9
727842 091257 22 Rear Stabilizer End Cap Set, Right;MX-R1 No Model Compatibility List $9.36 / Each

9
727848 091263 31 Sticker;Aperture;TV Rack;CB85;SBOM No Model Compatibility List $6.48 / Each

4,5,6
727850 091265 33 E-port Fixing Plate Set;MX-R1x;RB302 No Model Compatibility List $6.48 / Each

3
727910 092037 19 Cup Holder Set;CB85;SBOM; No Model Compatibility List $30.34 / Each

1
728228 093690 R11 Bearing;Ball;6005LUZ;25X47X12T;;TPI;;; No Model Compatibility List $13.98 / Each

8
728255 093797 S06 Washer;Dsp;6.0X12.5X0.6T; No Model Compatibility List $1.28 / Each

2
728256 093798 U08 Screw;BH;M5X0.8PX13L;;PH;Zn Plate No Model Compatibility List $1.28 / Each

2,3
728592 095477 W05 Load Board;Program;S1x; No Model Compatibility List $26.72 / Each

1
728594 095479 W09 LCD Module Set;S1x; No Model Compatibility List $475.78 / Each

1
728595 095480 W14 Inside Receiver Set;S1x; No Model Compatibility List $72.84 / Each

1
728596 095481 AW1 HR Hand Pulse Board Set;S1x; No Model Compatibility List $68.88 / Each

7,12,13,14
728643 095856 151 Console Set;ES;H007S001;U1xLS; No Model Compatibility List $909.98 / Each

7
728644 095857 N04 Overlay;Manipulate;Up;ENG;PET/0.375mm;U1 No Model Compatibility List $34.54 / Each

1
728645 095858 N05 Overlay;Manipulate;Middle;ENG;PET/0.375m No Model Compatibility List $24.40 / Each

1
728646 095859 N06 Overlay;Manipulate;Down;ENG;PET/0.375mm; No Model Compatibility List $16.18 / Each

1
728647 095861 12 Side Cover Set;Right;U1xLS; No Model Compatibility List $139.76 / Each

9
728648 095862 13 Side Cover Set;Left;U1xLS; No Model Compatibility List $152.22 / Each

9
728649 095863 V10 Model Decal;PU;2.0mm;U1xLS; No Model Compatibility List $11.22 / Each

7,3
728660 095897 Not Shown Owner's Manual;ENG;R1xLS; No Model Compatibility List $16.06 / Each

1
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729120 Part of Kit 10 AG3 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729123 Part of Kit 11 AG2 Upper Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729124 Part of Kit 12 AG4 Lower Handlebar Set;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
729125 Part of Kit 13 AH1 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729129 Part of Kit 15 AH2 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729133 Part of Kit 16 AL1 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729135 Part of Kit 17 R01 Transmission Axle;42CrMo;EP217 No Model Compatibility List $0.00 / Each
Out Of Stock
8
729136 Part of Kit 18 R01 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729137 Part of Kit 19 E08 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3,4,5,6
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729140 Part of Kit 20 E14 BEARING;BALL;6003ZZ;17X35X10T;;TPI;;; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729197 Part of Kit 8 AF3 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729201 Part of Kit 9 AG1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
11
ZMS3000424 729455 ZMS3000424 Not Shown Power Supply-12 Volt A/C Adapter No Cord No Model Compatibility List $94.44 / Each

4,5,6
ZMS3000429 729456 ZMS3000429 Not Shown US Power Cord for 12-Volt Power Supply No Model Compatibility List $56.14 / Each

4,5,6
View Drawing
