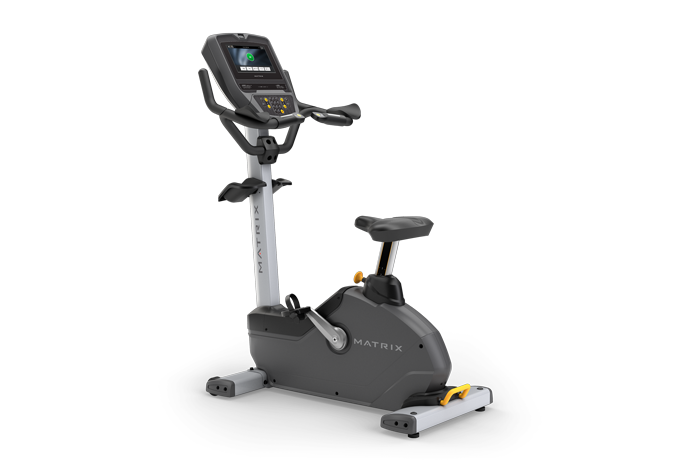

Matrix Commercial - U1xe - 2017-2020

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000041-AA 700024 000041-AA J19 Transport Wheel Yes Model Compatibility List $7.00 / Each

8
004077-A2 701159 004077-A2 U03 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004370-00 701312 004370-00 P16 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $1.54 / Each

2
004371-00 701314 004371-00 S09 Screw;Phillip;BH;M5x0.8Px25L;;Zn-BL No Model Compatibility List $1.28 / Each

2
004385-AD 701335 004385-AD J13 Screw;Button Head;M5x0.8Px12L;Cutting;Ph No Model Compatibility List $1.28 / Each

2
004482-AC 701437 004482-AC Z21 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $1.54 / Each

2
004488-AC 701446 004488-AC B35 Screw;Hex Socket;Round;M8x1.25Px55L No Model Compatibility List $1.38 / Each

2
004538-AC 701502 004538-AC Z11 Screw;Socket Head;M8x1.25Px20L;;Hex Sock No Model Compatibility List $2.58 / Each

2
004653-00 701631 004653-00 G17 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.54 / Each

2
004695-AB 701658 004695-AB U05 Screw;Hex Socket;Flat;M8x1.25Px12L No Model Compatibility List $1.54 / Each

2
004730-00 701713 004730-00 B32 Screw;Oval Hex Socket;M8X1.25PX50L Yes Model Compatibility List $1.54 / Each

2
005042-00 702004 005042-00 J17 Washer;Flat;8.2X30.0X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005075-00 702046 005075-00 S05 Washer;Flat;6.2X16X2.0T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005220-00 702178 005220-00 J14 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005239-00 702193 005239-00 T05 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $1.54 / Each

2
005354-00 702229 005354-00 U09 C-Clip;Internal;R-42 No Model Compatibility List $1.38 / Each

2
005366-00 702241 005366-00 R07 C-Clip;External;S-25 No Model Compatibility List $1.22 / Each

2
017657-00 703809 017657-00 U07 Spacer;Generator Shoulder;Right No Model Compatibility List $1.46 / Each

2,8,3,4,5,6
018652-B 703852 018652-B B38 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $2.80 / Each

2
020069-00 703990 020069-00 J16 Screw;SH;M8X1.25PX12L;HS;BP;G12.9; No Model Compatibility List $1.38 / Each

2
020465-A 704192 020465-A U06 Washer;Flat;10.2x25x2.0T No Model Compatibility List $1.54 / Each

2
065248-A 706754 065248-A P06 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
709912 1000204420 U01 Fixing Plate;Idler;;SPHC;176x130x15.3x4; No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
712643 1000230018 Z81 Screw;SH;M8x1.25Px25L;HS;SST;BP; No Model Compatibility List $1.68 / Each

2
1000230019 712644 1000230019 Z82 Washer;FLT;8.2x16.0x2.0t;SST; No Model Compatibility List $1.02 / Each

2
1000230349 712715 1000230349 T04 Screw;;;;;;;;; No Model Compatibility List $7.00 / Each

2
1000230354 712717 1000230354 AU1 Fixed chipset;Idler;;;U-3x/5x/7x-05-F;; Yes Model Compatibility List $45.48 / Each

8
712718 1000230356 U04 Axle;Idler;;SS41;Anti-rust oil coating;C No Model Compatibility List $0.00 / Each
Out Of Stock
8
713167 1000233513 P07 Wire Tie;Releasible;KSS HV-250SBK;250L;N No Model Compatibility List $0.00 / Each
Out Of Stock
2,4,5,6
713368 1000301942 S06 Screw;-;Hex Head;M6x1.0Px16L;-;-;Black Z No Model Compatibility List $1.28 / Each

2,4,5,6
1000304372 713491 1000304372 Z12 Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T; No Model Compatibility List $1.28 / Each

2
1000304387 713498 1000304387 U10 Spring Extension 15.8x2.5x83.0Lx23.75N Yes Model Compatibility List $12.98 / Each

2
1000304478 713519 1000304478 Z22 Screw;Button Head;M5x0.8Px12L;-;Phillip; No Model Compatibility List $1.38 / Each

2
713743 1000307358 38 Idler Set;;;;CB92;; No Model Compatibility List $0.00 / Each
Out Of Stock
8
1000319375 714874 1000319375 J21 Cap;;;PVC;BL/Black C;;; No Model Compatibility List $1.28 / Each

9,4,5,6
1000345278 717457 1000345278 AT1 Crank set;;left;;;RB162;; No Model Compatibility List $64.98 / Each

8
1000345280 717458 1000345280 AT2 Crank set;;right;;;RB162;; No Model Compatibility List $64.98 / Each

8
717607 1000346210 P01 Fixing Plate;E-PORT;;SPHC;78.6x40x70x1.6 No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000346212 717608 1000346212 D05 PLASTIC LINER;Seat Tube Sleeve;;PA66;BL/ No Model Compatibility List $5.18 / Each

9,3,12,13,14
1000346214 717609 1000346214 AC1 Console mast set;;;;;CB171;; No Model Compatibility List $64.98 / Each

7
1000346226 717610 1000346226 C04 Kettle Rack;;;PP;Q520-7-3;;CB171; No Model Compatibility List $10.38 / Each

4,5,6
717612 1000346235 AD1 Seat Tube-Extrawork;;;Cr Plate;;CB171; No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
1000346247 717615 1000346247 Q05 Boot;Base Tube;;TPE;Q520-7-3;;; No Model Compatibility List $9.08 / Each

3
1000346252 717616 1000346252 AG2 Handlebar Set-Exreawork;grip;;Dipping pl No Model Compatibility List $35.08 / Each

12,13,14,11
1000346367 717633 1000346367 B17 grip-Extrawork;;;Dipping PVC;orange;RB16 No Model Compatibility List $25.98 / Each

12,13,14,11
1000346714 717673 1000346714 Q03 Cover;;Front-Up;ABS/PA757;Q520-7-3;;; No Model Compatibility List $7.78 / Each

9
1000346715 717674 1000346715 Q04 Cover;;Rear-Up;ABS/PA757;Q520-7-3;;CB171 No Model Compatibility List $20.78 / Each

9
1000346716 717675 1000346716 Q07 Cover;Handlebar;Rear-Down;TPE;Q520-7-3;; No Model Compatibility List $7.78 / Each

9,11
1000346917 717701 1000346917 Not Shown Hardware Set;;;;CB171;; No Model Compatibility List $14.28 / Each

1
1000347577 717785 1000347577 S01 Generator;;350W;480rpm;;50.6VA;(Steel ri No Model Compatibility List $454.98 / Each

8
1000347632 717791 1000347632 S02 LCB;Generator;;L13CA1_H001;;;;MATRIX R-1 No Model Compatibility List $235.28 / Each

8
1000356012 719115 1000356012 P09 Console Wire Set;;;;;22AWG;1600L;MOLEX,5 No Model Compatibility List $23.38 / Each

7,4,5,6
1000356031 719118 1000356031 P10 Generator connected wire;;;;;;880mm;TKP, No Model Compatibility List $22.08 / Each

8,4,5,6
1000356032 719119 1000356032 P04 DC Power Wire;;;;;;360mm;DC025M+H6630R1- No Model Compatibility List $11.68 / Each

4,5,6
1000358248 719239 1000358248 R08 Bearing;Ball;6005ZZ;?25x?47x12T;TPI;C3 No Model Compatibility List $13.26 / Each

8
1000360701 719366 1000360701 P13 GND;;;Yellow/Green1;;14AWG 1015;1200;Dia No Model Compatibility List $5.58 / Each

1
1000361025 719399 1000361025 P05 TV Signal Wire;;;;;;1700mm;FM-0086-NBG7x No Model Compatibility List $10.38 / Each

4,5,6
1000361140 719415 1000361140 Q01 Side Cover-Exreawork;cover;left;Screen p No Model Compatibility List $80.58 / Each

9
1000361141 719416 1000361141 Q02 Side Cover-Exreawork;cover;right;Screen No Model Compatibility List $80.58 / Each

9
1000361276 719433 1000361276 Z14 Screw;Special;Diam.8.0/M6.0;Machine Thre No Model Compatibility List $6.48 / Each

7,2,4,5,6,12,13,14
1000363478 719657 1000363478 P03 Network Signal;;;;;;1700mm;QS 3205615600 No Model Compatibility List $18.18 / Each

1
1000363496 719659 1000363496 A21 Hand Pulse Grip Set;Semi-Assy;left;;;CB1 No Model Compatibility List $37.68 / Each

12,13,14,11
1000363497 719660 1000363497 A22 Hand Pulse Grip Set;Semi-Assy;right;;;CB No Model Compatibility List $37.68 / Each

12,13,14,11
1000374445 720644 1000374445 G16 Cover;Arm Rest;front;ABS/PA757;Q520-7-3; No Model Compatibility List $4.54 / Each

9,3
1000381729 721307 1000381729 AJ3 Stabilizer set;Semi-Assy;front;;;RB162;; No Model Compatibility List $85.78 / Each

1
1000381730 721308 1000381730 AJ4 Stabilizer set;Semi-Assy;back;;;RB162;;S No Model Compatibility List $113.08 / Each

4,5,6
1000381731 721309 1000381731 1 Drive set;Semi-Assy;;;;RB162;;SBOM No Model Compatibility List $90.98 / Each

10
721902 1000386228 D03 Decal;Seat Tube;;;PVC;Left;;CB171 No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,12,13,14
721903 1000386229 D04 Decal;Seat Tube;;;PVC;Right;;CB171 No Model Compatibility List $0.00 / Each
Out Of Stock
7,3,12,13,14
1000386657 721930 1000386657 R10 Belt;POLY-V;FIBERGLASS;430-J10;;Wu De Fu No Model Compatibility List $38.98 / Each

15
721995 1000387042 T01 Crank;;L;painting;BP-920S;MATRIX/SL/GY;R No Model Compatibility List $0.00 / Each
Out Of Stock
8
721996 1000387045 T02 Crank;;R;painting;BP-920S;MATRIX/SL/GY;R No Model Compatibility List $0.00 / Each
Out Of Stock
8
722306 1000390875 G12 Screw;Round Head;M3x0.5Px30L;;Phillip;St No Model Compatibility List $0.00 / Each
Out Of Stock
2
1000390956 722312 1000390956 AD12 Seat Tube Set;Semi-Assy;;;;CB171;;SBOM No Model Compatibility List $107.88 / Each

3,12,13,14
1000391118 722338 1000391118 G11 Screw;Round Head;M3x0.5Px12L;Machine Thr No Model Compatibility List $1.28 / Each

7,2,4,5,6,12,13,14
722389 1000391682 P15 Battery Set;;;;;1015 16AWG;350;;E1-F No Model Compatibility List $0.00 / Each
Out Of Stock
1
722441 1000392033 P08 Connect;;;;;;1150L;TKP-10P+(TKP-3P)X2+11 No Model Compatibility List $24.68 / Each

1
722613 1000395799 AR11 Transmission set+Tools;;;;;;RB162;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
1
723653 1000411443 A23 Handlebar Set;Semi-Assy;;;;;CB171;SBOM No Model Compatibility List $179.38 / Each

11
070817 725395 070817 Z31 Screw;SH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $0.76 / Each

2
726115 080058 Q28 Rubber;1.0t;CB66; No Model Compatibility List $6.48 / Each

1
726116 080059 97 Rear Cover 2 Hole Fixing Plate;CST;RB85; No Model Compatibility List $1.28 / Each

9,3
726523 082604 Z13 Screw;Button Head;M6X1.0PX12L;-;Phillip; No Model Compatibility List $1.02 / Each

2
727637 090274 D06 Seat Pad;Black;LS-A26;Triple;CB66 No Model Compatibility List $119.88 / Each

4,5,6,12,13,14
727638 090275 AD3 Seat Pad Pull Pin set;M16;orange;U1x No Model Compatibility List $37.24 / Each

12,13,14
0000090518 727707 0000090518 66 Pedal Set Yes Model Compatibility List $56.14 / Each

8,9
728337 094065 U08 SCREW;TRH;M5X0.8PX13L; No Model Compatibility List $1.28 / Each

2
0000094929 728450 0000094929 J11 Cap;Stabilizer;Left-Front;ABS/PA757;P804 Yes Model Compatibility List $9.26 / Each

9
0000095100 728498 0000095100 J12 Cap;Stabilizer;Right-Front;ABS/PA757;P80 Yes Model Compatibility List $7.26 / Each

9
0000095638 728614 0000095638 J15 Foot Pad;Adjustable;M12X58H;12.9;EP304; Yes Model Compatibility List $26.04 / Each

3,9,12,13,14
729899 ZMS4008362 P17 Battery, Rechargeable; 12V 1.2AH NP1.2-1 No Model Compatibility List $0.00 / Each
Out Of Stock
1
View Drawing
