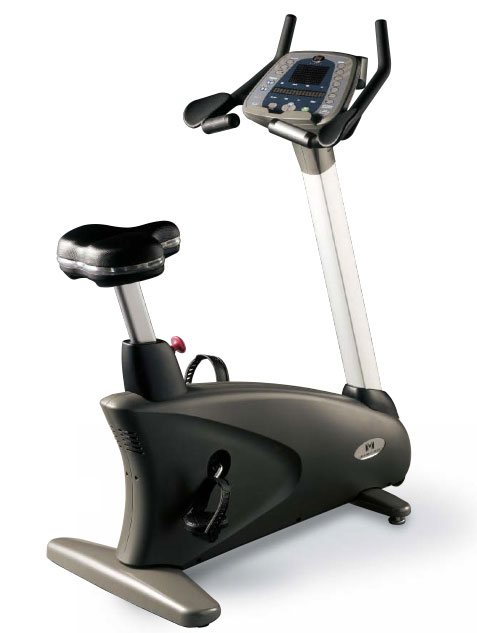

Matrix Commercial - U5-G1| MCB32 - 2002-2004

Repair Parts for Matrix Commercial U5-G1| MCB32 MCB32

Brand: Matrix Commercial

Category: Upright

Type: Stationary Bikes

Model Name: U5-G1| MCB32

Version: 2002-2004

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Arm/pedal
  • Resistance Parts
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Transport Wheel;Nylon+30%FIBER;74;BL;CB32 700005 000007-B L01 Transport Wheel;Nylon+30%FIBER;74;BL;CB32 Yes Model Compatibility List $9.10 / Each

8
Boot;Seat Post 700039 000165-C Q04 Boot;Seat Post No Model Compatibility List $17.13 / Each

12,13,14
Console Mast Boot;(BLACK) PVC 700049 000199-D Q03 Console Mast Boot;(BLACK) PVC No Model Compatibility List $9.65 / Each

7,4,5,6
Fix Plate;E-PORT 700075 000279-B B41 Fix Plate;E-PORT No Model Compatibility List $9.10 / Each

3
700110 000435-C C06 Upper Console Mast Cover;Left;ABS(CB32-C06B) No Model Compatibility List $8.42 / Each

7,9
Upper Console Mast Cover;Right;ABS(CB32-C07C) 700112 000436-D C07 Upper Console Mast Cover;Right;ABS(CB32-C07C) No Model Compatibility List $8.42 / Each

7,9
Upper Console Mast Cover;Center;Nylon(MATRIX GRAY) 700113 000437-C C23 Upper Console Mast Cover;Center;Nylon(MATRIX GRAY) No Model Compatibility List $3.64 / Each

7,9
Upper Console Mast Cover;Center;Nylon;(MATRIX GRAY) 700114 000437-CC C14 Upper Console Mast Cover;Center;Nylon;(MATRIX GRAY) No Model Compatibility List $3.64 / Each

7,9
Bushing;ECB;;POM;;;;JS001 POM(JS001-11) 700271 000827-00 D10 Bushing;ECB;;POM;;;;JS001 POM(JS001-11) No Model Compatibility List $0.34 / Each

8
700274 000842-C C16 TV Rack Sleeve;Nylon, CB32 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
End Protect Cap;EP-1113;Black 700285 000868-A P11 End Protect Cap;EP-1113;Black Yes Model Compatibility List $1.66 / Each

9,4,5,6
Hole Plug;Rubber;19mm;Black - D/C, NO REPL Part will show as orderable until stock is depleted 700286 000870-A N36 Hole Plug;Rubber;19mm;Black - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $1.66 / Each

4,5,6
Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. 700313 000932-E 181 Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $1.66 / Each

9,4,5,6
Sleeve;Seat Tube 700334 000994-E D03 Sleeve;Seat Tube No Model Compatibility List $9.10 / Each

3,12,13,14
Seat Post Tube Insert;Lower Smaller;Nylon;(IRON-TIN COLOR) 700335 000995-D D04 Seat Post Tube Insert;Lower Smaller;Nylon;(IRON-TIN COLOR) No Model Compatibility List $3.35 / Each

3,12,13,14
End Cap;Pulse Grips;Outer 700358 001127-C N23 End Cap;Pulse Grips;Outer Yes Model Compatibility List $4.00 / Each

9,12,13,14,11
Cover;Crank;PVC;BL;RB70 700370 001143-B Q08 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $9.10 / Each

8,9
700570 001679-00 P13 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
Seat Pad;Self-Skin;Black;3MM Steel Plate 700599 001728-BA D06 Seat Pad;Self-Skin;Black;3MM Steel Plate Yes Model Compatibility List $167.00 / Each

3,4,5,6,12,13,14
E-PORT Circuit Board Set;Contain PCB Board 700699 001937-A P20 E-PORT Circuit Board Set;Contain PCB Board No Model Compatibility List $11.18 / Each

7,4,5,6
Sensor Wire;Pulse Grip;L;700 (H6657R1-2+ 700 (H6657R1-2+110XF) 700786 002315-D P06 Sensor Wire;Pulse Grip;L;700 (H6657R1-2+ 700 (H6657R1-2+110XF) No Model Compatibility List $8.42 / Each

4,5,6,12,13,14,11
Pulse Grip Wire 700 (H6657R1-2+110 F Socket) 700788 002317-D P38 Pulse Grip Wire 700 (H6657R1-2+110 F Socket) No Model Compatibility List $9.10 / Each

4,5,6,12,13,14,11
TV Power Wire;1250(SMR-02V-B)X1 700834 002469-E P25 TV Power Wire;1250(SMR-02V-B)X1 Yes Model Compatibility List $8.42 / Each

4,5,6
Connecting Wire;Heart Rate Board;250mm 700865 002577-H N29 Connecting Wire;Heart Rate Board;250mm No Model Compatibility List $8.71 / Each

4,5,6,12,13,14
Electronic Control Set Connecting Wire;400(3.96-5P+HL20P-03) 700880 002638-H P04 Electronic Control Set Connecting Wire;400(3.96-5P+HL20P-03) No Model Compatibility List $12.32 / Each

4,5,6,7
Power Connection Changing Wire 1200(XAP-02V-1+H6657R1-2) 700884 002642-B P19 Power Connection Changing Wire 1200(XAP-02V-1+H6657R1-2) Yes Model Compatibility List $8.42 / Each

4,5,6
Earphone Extended Line;185(3.5 Three-D E 700890 002668-E P26 Earphone Extended Line;185(3.5 Three-D E No Model Compatibility List $26.68 / Each

7,9,12,13,14
TV Signal Wire 1250(RG-6)X2 (W/ADAPTERX1) 700907 002716-D P21 TV Signal Wire 1250(RG-6)X2 (W/ADAPTERX1) Yes Model Compatibility List $20.38 / Each

4,5,6
Manipulate Overlay;MX U5/R5/E5(USA)(vf[); MX U5/R5/E5(U.S.A.) 700944 002897-F N40 Manipulate Overlay;MX U5/R5/E5(USA)(vf[); MX U5/R5/E5(U.S.A.) No Model Compatibility List $47.32 / Each

1
Membrane Switch;Right;MATRIX U5/R5/E5;ES 700997 003196-C N51 Membrane Switch;Right;MATRIX U5/R5/E5;ES No Model Compatibility List $13.88 / Each

4,5,6
Membrane Switch;Left;MATRIX U5/R5/E5;ES 700998 003198-A N53 Membrane Switch;Left;MATRIX U5/R5/E5;ES No Model Compatibility List $13.88 / Each

4,5,6
Membrane Switch;Down;MATRIX U5/R5/E5;MKS/ES 701002 003203-B N54 Membrane Switch;Down;MATRIX U5/R5/E5;MKS/ES No Model Compatibility List $15.00 / Each

4,5,6
Ferrite Choke;FH0900B-2;Lian Ci;TM38 701032 003383-A P20 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $9.10 / Each

1
701073 003569-A P14 Middle Connect Transform;F Type;F-A005(-N No Model Compatibility List $3.35 / Each

1
Small Pulley; 65x38L SS41 701108 003874-F R02 Small Pulley; 65x38L SS41 No Model Compatibility List $33.67 / Each

8
Drive Axle Pulley;Nylon;30% FIBER 701114 003883-E R03 Drive Axle Pulley;Nylon;30% FIBER No Model Compatibility List $40.14 / Each

8,10
Pedal Strap Set(includes both sides);Rub 701146 004050-A Not Shown Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

8,9
Ball Bearing; 6202ZZ(BR6202ZZ) 701158 004075-A3 U03 Ball Bearing; 6202ZZ(BR6202ZZ) No Model Compatibility List $9.57 / Each

8
Ball Bearing;6006ZZ;30X55X13T;;TPI;;; 701162 004079-A3 U05 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
Ball Bearing;6204ZZ;20x47x14t;TPI 701165 004081-A2 U03 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
Ball Bearing;6205ZZ;25X52X15T;;TPI;;; 701166 004082-A2 T105 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $21.89 / Each

8
Bearing;One-Way;;HFL2530;INA 701171 004091-00 R10 Bearing;One-Way;;HFL2530;INA No Model Compatibility List $30.89 / Each

8
Belt;Poly-V 390-J6(CARLISLE) 701199 004152-00 R20 Belt;Poly-V 390-J6(CARLISLE) Yes Model Compatibility List $54.73 / Each

15
Drive Belt;Poly-V;450-J8 701211 004171-00 R19 Drive Belt;Poly-V;450-J8 Yes Model Compatibility List $54.73 / Each

15,10
Screw;Round;PH; M4X0.7PX12L 701262 004322-00 C19 Screw;Round;PH; M4X0.7PX12L No Model Compatibility List $1.66 / Each

2
Screw;Round;Crisscross;M3X0.5PX35L 701275 004339-00 P19 Screw;Round;Crisscross;M3X0.5PX35L No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Coss;M3x0.5Px10L 701284 004351-00 Q22 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

2
Screw;Umbrella Cross;M4x0.7Px15L;BED BL; M4X0.7PX15L 701292 004357-AE Q07 Screw;Umbrella Cross;M4x0.7Px15L;BED BL; M4X0.7PX15L No Model Compatibility List $1.66 / Each

2
Screw;Umbrella Cross;M5x0.8Px12L 701333 004385-AB T09 Screw;Umbrella Cross;M5x0.8Px12L No Model Compatibility List $1.79 / Each

2
Screw;Oval;PH;M6X1.0PX50L(10L) 701347 004393-Z D11 Screw;Oval;PH;M6X1.0PX50L(10L) No Model Compatibility List $1.66 / Each

2
Screw;Phillip;BH;M3x0.5Px14L;;Zn-BL 701357 004408-00 G23 Screw;Phillip;BH;M3x0.5Px14L;;Zn-BL No Model Compatibility List $1.66 / Each

2
Screw;Plain;PH;M4X0.7PX10L 701380 004433-AB D09 Screw;Plain;PH;M4X0.7PX10L No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M5x0.8Px12L;Adher 701390 004447-AB S13 Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Screw;Round;Hex Socket; M5X0.8PX10L(BED) 701403 004457-00 R15 Screw;Round;Hex Socket; M5X0.8PX10L(BED) No Model Compatibility List $1.79 / Each

2
Screw;Round;Hex Socket; M8X1.25PX50L(30L) 701442 004484-AB C30 Screw;Round;Hex Socket; M8X1.25PX50L(30L) No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M8x1.25Px65L;Chromed 701489 004533-00 M06 Screw;Hex Socket;Round;M8x1.25Px65L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
701564 004596-Z U09 Screw;Hex; M8X1.25PX25L No Model Compatibility List $8.42 / Each

2
Screw;Console Case;Oval Tapping;4x15L 701586 004617-00 Q11 Screw;Console Case;Oval Tapping;4x15L No Model Compatibility List $2.00 / Each

7,2,12,13,14
Screw;Round;PH;Tapped;3X10L 701630 004651-00 G27 Screw;Round;PH;Tapped;3X10L No Model Compatibility List $3.35 / Each

2
Screw;Round;PH;Tapped;4X12L 701632 004653-AB N91 Screw;Round;PH;Tapped;4X12L No Model Compatibility List $1.85 / Each

2
Screw;Flat Hex Socket;M8x1.25Px15L 701654 004693-AD C17 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
Screw;Inner Oblique;Hex Socket;M8x1.25Px50L(15L) 701662 004698-00 B52 Screw;Inner Oblique;Hex Socket;M8x1.25Px50L(15L) No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Umbrella;M8x1.25Px20L; 701693 004720-AC Z01 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;BH;M8x1.25Px20L;BED 701729 004754-00 Z02 Screw;Hex Socket;BH;M8x1.25Px20L;BED No Model Compatibility List $1.79 / Each

2
Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) 701743 004767-00 Z01 Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
701753 004776-Z F06 Screw;Oval;Hex Socket; M10X1.5PX20L No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Screw;Phillip;Large Oval Head;M4X0.7PX8L 701843 004860-00 67 Screw;Phillip;Large Oval Head;M4X0.7PX8L No Model Compatibility List $1.79 / Each

2
Screw;Self Tapping;4x10L 701848 004865-00 P07 Screw;Self Tapping;4x10L No Model Compatibility List $2.00 / Each

2,12,13,14
Nut;Zero Switch Cable;M3x0.5Px3H 701858 004880-00 P20 Nut;Zero Switch Cable;M3x0.5Px3H No Model Compatibility List $2.00 / Each

2,4,5,6
Nut;Hex;3/8-26UNCX4H 701870 004892-00 R11 Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
Nut;Nylon;M4 x 0.7P;Black Zinc 701890 004923-00 N15 Nut;Nylon;M4 x 0.7P;Black Zinc No Model Compatibility List $1.85 / Each

2,4,5,6
Nut;Nylon;M5x0.8P;Black Zinc 701891 004924-00 T10 Nut;Nylon;M5x0.8P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Nut;Nylon;M8X1.25P(BED) 701905 004932-00 L03 Nut;Nylon;M8X1.25P(BED) No Model Compatibility List $1.66 / Each

2
Nut;Nylon;1/4 701907 004933-00 S06 Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
Nut;Nylon;M6X1.0P;Chromed 701911 004938-00 K009 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Nut;Lock;M25X1.5P;SS41;BAN 701924 004957-00 R09 Nut;Lock;M25X1.5P;SS41;BAN Yes Model Compatibility List $3.64 / Each

2
Nut;Hex;Flange;3/8-26UNF;Black Zinc 701931 004968-00 104 Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
701942 004977-A B71 Insert Nut;ALS7-470-3.3(2.0-3.3) No Model Compatibility List $1.66 / Each

2
701953 004989-Z R07 Key;Round;Dual-End;6X6X15L No Model Compatibility List $1.66 / Each

9
Washer;Spring;Lock;8.2x15.4x2.0t 701964 005005-00 H04 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating 701970 005009-AB Z03 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
Washer;Flat;8.2x18x1.4T 701997 005035-00 Z29 Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
Washer;Flat;10.2X15.0X1.5T;Black Zinc 702037 005067-00 J04 Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Washer;Flat;5.3x10x1.0T;Black Zinc 702050 005078-00 I23 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;5.2x13.0x1.5T;Black Zinc 702052 005080-00 U10 Washer;Flat;5.2x13.0x1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;4x10x1.0T;Black Zinc 702061 005089-00 C27 Washer;Flat;4x10x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
Washer;Flat;6.2X20.0X2.0T 702067 005096-Z R18 Washer;Flat;6.2X20.0X2.0T No Model Compatibility List $1.79 / Each

2
Washer;Flat;1/4 702070 005102-00 S07 Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
Washer;Flat;8.4x15.5x1.6T;Chromed 702098 005130-00 Z33 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;5.0X10.0X1.0T;Stainless 702127 005154-A H002 Washer;Flat;5.0X10.0X1.0T;Stainless No Model Compatibility List $1.79 / Each

2
Tinnamen Nut 702217 005330-00 Q08 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
702218 005332-00 B28 C-Clip WUSN 4039 No Model Compatibility List $1.66 / Each

2
C-Clip;Internal;R-35 702227 005352-00 U04 C-Clip;Internal;R-35 No Model Compatibility List $2.00 / Each

2
C-Clip;Internal;R-55 702230 005355-00 U06 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

2
C-Clip;Internal;R-47 702231 005356-00 D12 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
C-Clip;External;S-19 702239 005364-00 R26 C-Clip;External;S-19 No Model Compatibility List $1.66 / Each

2
C-Clip;External;S-20 702240 005365-00 U04 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
C-Clip;External;S-30 702242 005367-00 R11 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
Spring;Extended;2.0X16.0X100.0L;SWPB;ZNC; 702279 005446-00 U11 Spring;Extended;2.0X16.0X100.0L;SWPB;ZNC; No Model Compatibility List $3.35 / Each

2,9
702314 005983-C V02 Decal;Matrix Logo No Model Compatibility List $20.38 / Each

7,3
Label;Cover;;;;BL/RD;;CB32B 702329 006185-C V02 Label;Cover;;;;BL/RD;;CB32B No Model Compatibility List $23.84 / Each

9
Label;Console;;PU;;;;CB32 MX-U5/R5/E5(CB32-V12A) 702354 006387-A V18 Label;Console;;PU;;;;CB32 MX-U5/R5/E5(CB32-V12A) No Model Compatibility List $14.79 / Each

7
702357 006415-A V10 Sticker;Instruction;White Back Black Word No Model Compatibility List $1.66 / Each

4,5,6
Decal;Serial Number;Aluminum 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702424 006822-A Not Shown Assembly Manual No Model Compatibility List $247.83 / Each

3
Fix Plate;Crank;;SPC;1.5t;Zn Plate;;CB32 702467 007747-C T06 Fix Plate;Crank;;SPC;1.5t;Zn Plate;;CB32 No Model Compatibility List $1.79 / Each

8,3
Fix Plate;Eye Bolt 702470 007768-D S05 Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
Contact Plate;Pulse Sensor 702471 007806-D P17 Contact Plate;Pulse Sensor No Model Compatibility List $3.82 / Each

3,4,5,6,12,13,14
Connecting Plate;Side Cover 702483 007964-00 Q07 Connecting Plate;Side Cover Yes Model Compatibility List $1.90 / Each

9,3
Bracket;Spring Adjustment 702516 008418-00 U07 Bracket;Spring Adjustment No Model Compatibility List $1.90 / Each

2,3,4,5,6
Crank Bearing Fixing Base;Right; 702572 008702-J T03 Crank Bearing Fixing Base;Right; No Model Compatibility List $14.56 / Each

8,3
Crank Bearing Fixing Base;Left; 702573 008703-G T04 Crank Bearing Fixing Base;Left; No Model Compatibility List $14.56 / Each

8,3
Nut;Crank;Left;SS41;%32;;;;CB32 702574 008704-D T05 Nut;Crank;Left;SS41;%32;;;;CB32 No Model Compatibility List $1.79 / Each

2,8
Nut;Crank ;Right;SS41;%32;;;;CB32 702575 008706-C T14 Nut;Crank ;Right;SS41;%32;;;;CB32 No Model Compatibility List $3.64 / Each

2,8
Nut;Rim;;SS41;%32;;;;CB32 702576 008708-D T18 Nut;Rim;;SS41;%32;;;;CB32 No Model Compatibility List $9.96 / Each

2
Ring;Pedal Assembly;Front;SS41;31.8;;;;CB32 SS41(ZINC PLATING) 702577 008721-J T15 Ring;Pedal Assembly;Front;SS41;31.8;;;;CB32 SS41(ZINC PLATING) No Model Compatibility List $8.42 / Each

8,9,3
Ring;Pedal Assembly;Rear;SS41;31.8 702578 008722-G T16 Ring;Pedal Assembly;Rear;SS41;31.8 No Model Compatibility List $8.42 / Each

8,9,3
Nut;Hex;M8/MP6803-08;Zinc; 702797 010679-00 H26 Nut;Hex;M8/MP6803-08;Zinc; No Model Compatibility List $1.66 / Each

2
Generator;ECB;190 CE CB/RB MX/600;400W;JM07 702856 012818-00 S01 Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
Drive Axle Set 702865 012919-Z R01 Drive Axle Set Yes Model Compatibility List $422.16 / Each

8,10
Upper Control Board 703333 013561-BE N04 Upper Control Board No Model Compatibility List $627.98 / Each

7
Lower Control Board;Generator;H002 703367 013782-AB P09 Lower Control Board;Generator;H002 Yes Model Compatibility List $638.79 / Each

7,8
Pedal Axle Pulley Set; 235;CB32 CB32-AT1A 703406 014275-A AT1 Pedal Axle Pulley Set; 235;CB32 CB32-AT1A No Model Compatibility List $54.55 / Each

8,9
Pedal Set;With Strap 703449 014724-A 66 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
Front Stabilizer;Right;(PAINT) (CHAMPAGNE)(CB32-J02) 703544 015256-A F02 Front Stabilizer;Right;(PAINT) (CHAMPAGNE)(CB32-J02) No Model Compatibility List $99.48 / Each

4,5,6
Front Stabilizer Set;Right; TUBE PAINTING(SILVER-GRAY PU COLOR) 703545 015256-AC J02 Front Stabilizer Set;Right; TUBE PAINTING(SILVER-GRAY PU COLOR) No Model Compatibility List $69.37 / Each

3
703546 015257-A F03 Front Stabilizer;Left;(PAINT) (CHAMPAGNE)(CB32-J03) No Model Compatibility List $99.48 / Each

4,5,6
Front Stabilizer Set;Left; TUBE PAINTING(SILVER-GRAY PU COLOR) 703547 015257-AC J03 Front Stabilizer Set;Left; TUBE PAINTING(SILVER-GRAY PU COLOR) No Model Compatibility List $69.37 / Each

3
703548 015258-AD J01 Rear Stabilizer Set;(SILVER-GRAY PU COLOR) No Model Compatibility List $286.55 / Each

1
Console Mast Set; MX-U5(CB32B)SILVER-GRAY COLOR 703551 015284-AA AC3 Console Mast Set; MX-U5(CB32B)SILVER-GRAY COLOR No Model Compatibility List $221.26 / Each

7
Grip;Sensor 703804 017151-F N21 Grip;Sensor No Model Compatibility List $8.42 / Each

11
Hardware Kit Set 703813 018021-A Not Shown Hardware Kit Set No Model Compatibility List $35.07 / Each

1
703822 018137-A F01 Rear Stabilizer;(PAINT) (CHAMPAGNE)(CB32-J01) No Model Compatibility List $237.80 / Each

4,5,6
703827 018315-AB C04 Console Mast Outside Tube; POSITIVE POLE No Model Compatibility List $97.66 / Each

7,3
703856 018717-A AD1 Seat Post Tube Set;PICTURE CB32(HALFTONE PRINTING) No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
703859 018731-AA not shown Console Control Board;H007S100 MX-U5 H006 S206 No Model Compatibility List $0.00 / Each
Out Of Stock 		7
Screw;Umbrella;PH; M4X0.5PX38L 703971 020031-00 C26 Screw;Umbrella;PH; M4X0.5PX38L No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc 704011 020101-00 R09 Screw;Hex Socket;Round;M8x1.25Px55L;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
Fixing Bearing Housing Set; MX-U5X(CB32B) 704344 023172-Z R04 Fixing Bearing Housing Set; MX-U5X(CB32B) No Model Compatibility List $60.35 / Each

8
Pulse Sensor Set 704345 023174-Z N21 Pulse Sensor Set No Model Compatibility List $55.09 / Each

12,13,14
Sliding Bearing Housing Set; MX-U5(CB32) 704346 023176-Z R05 Sliding Bearing Housing Set; MX-U5(CB32) No Model Compatibility List $51.92 / Each

8
Side Cover Set;Left; MX-U5X(CB32B) 704347 023177-ZL Q02 Side Cover Set;Left; MX-U5X(CB32B) No Model Compatibility List $302.17 / Each

9
Idler / Tension Wheel Set; MX-U5X(CB32B) 704348 023178-Z AU1 Idler / Tension Wheel Set; MX-U5X(CB32B) No Model Compatibility List $256.65 / Each

8
704349 023179-Z AC2 TV Bracket Set w/ Cables; MX-U5x(CB32B)SHARP NEW 13(CHAMPAGNE) No Model Compatibility List $579.10 / Each

2,3,4,5,6
Fixed Bearing Housing Set; MX-U5(CB32) 704350 023180-Z R04 Fixed Bearing Housing Set; MX-U5(CB32) No Model Compatibility List $61.10 / Each

8
HR Handlebar Set; Includes HR Grips 704351 023181-Z AG1 HR Handlebar Set; Includes HR Grips No Model Compatibility List $631.23 / Each

7,12,13,14,11
Side Cover Set;Left; MX-U5(CB32) 704352 023184-ZL Q02 Side Cover Set;Left; MX-U5(CB32) No Model Compatibility List $138.50 / Each

9
Side Cover Set;Right; MX-U5(CB32) 704353 023184-ZR Q01 Side Cover Set;Right; MX-U5(CB32) No Model Compatibility List $138.50 / Each

9
Idler / Tension Wheel Set; MX-U5(CB32) 704354 023185-Z AU1 Idler / Tension Wheel Set; MX-U5(CB32) No Model Compatibility List $201.29 / Each

8
Console Mast Set;(PAINT) CB32(ANTHRACITE) 704678 024977-B AC1 Console Mast Set;(PAINT) CB32(ANTHRACITE) No Model Compatibility List $223.08 / Each

7,4,5,6,12,13,14
Pedal Axle Set 704910 026037-Z T01 Pedal Axle Set No Model Compatibility List $192.40 / Each

8,9
TV Power Wire-1450L;(SCD-026A+ALEX 302 705132 038050-C P12 TV Power Wire-1450L;(SCD-026A+ALEX 302 No Model Compatibility List $18.15 / Each

4,5,6
Console Connect Wire; 150mm 705161 038447-A N38 Console Connect Wire; 150mm No Model Compatibility List $50.67 / Each

7,4,5,6
TV Coax Adaptor;Female;F-A028-NBX7-C 706754 065248-A P17 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
Pedal Axle Set;;;include of crank;;H-3X/ 722130 1000387880 T01 Pedal Axle Set;;;include of crank;;H-3X/ No Model Compatibility List $419.77 / Each
Out Of Stock 		8,9
Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 726625 0000083655 167 Heart Rate Board Receiver;Inbuilt;All in one;SALUTRON 850 Yes Model Compatibility List $425.88 / Each

12,13,14
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

8,9
728257 093800 D05 Seat Post Adjustment Pin Set;Yellow Knob No Model Compatibility List $57.93 / Each
Out Of Stock 		12,13,14
728972 BY WHOM DATE CHANGE MADE No Model Compatibility List $0.00 / Each
Out Of Stock 		1
728976 M BEDKER 14/02/2007 SENT QUESTIONS TO SALLY WU (SEE SHEET 3) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Lower Control Board Controller 1002425 013782-AB 0 1 Lower Control Board Controller Yes Model Compatibility List $359.00 / Each

1
Foot Pedal Set w/Strap 1/2” 1004805 014724-A 0 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

31
Power Electric Resistance with Wire (Used) 1029116 003552-B 0 1 Power Electric Resistance with Wire (Used) No Model Compatibility List $55.99 / Each
Out Of Stock 		49
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
