Matrix Commercial - U5x-06-G3 - 2006-2008

Repair Parts for Matrix Commercial U5x-06-G3 CB65

Brand: Matrix Commercial

Category: Upright

Type: Stationary Bikes

Model Name: U5x-06-G3

Version: 2006-2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Belt
  • Overlay/console
  • Arm/pedal
  • Controllers and Circuits
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
L 700005 000007-B L01 / Transport Wheel;Nylon+30%FIBER;74;BL;CB32 Yes Model Compatibility List $9.10 / Each

8
Q 700040 000169-BA Q04 Boot;Seat Post Yes Model Compatibility List $14.61 / Each

12,13,14
Q 700058 000222-AA Q03 Boot;Console Mast No Model Compatibility List $12.27 / Each

7
Q 700072 000252-CA Q16 Cover;Handlebar Yes Model Compatibility List $3.64 / Each

9,11

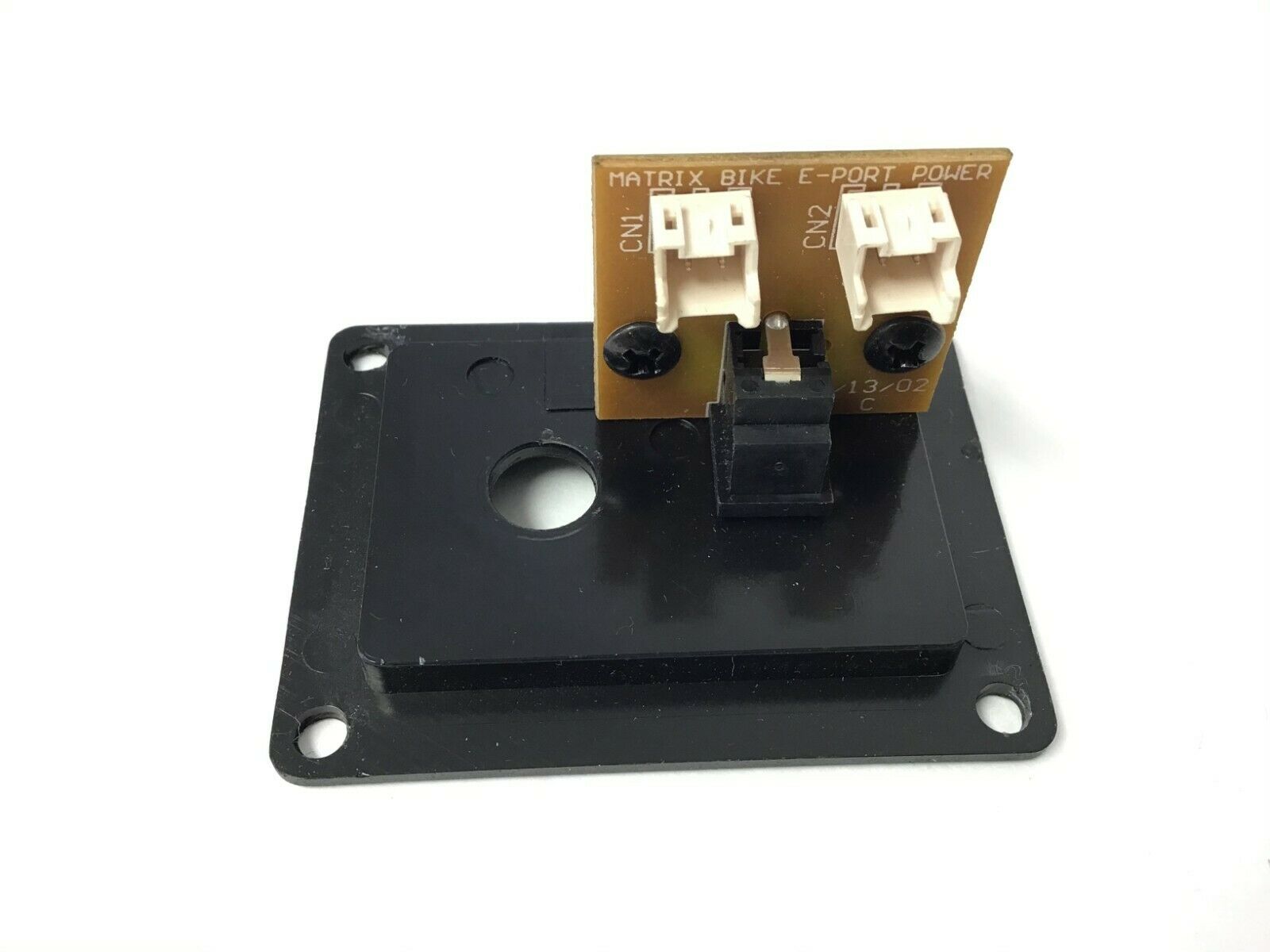

B 700075 000279-B B42 Fix Plate;E-PORT No Model Compatibility List $9.10 / Each

3
G 700357 001126-C G21 End Cap;Pulse Grips;Inner No Model Compatibility List $1.90 / Each

9,12,13,14,11
T 700360 001130-00 T109 Cover;Crank Arm No Model Compatibility List $1.90 / Each

8,9,3
Q 700370 001143-B Q06 Cover;Crank;PVC;BL;RB70 No Model Compatibility List $9.10 / Each

8,9
C 700446 001399-BA C23 Rubber Pad;TV Rack;Rubber;EP68-C10B No Model Compatibility List $8.42 / Each

4,5,6,12,13,14
D 700599 001728-BA D06 Seat Pad;Self-Skin;Black;3MM Steel Plate Yes Model Compatibility List $167.00 / Each

3,4,5,6,12,13,14
P 700805 002374-FR P03 Wire;Pulse Sensor;ALEX 3020-08N;900;CB62 900+920 No Model Compatibility List $46.33 / Each

4,5,6,12,13,14
P 700899 002685-CR P02 Generator Wire;150L;3.96-5P;CB62; No Model Compatibility List $9.10 / Each

8,4,5,6
P 700919 002758-B P06 TV Signal Wire;1450L;5CFx2 GF-075;CB62; Yes Model Compatibility List $21.19 / Each

4,5,6
P 701035 003393-A P21 Ferrite Core;FH1500B;TM87 K1 RH12.5x12.5x8 No Model Compatibility List $3.64 / Each

1
P 701069 003561-C P05 Power Resistance;With Wire;400W 10;VH3. Yes Model Compatibility List $157.79 / Each

4,5,6,10
701140 004026-A T08 / Pedal;JD-1A-B 90Dgree;CB32B; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
T 701146 004050-A T09 / Pedal Strap Set(includes both sides);Rub No Model Compatibility List $36.48 / Each

8,9
R 701159 004077-A2 R19 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
U 701165 004081-A2 U07 / Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
T 701166 004082-A2 T105 Ball Bearing;6205ZZ;25X52X15T;;TPI;;; No Model Compatibility List $21.89 / Each

8
R 701198 004151-00 R08 Drive Belt;Poly-V;450-J6 Yes Model Compatibility List $54.73 / Each

15,10
R 701209 004165-00 R09 Drive Belt;Poly-V;490-J8 Yes Model Compatibility List $54.73 / Each

15,10
Q 701281 004350-00 Q51 Screw;Phillip;BH;M3x0.5Px6L No Model Compatibility List $2.00 / Each

2
P 701300 004364-00 P59 Screw;Oval Head;M5x0.8Px12L No Model Compatibility List $2.00 / Each

2
Z 701312 004370-00 Z13 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
Q 701321 004375-AC Q22 Screw;Phillip;BH;Stainess;M5x0.8Px15L;BE No Model Compatibility List $1.79 / Each

2
P 701342 004388-00 P53 Screw;Oval;PH; M5X0.8PX12L(ZINC PLATING) No Model Compatibility List $1.79 / Each

2
D 701346 004393-00 D11 Screw;Phillip;BH;M6x1.0Px50L(Tooth10L);; No Model Compatibility List $1.66 / Each

2
S 701390 004447-AB S10 / Screw;Hex Socket;Round;M5x0.8Px12L;Adher No Model Compatibility List $1.43 / Each

2
Z 701404 004458-00 Z51 Screw;Hex Socket;Round;M5x0.8Px12L;BED; No Model Compatibility List $1.66 / Each

2
X 701440 004483-00 X11 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

2
Z 701504 004539-AC Z34 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

2
B 701595 004620-AF B55 Screw;Umbrella Cross Tapped;4x12L;Gap No Model Compatibility List $2.00 / Each

2
D 701624 004645-00 D51 Screw;Phillip;Round;3x6L;;Zn-BL No Model Compatibility List $1.66 / Each

2
D 701626 004647-00 D70 Screw;Phillip;Round;3x12L No Model Compatibility List $1.79 / Each

2
C 701661 004697-AD C22 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Z 701694 004720-AH Z41 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
R 701727 004750-00 R26 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701730 004756-00 Z31 Screw;Hex Socket;BH;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
L 701743 004767-00 L02 / Screw;Hex Socket;BH;M8x1.25Px70L(Tooth12) No Model Compatibility List $1.79 / Each

2
U 701862 004884-00 U10 Nut;Hex;M8X1.25P No Model Compatibility List $1.79 / Each

2
S 701870 004892-00 S08 / Nut;Hex;3/8-26UNCX4H No Model Compatibility List $2.00 / Each

2
L 701897 004926-00 L03 / Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

2
S 701907 004933-00 S06 / Nut;Nylon;1/4"'-20UNC;BED No Model Compatibility List $1.79 / Each

2
D 701910 004935-AB D12 Nut;Nylon;M6x1.0P;BED(Black); No Model Compatibility List $1.66 / Each

2,4,5,6
701920 004951-A P57 Nut;M5;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
T 701927 004964-00 T108 Nut;Hex;Flange;M10x1.25P;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 701931 004968-00 S04 / Nut;Hex;Flange;3/8-26UNF;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
C 701944 004979-00 C23 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.79 / Each

2
B 701948 004984-A B52 Insert Nut;Hex;NKHS-580-2.5(M5x0.8P) No Model Compatibility List $1.66 / Each

2
R 701951 004987-00 R22 Key;Round;Dual End;6X6X12L No Model Compatibility List $1.66 / Each

9
Z 701960 005003-00 Z52 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
Z 701978 005015-00 Z32 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
R 701993 005032-00 R30 Washer;Flat;20.2x35.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
L 701997 005035-00 L04 / Washer;Flat;8.2x18x1.4T No Model Compatibility List $2.00 / Each

2
X 702005 005043-00 X12 Washer;Flat;8.2x20x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
S 702037 005067-00 S03 / Washer;Flat;10.2X15.0X1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
S 702050 005078-00 S11 / Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
S 702070 005102-00 S07 / Washer;Flat;1/4"x15.0x1.0T;Black Zinc No Model Compatibility List $1.79 / Each

2,4,5,6
R 702076 005109-00 R25 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
Z 702098 005130-00 Z42 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702105 005134-00 Z33 Washer;Flat;8.2x14.0x1.5T;BAN; No Model Compatibility List $2.00 / Each

2
U 702151 005186-00 U14 / Washer;Teflon;20.3X30X1.0T No Model Compatibility List $1.79 / Each

2
T 702193 005239-00 T107 Washer;Lock;10.0x20.0x1.0T No Model Compatibility List $2.00 / Each

2
U 702240 005365-00 U08 / C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
T 702241 005366-00 T106 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

2
Z 702253 005382-00 Z05 Wrench;Open;13x15 No Model Compatibility List $5.90 / Each

2
Z 702268 005423-00 Z03 Wrench-L-Type;5mmx70L No Model Compatibility List $2.00 / Each

2
Z 702269 005424-00 Z01 Wrench;Hex;L-Type;6mm; No Model Compatibility List $8.01 / Each

2
V 702416 006675-C V13 Decal;Aperture;TV Rack Yes Model Compatibility List $21.48 / Each

7,3,4,5,6
V 702440 006923-B V21 Manual;Assembly;ENG;RB80; No Model Compatibility List $15.52 / Each

3
702464 007655-B U02 Supt Plate;Idler;CB62 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
S 702470 007768-D S05 / Fix Plate;Eye Bolt No Model Compatibility List $1.79 / Each

2,3
702484 007970-B Q21 Connecting Plate;Side Cover;2 Hole No Model Compatibility List $1.79 / Each

9,3
R 702579 008723-C R06 Ring;26x10L;CB61 No Model Compatibility List $3.35 / Each

1
702580 008740-E R01 Mandrel;Flywheel;SCM440;25x97L;CB61; No Model Compatibility List $36.71 / Each

8
9 702848 012377-00 9 Transport Wheel Set;Front;US;CB61 No Model Compatibility List $11.96 / Each

8
S 702856 012818-00 S01 / Generator;ECB;190 CE CB/RB MX/600;400W;JM07 Yes Model Compatibility List $602.29 / Each

8
S 703367 013782-AB S08 Lower Control Board;Generator;H002 Yes Model Compatibility List $638.79 / Each

7,8
T 703449 014724-A T110 Pedal Set;With Strap Yes Model Compatibility List $72.98 / Each

8,9
A 703553 015307-AA AJ1 Front Stabilizer Set;SL/GY;;F;;CB61 (MATRIX SILVER GRAY+CLEAR LACQUER) No Model Compatibility List $404.90 / Each

4,5,6
N 703839 018607-B Not Shown Overlay;Lower No Model Compatibility List $9.10 / Each

1
R 703851 018650-E R05 Fix Pass axle Cover A;66x48.5L SS41(Pai No Model Compatibility List $34.16 / Each

8,9
B 703852 018652-B B53 Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;; No Model Compatibility List $3.64 / Each

2
A 703855 018708-F AZ1 Hardware Pack No Model Compatibility List $42.69 / Each

4,5,6
A 703857 018717-AA AD1 Seat Post Set Yes Model Compatibility List $154.96 / Each

12,13,14
Q 704079 020196-A Q52 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
704228 020662-A Z02 DRIVER;SCREW;PHILLIP;6X130L; No Model Compatibility List $0.00 / Each
Out Of Stock 		2,10
Q 704977 027982-B Q10 Decal;Side Cover;EP68-US;EP68 No Model Compatibility List $25.30 / Each

7,9,3
P 704980 028500-CR P01 Console Cable;Lower;1580L;(XAP-08V-1+TKP H6630R No Model Compatibility List $84.47 / Each

7,4,5,6
B 704990 028545-A B41 Side Cover Fix Plate;SPHC;2.0t ;;;CB62 No Model Compatibility List $3.35 / Each

9,3
P 704993 028601-BR P21 TV Signal Wire 800 (5CFx2 EP68-P21B-2940 U5X Yes Model Compatibility List $19.40 / Each

4,5,6
Q 705003 028999-BA Q05 Seat Sleeve No Model Compatibility List $10.63 / Each

3,12,13,14
N 705070 034598-BR Not Shown Membrane Keypad;Down;Plane 4Key;CB64 No Model Compatibility List $17.42 / Each

9,12,13,14
C 705078 035701-AA C12 Console Fix Plate;Silver Gray; No Model Compatibility List $94.72 / Each

7,3
J 705126 037907-AA J21 Leveler;Foot Pad Yes Model Compatibility List $9.10 / Each
9,3,12,13,14
J 705127 037908-AA J22 Leveler;Foot Pad;Adjustic No Model Compatibility List $9.10 / Each

9,3,12,13,14
P 705132 038050-C P04 TV Power Wire-1450L;(SCD-026A+ALEX 302 No Model Compatibility List $18.15 / Each

4,5,6
705142 038171-C X03 Carton;Frame;CB65 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
R 705213 039153-A R10 Ring;;;;26x10L ;;;;CB61 No Model Compatibility List $8.42 / Each

1
A 705228 039174-Z AC1 CONSOLE MAST SET;CB65C MATRIX-U5x(CB65)LIGHT SLIVER No Model Compatibility List $604.86 / Each

7
P 705749 056005-A P11 Ground Wire;Pulse;1100L Yes Model Compatibility List $8.42 / Each

4,5,6,12,13,14
P 705777 056225-A P12 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $8.42 / Each

4,5,6
Q 706476 062619-A Q20 Connection Plate;Side Cover; SPC;2t;Zn Plate;;RB41 No Model Compatibility List $3.35 / Each

9,3
P 706753 065247-A P16 TV Exchange Connector;;F HDR Into F HSG 9 No Model Compatibility List $9.41 / Each

4,5,6
P 706754 065248-A P25 TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $7.00 / Each

4,5,6
706896 066880-00 6 Generator Set;CE;CB62 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
P 706978 067774-A P13 Power Cord;FH33.3x8.25x16.4(FH0900B);TM95 No Model Compatibility List $8.42 / Each

4,5,6
710191 1000207252 10 CONTROL BOARD SET;D;CB65; No Model Compatibility List $0.00 / Each
Out Of Stock 		7
710192 1000207253 7 STABILIZER SET;F;CB65; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
710193 1000207254 8 STABILIZER SET;B;CB65;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
1 710776 1000213547 12 CONSOLE SET;H001S004;EP301;ES;EN;EP301; Yes Model Compatibility List $1300.00 / Each

7
711087 1000216410 Q01 Cover;Frame;L;ABS/CN/GY96374+UV;CB75B No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
711089 1000216413 Q02 Cover;Frame;R;ABS/CN/GY96374+UV;CB75B No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
A 711823 1000223178 AQ1 Side cover, both left and right No Model Compatibility List $614.72 / Each

9
T 719731 1000364363 T111/T112 crank set;;;RB85-SBOM;Clear coat;RB85;; Yes Model Compatibility List $168.97 / Each

8
Screw;Eye Bolt;1/4 725504 072171 S12 Screw;Eye Bolt;1/4"-20UNCX65L(25L)Eye10;ZN-BL No Model Compatibility List $1.66 / Each

2
Connect Wire;Console;2.0AR;RB123 726121 080124 P05 Connect Wire;Console;2.0AR;RB123 No Model Compatibility List $31.85 / Each

7,4,5,6
Pulse Wire;AL Rail;2.0AR;RB123 726122 080125 P11 Pulse Wire;AL Rail;2.0AR;RB123 No Model Compatibility List $29.09 / Each

9,4,5,6,12,13,14
726223 080783 C08 Water Bottle Holder No Model Compatibility List $22.57 / Each

1
726224 0000080784 C25 Cover;Screw;PVC;BL;CB62; No Model Compatibility List $1.66 / Each

2,9
726452 081833 TP07 TV03 Overlay Set;Include Keypad No Model Compatibility List $43.71 / Each

9,4,5,6,12,13,14
726542 082676 Z04 Wrench;Hex;L-Type;#4x100L; No Model Compatibility List $6.34 / Each

2
726562 082875 D60 Screw;BH;M3X0.5PX20L;;PH;;BZN;; No Model Compatibility List $1.79 / Each

2
726579 083066 V100 Decal;Side Cover;SNAP;EP74 No Model Compatibility List $23.43 / Each

7,9,3
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
726668 0000083902 182 Bottle Holder;Console Back Yes Model Compatibility List $137.88 / Each

4,5,6,7
Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL 726738 084533 G21 Screw;Phillip;Round;M3x0.5Px30L;;Zn-BL No Model Compatibility List $1.79 / Each

2
727680 090405 N201 GRIP;Sensor;up;ABS/PA746;;BL;R8000; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
727681 090406 N202 GRIP;Sensor;down;ABS/PA746;;BL;R8000; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
Pedal Set 727707 0000090518 66 Pedal Set Yes Model Compatibility List $72.98 / Each

8,9
727746 090758 D64 Overlay Set;Quick Key;Left;EP74-US;EP74 No Model Compatibility List $13.13 / Each

9
727747 090759 D65 Overlay Set;Quick Key;Right;EP74-US;EP74 No Model Compatibility List $13.13 / Each

9
Control Board;Quick Key 727748 0000090779 N24 Control Board;Quick Key Yes Model Compatibility List $9.99 / Each

7,9
727757 090809 17 Stabilizer Set;Rear;H5x-F; No Model Compatibility List $653.33 / Each

1
727765 090873 3 Pulley Axle Set;U5x-F; No Model Compatibility List $530.43 / Each

8
727981 092369 152 Overlay;Console;Under;Eng;PET;0.2t;H3x-0 No Model Compatibility List $23.76 / Each

7
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $589.11 / Each

3
Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad 728172 093382 Z21 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.66 / Each

2
728257 093800 D05 Seat Post Adjustment Pin Set;Yellow Knob No Model Compatibility List $57.93 / Each
Out Of Stock 		12,13,14
728341 094092 AD6 HAND PULSE GRIP;L;SMALL ASSEMBLY(GRIP/FA No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14,11
728342 094094 AD7 HAND PULSE GRIP;R;SMALL ASSEMBLY(GRIP/FA No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14,11
728578 095385 U03 Supt Axle;Idler;SS41;f20x35.7L;CB75-U03; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
728579 095386 U15 Screw;TH;M8X1.25PX65L(33L);;HS;;;;BP;BL No Model Compatibility List $3.35 / Each

2
728581 095397 2 Idler Set;U5x-F;CB75-AU3 No Model Compatibility List $171.65 / Each

8
728588 095430 U27 Washer;FLT;9.3X23.0X2.0T;;BZN; No Model Compatibility List $1.66 / Each

2
728992 Order AQ1 and Q10 4 Side Cover Set No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729011 Order Kit AT101 Pedal Axle No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Console Display (Used) 1002071 028271-AB 0 1 Console Display (Used) No Model Compatibility List $249.00 / Each

30
S 1002425 013782-AB S08 1 Lower Control Board Controller Yes Model Compatibility List $359.00 / Each

1
R 1003253 004165-00 R09 1 Belt Drive 8 Ribbed Yes Model Compatibility List $32.99 / Each

23
Holder Bottle (Used) 1003986 0000080783 0 1 Holder Bottle (Used) No Model Compatibility List $15.99 / Each

1
T 1004805 014724-A T110 1 Foot Pedal Set w/Strap 1/2” Yes Model Compatibility List $56.99 / Each

31
HR Board Receiver (Used) 1029469 0000083655 HR Board Receiver 1 HR Board Receiver (Used) Yes Model Compatibility List $40.00 / Each

7
Lower Motor Control Board Controller 1009196-R 0000090779 0 1 Lower Motor Control Board Controller Yes Model Compatibility List $399.00 / Each

48
Console Cup Holder Accessory Tray 1003982 0000083902 Console Cup Holder Accessory Tray Yes Model Compatibility List $54.99 / Each
1
Q 1036645 007970-B Q21 PLATE CONNECTING COVER FRONT Yes Model Compatibility List $5.00 / Each

1
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
