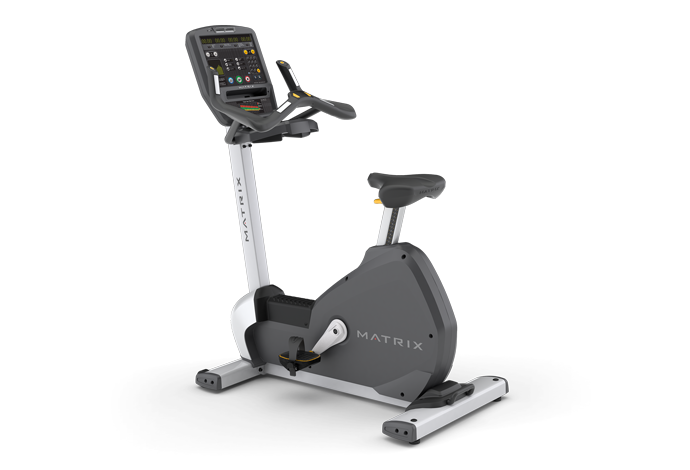

Matrix Commercial - U5x - 2016-2020

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
003383-A 701032 003383-A W65 Ferrite Choke;FH0900B-2;Lian Ci;TM38 No Model Compatibility List $7.00 / Each

1
004356-AB 701289 004356-AB Not Shown Screw;Phillip;BH;M4x0.7Px12L;BED; No Model Compatibility List $1.28 / Each

2
004385-00 701332 004385-00 N85 Screw;BH;M5X0.8PX12L;;PH;;BAN;; No Model Compatibility List $1.38 / Each

2
004475-00 701426 004475-00 Not Shown SCREW;SH;M8X1.25PX15L;;HS;;BZN;; No Model Compatibility List $0.40 / Each

2
004979-00 701944 004979-00 B11 Insert Nut;Hex;NHS-8125-3.0(M8x1.25P) No Model Compatibility List $1.38 / Each

2
005157-A 702131 005157-A N153 Washer;Flat;4.3x12.0x1.0T;Black Zinc No Model Compatibility List $1.38 / Each

2,4,5,6
008864-A 702589 008864-A Not Shown Screw;Special;Round;2.9x1.06Px7L(Hi-Lo) No Model Compatibility List $1.38 / Each

2
008866-A 702591 008866-A N152 Screw;Special;Round;4.0x1.34Px12L(Hi-Lo No Model Compatibility List $1.28 / Each

2
056225-A 705777 056225-A W69 Ferrite;PART OF #79 CABLE;NOT ORDERABLE; No Model Compatibility List $6.48 / Each

4,5,6
061339-B 706354 061339-B W56 Fan;DC12V/0.3A PMB1297PYB3-AY;EP70 No Model Compatibility List $90.22 / Each

8,4,5,6
065248-A 706754 065248-A Not Shown TV Coax Adaptor;Female;F-A028-NBX7-C Yes Model Compatibility List $2.80 / Each

4,5,6
1000206777 710100 1000206777 P32 C Safe+TV Connect Wire;200(TKP H20J2-15x No Model Compatibility List $31.16 / Each

4,5,6
1000206779 710102 1000206779 W66 Console Cable;250(MOLEX,50-57-9408+MOLEX, No Model Compatibility List $43.52 / Each

7,4,5,6
1000206783 710103 1000206783 Not Shown E-ORT CONNECT WIRE;400(AMP569532x2); No Model Compatibility List $36.82 / Each

4,5,6
1000208535 710289 1000208535 AN51 Heart Rate Board Set;SALUTRON 8600;EP93C; No Model Compatibility List $231.24 / Each

12,13,14
1000210330 710454 1000210330 P03 Wire;Connect;USB;250(JST,XAP-06V-1)x2; No Model Compatibility List $14.74 / Each

4,5,6
1000210553 710483 1000210553 N16 USB;EP90B No Model Compatibility List $11.08 / Each

1
1000211294 710607 1000211294 N98 Screw;FH;M3X0.5PX30L;-;PH;BZN; No Model Compatibility List $1.28 / Each

2
1000212322 710678 1000212322 N25 Shim;Rubber;D;NBR;BLACK;TM507C; No Model Compatibility List $1.28 / Each

4,5,6
1000216152 711044 1000216152 N22 Fan ADJ Plate;SUS304;0.3t;T9000; No Model Compatibility List $2.58 / Each

8,3
1000226648 712097 1000226648 AB1 CONSOLE Reinforce Tube;PAINTING;BLACK;EP No Model Compatibility List $126.34 / Each

7,3,4,5,6
1000226667 712102 1000226667 N55 COVER;CONSOLE;U;ABS/PA746;DG/80435;EP612 No Model Compatibility List $51.98 / Each

7,9
1000226718 712107 1000226718 N54 COVER;CONSOLE;RE;ABS/PA746;DG/80435;EP61 No Model Compatibility List $25.98 / Each

7,9
1000228688 712391 1000228688 N82 SCREW;BH;M5X0.8PX12L;PH;BAN; No Model Compatibility List $1.28 / Each

2
712398 1000228705 W52 CONTROL BOARD;C-SAFE;U11AA2;H001;COATING No Model Compatibility List $25.98 / Each

7
1000229467 712551 1000229467 W53 CONSOLE CONTROL BOARD;H001;COATING;EP611 No Model Compatibility List $25.26 / Each

7
1000230081 712659 1000230081 Not Shown Network signal extend wire;600;(TKP H663 No Model Compatibility List $29.98 / Each

9,4,5,6
1000230086 712661 1000230086 Not Shown TV PWR EXT;600;(TKP H6630R1-04(PITCH 3.0 No Model Compatibility List $29.98 / Each

4,5,6
1000231078 712866 1000231078 N85 SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN; No Model Compatibility List $1.28 / Each

2
1000231121 712869 1000231121 N86 SCREW;BH;(##10.5);M5X0.8PX15L;-;PH;-;BAN No Model Compatibility List $1.28 / Each

2
1000231589 712940 1000231589 N83 SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN; No Model Compatibility List $1.28 / Each

2
713910 1000309516 N152b Tape;;;40x10x0.2;;EP614 No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000348689 717933 1000348689 W81 Earphone board;;;U138A3/H001;;;EP621; No Model Compatibility List $24.68 / Each

1
1000356725 719179 1000356725 AN4 cover-Extrawork;Overlay;;Print;;EP624; No Model Compatibility List $64.98 / Each

9
1000356740 719182 1000356740 P33 Quickly Key Wire;;;;;;;200+250(TKP,H254M No Model Compatibility List $14.28 / Each

9,4,5,6
719186 1000356785 W01 Control Board;;;H001;V2.3;;EP624; No Model Compatibility List $688.98 / Each

7
1000366472 719868 1000366472 3 WIFI Wireness module Set;;;;EP619/EP623; No Model Compatibility List $409.48 / Each

4,5,6
1000366515 719870 1000366515 9 Earphone board set;;;;EP620; No Model Compatibility List $32.48 / Each

1
1000366596 719883 1000366596 Z41 Screw;Socket Head;M5x0.8Px12L;;Hex Socke No Model Compatibility List $1.10 / Each

2
1000380493 721086 1000380493 N66 Overlay Set;TV;;key pad;EP623D;; No Model Compatibility List $168.98 / Each

9,4,5,6,12,13,14
721087 1000380499 21 Console Set;;;ES/H001/V1.002;EP624D; No Model Compatibility List $0.00 / Each
Out Of Stock
7
721088 1000380500 AN8 Overlay Set;Program;;English;EP624D;;key No Model Compatibility List $0.00 / Each
Out Of Stock
9
1000381156 721171 1000381156 Not Shown Overlay Set;Entertainment;;NO;EP623D;; No Model Compatibility List $64.98 / Each

1
1000385415 721756 1000385415 2 Control Board;;;HF-A11-0;V2.050;;; No Model Compatibility List $397.78 / Each

7
726594 083278 Z22 USB Cover;USB-03 No Model Compatibility List $1.46 / Each

9
726614 083502 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
726928 086064 N33 Cover;Console;Right;ABS/PA-746;BL;TM501; No Model Compatibility List $2.58 / Each

7,9
726929 086065 N34 Cover;Console;Left;ABS/PA-746;BL;TM501; No Model Compatibility List $2.58 / Each

7,9
727017 086684 W13 Speaker Set;AK-402808BC-3T+280+XAP-02;TM No Model Compatibility List $13.58 / Each

1
727024 086721 N151 SCREW;RND;M2X0.5PX6L;;PH;;BZN;; No Model Compatibility List $1.02 / Each

2
727025 086724 N35 Cover;Console Display;TV Rack;Printing;T No Model Compatibility List $36.64 / Each

7,9,4,5,6
727076 087056 N13 Vent;Fan;ABS/PA-746;Pantone:877C;TM501; No Model Compatibility List $34.80 / Each

8
727351 088743 N81 Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T No Model Compatibility List $1.38 / Each

2
727358 088790 N52 Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F No Model Compatibility List $7.00 / Each

12,13,14
727362 088806 W70 Grip Pulse Ground Wire;200L(KST FDFNYD2- No Model Compatibility List $6.48 / Each

4,5,6,12,13,14,11
727437 089190 N18 Cover;IPOD Fixing;ABS/PA746;80435;MX-E5X No Model Compatibility List $2.58 / Each

9
727474 089506 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
727534 089835 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
727543 089849 W45 Wire;Hand Pulse Sensor;350L(2510A-06,TKP No Model Compatibility List $16.08 / Each

4,5,6,12,13,14
727961 092217 W75 Heart Rate Power Wire;250L(2510A-03+XAP- No Model Compatibility List $7.02 / Each

4,5,6,12,13,14
728026 092696 N202 Fixing Plate;Fan;0.8t;T5x-02; No Model Compatibility List $7.00 / Each

8,3
728132 093219 AB1 RIGHT MAIN FRAME SET No Model Compatibility List $453.16 / Each

3
728371 094425 Not Shown No Model Compatibility List $0.00 / Each
Out Of Stock
1
728542 095231 W04 Control Board;USB;H001;U105A5;EP603; No Model Compatibility List $21.76 / Each

7
728600 095575 N203 Tape;Foam;One-Sided;50x15x1.5T; No Model Compatibility List $1.28 / Each

1
View Drawing
