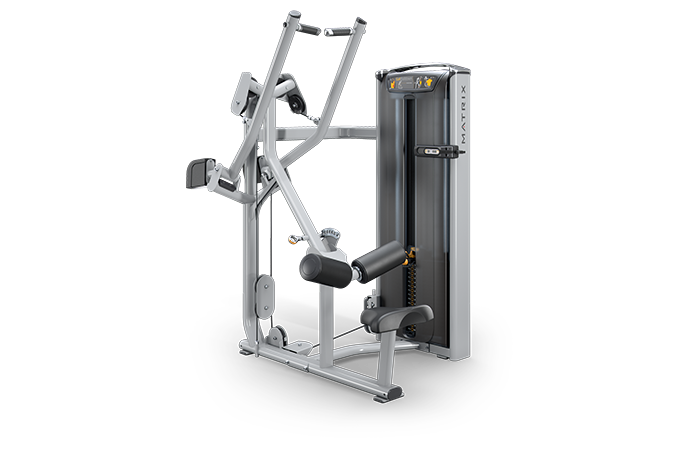

Matrix Commercial - VS-S33 - 2012

Repair Parts for Matrix Commercial VS-S33 VSGM65,GM65,VSGM65E

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S33

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700570 001679-00 Q44 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
F 701190 004133-00 F15 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
Z 701436 004482-AB Z15 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
D 701478 004525-00 D19 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
Z 701521 004554-A Z08 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $3.69 / Each

7,2,12,13,14
Z 701522 004555-AB Z03 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Z 701529 004561-00 Z21 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701660 004696-AB Z18 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701836 004855-AC Z50 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701851 004870-00 Z24 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
B 701901 004929-00 B46 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 701916 004945-00 K47 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702011 005047-00 Z31 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702098 005130-00 Z11 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z10 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702117 005144-AC B48 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702240 005365-00 F17 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
Q 702299 005811-00 Q45 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
C 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
C 702721 009371-E C59 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
B 703995 020078-Z B56 SCREW;SH;M8X1.25PX16L;;HS;;BAN;;BP No Model Compatibility List $1.66 / Each

2
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
Z 704019 020108-ZAB Z33 Screw;Hex Socket;Round;M8x1.25Px90L;Zinc No Model Compatibility List $4.00 / Each

2
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
D 704145 020329-00 D26 Set Screw;M6X1.0PX12L No Model Compatibility List $0.21 / Each

2
B 704193 020465-AB B45 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 704996 028632-AB C33 Screw;Hex Socket;Round;M10x1.5Px45L;Cr; No Model Compatibility List $4.16 / Each

2
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
C 705460 049250-00 C56 SCREW;SH;M8X1.25PX150L;;HS;;ZN;; No Model Compatibility List $1.66 / Each

2
H 707798 1000095593 H08 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

9,12,13,14
H 707799 1000095594 H09 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

9,12,13,14
D 707822 1000096014 D24 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707879 1000096575 N62 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
D 707927 1000096996 D30 Cap Three;PP;GM40 No Model Compatibility List $6.99 / Each

7,9,12,13,14
Z 707946 1000097206 Z04 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708386 1000102584 Z09 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

2,3
708388 1000102592 B28 Stopper Plate;Pulley;Painting;GM40 No Model Compatibility List $6.73 / Each

8,3
C 708402 1000102675 C39 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

12,13,14
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
Z 708676 1000104707 Z14 Screw;Hex Socket;Round;M8x1.5Px125L;Adh No Model Compatibility List $3.35 / Each

2
B 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
F 708860 1000106750 F16 BEARING;BALL;6204ZZ;#20x#47x14T;;TPI;;; No Model Compatibility List $8.42 / Each

8
D 708954 1000107585 D22 End Cover;Grip;GM57-KM No Model Compatibility List $6.73 / Each

9,11
709007 1000108189 B31 Screw;RND;M10x1.5Px50L-15L;MT;HS;CST;CHM No Model Compatibility List $3.56 / Each

2
709041 1000108501 B16 Bushing;CON Rod;Peadel Arm;painting;GM40 No Model Compatibility List $2.78 / Each

8,3
709048 1000108698 9 Grip Set;Arm;GM42 No Model Compatibility List $101.37 / Each

3,11
709064 1000108796 B43 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
Z 709066 1000108798 Z06 Screw;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $0.10 / Each

2
R 709069 1000108801 R14 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
B 709307 1000112985 B13 Elastomer;Weight Plate;GM59 No Model Compatibility List $16.87 / Each

3
D 709310 1000113020 D33 Mandrel;Whirl Arm;20#;GM59 No Model Compatibility List $30.39 / Each

3
D 709315 1000113066 D13 Space Mass;Mast Bearing;20#;Chromeplate; No Model Compatibility List $6.73 / Each

7,8,3,4,5,6,12,13,14
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
K 709323 1000113106 K06 Tightwire Fix Pin;45#;GM59 No Model Compatibility List $37.93 / Each

4,5,6,12,13,14
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
6 709325 1000113110 6 Assistant Weight Plate Set;;GM59-KM No Model Compatibility List $223.05 / Each

3
L 709326 1000113111 L01 Incremental Weight Plate;-;GM59-KM;-;Pai No Model Compatibility List $42.22 / Each

3
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
B 709461 1000200252 B18 RUBBER;STOPPER;-;GM59; No Model Compatibility List $8.42 / Each

1
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B25 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
709980 1000205448 C47 PLASTIC COVER;-;-;-;;;GM59; No Model Compatibility List $3.64 / Each

9
H 710175 1000207164 H22 AXLE, SWIVEL;42CRMO;-;-; No Model Compatibility List $18.56 / Each

8
F 710176 1000207176 F01 STEEL ROPE;C;;Diam.5.6X4105.0L;GM65; No Model Compatibility List $121.65 / Each

1
F 710177 1000207177 F02 STEEL ROPE;D;;Diam.5.6x3324L No Model Compatibility List $106.44 / Each

1
710178 1000207188 D08 WASHER;DSP;Diam.20.4XDiam.40.0X1.5T;50CR No Model Compatibility List $3.35 / Each

2
710179 1000207189 D09 SHIM;BEARING;-;SPHC;-;-;Cr No Model Compatibility List $1.66 / Each

8
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
5 710183 1000207218 5 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
C 710331 1000209557 C26 Pillar;Buffer;-;20#;Chrome;PGM59-KM No Model Compatibility List $13.49 / Each

7,12,13,14
1 710338 1000209569 10 PIN SET;SA;ADJUSTABLE#PREMIUM LINE#;GM59 No Model Compatibility List $182.49 / Each

12,13,14
L 710341 1000209576 L15 PLASTIC BASE;MAGNET;ABS;;FIXING;;; No Model Compatibility List $1.79 / Each

8,9,3
Q 710342 1000209577 Q07 PLASTIC BASE;REP COUNTER;-;;FIXING;;; No Model Compatibility List $11.80 / Each

9,3
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- 710348 1000305793 8 PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- No Model Compatibility List $43.77 / Each

12,13,14
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
H 710353 1000209696 H12 FOAM;HANDLEBAR;Diam.34X5.0TX120L;GM61-KM No Model Compatibility List $6.73 / Each

11
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
A 710602 1000211207 AK15 WPS set;-;-;Extrawork,21LBS;GM64-KM No Model Compatibility List $91.23 / Each

1
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
V 710990 1000215718 V03 SPEC LABEL;10 LB;WEIGHT PLATE;BLACK;PC;;; No Model Compatibility List $25.32 / Each

3,4,5,6
710996 1000215728 Z26 DIRECTION LABEL;SEAT ADJUSTABLE;;PC;;; No Model Compatibility List $3.35 / Each

12,13,14
G 711000 1000215741 G67 FIXED SET;-;RD;PAINTING;-;-;GM63; No Model Compatibility List $47.29 / Each

1
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
711042 1000216132 D20 BALANCE PLATE;-;14.5KG;-;-;HT200; No Model Compatibility List $237.25 / Each

3
H 711126 1000216908 H07 ADJ PLATE;-;-;SPHC;3.0T;GM65; No Model Compatibility List $16.87 / Each

3
V 711127 1000216923 V01 INSTRUCTIONAL LABE;-;-;-;FRONT;; No Model Compatibility List $21.94 / Each

1
V 711128 1000216924 V02 INSTRUCTIONAL LABE;-;-;-;REAR;; No Model Compatibility List $21.94 / Each

1
Z 711132 1000216939 Z19 Protective Adhesive No Model Compatibility List $18.56 / Each

1
7 711365 1000220477 7 SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
1 711410 1000220562 11 PREMIUM LEVEL;SA;-;GM65;-;-; No Model Compatibility List $388.67 / Each

3
B 711570 1000221624 B37 BLOCK;-;-;PAINTING;-;-;-; No Model Compatibility List $43.91 / Each

1
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
711948 1000224119 C34 NUT;HX;M16X2.0PX10T;G12.9;CHM;; No Model Compatibility List $1.66 / Each

2
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
F 712119 1000226806 F03 DRIVE SET;SA;;GM63;SERVE;; No Model Compatibility List $50.67 / Each

10
J 712129 1000226827 J32 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
712231 1000227599 AB1 FRAME SET;SA;-;GM65##;-;-; No Model Compatibility List $554.29 / Each

3
712232 1000227600 1 USER FRAME SET;SA;-;GM65##;-;-; No Model Compatibility List $675.97 / Each

3
712233 1000227601 3 PEDAL ARM SET;SA;R;GM65##;-;-; No Model Compatibility List $337.97 / Each

8,9,3
712234 1000227602 2 PEDAL ARM SET;SA;L;GM65##;-;-; No Model Compatibility List $337.97 / Each

8,9,3
A 712235 1000227603 AH1 ADJUST SET;SA;-;GM65##;-;-; No Model Compatibility List $113.20 / Each

1
A 712236 1000227605 AG3 LINK SET;SA;U;GM65##;-;-; No Model Compatibility List $103.06 / Each

3
A 712237 1000227606 AG2 LINK SET;SA;D;GM65##;-;-; No Model Compatibility List $101.37 / Each

3
G 712453 1000228973 G17 FIX SET;SA;;GM68;;; No Model Compatibility List $47.29 / Each

1
N 712559 1000229510 N61 WIRE;DISPLAY BOARD;--;;;OKI HARBOR 2.5- No Model Compatibility List $14.59 / Each

4,5,6
B 712779 1000230611 B10 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
712810 1000230891 B35 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712934 1000231572 Z13 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

8
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
C 719252 1000358938 C40 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
8 722260 1000390201 8 SENSE ORGAN SET;;right;;;GM61/GM64/GM65/ No Model Compatibility List $168.97 / Each

1
723580 1000409123 V04 Direction Label;Weight Plate;230lbs/140k No Model Compatibility List $20.25 / Each

3
H 725014 100995 H10 Stopper Ring;Leg Pad;ABS;GM42 No Model Compatibility List $2.83 / Each

12,13,14
725016 101032 Z36 Decal ;Leg Pad ADJ;GM42 No Model Compatibility List $9.83 / Each

7,3,12,13,14
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC 726517 082535 X33 WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC No Model Compatibility List $1.66 / Each

2
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

9,3
Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

9
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $25.90 / Each

11
728725 096208 D12 Adjustment Handle Lower Stopper Ring No Model Compatibility List $12.30 / Each

11
728726 096209 D15 Cap;Grip;Peadal Arm;ADC12;GM42 No Model Compatibility List $15.11 / Each

9,3,4,5,6,11
Stopper Pad;Black;PL09 728740 096417 J01 Stopper Pad;Black;PL09 No Model Compatibility List $6.73 / Each

4,5,6,12,13,14
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 J22 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729138 Part of Kit 2 AD1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AD2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 J23 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729166 Part of Kit 4 or 10 C38 AXLE, CENTRAL;45;-;PULL PIN; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
729172 Part of Kit 5 AK21 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 Q11 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 Q48 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 D54 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729261 See Pad Matrix J27 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Q 729537 ZMS4001255 Q42 Battery, AA for console No Model Compatibility List $4.50 / Each

7
N 729631 ZMS4003243 Not Shown Decal, QR, VS-S33 Div. Lat Pull No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
