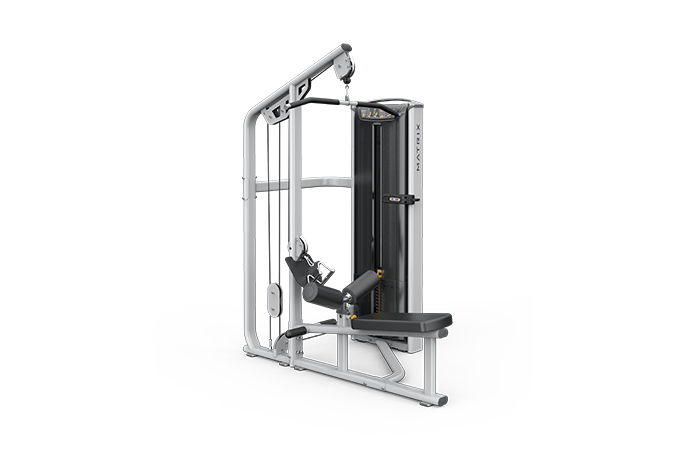

Matrix Commercial - VS-S331 - 2016

Repair Parts for Matrix Commercial VS-S331 GM101

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S331

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 701427 004476-Z Z63 BOLT SH M8X16 No Model Compatibility List $1.66 / Each

2
B 701431 004479-ABX B57 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $2.00 / Each

2
Z 701491 004533-AD Z25 Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP No Model Compatibility List $3.35 / Each

2
Z 701660 004696-AB Z18 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701829 004848-AD C42 Set Screw;M6x1.0Px10L No Model Compatibility List $2.00 / Each

2
Z 701892 004924-AB Z20 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.66 / Each

2
B 701901 004929-00 B46 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701981 005017-00 Z16 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702098 005130-00 Z11 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702112 005139-AB Z14 Washer;Flat;8.2x16.0x1.4T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702117 005144-AC B48 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702654 009247-A F08 Axle;Swivel;;S45C;10x25L No Model Compatibility List $2.86 / Each

8
F 702711 009356-B F54 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
Q 702720 009367-A Q12 Pin;Spring;11X70L(65MN);GM21 No Model Compatibility List $2.73 / Each

2,12,13,14
F 702721 009371-E F53 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
Z 704014 020104-AC Z05 Screw;Hex Socket;Round;M10x1.5Px30L;Cr; No Model Compatibility List $3.64 / Each

2
Z 704023 020112-A Z06 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

2
Z 704029 020117-AD Z12 SCREW;SH;M10X1.5PX125L;;HS;;CHM;; No Model Compatibility List $5.04 / Each

2
C 704039 020126-DB C33 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
B 704193 020465-AB B45 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 704200 020474-00 Z08 Washer;Flat;5.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704217 020489-A Z13 Washer;Arc;10.2x20.0x1.5t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 704218 020509-A K48 Washer;;Diam.12.5XDiam.25.0X1.0T;;Chrome No Model Compatibility List $1.66 / Each

7,2,12,13,14
F 705011 029145-AA F56 Foam;25.4x5.0tx476L No Model Compatibility List $25.30 / Each

1
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
Z 705461 049252-AB Z01 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
C 707066 1000090006 C80 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
Z 707101 1000090321 Z24 Screw;BH;4X15L;TC;PH;G8.8;BAN;;POT No Model Compatibility List $1.85 / Each

2
C 707798 1000095593 C20 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $2.13 / Each

9,12,13,14
C 707799 1000095594 C22 Cap;Leg Pad;ABS;GM42 No Model Compatibility List $1.87 / Each

9,12,13,14
Z 708082 1000099212 Z09 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

2
Z 708091 1000099499 Z15 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
708386 1000102584 Z03 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

2,3
Z 708450 1000102866 Z17 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
B 708730 1000105174 B23 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
709064 1000108796 B43 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
D 709069 1000108801 D17 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
V 709081 1000109127 V17 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
B 709307 1000112985 B14 Elastomer;Weight Plate;GM59 No Model Compatibility List $16.87 / Each

3
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
L 709462 1000200264 L30 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B25 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
3 710182 1000207217 3 Wps;Superstratum;GM59 No Model Compatibility List $234.88 / Each

1
A 710183 1000207218 AK21 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
C 711006 1000215775 C21 PLASTIC COVER;ADJ PLATE;PP;;;;GM61; No Model Compatibility List $9.10 / Each

9,3
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
A 711225 1000217860 AJ1 PIN SET;SA;ADJ CHEST PAD;PREMIUM;GM60;;; No Model Compatibility List $72.64 / Each

12,13,14
K 711249 1000218377 K31 WASHER;FLT;Diam.16.2XDiam.37.0X1.5T;-;BA No Model Compatibility List $1.33 / Each

2
S 711365 1000220477 Shield Set SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
Z 711692 1000222320 Z10 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
V 712007 1000224911 V08 WARNING LABEL;FRENCH;SMALL;;;GM01; No Model Compatibility List $3.35 / Each

1
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
B 712779 1000230611 B10 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
Z 712797 1000230700 Z21 SCREW;TRH;4x15L;SM;PH;CHM;POT; No Model Compatibility List $1.79 / Each

2
712810 1000230891 B35 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712927 1000231503 Z04 SCREW;SH;M8X1.25PX25L-12L;P-T;HS;G12.9;C No Model Compatibility List $1.79 / Each

2
Z 712934 1000231572 Z02 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
C 713500 1000304394 C04 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

12,13,14
K 717514 1000345684 K68 Stopper Ring;Grip;;20#;White Zinc;PL212; No Model Compatibility List $11.80 / Each

11
B 719590 1000362751 B03 Fixing Plate;FRAME;;SPHC;100.0x111.0x12. No Model Compatibility List $11.80 / Each

3
719682 1000363760 V33 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V33 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
C 720322 1000371560 C18 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $6.73 / Each

9
720348 1000371910 AE1 Adjustable Set-Exreawork;Adjustable;;Cr No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 720349 1000371918 C41 Protected Plate;Stopper;L;SPHC;146.8x138 No Model Compatibility List $23.63 / Each

3
C 720350 1000371924 C35 Limit Axle;Transmission Set;Up;POM;;GM10 No Model Compatibility List $5.04 / Each

8
A 720352 1000371930 AF1 Steel Rope Transmission Set;Semi-Assy;;; No Model Compatibility List $145.31 / Each

1
A 720353 1000371931 AF2 Steel Rope Transmission Set;Semi-Assy;;; No Model Compatibility List $135.17 / Each

1
C 720354 1000371942 C32 Swivel Axle-Exreawork;Pulley;;rigidity C No Model Compatibility List $6.73 / Each

8
N 720355 1000371944 Not Shown Hardware Set;;;;;GM101-KM; No Model Compatibility List $76.02 / Each

1
720356 1000371946 Not Shown Manual;;;;;GM101-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720357 1000371947 Not Shown Label set;Semi-Assy;;;;GM101-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
F 720548 1000373578 F06 Buffer Block;;;PA66+30%GF;;;GM102; No Model Compatibility List $3.02 / Each

1
F 720549 1000373579 F04 Buffer Block;;;PA66+GF30%;;;GM102; No Model Compatibility List $3.02 / Each

1
V 720647 1000374448 V01 Instructional Labe;Manual;;;;Front;;GM10 No Model Compatibility List $11.80 / Each

1
V 720648 1000374449 V02 Instructional Labe;;;;;Rear;;GM101-KM No Model Compatibility List $11.80 / Each

1
V 720649 1000374450 V07 EN LABEL;;;;;;;GM101-KM No Model Compatibility List $1.66 / Each

1
C 720838 1000377415 C29 sleeve-Extrawork;Console Base;;Cr Plate; No Model Compatibility List $6.73 / Each

7,3
C 720888 1000377827 C43 Protected Plate;Stopper Plate;Rt;SPHC;14 No Model Compatibility List $23.63 / Each

3
720889 1000377828 Q02 Cover set;Semi-Assy;;;;;GM101-KM; No Model Compatibility List $547.53 / Each

9
Q 720890 1000377833 Q03 Plastic Bar;;;PVC;;;GM101-KM; No Model Compatibility List $16.87 / Each

9
A 720891 1000377842 AE3 Grip-Exreawork;grip;down;Cr Plate;224x18 No Model Compatibility List $86.16 / Each

3,11
720893 1000377873 K37 Guide Rod-Extrawork;Weight Plate;;rigidi No Model Compatibility List $135.17 / Each

3
2 720963 1000378800 2 Handle set;Semi-Assy;;;;GM101-KM;; No Model Compatibility List $185.87 / Each

11
V 721027 1000379583 V06 Adjustable Indication Decal;;;;;;;GM101- No Model Compatibility List $3.02 / Each

7,3
N 721028 1000379591 Not Shown Premium Level;Semi-Assy;;;;GM101-KM;; No Model Compatibility List $299.10 / Each

3
721029 1000379601 Q04 Cover;;;ABS;;;GM101-KM; No Model Compatibility List $21.94 / Each

9
C 721030 1000379606 C28 Cap;;;ABS;;;GM101-KM; No Model Compatibility List $5.04 / Each

9
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
721064 1000380284 K01 Guide Rod-Extrawork;Incremental Weight;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 721135 1000380838 AC3 Support Plate Set-Extrawork;Grip;down;PU No Model Compatibility List $23.63 / Each

3,11
Q 721305 1000381709 Q17 Connecting Piece;;;ABS;;;GM101-KM; No Model Compatibility List $16.87 / Each

1
B 721346 1000382110 B08 Shim;Adjust;;PP;;;GM102; No Model Compatibility List $5.04 / Each

1
721349 1000382437 Not Shown Label set;Semi-Assy;;;French;GM101-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721350 1000382438 V01 Instructional Labe;;;;;Front;French;GM10 No Model Compatibility List $13.49 / Each

1
721351 1000382439 V02 Instructional Labe;;;;;Rear;French;GM101 No Model Compatibility List $13.49 / Each

1
R 722260 1000390201 Rep Counter Set SENSE ORGAN SET;;right;;;GM61/GM64/GM65/ No Model Compatibility List $168.97 / Each

1
722365 1000391520 Z19 Screw;Socket Head;M10X1.5PX135L;;Hex Soc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
V 722405 1000391851 V03 Spec Label;Weight Plate;;Black;PC;;;GM10 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
V 722406 1000391853 V04 Spec Label;Weight Plate;;Black;PC;;;GM10 No Model Compatibility List $16.87 / Each

3,4,5,6
K 722503 1000393190 K06 Fixing Pin;Rop;;45#;Chrome;GM101-KM;27. No Model Compatibility List $20.25 / Each

7,12,13,14
N 722520 1000393356 Not Shown Manual;Fram Manual;;;NA and Europe;GM105 No Model Compatibility List $27.01 / Each

1
Q 722529 1000393576 Q20 Connect Plate;;;PA66+30%GF;;;GM101-KM; No Model Compatibility List $11.80 / Each

3
B 722551 1000393973 B13 block;Cover;;painting;;Iced Sliver;GM59; No Model Compatibility List $1.66 / Each

9
722552 1000393987 B16 Sleeve;CON Tube;;painting;;Iced Sliver;G No Model Compatibility List $3.02 / Each

3
722570 1000394128 G05 Fixing Plate;;RD;painting;;Iced Sliver;G No Model Compatibility List $5.04 / Each

3
722648 1000396859 L01 Increment Weight Plate;;;;;Iced Sliver;G No Model Compatibility List $167.28 / Each

3
722650 1000396915 K47 Nut;Nylon;M14x2.0P;Grade 12.9;Chrome; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
722971 1000401914 AB1 Frame Set;;;painting;;Iced Sliver;GM101- No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722976 1000402012 AC2 Seat Set;;;painting;;Iced Sliver;GM101-K No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
722996 1000402297 AC1 base set;;;painting;;Iced Sliver;GM101-K No Model Compatibility List $0.00 / Each
Out Of Stock 		3
723000 1000402321 F03 Fixing Plate;Pulley;;;;Iced Sliver;GM63- No Model Compatibility List $6.73 / Each

8,3
723001 1000402329 AG1 Disassembly connect set;;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
723002 1000402336 AG2 CON Tube Set;;;painting;;Iced Sliver;GM1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
1 723003 1000402355 1 Adjust set;Semi-Assy;;;;;GM101-KM; No Model Compatibility List $236.57 / Each

1
C 725014 100995 C25 Stopper Ring;Leg Pad;ABS;GM42 No Model Compatibility List $2.83 / Each

12,13,14
725265 103406 Z22 Washer;Flat;8.2x20.0x1.8t;Cr Plat; No Model Compatibility List $0.21 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
726745 084555 AF7 Grip ?FSemi-Assy;GM01 No Model Compatibility List $108.13 / Each

11
Foam;For50.8 Food Pad;PL01 727027 086732 G04 Foam;For50.8 Food Pad;PL01 No Model Compatibility List $17.76 / Each

12,13,14
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
CON Plate; Cap;SPHC3.0t;GM42 728704 096073 H12 CON Plate; Cap;SPHC3.0t;GM42 No Model Compatibility List $2.37 / Each

9,3
Stopper Ring;Cap;AL6061;GM42 728705 096074 H13 Stopper Ring;Cap;AL6061;GM42 No Model Compatibility List $19.81 / Each

9
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728977 N/A Q48 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729885 ZMS4007173 Not Shown Decal, QR, VS-S331 Lat Pulldown/Seated R No Model Compatibility List $5.04 / Each

7,3,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
