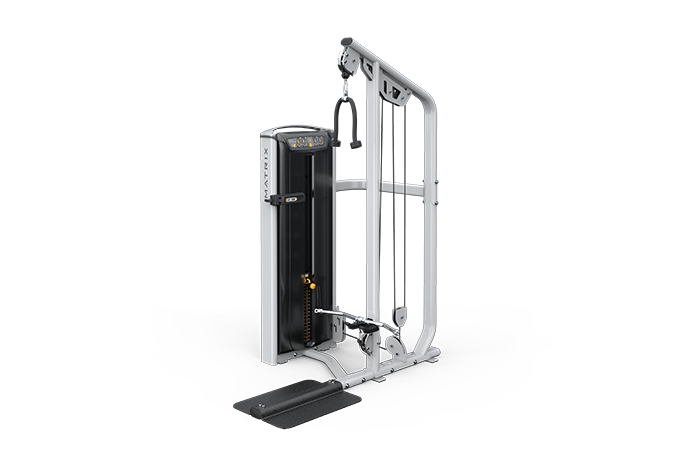

Matrix Commercial - VS-S401 - 2016

Repair Parts for Matrix Commercial VS-S401 GM102

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S401

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
C 700249 000776-A C18 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
Z 701427 004476-Z Z01 BOLT SH M8X16 No Model Compatibility List $1.66 / Each

2
Z 701655 004694-00 Z13 Screw;TH;M8X1.25PX10L;;Hex Socket;;Chrom No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 701892 004924-AB F11 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.66 / Each

2
B 701901 004929-00 B39 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702098 005130-00 C31 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702117 005144-AC Z30 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702654 009247-A F14 Axle;Swivel;;S45C;10x25L No Model Compatibility List $2.86 / Each

8
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
Z 704023 020112-A Z16 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

2
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
Z 704193 020465-AB Z14 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
C 704217 020489-A C30 Washer;Arc;10.2x20.0x1.5t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 704218 020509-A K48 Washer;;Diam.12.5XDiam.25.0X1.0T;;Chrome No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
Z 705461 049252-AB Z09 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Z 707101 1000090321 Z24 Screw;BH;4X15L;TC;PH;G8.8;BAN;;POT No Model Compatibility List $1.85 / Each

2
Z 707946 1000097206 Z22 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
Z 708082 1000099212 Z08 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

2
Z 708471 1000102889 Z12 Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9; No Model Compatibility List $2.18 / Each

2
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
Z 708662 1000104691 Z26 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

2
Z 708730 1000105174 Z18 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
709064 1000108796 Z25 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
D 709069 1000108801 D17 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
V 709081 1000109127 V09 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
709497 1000200716 B12 ELASTOMER;WEIGHT;RUBBER;;;;GM61; No Model Compatibility List $25.04 / Each

3
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B25 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
1 710182 1000207217 1 Wps;Superstratum;GM59 No Model Compatibility List $234.88 / Each

1
A 710183 1000207218 AK21 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
V 710990 1000215718 V03 SPEC LABEL;10 LB;WEIGHT PLATE;BLACK;PC;;; No Model Compatibility List $25.32 / Each

3,4,5,6
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
K 711249 1000218377 K31 WASHER;FLT;Diam.16.2XDiam.37.0X1.5T;-;BA No Model Compatibility List $1.33 / Each

2
S 711365 1000220477 Shield Set SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
Z 711692 1000222320 Z03 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
711984 1000224684 Z05 Screw;RND;M10x1.5Px125L;-;HS;-;CHM;BP;G1 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
B 712779 1000230611 B10 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
712810 1000230891 Z02 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712934 1000231572 Z06 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
F 719747 1000365116 F17 Swivel Ring;Grip;Short;45#;Chrome;MS10; No Model Compatibility List $21.94 / Each

7,12,13,14,11
C 720322 1000371560 C10 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $6.73 / Each

9
C 720349 1000371918 C41 Protected Plate;Stopper;L;SPHC;146.8x138 No Model Compatibility List $23.63 / Each

3
720351 1000371927 C37 Stopper Plate-Extrawork;;;Electroplate;1 No Model Compatibility List $8.42 / Each

3
F 720354 1000371942 F06 Swivel Axle-Exreawork;Pulley;;rigidity C No Model Compatibility List $6.73 / Each

8
F 720548 1000373578 F03 Buffer Block;;;PA66+30%GF;;;GM102; No Model Compatibility List $3.02 / Each

1
F 720549 1000373579 F04 Buffer Block;;;PA66+GF30%;;;GM102; No Model Compatibility List $3.02 / Each

1
N 720550 1000373583 Not Shown Hardware Set;Semi-Assy;;;;GM102-KM; No Model Compatibility List $67.57 / Each

1
720566 1000373677 Not Shown Label set;Semi-Assy;;;;GM02-KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720567 1000373679 V02 Bar Code Label;;;;;;;GM102-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		1
V 720570 1000373685 V07 EN LABEL;;;;;;;GM102-KM No Model Compatibility List $1.66 / Each

1
V 720571 1000373688 V06 Instructional Labe;Cover;;;PC;Front;;GM1 No Model Compatibility List $11.80 / Each

9
V 720573 1000373690 V10 Instructional Labe;Cover;;;PC;Rear;;GM10 No Model Compatibility List $11.80 / Each

9
720574 1000373693 Not Shown Manual;Assembly;;;;GM102-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
C 720838 1000377415 C02 sleeve-Extrawork;Console Base;;Cr Plate; No Model Compatibility List $6.73 / Each

7,3
C 720888 1000377827 C42 Protected Plate;Stopper Plate;Rt;SPHC;14 No Model Compatibility List $23.63 / Each

3
N 721028 1000379591 Not Shown Premium Level;Semi-Assy;;;;GM101-KM;; No Model Compatibility List $299.10 / Each

3
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
721323 1000381846 AC3 Pedal-Extrawork;FOOTPAD;down;PU Spray-On No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3,12,13,14
A 721328 1000381926 AF1 transmission set;Steel cable;;;GM102; No Model Compatibility List $168.97 / Each

4,5,6
A 721329 1000381927 AF2 transmission set;Steel cable;;;GM102; No Model Compatibility List $152.07 / Each

4,5,6
B 721346 1000382110 B08 Shim;Adjust;;PP;;;GM102; No Model Compatibility List $5.04 / Each

1
F 721898 1000386191 F16 Pillar;Hang Ring;Outer;45#;Chrome;GM102; No Model Compatibility List $13.49 / Each

7,12,13,14
721899 1000386196 F18 Grip;Grip;Long;45#;Chrome;GM102;Diam.25x No Model Compatibility List $174.04 / Each

7,12,13,14,11
R 722260 1000390201 Rep Counter Set SENSE ORGAN SET;;right;;;GM61/GM64/GM65/ No Model Compatibility List $168.97 / Each

1
722365 1000391520 Z11 Screw;Socket Head;M10X1.5PX135L;;Hex Soc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
K 722503 1000393190 K06 Fixing Pin;Rop;;45#;Chrome;GM101-KM;27. No Model Compatibility List $20.25 / Each

7,12,13,14
N 722520 1000393356 Not Shown Manual;Fram Manual;;;NA and Europe;GM105 No Model Compatibility List $27.01 / Each

1
B 722551 1000393973 B37 block;Cover;;painting;;Iced Sliver;GM59; No Model Compatibility List $1.66 / Each

9
722552 1000393987 B50 Sleeve;CON Tube;;painting;;Iced Sliver;G No Model Compatibility List $3.02 / Each

3
722570 1000394128 G05 Fixing Plate;;RD;painting;;Iced Sliver;G No Model Compatibility List $5.04 / Each

3
722636 1000396557 AB1 Frame Set;;;painting;;Iced Sliver;GM102- No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722637 1000396611 AC1 base set;;;painting;;Iced Sliver;GM102-K No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722638 1000396654 AC2 base connect set;Base Seat;;painting;;Ic No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722639 1000396678 AG2 Connecting Set;CON Tube;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722640 1000396691 AG1 Disassembly connect set;;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722641 1000396712 F10 Fixing Plate;Pulley;;painting;;Iced Sliv No Model Compatibility List $20.25 / Each

8,3
722648 1000396859 L01 Increment Weight Plate;;;;;Iced Sliver;G No Model Compatibility List $167.28 / Each

3
722650 1000396915 K47 Nut;Nylon;M14x2.0P;Grade 12.9;Chrome; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Triceps Rope;Market;MS10 728157 093334 E07 Triceps Rope;Market;MS10 No Model Compatibility List $140.50 / Each

1
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728977 N/A Q48 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729886 ZMS4007174 Not Shown Decal, QR, VS-S401 Bicep/Triceps No Model Compatibility List $5.04 / Each

7,3
