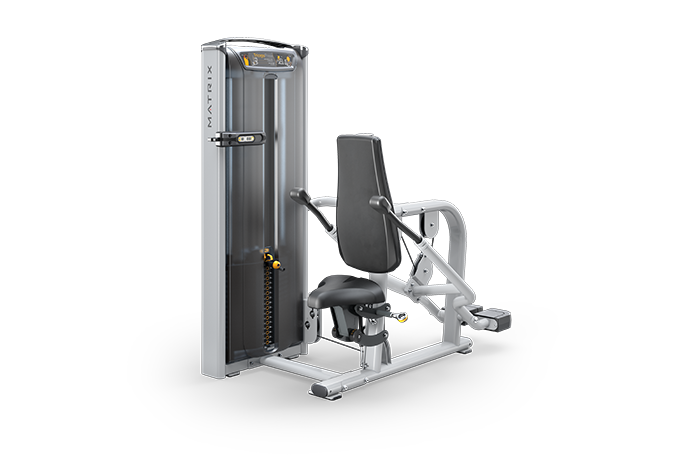

Matrix Commercial - VS-S42 - 2012

Repair Parts for Matrix Commercial VS-S42 VSGM66

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S42

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700536 001556-A D14 Sleeve;Swivel Axle;POM;BL;GM13 No Model Compatibility List $3.35 / Each

8,3
Q 700570 001679-00 Q44 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
701387 004442-AB Z63 Screw;Hex Socket;Round;M4x0.7Px10L No Model Compatibility List $1.79 / Each

2
B 701431 004479-ABX B28 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $2.00 / Each

2
Z 701465 004518-00 Z10 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Z 701478 004525-00 Z08 Screw;Hex Socket;Round;M8x1.25Px50L Yes Model Compatibility List $7.20 / Each

2
B 701660 004696-AB B37 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701851 004870-00 Z24 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
701884 004910-00 B26 Nut;NLK;M10X1.5P;;CHM;; No Model Compatibility List $0.81 / Each

2
B 701901 004929-00 B30 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 701916 004945-00 K47 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702011 005047-00 Z09 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
C 702097 005129-AB C50 Washer;Flat;8.0X23.0X2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702117 005144-AC B35 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702119 005145-AC B29 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 702299 005811-00 Q45 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
D 702710 009355-B D69 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702722 009372-E D70 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
D 702744 009476-C D09 Bushing;Pedal Arm;;CU;;;;GM13 No Model Compatibility List $9.41 / Each

8,9,3
A 703450 014734-F AD3 Grip Set;Dipping;Extrawork;GM13 No Model Compatibility List $120.56 / Each

12,13,14,11
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
Z 704002 020092-AB Z03 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $3.35 / Each

2
Z 704022 020111-ZA Z02 Screw;Hex Socket;Round;M10x1.5Px125L(Too No Model Compatibility List $6.73 / Each

2
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
B 704193 020465-AB B25 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
C 707822 1000096014 C53 Bushing;15x19x20T;GM40 No Model Compatibility List $4.65 / Each

8
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707879 1000096575 N62 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
Z 707946 1000097206 Z06 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708048 1000098549 C25 Bushing;30x25x20mm;GM44 No Model Compatibility List $10.82 / Each

8
708386 1000102584 Z16 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

2,3
C 708402 1000102675 C39 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

12,13,14
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
709007 1000108189 Z05 Screw;RND;M10x1.5Px50L-15L;MT;HS;CST;CHM No Model Compatibility List $3.56 / Each

2
709064 1000108796 B24 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
L 709069 1000108801 L14 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
C 709072 1000108805 C45 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

2
C 709073 1000108806 C26 Screw;RND;M10x1.5Px15L;HS;CHM;BP;G12.9 No Model Compatibility List $0.88 / Each

2
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
B 709307 1000112985 B13 Elastomer;Weight Plate;GM59 No Model Compatibility List $16.87 / Each

3
F 709315 1000113066 F07 Space Mass;Mast Bearing;20#;Chromeplate; No Model Compatibility List $6.73 / Each

7,8,3,4,5,6,12,13,14
F 709316 1000113067 F06 Mast Bearing LKAC_12_M;GM59 No Model Compatibility List $18.56 / Each

8,4,5,6
C 709318 1000113092 C42 Axis;Connect Pole;45#;Chromeplate;GM59 No Model Compatibility List $18.56 / Each

7,3,12,13,14
C 709319 1000113094 C23 Adjust Plate;Seat Chair;Chromeplate;SPHC No Model Compatibility List $6.73 / Each

7,3,12,13,14
J 709320 1000113095 J15 Cover;Seat Chair;GM59 No Model Compatibility List $13.49 / Each

9,12,13,14
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
K 709323 1000113106 K06 Tightwire Fix Pin;45#;GM59 No Model Compatibility List $37.93 / Each

4,5,6,12,13,14
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
8 709325 1000113110 8 Assistant Weight Plate Set;;GM59-KM No Model Compatibility List $223.05 / Each

3
L 709326 1000113111 L01 Incremental Weight Plate;-;GM59-KM;-;Pai No Model Compatibility List $42.22 / Each

3
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
Q 709329 1000113115 Q03 Cover;Back;Clarity ABS;GM59 No Model Compatibility List $164.24 / Each

9,4,5,6
1 709460 1000200250 18 SENSE ORGAN SET;-;-;;; No Model Compatibility List $142.35 / Each

1
B 709461 1000200252 B18 RUBBER;STOPPER;-;GM59; No Model Compatibility List $8.42 / Each

1
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B22 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
709978 1000205415 AB1 FRAME SET;-;GM63;-; No Model Compatibility List $626.96 / Each

3
709980 1000205448 C47 PLASTIC COVER;-;-;-;;;GM59; No Model Compatibility List $3.64 / Each

9
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
7 710183 1000207218 7 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
710194 1000207269 4 PEDAL ARM SET;R;GM66-KM;;; No Model Compatibility List $219.67 / Each

8,9,3
710195 1000207276 5 PEDAL ARM SET;L;GM66-KM;;; No Model Compatibility List $304.17 / Each

8,9,3
6 710196 1000207282 6 Grip Set;GM66-KM No Model Compatibility List $130.10 / Each

11
D 710197 1000207284 D10 AXLE, CENTRAL;ARM;S45C;;; No Model Compatibility List $40.53 / Each

8,3
D 710198 1000207285 D12 BLOCK;ARM AXIS;42CRMO;;; No Model Compatibility List $11.80 / Each

3
710200 1000207307 1 USER FRAME SET;;;GM66-KM;;; No Model Compatibility List $662.45 / Each

3
F 710202 1000207381 F01 STEEL ROPE;;;Diam.4.8X4894L No Model Compatibility List $108.13 / Each

1
1 710338 1000209569 16 PIN SET;SA;ADJUSTABLE#PREMIUM LINE#;GM59 No Model Compatibility List $182.49 / Each

12,13,14
L 710341 1000209576 L15 PLASTIC BASE;MAGNET;ABS;;FIXING;;; No Model Compatibility List $1.79 / Each

8,9,3
Q 710342 1000209577 Q07 PLASTIC BASE;REP COUNTER;-;;FIXING;;; No Model Compatibility List $11.80 / Each

9,3
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- 710348 1000305793 8 PIN SET;SA;ADJUSTABLE#VALUE LINE#;GM59;- No Model Compatibility List $43.77 / Each

12,13,14
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
V 710990 1000215718 V03 SPEC LABEL;10 LB;WEIGHT PLATE;BLACK;PC;;; No Model Compatibility List $25.32 / Each

3,4,5,6
V 710993 1000215723 V06 DIRECTION LABEL;SEAT ADJUSTABLE;-;PC;LEF No Model Compatibility List $3.35 / Each

12,13,14
V 710994 1000215724 V07 DIRECTION LABEL;SEAT ADJUSTABLE;-;PC;RIG No Model Compatibility List $3.35 / Each

12,13,14
710996 1000215728 Z26 DIRECTION LABEL;SEAT ADJUSTABLE;;PC;;; No Model Compatibility List $3.35 / Each

12,13,14
G 711000 1000215741 G04 FIXED SET;-;RD;PAINTING;-;-;GM63; No Model Compatibility List $47.29 / Each

1
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
711042 1000216132 D08 BALANCE PLATE;-;14.5KG;-;-;HT200; No Model Compatibility List $237.25 / Each

3
D 711068 1000216251 D15 FOAM;ELASTOMER;Diam.30.4X5TX175L;GM66-KM No Model Compatibility List $6.73 / Each

1
G 711132 1000216939 G19 Protective Adhesive No Model Compatibility List $18.56 / Each

1
V 711181 1000217282 V10 DIRECTION LABEL;SEAT ADJUSTABLE;-;PC;-;; No Model Compatibility List $3.35 / Each

12,13,14
1 711230 1000217908 13 PREMIUM LEVEL;SA;;GM66-KM;;; No Model Compatibility List $388.67 / Each

3
1 711365 1000220477 14 SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
1 711411 1000220728 15 AiR Shock Set;;GM59-KM No Model Compatibility List $118.27 / Each

1
B 711570 1000221624 B27 BLOCK;-;-;PAINTING;-;-;-; No Model Compatibility List $43.91 / Each

1
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
V 711608 1000222222 V01 INSTRUCTIONAL LABE;;;;;;;FRONT;; No Model Compatibility List $21.94 / Each

1
V 711609 1000222223 V02 INSTRUCTIONAL LABE;;;;;;;REAR;GM66-KM; No Model Compatibility List $21.94 / Each

1
711998 1000224872 V32 LOGO LABEL;GM59;;WATER TRANSFER;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
J 712118 1000226804 J10 SEAT SET;SA;D;GM63;SERVE;; No Model Compatibility List $35.46 / Each

12,13,14
2 712121 1000226809 2 DISASSEMBLY CONNECT SET;SA;LU;GM59-KM;;; No Model Compatibility List $108.13 / Each

3
J 712156 1000227041 J41 SLEEVE;S45C;WZN;CONNECTING; No Model Compatibility List $8.42 / Each

3
F 712323 1000228420 F02 FIX SET;SA;PULLEY#RIGHT;GM66-KM;SERVICE; No Model Compatibility List $40.53 / Each

8
F 712324 1000228421 F03 FIX SET;SA;PULLEY#LEFT;GM66-KM;SERVICE;; No Model Compatibility List $42.22 / Each

8
A 712325 1000228424 AJ3 SEAT SET;SA;RU;GM66-KM;SERVICE;;; No Model Compatibility List $50.67 / Each

12,13,14
A 712326 1000228425 AJ4 SEAT SET;SA;LU;GM66-KM;SERVICE;;; No Model Compatibility List $25.32 / Each

12,13,14
A 712327 1000228426 AG1 DISASSEMBLY CONNECT SET;SA;D;GM66-KM;SER No Model Compatibility List $82.78 / Each

3
A 712328 1000228427 AG2 DISASSEMBLY CONNECT SET;SA;U;GM66-KM;SER No Model Compatibility List $97.99 / Each

3
N 712559 1000229510 N61 WIRE;DISPLAY BOARD;--;;;OKI HARBOR 2.5- No Model Compatibility List $14.59 / Each

4,5,6
B 712779 1000230611 B20 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
712810 1000230891 B45 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712927 1000231503 Z04 SCREW;SH;M8X1.25PX25L-12L;P-T;HS;G12.9;C No Model Compatibility List $1.79 / Each

2
Z 712934 1000231572 Z01 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
V 713028 1000232600 V33 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

8
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
C 719252 1000358938 C40 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
723580 1000409123 V04 Direction Label;Weight Plate;230lbs/140k No Model Compatibility List $20.25 / Each

3
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Screw;SH;M10X1.5PX160L;;HS;;CHM;; 726765 084666 Z04 Screw;SH;M10X1.5PX160L;;HS;;CHM;; No Model Compatibility List $8.42 / Each

2
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $25.90 / Each

11
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728917 098979 B16 Sleeve;CON Dode;Peadel Arm;45#;GM40 No Model Compatibility List $3.35 / Each

3
728977 N/A V22 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729127 Part of Kit 14 Q11 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
729129 Part of Kit 15 J11 Link Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729133 Part of Kit 16 J22 Stabilizer;Front;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729136 Part of Kit 18 Q48 Axle,TRANSIMISSION;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729138 Part of Kit 2 AJ1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 J23 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729153 Part of Kit 3 or 16 C38 AXLE, CENTRAL;45;-;PULL PIN; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
729165 Part of Kit 4 AD1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 D06 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AK21 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729261 See Pad Matrix J27 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Q 729537 ZMS4001255 Q42 Battery, AA for console No Model Compatibility List $4.50 / Each

7
729633 ZMS4003245 Not Shown Decal, QR, VS-S42 Triceps Press No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
