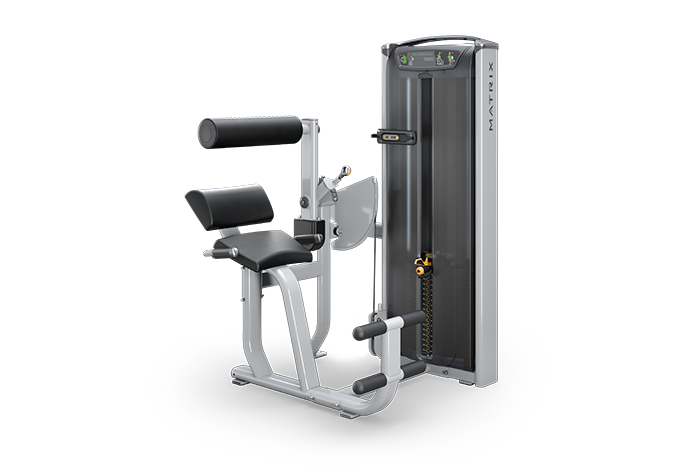

Repair Parts for Matrix Commercial VS-S52 VSGM71
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | VSGM71 |
| Model Name | VS-S52 |
| Version | 2012 |
Model Numbers: VSGM71
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
710637 | 1000211440 | 1 | USER FRAME SET, , GM71 KM, | No |
Compatibility List |
$474.86 / Each
|
|
|
704145 | 020329-00 | 1-Feb | Set Screw, M6X1.0PX12L | No |
Compatibility List |
$1.54 / Each
|
|
|
|
710636 | 1000211429 | 2 | PEDAL ARM SET, , GM71 KM, | No |
Compatibility List |
$304.17 / Each
|
|
|
712400 | 1000228717 | 3 | PIN SET, SA, GM71 KM | No |
Compatibility List |
$67.57 / Each
|
|
|
|
711174 | 1000217239 | 4 | PEDAL ARM CON SET, , GM71 KM, | No |
Compatibility List |
$304.17 / Each
|
|
|
710183 | 1000207218 | 5 | Wps Set, Superstratum, Paint, GM59 | No |
Compatibility List |
$168.97 / Each
|
|
|
709325 | 1000113110 | 6 | Assistant Weight Plate Set, GM59 KM | No |
Compatibility List |
$223.05 / Each
|
|
|
|
711311 | 1000219676 | 7 | PREMIUM LEVEL, SA, , , , | No |
Compatibility List |
$268.68 / Each
|
|
|
710632 | 1000211408 | 8 | HANDLE SET, SA, PREMIUM, GM71 KM, , | No |
Compatibility List |
$40.53 / Each
|
|
|
710631 | 1000211407 | 9 | PIN SET, SA, PREMIUM, GM71 KM, , | No |
Compatibility List |
$84.47 / Each
|
|
|
711365 | 1000220477 | 10 | SHIELD SET, U, GM59, | No |
Compatibility List |
$264.63 / Each
|
|
|
709460 | 1000200250 | 11 | SENSE ORGAN SET, , | No |
Compatibility List |
$142.35 / Each
|
|
|
|
710641 | 1000211471 | AB1 | FRAME SET, , GM71 KM, | No |
Compatibility List |
$554.29 / Each
|
|
|
729118 | Part of Kit 1 | AC1 | Stabilizer Frame, Rear, B, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
729124 | Part of Kit 12 | AC6 | Lower Handlebar Set, Left, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
729138 | Part of Kit 2 | AD1 | Console Mast, Painting, MM330, 6027 45 | No |
Compatibility List |
Out Of Stock |
|
|
|
710634 | 1000211412 | AF1 | TRANSMISSION SET, , GM71 KM, | No |
Compatibility List |
$337.97 / Each
|
|
|
711180 | 1000217267 | AF2 | ADJUSTMENT SET, , GM71 KM, | No |
Compatibility List |
$119.96 / Each
|
|
|
710638 | 1000211456 | AG1 | DISASSEMBLY CONNECT SET, , GM71 KM, | No |
Compatibility List |
$81.09 / Each
|
|
|
710977 | 1000215667 | AK13 | Weight Plate, axle sleeve, , Extrawork,10LBS, GM | No |
Compatibility List |
$64.19 / Each
|
|
|
711007 | 1000215776 | AK14 | WPS set, axle sleeve, , Extrawork,15LBS, GM | No |
Compatibility List |
$64.19 / Each
|
|
|
729165 | Part of Kit 4 | AK21 | Pedal Arm, Left, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
712241 | 1000227612 | AZ2 | SUPPORT SEAT SET, SA, , , , | No |
Compatibility List |
$92.92 / Each
|
|
|
713460 | 1000303546 | B06 | Plastic Pad, Foot Pad, , PP, BL427 | No |
Compatibility List |
$2.32 / Each
|
|
|
701660 | 004696-AB | B07 | Screw, Hex Socket, 8X1.25X20L, Chromed | No |
Compatibility List |
$3.66 / Each
|
|
|
712779 | 1000230611 | B10 | SUPPORT PLATE, WHEEL, SPHC, CHM, GM59 | No |
Compatibility List |
$16.87 / Each
|
|
|
709307 | 1000112985 | B13 | Elastomer, Weight Plate, GM59 | No |
Compatibility List |
$19.48 / Each
|
|
|
709041 | 1000108501 | B16 | Bushing, CON Rod, Peadel Arm, painting, GM40 | No |
Compatibility List |
$2.32 / Each
|
|
|
709306 | 1000112984 | B17 | Elastomer, Assistant Weight Plate, GM59 | No |
Compatibility List |
$1.43 / Each
|
|
|
709461 | 1000200252 | B18 | RUBBER, STOPPER, , GM59 | No |
Compatibility List |
$11.68 / Each
|
|
|
709919 | 1000204728 | B25 | FIXING PLATE, ROPE WHEEL, SPHC, GM59 KM | No |
Compatibility List |
$3.35 / Each
|
|
|

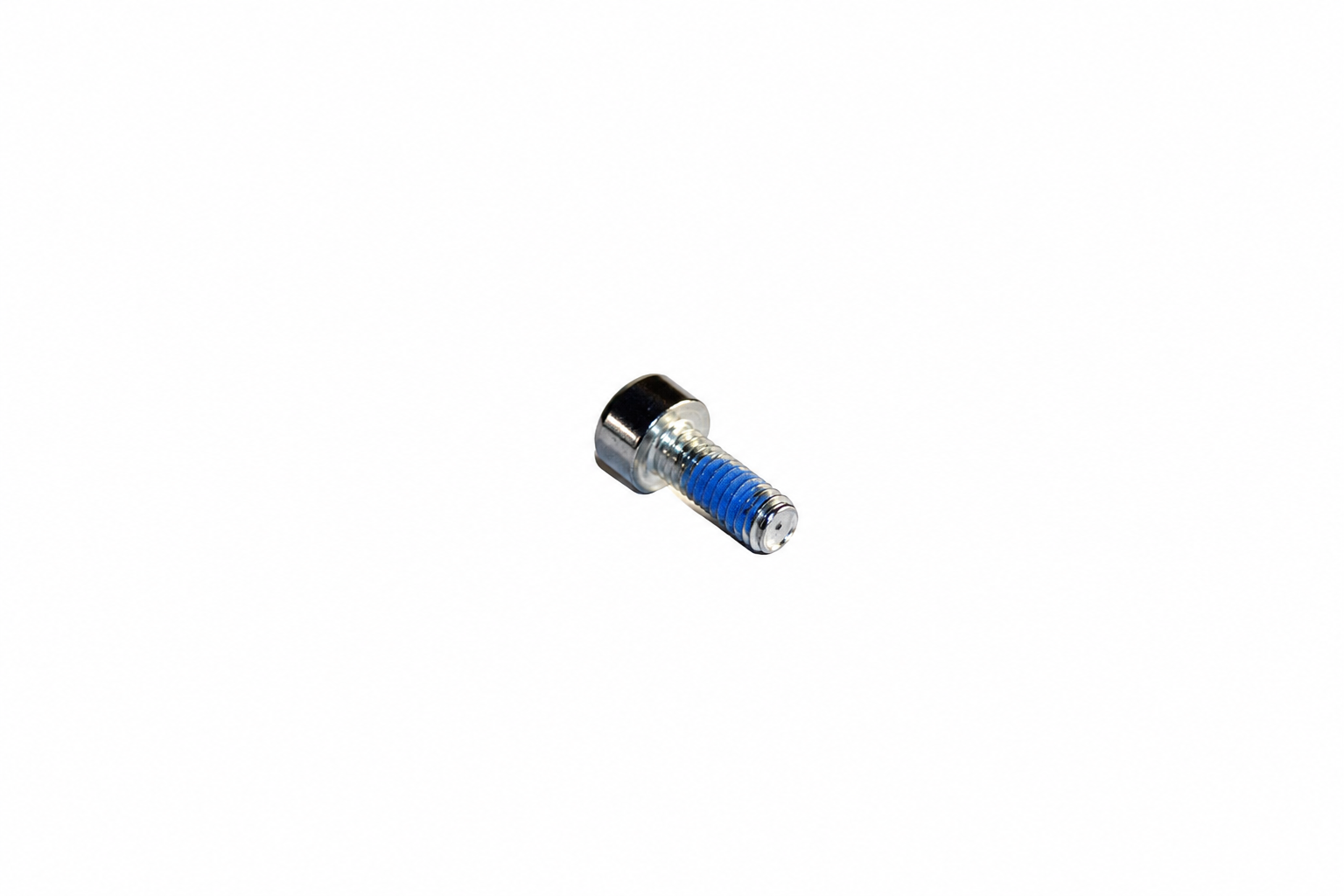

701387 | 004442-AB | B26 | Screw, Hex Socket, Round, M4x0.7Px10L | No |
Compatibility List |
$1.02 / Each
|
|
|
707831 | 1000096026 | B32 | Fixing Base, Sensor, ABS, GM40 | No |
Compatibility List |
$5.18 / Each
|
|
|
711014 | 1000215843 | B34 | PLASTIC PLATE, FRAME, CR, | No |
Compatibility List |
$1.66 / Each
|
|
|
712810 | 1000230891 | B35 | SCREW, SET, M10X1.5PX65L, FLATHEADED, HS, C | No |
Compatibility List |
$2.32 / Each
|
|
|
711015 | 1000215844 | B36 | Guide Rod fitting, Chromed | No |
Compatibility List |
$1.87 / Each
|
|
|
711570 | 1000221624 | B37 | BLOCK, , , PAINTING, , , | No |
Compatibility List |
$43.91 / Each
|
|
|
722509 | 1000393222 | B39 | Spring, Compression, 1.3x12.7x38Lx7, SWP | No |
Compatibility List |
$1.68 / Each
|
|
|
709064 | 1000108796 | B43 | Screw, RND, M10x1.5Px55L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$3.88 / Each
|
|
|
708730 | 1000105174 | B44 | Nut, Nylon, M10x1.5P, G12.9, CHM | No |
Compatibility List |
$1.68 / Each
|
|
|
729152 | Part of Kit 3 | B60 | Pedal Arm, Right, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
712934 | 1000231572 | B62 | SCREW, SH, M10X1.5PX20L, HS, BP, CHM | No |
Compatibility List |
$2.68 / Each
|
|
|
713129 | 1000233200 | B76 | PLASTIC COVER, NBR, BL | No |
Compatibility List |
$1.68 / Each
|
|
|
705487 | 049288-AB | C13 | WASHER, FLT, Diam.10.5XDiam.20.0X2.0T, CHM | No |
Compatibility List |
$1.66 / Each
|
|
|
711310 | 1000219655 | C13 | PEDAL SET, , , | No |
Compatibility List |
$50.67 / Each
|
|
|
701916 | 004945-00 | C23 | Nut, Nylon, M12x1.75P, Chromed | No |
Compatibility List |
$1.60 / Each
|
|
|
704079 | 020196-A | C24 | Screw, Phillip, BH, Tapped, 3x6L, Zn BL | No |
Compatibility List |
$3.88 / Each
|
|
|
702721 | 009371-E | C26 | Cap, Grip, GM03 | No |
Compatibility List |
$9.08 / Each
|
|
|
|
709980 | 1000205448 | C33 | PLASTIC COVER, , , , GM59 | No |
Compatibility List |
$3.64 / Each
|
|
|
702711 | 009356-B | C46 | Stopper Mast, Foam, AL6061, GM03 | No |
Compatibility List |
$3.88 / Each
|
|
|
|
729155 | Part of Kit 3 or 9 | D09 | AXLE, 45, CHM, PULL PIN 1, GM61 | No |
Compatibility List |
Out Of Stock |
|
|
|
727863 | 091689 | D10 | Grip for AD1 or AD2 | No |
Compatibility List |
$10.04 / Each
|
|
|
|
728725 | 096208 | D12 | Adjustment Handle Lower Stopper Ring | No |
Compatibility List |
$12.30 / Each
|
|
|
|
728726 | 096209 | D15 | Cap, Grip, Peadal Arm, ADC12, GM42 | No |
Compatibility List |
$15.11 / Each
|
|
|
711043 | 1000216133 | D20 | BALANCE PLATE, , 10.4KG, , , HT200 | No |
Compatibility List |
$148.18 / Each
|
|
|
714760 | 1000317876 | D23 | End Cap, PP, Diam.X50.8 | No |
Compatibility List |
$2.18 / Each
|
|
|
|
708049 | 1000098550 | D32 | Bushing, 38x30x20mm, GM44 | No |
Compatibility List |
$11.67 / Each
|
|
|
729197 | Part of Kit 8 | D54 | Incline Arm, Right, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
727689 | 090443 | F04 | Key, Flat, 10X8X20L, GM30 | No |
Compatibility List |
$2.52 / Each
|
|
|
710635 | 1000211419 | F05 | STEEL ROPE, Diam.4.8x3585L, GM71 | No |
Compatibility List |
$55.74 / Each
|
|
|
701431 | 004479-ABX | F10 | Screw, Hex Socket, Round, M8x1.25Px15L, Cr, A | No |
Compatibility List |
$1.46 / Each
|
|
|
701901 | 004929-00 | F12 | Nut, Nylon, M8x1.25P, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
710354 | 1000209698 | F12 | ORNAMENT, ADJ PLATE, 3.0T, SPHC, :, GM61 KM | No |
Compatibility List |
$6.73 / Each
|
|
|
713188 | 1000300002 | F16 | Fixing Cap, Guide Rail, PP, BL/Black C, 18x | No |
Compatibility List |
$1.66 / Each
|
|
|
725584 | 073573 | F21 | Pulley, 115mm | No |
Compatibility List |
$20.78 / Each
|
|
|
727027 | 086732 | G04 | Foam, For50.8 Food Pad, PL01 | No |
Compatibility List |
$17.76 / Each
|
|
|
708402 | 1000102675 | H03 | Stopper Block, Pull Pin, GM43 | No |
Compatibility List |
$7.02 / Each
|
|
|
704004 | 020096-00 | H07 | Screw, Hex Socket, Round, M8x1.25Px15L, Chromed | Yes |
Compatibility List |
$1.68 / Each
|
|
|
727687 | 1000487589 | H08 | Stopper BlockRubber, GM30 | No |
Compatibility List |
$3.88 / Each
|
|
|
728704 | 096073 | H12 | CON Plate, Cap, SPHC3.0t, GM42 | No |
Compatibility List |
$2.32 / Each
|
|
|
728705 | 096074 | H13 | Stopper Ring, Cap, AL6061, GM42 | No |
Compatibility List |
$11.68 / Each
|
|
|
|
728719 | 096165 | H19 | Adjustment Grip Set, Semi Assy, GM44 | No |
Compatibility List |
$25.90 / Each
|
|
|
702011 | 005047-00 | H23 | Washer, Flat, 8.2x20x1.8T, Black Zinc | No |
Compatibility List |
$2.00 / Each
|
|
|
|
726987 | 086517 | H65 | Screw, Round Hex Socket, M10x1.5Px25L | No |
Compatibility List |
$3.64 / Each
|
|
|
708917 | 1000107219 | J17 | Pulley Cover, Small, Base, ABS, GM44 KM | No |
Compatibility List |
$5.18 / Each
|
|
|
729261 | See Pad Matrix | J21 | Elbow Pad, PU, Black, FW213 KM | No |
Compatibility List |
Out Of Stock |
|
|
729201 | Part of Kit 9 | J22 | Upper Handlebar Set, Right, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
701465 | 004518-00 | J53 | Screw, SH, M10X1.5PX75L, HS, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
709323 | 1000113106 | K06 | Tightwire Fix Pin, 45#, GM59 | No |
Compatibility List |
$37.93 / Each
|
|
|
709322 | 1000113102 | K07 | Guide Rod, SUS304, Diam.6X1421.7, GM59 | No |
Compatibility List |
$64.61 / Each
|
|
|
709946 | 1000204997 | K15 | Steel, Weight Plate, Up, 1080 Spring Steel | No |
Compatibility List |
$3.35 / Each
|
|
|
709718 | 1000202352 | K17 | Cushion, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
710350 | 1000209625 | K37 | GUIDE ROD, 45, , WEGHT PLATE | No |
Compatibility List |
$154.28 / Each
|
|
|
708489 | 1000102915 | K38 | Circlip, E Type, E 15, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
710976 | 1000215659 | K42 | BUSHING, GUIDE ROD, POM | No |
Compatibility List |
$28.58 / Each
|
|
|
708486 | 1000102912 | K44 | Circlip, External C Type, S 30, BED | No |
Compatibility List |
$1.56 / Each
|
|
|
709326 | 1000113111 | L01 | Incremental Weight Plate, , GM59 KM, , Pai | No |
Compatibility List |
$42.22 / Each
|
|
|
709324 | 1000113107 | L02 | Axis Sheath, Leader, GM59 | No |
Compatibility List |
$12.97 / Each
|
|
|
710596 | 1000211166 | L03 | PLASTIC BASE, ADD WEIGHT PLATE, POM, GM5 | No |
Compatibility List |
$10.24 / Each
|
|
|
710475 | 1000210485 | L04 | SCREW, SET, M5X0.8PX6L, FLAT POINT, HS, G8.8 | No |
Compatibility List |
$1.66 / Each
|
|
|
709462 | 1000200264 | L05 | GRIPE, ABS TPR, GM59 | No |
Compatibility List |
$12.19 / Each
|
|
|
709632 | 1000201802 | L10 | PULL PIN SET, WPS, GM62, | No |
Compatibility List |
$72.57 / Each
|
|
|
710181 | 1000207213 | L11 | COVER, INCREMENTAL WEIGHT, ABS, , , | No |
Compatibility List |
$9.33 / Each
|
|
|
709069 | 1000108801 | L14 | Screw, RND, M5x0.8Px15L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
710341 | 1000209576 | L15 | PLASTIC BASE, MAGNET, ABS, FIXING | No |
Compatibility List |
$1.79 / Each
|
|
|
712009 | 1000224913 | L28 | Cushion, Aaw, Nbr, Bl | No |
Compatibility List |
$1.66 / Each
|
|
|
713056 | 1000232864 | L31 | PERMANENT MAGNET, , 1500##, ## | No |
Compatibility List |
$5.18 / Each
|
|
|
725362 | 070571 | L38 | Washer, Flat, 5.2X10.0X1.5T, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
703999 | 020085-00 | M30 | Screw, Hex Socket, Round, M8x1.25Px20.0L, Ad | No |
Compatibility List |
$1.79 / Each
|
|
|
702299 | 005811-00 | N58 | Cable Tie, Nylon, Black, 160L | No |
Compatibility List |
$4.66 / Each
|
|
|
712559 | 1000229510 | N61 | WIRE, DISPLAY BOARD, , OKI HARBOR 2.5 | No |
Compatibility List |
$14.59 / Each
|
|
|
|
707879 | 1000096575 | N62 | Overlay, Manipulate, GM40 | No |
Compatibility List |
$2.44 / Each
|
|
|
729537 | ZMS4001255 | Not Shown | Battery, AA for console | No |
Compatibility List |
$5.18 / Each
|
|
|
|
729642 | ZMS4003254 | Not Shown | Decal, QR, VS S52 Back Extension | No |
Compatibility List |
$5.90 / Each
|
|
|
700570 | 001679-00 | P13 | Tie Strap, Adhesive, Nylon, 66, HC 101, W | No |
Compatibility List |
$5.18 / Each
|
|
|
705313 | 040816-A | P19 | Screw, Phillip, BH, Tapped, 3x8L | No |
Compatibility List |
$3.66 / Each
|
|
|
709327 | 1000113113 | Q01 | Cover, Up, ABS, GM59 | No |
Compatibility List |
$58.06 / Each
|
|
|
709328 | 1000113114 | Q02 | Cover, Front, Clarity ABS, GM59 | No |
Compatibility List |
$375.70 / Each
|
|
|
710342 | 1000209577 | Q07 | PLASTIC BASE, REP COUNTER, , FIXING | No |
Compatibility List |
$11.80 / Each
|
|
|
710347 | 1000209593 | Q09 | END CAP, ACCENT | No |
Compatibility List |
$1.66 / Each
|
|
|
711994 | 1000224767 | Q10 | Plastic Cover, , , PP, , , , | No |
Compatibility List |
$1.66 / Each
|
|
|
729120 | Part of Kit 10 | Q11 | Lower Handlebar Set, Right, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
710346 | 1000209591 | Q12 | PLASTIC BAR, , PVC, , LABEL | No |
Compatibility List |
$8.42 / Each
|
|
|
713453 | 1000303486 | Q13 | Clamp, Cover, | No |
Compatibility List |
$1.68 / Each
|
|
|
729123 | Part of Kit 11 | Q48 | Upper Handlebar Set, Left, Panting, MM330, EP212 | No |
Compatibility List |
Out Of Stock |
|
|
701162 | 004079-A3 | U05 | Ball Bearing, 6006ZZ, 30X55X13T, TPI | No |
Compatibility List |
$27.04 / Each
|
|
|
711715 | 1000222974 | V01 | INSTRUCTIONAL LABE, COVER, , PC, FRONT | No |
Compatibility List |
$21.94 / Each
|
|
|
711716 | 1000222975 | V02 | INSTRUCTIONAL LABE, COVER, , PC, REAR | No |
Compatibility List |
$21.94 / Each
|
|
|
710990 | 1000215718 | V03 | SPEC LABEL, 10 LB, WEIGHT PLATE, BLACK, PC | No |
Compatibility List |
$25.32 / Each
|
|
|
|
723580 | 1000409123 | V04 | Direction Label, Weight Plate, 230lbs/140k | No |
Compatibility List |
$20.25 / Each
|
|
|
|
710996 | 1000215728 | V05 | DIRECTION LABEL, SEAT ADJUSTABLE, PC | No |
Compatibility List |
$3.35 / Each
|
|
|
711982 | 1000224661 | V06 | DIRECTION LABEL, ADJUSTIC, , PC, | No |
Compatibility List |
$3.35 / Each
|
|
|
728185 | 093501 | V08 | Warning sticker, small, GM40 KM | No |
Compatibility List |
$1.66 / Each
|
|
|
710982 | 1000215704 | V09 | MARKING, GM59 KM | No |
Compatibility List |
$1.66 / Each
|
|
|
711582 | 1000221799 | V13 | DIRECTION LABEL, AAW, , PC, | No |
Compatibility List |
$6.73 / Each
|
|
|
711962 | 1000224396 | V15 | INSTRUCTIONAL LABE, BASE TUBE, PC, DOWN, G | No |
Compatibility List |
$18.56 / Each
|
|
|
713028 | 1000232600 | V33 | Warning Label, , , , PC, , | No |
Compatibility List |
$7.28 / Each
|
|
|
726517 | 082535 | X33 | WASHER, FLT, Diam.8.2XDiam.38.0X2.0T, SPHC | No |
Compatibility List |
$1.66 / Each
|
|
|
708028 | 1000097854 | Z01 | WASHER, FLT, Diam.10.2XDiam.38X3.0T, SPHC | No |
Compatibility List |
$1.68 / Each
|
|
|
702117 | 005144-AC | Z02 | Washer, Flat, 10.2X35.0X2.0T, Chromed | No |
Compatibility List |
$2.00 / Each
|
|
|
704007 | 020098-AD | Z02 | Screw, Hex Socket, Round, M10x1.5Px70L, Cr | No |
Compatibility List |
$9.10 / Each
|
|
|
708051 | 1000098555 | Z02 | Washer, Flat, 30.3X45X2.0T, SPHC, WZN | No |
Compatibility List |
$1.02 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
705465 | 049256-AB | Z03 | Screw, Hex Socket, Round, M10x1.5Px20L, Cr | No |
Compatibility List |
$1.68 / Each
|
|
|
711000 | 1000215741 | Z03 | FIXED SET, , RD, PAINTING, , , GM63 | No |
Compatibility List |
$47.29 / Each
|
|
|
708052 | 1000098556 | Z04 | Washer, Wavy, 30.5X39.2X0.4T | No |
Compatibility List |
$1.02 / Each
|
|
|
701836 | 004855-AC | Z06 | Set Screw, M6X1.0PX4L | No |
Compatibility List |
$1.02 / Each
|
|
|
726707 | 084241 | Z06 | Screw Set, M6X1.0PX5L, BP, POT | No |
Compatibility List |
$1.02 / Each
|
|
|
728902 | 098577 | Z07 | SCREW HEX M8X1.25X35L | No |
Compatibility List |
$1.79 / Each
|
|
|
709073 | 1000108806 | Z11 | Screw, RND, M10x1.5Px15L, HS, CHM, BP, G12.9 | No |
Compatibility List |
$1.02 / Each
|
|
|
704022 | 020111-ZA | Z12 | Screw, Hex Socket, Round, M10x1.5Px125L(Too | No |
Compatibility List |
$6.73 / Each
|
|
|
703996 | 020081-00 | Z17 | Screw, SH, M8X1.25PX60L, HS, G12.9 | No |
Compatibility List |
$2.32 / Each
|
|
|
701851 | 004870-00 | Z19 | Screw, Plain Tapping, Rail Lock, 5x15L | No |
Compatibility List |
$0.48 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
709070 | 1000108803 | Z22 | Screw, RND, M5x0.8Px12L, HS, CHM, BP, G8.8 | No |
Compatibility List |
$1.02 / Each
|
|
|
721916 | 1000386527 | Z35 | Screw, Set Screw, M10X1.5PX10L, Hex Socket | No |
Compatibility List |
$1.66 / Each
|
|
|
707946 | 1000097206 | Z42 | Screw, SH, M8X1.25PX25L, HS, CHM, BP | No |
Compatibility List |
$1.68 / Each
|
|
|
708649 | 1000104672 | Z44 | Screw, BH, M5x0.8Px10L, HS, CST, CST, CST, CHM | No |
Compatibility List |
$1.02 / Each
|
|
|
vis4.5pull | 073573 | 4.5 Inch Pulley Cable (New) | No |
Compatibility List |
$36.99 / Each
|
||
|
vis3.5pull | 087513 | 3.5 Inch Pulley Cable (New) | Yes |
Compatibility List |
$24.99 / Each
|
Catalog #: 729120
MPN: Part of Kit 10
Lower Handlebar Set, Right, Panting, MM330, EP212
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
© 2026. All Rights Reserved.
