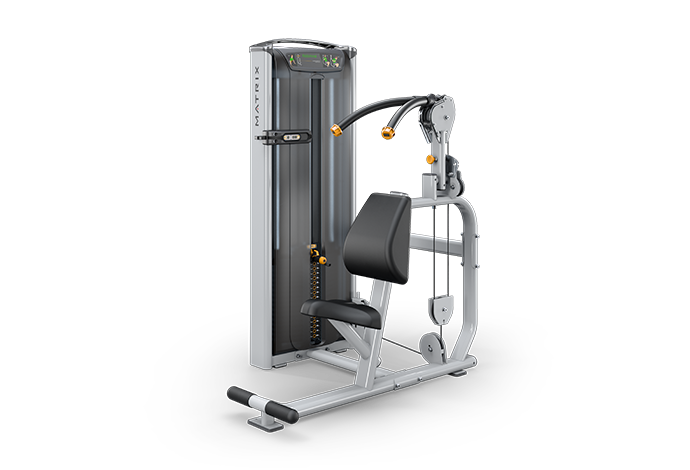

Matrix Commercial - VS-S53 - 2012

Repair Parts for Matrix Commercial VS-S53 VSGM68

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S53

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700450 001405-A Q05 End Cover;60 No Model Compatibility List $1.66 / Each

9
Q 700570 001679-00 Q44 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
Z 701508 004542-AC Z51 Screw;Hex Socket;Round;M10x1.5Px110L;Adh No Model Compatibility List $8.42 / Each

2
B 701660 004696-AB B14 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701851 004870-00 Z24 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
B 701901 004929-00 B28 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701911 004938-00 Z64 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 701916 004945-00 K47 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702011 005047-00 Z43 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702098 005130-00 Z60 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702117 005144-AC Z08 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702119 005145-AC B29 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 702299 005811-00 Q45 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
Z 703999 020085-00 Z04 Screw;Hex Socket;Round;M8x1.25Px20.0L;Ad No Model Compatibility List $1.79 / Each

2
704018 020107-ZA Z65 Screw;Hex Socket;Round;M10x1.5Px50L; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 704019 020108-ZAB Z41 Screw;Hex Socket;Round;M8x1.25Px90L;Zinc No Model Compatibility List $4.00 / Each

2
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
704181 020439-00 Z45 Washer;Flat;6.4X14.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 704193 020465-AB Z39 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
Z 705487 049288-AB Z50 WASHER;FLT;Diam.10.5XDiam.20.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707879 1000096575 N62 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
Z 707946 1000097206 Z62 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
Z 708036 1000098084 Z49 NUT;NLK;M4X0.7P;;ZINC;; No Model Compatibility List $1.79 / Each

2
708048 1000098549 D33 Bushing;30x25x20mm;GM44 No Model Compatibility List $10.82 / Each

8
708386 1000102584 Z09 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

2,3
B 708389 1000102593 B19 Stopper Plate;Pulley;Painting;GM40 No Model Compatibility List $6.73 / Each

8,3
C 708402 1000102675 C39 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

12,13,14
708443 1000102859 Z48 Screw;Hex Socket;Round;M4x0.7Px10L;Cr Pl No Model Compatibility List $0.52 / Each

2
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
Z 708675 1000104705 Z32 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

2
Z 708676 1000104707 Z11 Screw;Hex Socket;Round;M8x1.5Px125L;Adh No Model Compatibility List $3.35 / Each

2
Z 708730 1000105174 Z52 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
708742 1000105259 Z10 Screw;Round;M10x1.5Px105L;Hex Socket;G12 No Model Compatibility List $6.42 / Each

2
709041 1000108501 B16 Bushing;CON Rod;Peadel Arm;painting;GM40 No Model Compatibility List $2.78 / Each

8,3
709064 1000108796 Z61 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
L 709069 1000108801 L14 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
709070 1000108803 Z22 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.34 / Each

2
Z 709072 1000108805 Z30 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.79 / Each

2
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
B 709307 1000112985 B13 Elastomer;Weight Plate;GM59 No Model Compatibility List $16.87 / Each

3
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
K 709323 1000113106 K06 Tightwire Fix Pin;45#;GM59 No Model Compatibility List $37.93 / Each

4,5,6,12,13,14
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
5 709325 1000113110 5 Assistant Weight Plate Set;;GM59-KM No Model Compatibility List $223.05 / Each

3
L 709326 1000113111 L01 Incremental Weight Plate;-;GM59-KM;-;Pai No Model Compatibility List $42.22 / Each

3
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
7 709460 1000200250 7 SENSE ORGAN SET;-;-;;; No Model Compatibility List $142.35 / Each

1
B 709461 1000200252 B18 RUBBER;STOPPER;-;GM59; No Model Compatibility List $8.42 / Each

1
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B27 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
709980 1000205448 C47 PLASTIC COVER;-;-;-;;;GM59; No Model Compatibility List $3.64 / Each

9
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
3 710183 1000207218 3 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
C 710190 1000207249 C37 PLASTIC COVER;-;ABS;;;40X80;; No Model Compatibility List $1.66 / Each

9
L 710341 1000209576 L15 PLASTIC BASE;MAGNET;ABS;;FIXING;;; No Model Compatibility List $1.79 / Each

8,9,3
Q 710342 1000209577 Q07 PLASTIC BASE;REP COUNTER;-;;FIXING;;; No Model Compatibility List $11.80 / Each

9,3
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
C 710527 1000210866 C07 AXLE, CENTRAL;SWIVEL ARM;ZINCPLATE;; No Model Compatibility List $15.18 / Each

8,3
D 710528 1000210867 D04 ADJ PLATE;;;ZINCPLAT;;SPHC;6.0T;GM68-KM; No Model Compatibility List $40.53 / Each

3
A 710529 1000210869 AE1 GRIP ;GM68-KM; No Model Compatibility List $52.91 / Each

11
E 710530 1000210871 E04 PILLAR;PIN;GM68-KM; No Model Compatibility List $18.56 / Each

12,13,14
F 710556 1000210913 F01 STEEL ROPE;FRAME;;Diam.4.8X3489.5L;GM68- No Model Compatibility List $67.57 / Each

3
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
F 710666 1000212100 F02 STEEL ROPE;USER FRAME;;?X4.8X1744 No Model Compatibility List $54.73 / Each

3
710687 1000212396 F15 Fixing Plate;Cable Head;-;45#;BED;GM46; No Model Compatibility List $102.10 / Each

3,4,5,6
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
V 710990 1000215718 V03 SPEC LABEL;10 LB;WEIGHT PLATE;BLACK;PC;;; No Model Compatibility List $25.32 / Each

3,4,5,6
G 711000 1000215741 G03 FIXED SET;-;RD;PAINTING;-;-;GM63; No Model Compatibility List $47.29 / Each

1
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
G 711132 1000216939 G19 Protective Adhesive No Model Compatibility List $18.56 / Each

1
8 711251 1000218540 8 PREMIUM LEVEL;SA;;GM68-KM;;; No Model Compatibility List $388.67 / Each

3
D 711261 1000218700 D25 FIXING WHEEL;PULLEY;GM68 No Model Compatibility List $6.73 / Each

8
6 711365 1000220477 6 SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
D 711547 1000221186 D28 BLOCK;GRIP;CHM;;;GM68; No Model Compatibility List $52.36 / Each

11
D 711549 1000221228 D21 Sleeve;Pedal Arm;-;20#;GM68 No Model Compatibility List $13.49 / Each

8,9,3
B 711570 1000221624 B37 BLOCK;-;-;PAINTING;-;-;-; No Model Compatibility List $43.91 / Each

1
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
V 711845 1000223238 V01 INSTRUCTIONAL LABE;FRONT;;;;GM68-KM; No Model Compatibility List $21.94 / Each

1
V 711846 1000223239 V02 INSTRUCTIONAL LABE;REAR;;;;GM68-KM; No Model Compatibility List $21.94 / Each

1
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
A 712241 1000227612 AZ2 SUPPORT SEAT SET;SA;-;-;-;-; No Model Compatibility List $92.92 / Each

3,12,13,14
V 712247 1000227618 V06 decal guard No Model Compatibility List $1.66 / Each

7,9,3
712449 1000228969 AB1 FRAME SET;SA;SERVICE;GM68;;; No Model Compatibility List $554.29 / Each

3
2 712450 1000228970 2 PEDAL ARM SET;SA;SERVICE;GM68;;; No Model Compatibility List $253.47 / Each

8,9,3
A 712451 1000228971 AG1 DISASSEMBLY CONNECT SET;U;SERVICE;;; No Model Compatibility List $103.06 / Each

3
A 712452 1000228972 AG2 DISASSEMBLY CONNECT SET;D;SERVICE;;; No Model Compatibility List $87.85 / Each

3
G 712453 1000228973 G07 FIX SET;SA;;GM68;;; No Model Compatibility List $47.29 / Each

1
F 712454 1000228974 F11 TRANSMISSION SET;SERVICE;GM68;;; No Model Compatibility List $74.33 / Each

1
4 712455 1000228975 4 PULL PIN SET;SERVICE;GM68;;; No Model Compatibility List $50.67 / Each

12,13,14
712456 1000228976 1 USER FRAME SET;SA;SERVICE;GM68;;; No Model Compatibility List $449.51 / Each

3
C 712469 1000229017 C12 FIX SET;SA;PULLEY;GM68;;; No Model Compatibility List $64.19 / Each

8
N 712559 1000229510 N61 WIRE;DISPLAY BOARD;--;;;OKI HARBOR 2.5- No Model Compatibility List $14.59 / Each

4,5,6
B 712779 1000230611 B45 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
712810 1000230891 B35 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712934 1000231572 Z06 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
V 713028 1000232600 V10 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
Z 713033 1000232664 Z02 SCREW;SH;M6X1.0PX70L;;;HS;G12.9;CHM; No Model Compatibility List $1.85 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

8
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Z 713265 1000300541 Z01 Plug,mid,PVC,BLY10,Pedal Arm Grip,GM60,R No Model Compatibility List $1.66 / Each

8,9,3,11
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
B 717480 1000345425 B08 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
C 719252 1000358938 C40 Spring;Compression;1.2x12.9x65Lx12N;65 No Model Compatibility List $1.43 / Each

2
D 722295 1000390772 D15 Cover;Grip;;NYLON 6;Black 6C;127.1x132.9 No Model Compatibility List $7.25 / Each

9,4,5,6,11

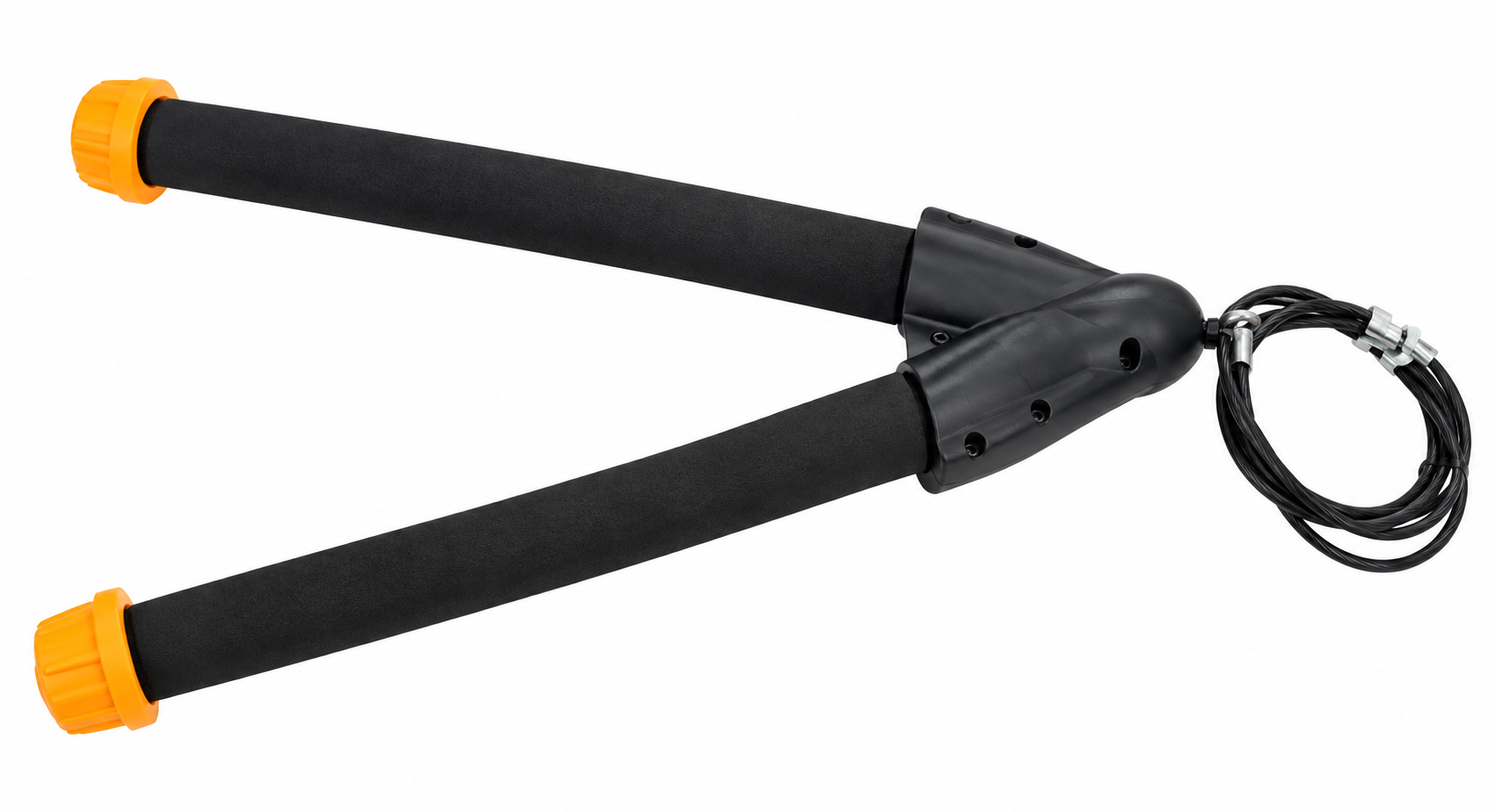

N 722656 1000397167 Not Shown Handle set;Semi-Assy;;;;;GM68;Service No Model Compatibility List $140.24 / Each

11
723580 1000409123 V04 Direction Label;Weight Plate;230lbs/140k No Model Compatibility List $20.25 / Each

3
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Foam;For50.8 Food Pad;PL01 727027 086732 G04 Foam;For50.8 Food Pad;PL01 No Model Compatibility List $17.76 / Each

12,13,14
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728998 Order Components Separately A05 Seat Post Adjustment Set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
729118 Part of Kit 1 AC1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AD3 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AK21 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 J23 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729191 Part of Kit 6 Q11 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 Q48 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729261 See Pad Matrix J27 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Q 729537 ZMS4001255 Q42 Battery, AA for console No Model Compatibility List $4.50 / Each

7
N 729641 ZMS4003253 Not Shown Decal, QR, VS-S53 Abdominal No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
