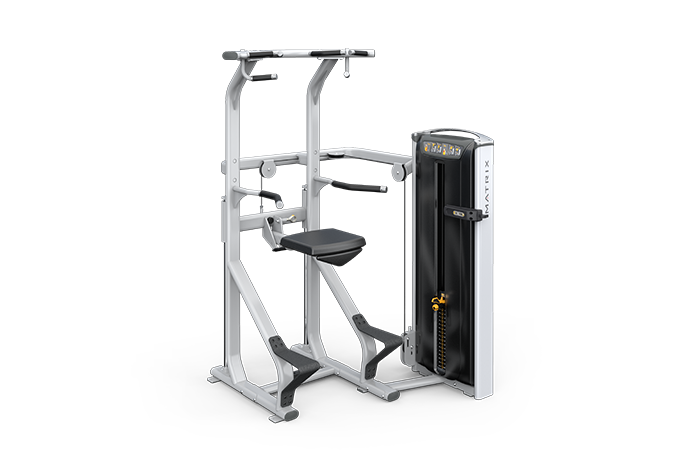

Matrix Commercial - VS-S601 - 2016

Repair Parts for Matrix Commercial VS-S601 GM104

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S601

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price

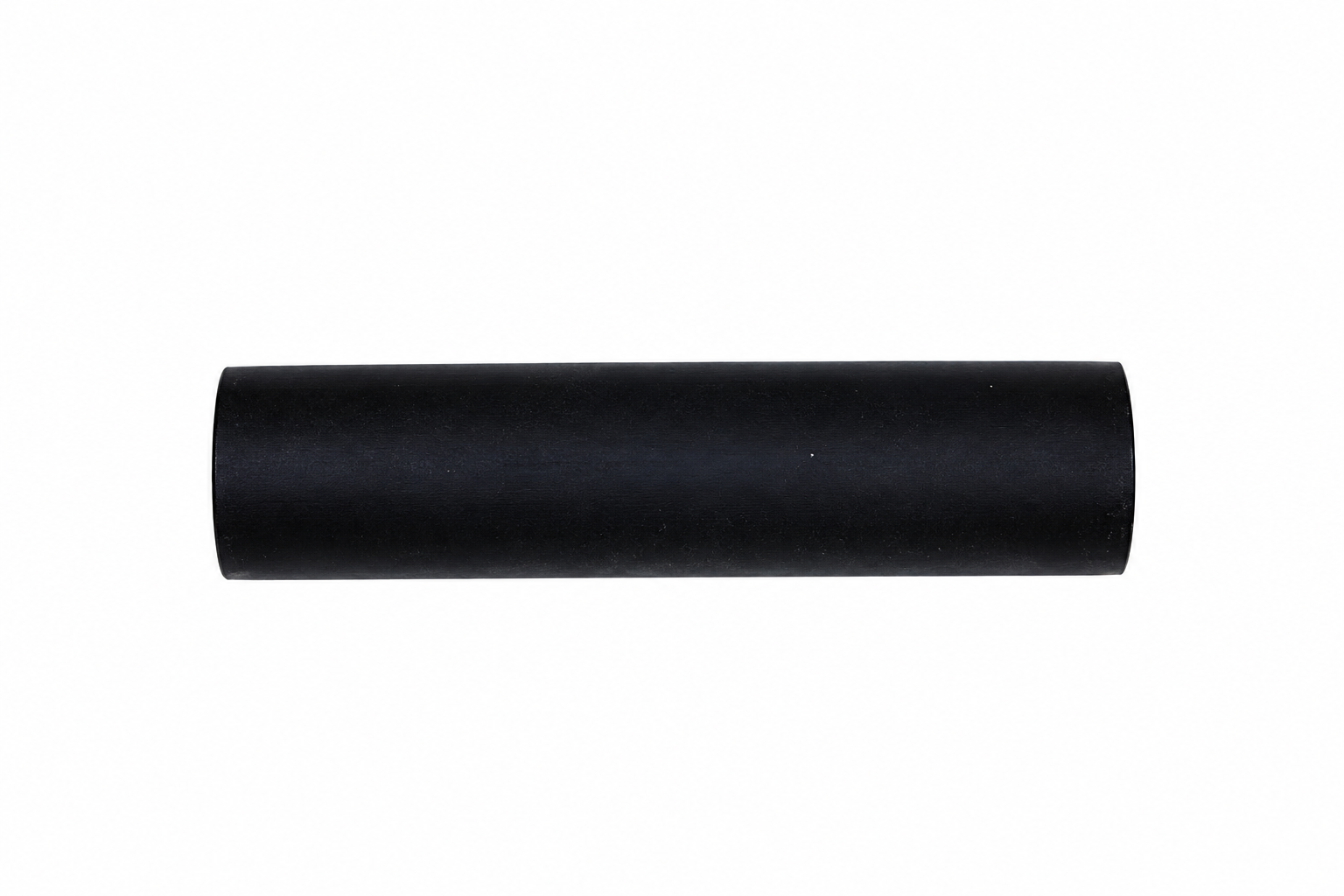

B 700186 000600-A B29 Foam Grip;31.8x5.0x450L No Model Compatibility List $19.47 / Each

11
700570 001679-00 Q44 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
B 701427 004476-Z B48 BOLT SH M8X16 No Model Compatibility List $1.66 / Each

2
Z 701522 004555-AB Z22 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701655 004694-00 B46 Screw;TH;M8X1.25PX10L;;Hex Socket;;Chrom No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 701744 004767-AB Z05 Screw;Hex Socket;BH;M8x1.25Px70L No Model Compatibility List $2.57 / Each

2
B 701901 004929-00 B39 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702085 005117-AB Z21 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702100 005131-00 Z15 Washer;Flat;10.5x18x2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702117 005144-AC Z60 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702119 005145-AC B42 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 702299 005811-00 Q45 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
D 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
C 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702720 009367-A K19 Pin;Spring;11X70L(65MN);GM21 No Model Compatibility List $2.73 / Each

2,12,13,14
C 702721 009371-E C26 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
B 704029 020117-AD B74 SCREW;SH;M10X1.5PX125L;;HS;;CHM;; No Model Compatibility List $5.04 / Each

2
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
B 704193 020465-AB B45 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 704217 020489-A B50 Washer;Arc;10.2x20.0x1.5t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 704218 020509-A K48 Washer;;Diam.12.5XDiam.25.0X1.0T;;Chrome No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
Z 705489 049293-B Z11 Washer;FLT;20.0X30.0X1.0T;TFN;; No Model Compatibility List $1.66 / Each

2
Z 707101 1000090321 Z24 Screw;BH;4X15L;TC;PH;G8.8;BAN;;POT No Model Compatibility List $1.85 / Each

2
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707861 1000096514 Q40 Control Board;Matrix;H102;S1.60;GM40 No Model Compatibility List $50.67 / Each

7
707879 1000096575 N62 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
Z 707946 1000097206 Z26 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708062 1000098704 G13 Stopper Pad;Black;GM43 No Model Compatibility List $8.24 / Each

4,5,6,12,13,14
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
B 708730 1000105174 B44 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
709064 1000108796 B43 Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 No Model Compatibility List $3.95 / Each

2
B 709067 1000108799 B62 Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 No Model Compatibility List $3.56 / Each

2
D 709069 1000108801 D17 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
709070 1000108803 L14 Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 No Model Compatibility List $0.34 / Each

2
Z 709073 1000108806 Z12 Screw;RND;M10x1.5Px15L;HS;CHM;BP;G12.9 No Model Compatibility List $0.88 / Each

2
V 709081 1000109127 V03 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
L 709324 1000113107 L02 Axis Sheath;Leader;GM59 No Model Compatibility List $12.97 / Each

1
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
709497 1000200716 B12 ELASTOMER;WEIGHT;RUBBER;;;;GM61; No Model Compatibility List $25.04 / Each

3
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B25 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
6 710182 1000207217 6 Wps;Superstratum;GM59 No Model Compatibility List $234.88 / Each

1
A 710183 1000207218 AK21 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
710340 1000209571 Q11 GripEnd;Cover;ADC12;;;ADC12; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6,11
L 710341 1000209576 L15 PLASTIC BASE;MAGNET;ABS;;FIXING;;; No Model Compatibility List $1.79 / Each

8,9,3
Q 710342 1000209577 Q07 PLASTIC BASE;REP COUNTER;-;;FIXING;;; No Model Compatibility List $11.80 / Each

9,3
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
L 710596 1000211166 L03 PLASTIC BASE;ADD WEIGHT PLATE;POM;;;;GM5 No Model Compatibility List $10.24 / Each

9,3
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
A 711007 1000215776 AK14 WPS set;axle sleeve;-;Extrawork,15LBS;GM No Model Compatibility List $64.19 / Each

8,3
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
711205 1000217603 N01 STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; No Model Compatibility List $3.35 / Each

1
A 711223 1000217858 AJ3 PIN SET;SA;ADJ SEAT ;PREMIUM;GM60;;;;; No Model Compatibility List $54.73 / Each

12,13,14
K 711249 1000218377 K31 WASHER;FLT;Diam.16.2XDiam.37.0X1.5T;-;BA No Model Compatibility List $1.33 / Each

2
S 711365 1000220477 Shield Set SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
V 712007 1000224911 V22 WARNING LABEL;FRENCH;SMALL;;;GM01; No Model Compatibility List $3.35 / Each

1
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
N 712559 1000229510 N61 WIRE;DISPLAY BOARD;--;;;OKI HARBOR 2.5- No Model Compatibility List $14.59 / Each

4,5,6
B 712779 1000230611 B10 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
B 712934 1000231572 B71 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

8
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
719682 1000363760 V33 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V33 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
C 720322 1000371560 C18 Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. No Model Compatibility List $6.73 / Each

9
M 720328 1000371650 M10 Pin;Bolt;Rt;SPHC;3.0T;CHM;GM104-KM; No Model Compatibility List $20.25 / Each

2,12,13,14
720331 1000371671 G05 Cushion;;;PU;;;FW320; No Model Compatibility List $70.95 / Each

3
M 720341 1000371829 M09 Guide Rod;;Long;40CRMO;;GM104;30x1248L; No Model Compatibility List $219.67 / Each

3
Z 720342 1000371831 Z03 Steel Rope;Transimission Set;;;Diam.6.0x No Model Compatibility List $168.97 / Each

1
J 720345 1000371862 J16 Axle, Swivel;Swivel Axle;Down;40CRMO;Chr No Model Compatibility List $18.56 / Each

7,8,12,13,14
N 720346 1000371871 Not Shown Hardware Set;Semi-Assy;;;;GM104-KM; No Model Compatibility List $50.67 / Each

1
N 720347 1000371894 Not Shown Label set;Semi-Assy;;;;GM104-KM; No Model Compatibility List $32.08 / Each

1
V 720495 1000373248 V01 Instructional Labe;;;;;Front;; No Model Compatibility List $11.80 / Each

1
V 720496 1000373249 V02 Instructional Labe;;;;;Rear;; No Model Compatibility List $11.80 / Each

1
V 720497 1000373253 V34 EN LABEL;;GM104-KM;;PC;;; No Model Compatibility List $1.66 / Each

1
B 720912 1000378258 B59 Air Stick;;30KG;Diam.22.5XDiam.10X300;;; No Model Compatibility List $20.25 / Each
Out Of Stock 		1
720927 1000378504 B35 Screw;Set Screw;M10X1.5PX65L;;Hex Socket No Model Compatibility List $0.00 / Each
Out Of Stock 		2
C 720976 1000379026 C02 Pedal-Extrawork;;;PU Spray-On;8.0T;GM104 No Model Compatibility List $118.27 / Each

8,9

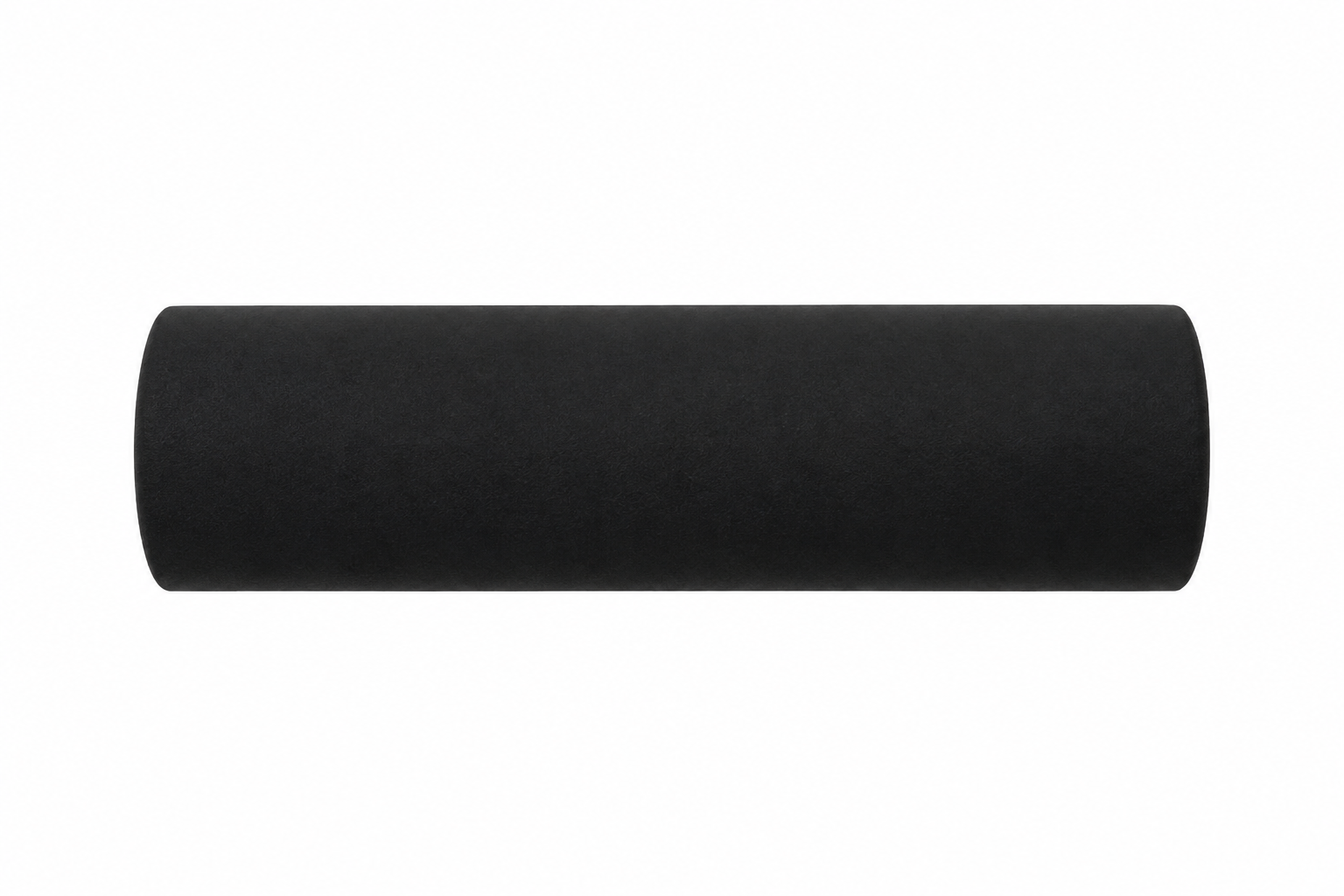

B 720986 1000379292 B20 Foam;;;24x5.0tx120L;Grip;GM104-KM No Model Compatibility List $6.73 / Each

11
B 720987 1000379293 B21 Foam;;;24x5.0tx235L;Grip;GM104-KM No Model Compatibility List $10.11 / Each

11
N 721049 1000380074 Not Shown Premium Level;Semi-Assy;;;;GM104-KM;; No Model Compatibility List $356.56 / Each

3
B 721304 1000381696 B58 Rubber Sleeve;Guide Rod;down;NBR;;;GM104 No Model Compatibility List $5.04 / Each

3
V 721571 1000384331 V04 Weight Plate Decal;Weight Plate;205lbs;; No Model Compatibility List $18.56 / Each

7,3
R 722260 1000390201 Rep Counter Set SENSE ORGAN SET;;right;;;GM61/GM64/GM65/ No Model Compatibility List $168.97 / Each

1
K 722503 1000393190 K06 Fixing Pin;Rop;;45#;Chrome;GM101-KM;27. No Model Compatibility List $20.25 / Each

7,12,13,14
N 722520 1000393356 Not Shown Manual;Fram Manual;;;NA and Europe;GM105 No Model Compatibility List $27.01 / Each

1
N 722521 1000393370 Not Shown Manual;Assembly;;NA/EU;;GM104 No Model Compatibility List $27.01 / Each

3
B 722551 1000393973 B37 block;Cover;;painting;;Iced Sliver;GM59; No Model Compatibility List $1.66 / Each

9
722570 1000394128 G55 Fixing Plate;;RD;painting;;Iced Sliver;G No Model Compatibility List $5.04 / Each

3
B 722579 1000394412 B63 Lock Block;Sung Base;;20#;Chrome;GM104-K No Model Compatibility List $16.87 / Each

7,3,12,13,14
B 722580 1000394413 B68 Cushion;;;NBR;;Diam.60x12;GM104-KM; No Model Compatibility List $6.73 / Each

3
722648 1000396859 L01 Increment Weight Plate;;;;;Iced Sliver;G No Model Compatibility List $167.28 / Each

3
722650 1000396915 K47 Nut;Nylon;M14x2.0P;Grade 12.9;Chrome; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
V 722737 1000398264 V01 Instructional Labe;Cover;;;PC;Front;Fren No Model Compatibility List $11.80 / Each

9
V 722738 1000398265 V02 Instructional Labe;Cover;;;PC;Rear;Frenc No Model Compatibility List $11.80 / Each

9
N 722898 1000399995 Not Shown Label set;Semi-Assy;;;;French;GM104; No Model Compatibility List $32.08 / Each

1
722927 1000400656 1 Frame Set;Semi-Assy;right;Iced Sliver;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722928 1000400657 AB2 Frame Set;;R;painting;;Iced Sliver;GM104 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722929 1000400670 2 Frame Set;Semi-Assy;left;Iced Sliver;;;G No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722930 1000400671 AB1 Frame Set;;L;painting;;Iced Sliver;GM104 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
3 722931 1000400684 3 Handlebar Set;Semi-Assy;up;Iced Sliver;; No Model Compatibility List $456.27 / Each

11
722932 1000400685 AB9 Handlebar Set;;U;painting;;Iced Sliver;G No Model Compatibility List $0.00 / Each
Out Of Stock 		11
722933 1000400699 AG5 Connecting Set;;D;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722934 1000400706 AG4 Connecting Set;Base Seat;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722935 1000400713 AG2 Connecting Set;;Rear;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722936 1000400720 AM11 Lift set;Semi-Assy;;Iced Sliver;;;GM104; No Model Compatibility List $1.30 / Each

10
722937 1000400734 AG1 Connecting Set;;D;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722938 1000400741 AJ11 Seat set;Semi-Assy;;Iced Sliver;;;GM104; No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
722940 1000400757 AB4 Frame Set;;;painting;;Iced Sliver;GM104; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
723675 1000411665 AJ4 Seat Pull Pin Set;Semi-Assy;;;;;GM104;hi No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
725265 103406 Z16 Washer;Flat;8.2x20.0x1.8t;Cr Plat; No Model Compatibility List $0.21 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
727020 086711 D21 Foam;Grip;25.4x3.0x517;GM28-D21 No Model Compatibility List $9.41 / Each

11
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
727890 091881 B66 Screw;SH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $1.20 / Each

2
Warning sticker;small;GM40-KM 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.66 / Each

1
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $25.90 / Each

11
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728917 098979 B16 Sleeve;CON Dode;Peadel Arm;45#;GM40 No Model Compatibility List $3.35 / Each

3
729261 See Pad Matrix J26 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729888 ZMS4007176 Not Shown Decal, QR, VS-S601 Chin/Dip Assist No Model Compatibility List $5.04 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
