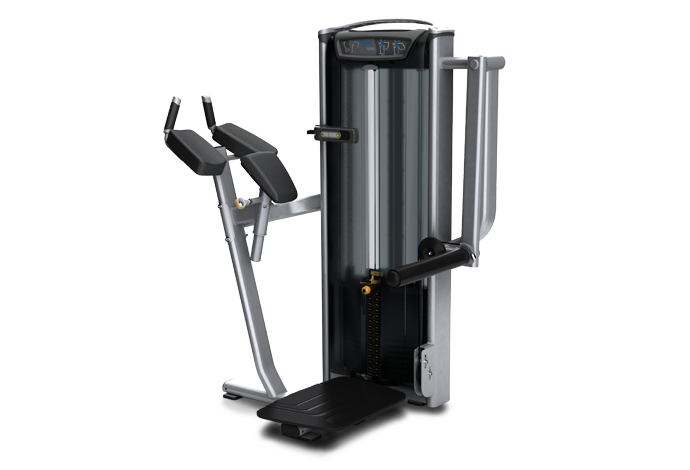

Matrix Commercial - VS-S78 - 2012

Repair Parts for Matrix Commercial VS-S78 VSGM73

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VS-S78

Version: 2012

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700450 001405-A Q25 End Cover;60 No Model Compatibility List $1.66 / Each

9
Q 700570 001679-00 Q44 Tie Strap;Adhesive;Nylon;66;HC-101;W No Model Compatibility List $2.81 / Each

2
Z 701162 004079-A3 Z01 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
701513 004549-00 Z09 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $6.27 / Each

2
Z 701529 004561-00 Z13 Screw;Plain Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701660 004696-AB Z12 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701836 004855-AC Z50 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701851 004870-00 Z24 Screw;Plain Tapping;Rail Lock;5x15L No Model Compatibility List $1.59 / Each

2,9,12,13,14
Z 701901 004929-00 Z10 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 701916 004945-00 K47 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702011 005047-00 Z53 Washer;Flat;8.2x20x1.8T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Z 702109 005138-A Z21 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702117 005144-AC B48 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702119 005145-AC Z11 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Q 702299 005811-00 Q45 Cable Tie;Nylon;Black;160L No Model Compatibility List $1.51 / Each

2,4,5,6
D 702711 009356-B D21 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
C 702721 009371-E C26 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
703996 020081-00 Z27 Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 No Model Compatibility List $1.01 / Each

2
B 704004 020096-00 B46 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
C 704039 020126-DB C51 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Z 704079 020196-A Z23 Screw;Phillip;BH;Tapped;3x6L;;Zn-BL No Model Compatibility List $4.00 / Each

2
D 704145 020329-00 D26 Set Screw;M6X1.0PX12L No Model Compatibility List $0.21 / Each

2
Z 704193 020465-AB Z25 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 705313 040816-A Z66 Screw;Phillip;BH;Tapped;3x8L; No Model Compatibility List $2.00 / Each

2
C 705487 049288-AB C13 WASHER;FLT;Diam.10.5XDiam.20.0X2.0T;;CHM No Model Compatibility List $1.66 / Each

2
707772 1000094941 J51 Chest pad;Black;Vesicant;GM43-KM No Model Compatibility List $35.46 / Each

4,5,6,12,13,14
707831 1000096026 B32 Fixing Base;Sensor;ABS;GM40 No Model Compatibility List $8.32 / Each

3
707879 1000096575 N62 Overlay;Manipulate;GM40 No Model Compatibility List $2.44 / Each

1
Z 707946 1000097206 Z71 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

2
708033 1000098051 C21 Bearing Cover;Base;ABS;GM40 No Model Compatibility List $8.24 / Each

8,9,3
708095 1000099592 J02 Fixing Base;Chest Pad;GM43 No Model Compatibility List $38.32 / Each

3,12,13,14
A 708322 1000102057 AH04 Support Set;Chest Pad;Welding;GM55 No Model Compatibility List $118.27 / Each

3,12,13,14
B 708389 1000102593 B18 Stopper Plate;Pulley;Painting;GM40 No Model Compatibility List $6.73 / Each

8,3
H 708402 1000102675 H03 Stopper Block;Pull Pin;GM43 No Model Compatibility List $7.02 / Each

12,13,14
708406 1000102686 J15 Cap End;ADJ Tube;GM43 No Model Compatibility List $1.82 / Each

9,3
K 708486 1000102912 K44 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K38 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
Z 708649 1000104672 Z44 Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; No Model Compatibility List $0.60 / Each

2
Z 708676 1000104707 Z06 Screw;Hex Socket;Round;M8x1.5Px125L;Adh No Model Compatibility List $3.35 / Each

2
Z 708730 1000105174 Z03 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

2
709048 1000108698 9 Grip Set;Arm;GM42 No Model Compatibility List $101.37 / Each

3,11
L 709069 1000108801 L14 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

2
709130 1000110206 V23 Decal;Chest Pad ADJ;GM55-KM No Model Compatibility List $7.12 / Each

7,3,12,13,14
709206 1000111093 J14 Sleeve;Adj Tube;GM55-KM No Model Compatibility List $5.15 / Each

3
B 709306 1000112984 B17 Elastomer;Assistant Weight Plate;GM59 No Model Compatibility List $1.43 / Each

3
K 709322 1000113102 K07 Guide Rod;SUS304;Diam.6X1421.7;GM59 No Model Compatibility List $64.61 / Each

3
K 709323 1000113106 K06 Tightwire Fix Pin;45#;GM59 No Model Compatibility List $37.93 / Each

4,5,6,12,13,14
1 709325 1000113110 10 Assistant Weight Plate Set;;GM59-KM No Model Compatibility List $223.05 / Each

3
Q 709327 1000113113 Q01 Cover;Up;ABS;GM59 No Model Compatibility List $58.06 / Each

9
Q 709328 1000113114 Q02 Cover;Front;Clarity ABS;GM59 No Model Compatibility List $375.70 / Each

9
7 709460 1000200250 7 SENSE ORGAN SET;-;-;;; No Model Compatibility List $142.35 / Each

1
L 709462 1000200264 L05 GRIPE;ABS+TPR ;GM59; No Model Compatibility List $12.19 / Each

11
709497 1000200716 B12 ELASTOMER;WEIGHT;RUBBER;;;;GM61; No Model Compatibility List $25.04 / Each

3
L 709632 1000201802 L10 PULL PIN SET;WPS;GM62;-; No Model Compatibility List $72.57 / Each

12,13,14
709718 1000202352 K17 Cushion;Guide Rod No Model Compatibility List $8.42 / Each

3
709919 1000204728 B35 FIXING PLATE;ROPE WHEEL;;;SPHC;;;GM59-KM No Model Compatibility List $3.35 / Each

8,3
K 709946 1000204997 K15 Steel;Weight Plate;Up;1080 Spring Steel; No Model Compatibility List $3.35 / Each

2,3
D 709951 1000205039 D56 PLASTIC PAD;PEDAL;RUBBER;7547;GM64-KM;;; No Model Compatibility List $84.47 / Each

8,9,12,13,14
709980 1000205448 C47 PLASTIC COVER;-;-;-;;;GM59; No Model Compatibility List $3.64 / Each

9
A 710180 1000207211 AK18 Wps Set;Assistant;GM59; No Model Compatibility List $57.43 / Each

1
L 710181 1000207213 L11 COVER;INCREMENTAL WEIGHT;ABS;-;-;-; No Model Compatibility List $9.33 / Each

9,3
5 710183 1000207218 5 Wps Set;Superstratum;Paint;GM59; No Model Compatibility List $168.97 / Each

1
C 710190 1000207249 C37 PLASTIC COVER;-;ABS;;;40X80;; No Model Compatibility List $1.66 / Each

9
L 710341 1000209576 L15 PLASTIC BASE;MAGNET;ABS;;FIXING;;; No Model Compatibility List $1.79 / Each

8,9,3
Q 710342 1000209577 Q07 PLASTIC BASE;REP COUNTER;-;;FIXING;;; No Model Compatibility List $11.80 / Each

9,3
Q 710346 1000209591 Q12 PLASTIC BAR;-;PVC;-;LABEL;;; No Model Compatibility List $8.42 / Each

9
Q 710347 1000209593 Q09 END CAP;ACCENT; No Model Compatibility List $1.66 / Each

9,4,5,6
K 710350 1000209625 K37 GUIDE ROD;45;-;WEGHT PLATE; No Model Compatibility List $154.28 / Each

3
F 710465 1000210425 F05 STEEL ROPE;;;Diam.4.8X3661L;GM73; No Model Compatibility List $76.65 / Each

1
D 710466 1000210427 D07 FOAM;ELASTOMER;Diam.60X8TX494L;GM73;PEDA No Model Compatibility List $70.95 / Each

1
4 710468 1000210472 4 PIN SET;SA;#ADJUSTABLEVALUE LINE#;GM73;; No Model Compatibility List $50.67 / Each

12,13,14
710475 1000210485 L04 SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; No Model Compatibility List $1.66 / Each

2
K 710976 1000215659 K42 BUSHING;GUIDE ROD;POM;;; No Model Compatibility List $22.41 / Each

8,3
A 710977 1000215667 AK13 Weight Plate;axle sleeve;-;Extrawork,10LBS;GM No Model Compatibility List $64.19 / Each

8,3
V 710982 1000215704 V05 MARKING;;;;;GM59-KM; No Model Compatibility List $1.66 / Each

1
V 710990 1000215718 V03 SPEC LABEL;10 LB;WEIGHT PLATE;BLACK;PC;;; No Model Compatibility List $25.32 / Each

3,4,5,6
G 711000 1000215741 G67 FIXED SET;-;RD;PAINTING;-;-;GM63; No Model Compatibility List $47.29 / Each

1
B 711014 1000215843 B34 PLASTIC PLATE;FRAME;CR;-;;;; No Model Compatibility List $1.66 / Each

9,3
B 711015 1000215844 B36 Guide Rod fitting, Chromed No Model Compatibility List $1.87 / Each

7,3,12,13,14
D 711233 1000217980 D23 GRIP;-;EPDM;;;GM69; No Model Compatibility List $6.73 / Each

11
8 711263 1000219087 8 PIN SET;SA;-;GM73;-;-; No Model Compatibility List $84.47 / Each

12,13,14
711276 1000219389 11 PREMIUM LEVEL;SA;-;GM73;-;-; No Model Compatibility List $388.67 / Each

3
D 711280 1000219411 D35 PEDAL;-;D;PAINTING;-;-;GM73; No Model Compatibility List $136.86 / Each

8,9
6 711365 1000220477 6 SHIELD SET;U;GM59;-; No Model Compatibility List $264.63 / Each

3
B 711570 1000221624 B13 BLOCK;-;-;PAINTING;-;-;-; No Model Compatibility List $43.91 / Each

1
V 711582 1000221799 V13 DIRECTION LABEL;AAW;-;PC;-;; No Model Compatibility List $6.73 / Each

1
V 711852 1000223274 V01 INSTRUCTIONAL LABE;-;-;-;FRONT;GM73; No Model Compatibility List $21.94 / Each

1
V 711853 1000223275 V02 INSTRUCTIONAL LABE;-;-;-;REAR;GM73; No Model Compatibility List $21.94 / Each

1
Q 711994 1000224767 Q10 Plastic Cover;-;-;PP;-;-;-;- No Model Compatibility List $1.66 / Each

9
L 712009 1000224913 L28 Cushion;Aaw;Nbr;Bl; No Model Compatibility List $1.66 / Each

3
A 712241 1000227612 AZ2 SUPPORT SEAT SET;SA;-;-;-;-; No Model Compatibility List $92.92 / Each

3,12,13,14
712416 1000228771 1 FRAME SET;SA;-;GM73###;-;-; No Model Compatibility List $750.33 / Each

3
712417 1000228772 2 USER FRAME SET;SA;-;GM73;##;-;-; No Model Compatibility List $299.10 / Each

3
3 712418 1000228773 3 PEDAL ARM SET;SA;-;GM73;##;-;-; No Model Compatibility List $337.97 / Each

8,9,3
A 712419 1000228774 AG3 PEDAL SET;SA;-;GM73;##;-;-; No Model Compatibility List $135.17 / Each

8,9
A 712420 1000228776 AG1 DISASSEMBLY CONNECT SET;SA;U;GM73;##;-;- No Model Compatibility List $84.47 / Each

3
A 712421 1000228777 AG2 DISASSEMBLY CONNECT SET;SA;D;GM73;##;-;- No Model Compatibility List $92.92 / Each

3
N 712559 1000229510 N61 WIRE;DISPLAY BOARD;--;;;OKI HARBOR 2.5- No Model Compatibility List $14.59 / Each

4,5,6
B 712779 1000230611 B10 SUPPORT PLATE;WHEEL;;;SPHC;CHM;GM59; No Model Compatibility List $16.87 / Each

8,3
712810 1000230891 B38 SCREW;SET;M10X1.5PX65L;FLATHEADED;HS;;;C No Model Compatibility List $3.35 / Each

2
Z 712934 1000231572 Z04 SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; No Model Compatibility List $2.00 / Each

2
713056 1000232864 L31 PERMANENT MAGNET;-;1500##;##; No Model Compatibility List $7.28 / Each

8
B 713129 1000233200 B76 PLASTIC COVER;;NBR;BL;;;; No Model Compatibility List $1.66 / Each

9
F 713188 1000300002 F14 Fixing Cap;Guide Rail;;PP;BL/Black C;18x No Model Compatibility List $1.66 / Each

9,4,5,6
Q 713453 1000303486 Q13 Clamp;Cover;- No Model Compatibility List $1.66 / Each

9,4,5,6
B 713460 1000303546 B06 Plastic Pad;Foot Pad;-;PP;BL427 No Model Compatibility List $3.35 / Each

9,3,12,13,14
Z 721916 1000386527 Z30 Screw;Set Screw;M10X1.5PX10L;;Hex Socket No Model Compatibility List $1.66 / Each

2
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
725362 070571 L38 Washer;Flat;5.2X10.0X1.5T;;CHM; No Model Compatibility List $0.49 / Each

2
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Cover;Pulley;GM27 727454 089358 Q03 Cover;Pulley;GM27 No Model Compatibility List $4.26 / Each

8,9
Stopper BlockRubber;GM30 727687 090440 H08 Stopper BlockRubber;GM30 No Model Compatibility List $2.73 / Each

1
728719 096165 H19 Adjustment Grip Set;Semi-Assy;;;;GM44;; No Model Compatibility List $25.90 / Each

11
728725 096208 D12 Adjustment Handle Lower Stopper Ring No Model Compatibility List $12.30 / Each

11
728726 096209 D15 Cap;Grip;Peadal Arm;ADC12;GM42 No Model Compatibility List $15.11 / Each

9,3,4,5,6,11
SCREW HEX M8X1.25X35L 728902 098577 Z07 SCREW HEX M8X1.25X35L No Model Compatibility List $1.79 / Each

2
728917 098979 B16 Sleeve;CON Dode;Peadel Arm;45#;GM40 No Model Compatibility List $3.35 / Each

3
728998 Order Components Separately A05 Seat Post Adjustment Set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729120 Part of Kit 10 Q48 Lower Handlebar Set;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AD1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 J23 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729168 Part of Kit 4 or 8 D09 AXLE;45;CHM;PULL PIN 1;GM61 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
729172 Part of Kit 5 AK21 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 Q11 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729197 Part of Kit 8 J22 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 D54 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729261 See Pad Matrix C16 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
Q 729537 ZMS4001255 Q42 Battery, AA for console No Model Compatibility List $4.50 / Each

7
729639 ZMS4003251 Not Shown Decal, QR, VS-S78 Glute No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
