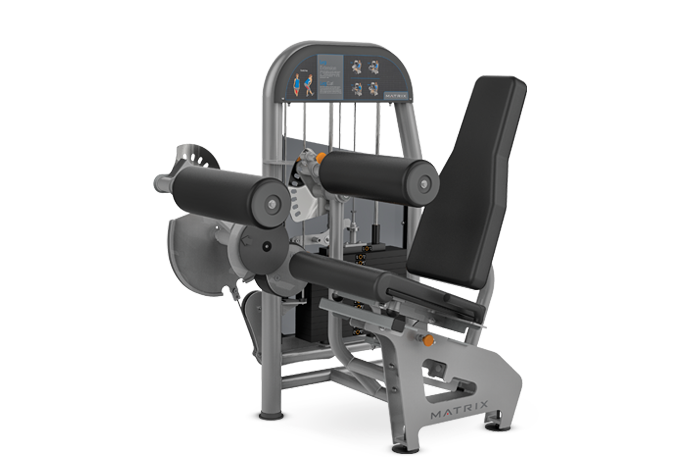

Matrix Commercial - VY-2040 - 2013

Repair Parts for Matrix Commercial VY-2040 VYGM360

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-2040

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B10 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713807 1000308418 B63 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
M 713811 1000308424 Main Frame 3 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713818 1000308436 Z68 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z85 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713821 1000308439 Z76 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713822 1000308440 J34 8" CRR - 3 1/4" No Model Compatibility List $152.10 / Each

1
713823 1000308441 Z74 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 713826 1000308444 Z67 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z66 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z30 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V92 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
M 713938 1000309842 Main Frame 1 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713943 1000309851 Z83 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z75 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713948 1000309856 B37 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z70 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z60 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z80 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713959 1000309942 B16 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B17 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Z 713967 1000309953 Z95 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713986 1000310083 B64 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713987 1000310084 B4 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713990 1000310087 B31 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
713998 1000310097 Z82 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
W 714016 1000310219 Weight Stack Guard 2 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
B 714018 1000310273 B19 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 B35 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714028 1000310304 B32 1/4" x 1/4" x 3/4" KEY No Model Compatibility List $36.48 / Each

9
714029 1000310305 Z78 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 B29 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714031 1000310307 Z77 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
B 714033 1000310313 Banana 8 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B46 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Mini WS 6 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714044 1000310346 V90 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714079 1000311963 Z79 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714102 1000312086 Z81 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714120 1000312143 Z69 1/4" x 1/2" BOLT No Model Compatibility List $1.43 / Each

2
714122 1000312149 Z96 3/8-16 x 1" SSS No Model Compatibility List $2.18 / Each

1
B 714156 1000312237 B18 3" FOOT No Model Compatibility List $16.87 / Each

9,3
B 714178 1000312302 B39 3/8" FLANGE BUSHING - 3/8" No Model Compatibility List $3.28 / Each

8
714181 1000312308 B50 1" SPLIT COLLAR No Model Compatibility List $16.87 / Each

1
714183 1000312312 B55 Ball Joint No Model Compatibility List $6.73 / Each

1
714188 1000312324 B22 Pulley; No Model Compatibility List $18.56 / Each

8
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714264 1000312974 Mini WS 5 1/2" RUBBER BUMPER No Model Compatibility List $6.73 / Each

1
714302 1000313470 V93 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714479 1000315298 Z88 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714519 1000315589 B36 7ga PLASMA (31.5 sq.in.) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714523 1000315610 B33 RANGE LIMITER COVER No Model Compatibility List $54.05 / Each

9
714538 1000315894 V91 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
B 714711 1000317552 B56 20# Long SHOCK No Model Compatibility List $45.60 / Each

1
714718 1000317624 Mini WS 7 Mini Weight Stack Center Stick No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714722 1000317635 Banana 1 LEFT BANANA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714726 1000317649 Mini WS 3 2" x 4" F.S. - 2 9/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714727 1000317679 B43 1/4" PLASMA - 39.8 SQ IN No Model Compatibility List $219.67 / Each

1

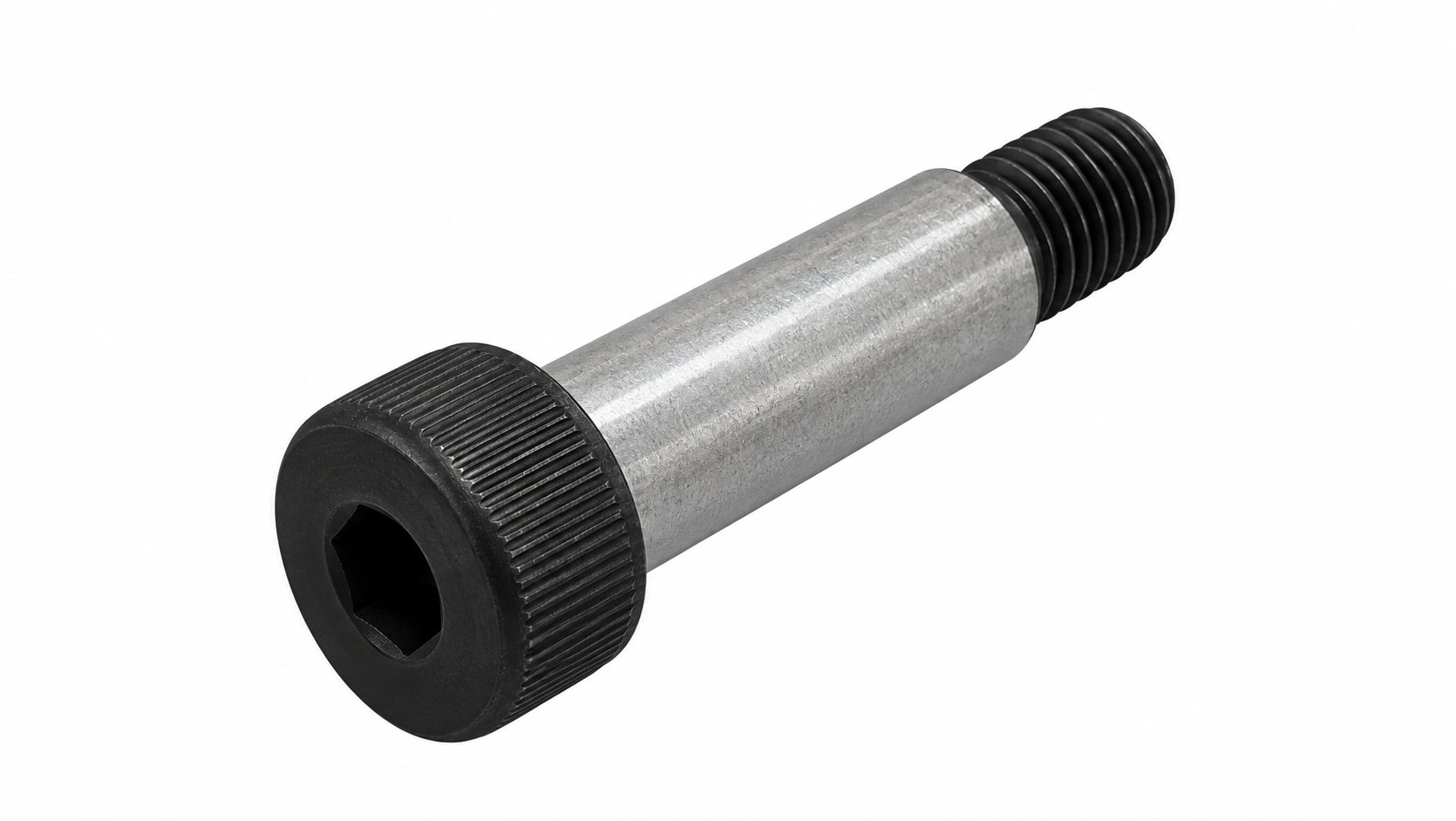

714728 1000317712 Banana 7 3/8" SHOULDER BOLT - 1" No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714729 1000317713 Banana 4 1/2" x 1 1/4" SHOULDER BOLT No Model Compatibility List $6.73 / Each

2
714731 1000317715 Mini WS 8 3/8" Eye Bolt;2 1/2"; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714732 1000317716 B41 GUARD - UPPER PULLEY No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
714733 1000317717 B42 GUARD - Placard Side No Model Compatibility List $126.72 / Each

9,3,4,5,6
714734 1000317718 Weight Stack Guard 3 Weight Stack Guard No Model Compatibility List $287.27 / Each

9,3,4,5,6

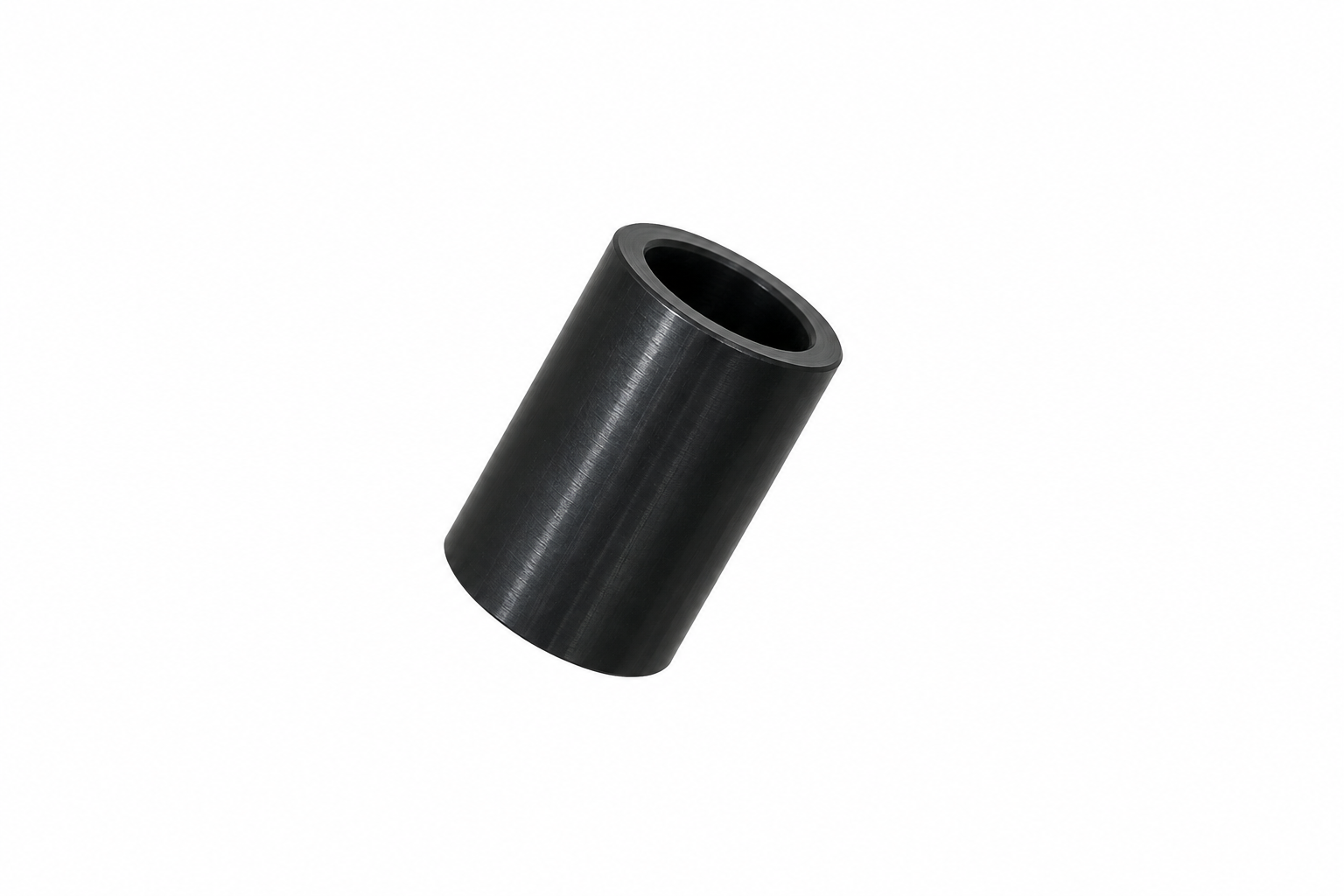

714735 1000317720 Mini WS 9 Bushing No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714736 1000317722 Mini WS 4 3/8" Shaft Collar No Model Compatibility List $0.00 / Each
Out Of Stock 		3

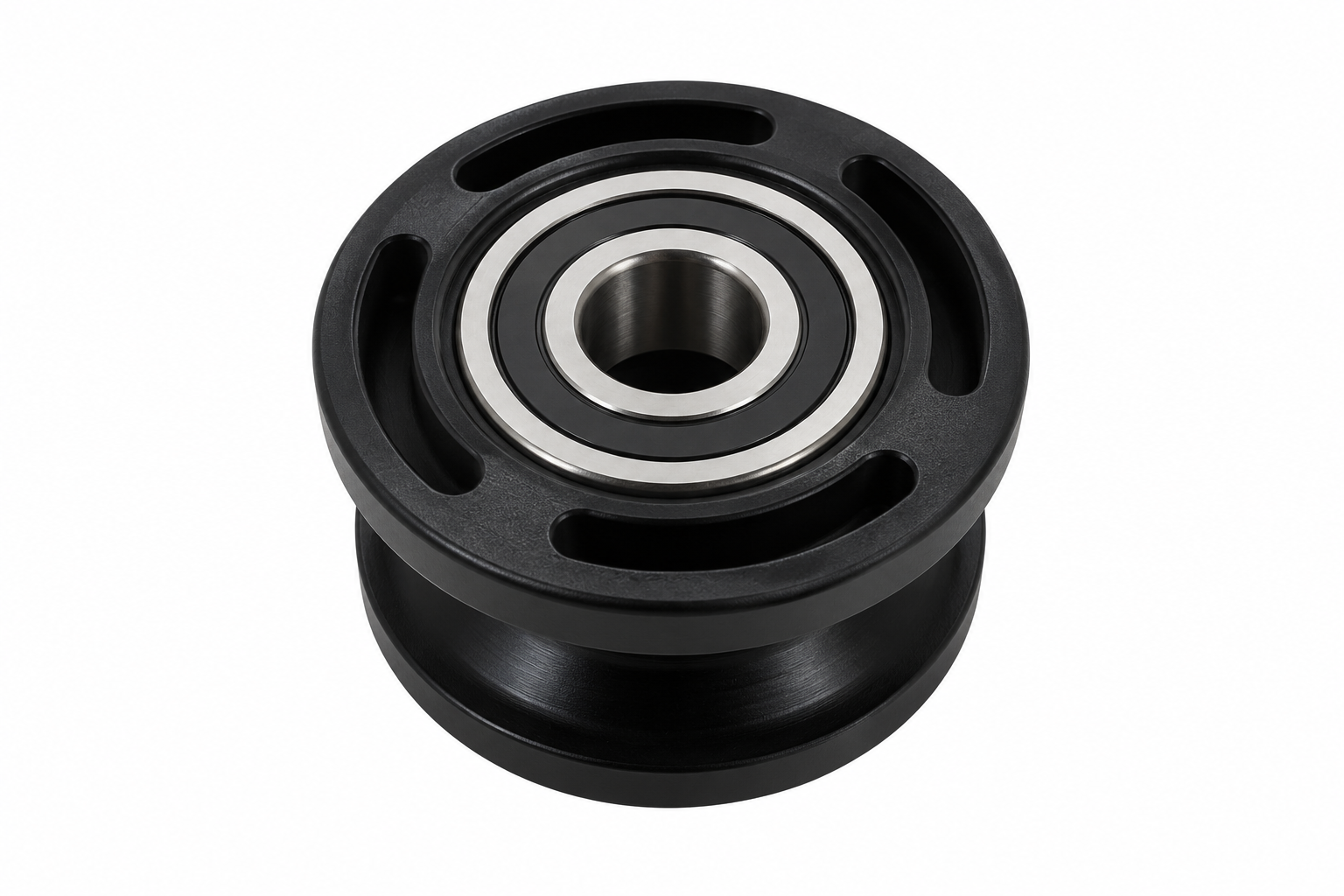

714737 1000317723 Banana 2 ROLLER w/ BEARING No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714739 1000317726 V99 2000 Series Add On Plate Number Set No Model Compatibility List $10.56 / Each

3
714740 1000317727 B47 5/8" RUBBER GROMMET No Model Compatibility List $9.49 / Each

2
715264 1000321944 Weight Stack 8 WEIGHT PLATE 20# W_BUSHINGS 18.4 X 4.3X No Model Compatibility List $103.06 / Each

8,3
715524 1000324990 V94 Label, Rom 6010 C-Clockwise No Model Compatibility List $0.00 / Each
Out Of Stock 		1
715796 1000328403 V87 900 STACK DECALS, MEDIUM No Model Compatibility List $16.87 / Each

7,3,4,5,6
716178 1000334055 Weight Stack Guard S 2000 TOWER SERIES WEIGHT STACK GUARD;Right No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
716179 1000334056 V95 2040 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716197 1000334604 AB3 2040 CAM ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716198 1000334605 AB3 2040 CAM ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716199 1000334606 AB3 2040 CAM ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716204 1000334630 AB7 2040 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716205 1000334631 AB7 2040 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716206 1000334632 AB7 2040 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716207 1000334643 AB8 2040 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716208 1000334644 AB8 2040 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716209 1000334645 AB8 2040 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716210 1000334656 AB9 BACK REST ADJUSTMENT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716211 1000334657 AB9 BACK REST ADJUSTMENT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716212 1000334658 AB9 BACK REST ADJUSTMENT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716213 1000334669 AB11 1/2" x 2" F.S. - 14 7/8" No Model Compatibility List $131.79 / Each

1
716214 1000334670 AB14 WELDMENT; ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
716215 1000334671 AB14 WELDMENT; ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716216 1000334672 AB14 WELDMENT; ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716217 1000334696 AB24 WELDMENT; AXLE/ROM PLATE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
716218 1000334697 AB24 WELDMENT; AXLE/ROM PLATE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716219 1000334698 AB24 WELDMENT; AXLE/ROM PLATE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716221 1000334709 AB25 WELDMENT; ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
716222 1000334710 AB25 WELDMENT; ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716223 1000334711 AB25 WELDMENT; ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716224 1000334735 B13 7ga PLASMA - 54.5 sq in CR No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716225 1000334736 B26 1/4" PLASMA - 103.7 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716226 1000334737 B27 10ga PLASMA - 104.1 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716227 1000334738 B44 5/8" GUIDE ROD - 41" No Model Compatibility List $121.65 / Each

3
716228 1000334739 Mini WS Set MINI WEIGHT STACK No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716229 1000334740 B48 1" CRR - 4 1/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716230 1000334741 B53 Cable Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716231 1000334742 B57 1" x 2" F.S. - 2 1/2" No Model Compatibility List $131.79 / Each

1
716232 1000334744 B61 1/4" x 1 1/2" F.S. - 3" No Model Compatibility List $74.33 / Each

1
716233 1000334745 B65 1/2" x 1 1/2" F.S. - 2" No Model Compatibility List $74.33 / Each

1
716234 1000334762 V95 2040 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716235 1000334769 Z5 WASHER; 1.875 O.D. X 1.25 I.D. No Model Compatibility List $0.00 / Each
Out Of Stock 		2
716236 1000334770 Z73 SCREW;FH;.375-16 x 1.75;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
716324 1000335417 Main Frame 4 Weldment;Main Frame; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716362 1000335665 Mini WS 1 3/8" GUIDE ROD - 34 1/2" No Model Compatibility List $52.36 / Each

3
716405 1000336509 B59 1" LINEAR SHAFT - 16" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716426 1000336625 AB2 WELDMENT; MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716427 1000336626 AB2 WELDMENT; MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716428 1000336627 AB2 WELDMENT; MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717083 1000341350 Mini WS 2 Top Weight Plate;Mini WS; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717377 1000344562 V91 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717395 1000344757 V96 Decal;Lower ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717500 1000345600 B52 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717627 1000346330 Main Frame Set Main Frame Set No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717779 1000347532 B28 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717890 1000348353 V98 Decal;Upper ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717958 1000349035 V97 Decal;Mid ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
718273 1000349840 Banana 10 5/16" Flange Nut No Model Compatibility List $1.33 / Each

2
718986 1000354914 B38 1.25" Grip;9.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719646 1000363406 AB1 2040 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719647 1000363407 AB1 2040 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719648 1000363408 AB1 2040 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719682 1000363760 V89 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V89 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719767 1000365257 Weight Stack 7 WELDMENT; BAYONET No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719768 1000365258 Weight Stack Set WEIGHT STACK 270# 13+1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720423 1000372410 AB23 WELDMENT; MAIN SWING ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720424 1000372411 AB23 WELDMENT; MAIN SWING ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720425 1000372412 AB23 WELDMENT; MAIN SWING ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720993 1000379407 B94 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721572 1000384347 Banana Set MINI WEIGHT STACK LEFT ASSY No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722833 1000398814 AB6 WELDMENT; SEAT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722834 1000398815 AB6 WELDMENT; SEAT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722835 1000398816 AB6 WELDMENT; SEAT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
724945 1000431873 AB54 SEAT BACK ADJUSTMENT BRACKET;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
724946 1000431874 AB54 SEAT BACK ADJUSTMENT BRACKET;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
724947 1000431885 AB54 SEAT BACK ADJUSTMENT BRACKET;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6,12,13,14
729261 See Pad Matrix J21 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
