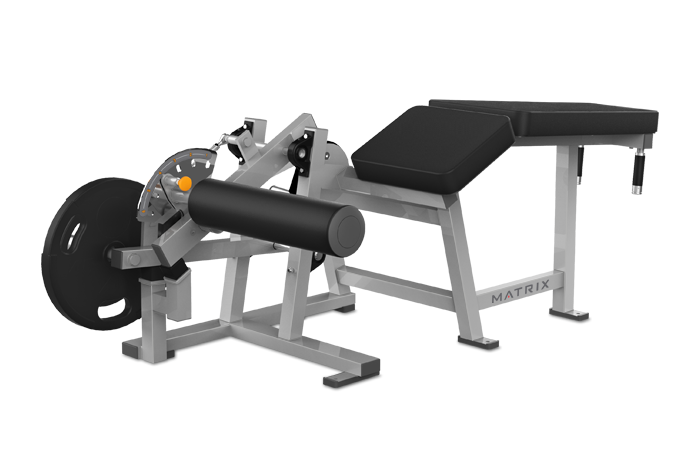

Matrix Commercial - VY-402-02 - 2013

Repair Parts for Matrix Commercial VY-402-02 VYPL65

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: VY-402-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
R 713500 1000304394 Roller Pad 5 Bousing;Round Pad;-;PVC;60x52x30.1L;GM No Model Compatibility List $1.66 / Each

12,13,14
713801 1000308375 B10 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 B47 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z21 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B35 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B34 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
713809 1000308420 B12 2" x 2" RUBBER BUMPER No Model Compatibility List $18.56 / Each

1
Z 713814 1000308428 Z42 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z23 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
713817 1000308435 Z22 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
Z 713818 1000308436 Z43 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z46 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713820 1000308438 Z44 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
713823 1000308441 Z39 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713827 1000308445 Z45 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
B 713833 1000308451 B25 5" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
B 713834 1000308452 B24 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713835 1000308453 Z38 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
713838 1000308466 B13 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B33 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V52 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713936 1000309837 B17 Ball Joint No Model Compatibility List $67.57 / Each

1
Z 713939 1000309846 Z36 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
Z 713940 1000309847 Z15 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713948 1000309856 B32 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z41 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z54 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713956 1000309931 J4 Chest Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
713958 1000309938 J5 Leg Pad No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
713963 1000309947 Z16 1/2" 20 Zinc Jam Nut No Model Compatibility List $2.55 / Each

2
713966 1000309950 Z19 1/2" 20 Left Hand Thread Jam Nut No Model Compatibility List $6.73 / Each

7,2,12,13,14
714022 1000310286 B9 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714459 1000315094 V53 Label;21lb Starting Resistance;Rev B No Model Compatibility List $5.04 / Each

10
714460 1000315095 V48 Label, Rom 6002 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714538 1000315894 V49 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714764 1000318101 Kit 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
714828 1000318495 Roller Pad 4 STOPPER RING;CAP No Model Compatibility List $16.87 / Each

9
714829 1000318497 Roller Pad 8 WASHER FENDER M8 No Model Compatibility List $3.02 / Each

2,9
714953 1000320079 J31 6"OD Counter Weight, Large No Model Compatibility List $160.52 / Each

3
715989 1000330488 B18 Ball Joint (Female Half)(Threaded Left H No Model Compatibility List $69.26 / Each

7,12,13,14
717377 1000344562 V49 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717455 1000345268 Roller Pad 7 BHSCS 3/8-16 x 1"; No Model Compatibility List $3.02 / Each

1
719578 1000362647 B30 3/16" PLASMA - CHROMED No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719680 1000363753 V50 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V50 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720551 1000373585 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720552 1000373586 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720553 1000373587 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720554 1000373600 AB2 Weight Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720555 1000373601 AB2 Weight Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720556 1000373602 AB2 Weight Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720557 1000373614 B11 3/4"OD x 7/16"ID PIPE - 8";Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720558 1000373615 B11 3/4"OD x 7/16"ID PIPE - 8";Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720559 1000373616 B11 3/4"OD x 7/16"ID PIPE - 8";Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720560 1000373629 AB3 Hammer Assy;402;Iced Silver No Model Compatibility List $768.92 / Each

1
720561 1000373630 AB3 Arm Sub Assembly;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720562 1000373631 AB3 Arm Sub Assembly;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720563 1000373644 AB7 Weldment, Roller 402;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
720564 1000373645 AB7 Weldment, Roller 402;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
720565 1000373646 AB7 Weldment, Roller 402;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
720993 1000379407 B6 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 V51 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729062 Order Roller Pad Set Roller Pad 1 Order Roller Pad Set No Model Compatibility List $0.00 / Each
Out Of Stock 		8,12,13,14
729261 See Pad Matrix Roller Pad Set Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
