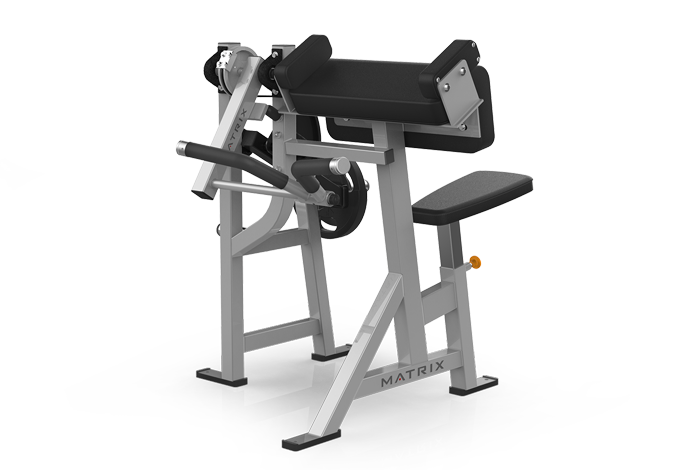

Matrix Commercial - VY-431-02 - 2013

Repair Parts for Matrix Commercial VY-431-02 VYPL68YY

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: VY-431-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B4 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 B51 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z9 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B6 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B10 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
713809 1000308420 B5 2" x 2" RUBBER BUMPER No Model Compatibility List $18.56 / Each

1
B 713810 1000308421 B27 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B11 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z35 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z52 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z34 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713820 1000308438 Z29 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
713824 1000308442 Z55 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z33 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z12 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
B 713834 1000308452 B15 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
713838 1000308466 B17 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

3
713839 1000308467 B18 End cap - weight horn No Model Compatibility List $5.90 / Each

9,3
713840 1000308469 K2 CAP, END TUBE, 25.4MM ID No Model Compatibility List $11.80 / Each

9,3
V 713842 1000308473 V48 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
B 713938 1000309842 B8 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
Z 713939 1000309846 Z21 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
Z 713940 1000309847 Z54 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713943 1000309851 Z32 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z36 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z58 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
Z 713967 1000309953 Z39 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
713996 1000310095 B56 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z57 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z31 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z28 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714029 1000310305 Z14 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
Z 714127 1000312161 Z60 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714176 1000312298 B53 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714302 1000313470 V50 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714459 1000315094 V47 Label;21lb Starting Resistance;Rev B No Model Compatibility List $5.04 / Each

10
714538 1000315894 V44 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714589 1000316282 V45 DECAL,MATRIX LOGO 6.5 X .56(166MM) No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714672 1000316932 K3 1" Grip;Order by 1" increments No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714716 1000317588 B42 CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714764 1000318101 Kit 1 HAND GRIP 1.0" 0-12"LONG No Model Compatibility List $45.60 / Each

11
716313 1000335318 B22 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717316 1000343914 B7 1 1/2" x 1 1/2" END CAP No Model Compatibility List $3.02 / Each

9
717377 1000344562 V44 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717779 1000347532 B38 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719680 1000363753 V43 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719681 1000363756 V43 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720237 1000369933 K1 Tube Collar;25.4MM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720698 1000374801 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720699 1000374802 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720700 1000374803 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720701 1000374815 AB40 Seat Post;Chrome No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
720702 1000374817 AB37 Weldment, Pivot, Threaded Adjustment;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,3,12,13,14
720703 1000374818 AB37 Weldment, Pivot, Threaded Adjustment;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,3,4,5,6,12,13,14
720704 1000374819 AB37 Weldment, Pivot, Threaded Adjustment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		7,8,3,4,5,6,12,13,14
720705 1000374832 AB3 Weight Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720706 1000374833 AB3 Weight Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720707 1000374834 AB3 Weight Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720708 1000374847 AB2 Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720709 1000374848 AB2 Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720710 1000374849 AB2 Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720711 1000374862 AB26 WELDMENT, HANDLE, J431;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
720712 1000374863 AB26 WELDMENT, HANDLE, J431;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
720713 1000374864 AB26 WELDMENT, HANDLE, J431;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
721051 1000380091 Z30 SCREW;HH;.500-13 x 8.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721552 1000384006 V46 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
729261 See Pad Matrix J59 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
