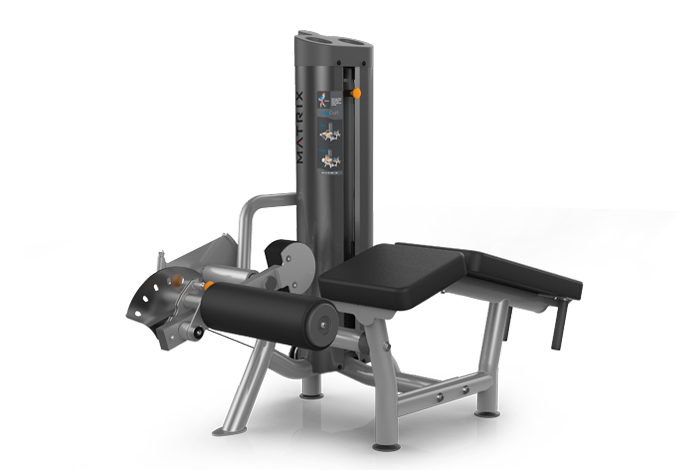

Matrix Commercial - VY-6002-02 - 2013

Repair Parts for Matrix Commercial VY-6002-02 VYGM310

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6002-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B17 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713807 1000308418 B16 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
Z 713814 1000308428 Z39 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z44 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z32 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713823 1000308441 Z50 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713835 1000308453 Z46 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V69 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z33 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713948 1000309856 B8 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z47 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z45 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713959 1000309942 B26 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B27 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Z 713967 1000309953 Z48 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713987 1000310084 B20 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713989 1000310086 Z18 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B19 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z52 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713997 1000310096 Z30 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713999 1000310101 B64 1/4" x 1 1/2" F.S. - 2 1/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714001 1000310103 Z49 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714002 1000310104 Z34 SCREW;HH;.500-13 x 1.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 714016 1000310219 Z31 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B14 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B25 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 AB5 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714024 1000310289 B23 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z36 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B15 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714029 1000310305 Z35 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 B22 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714034 1000310314 Z51 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B61 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714039 1000310338 B57 5/8" GUIDE ROD - 46 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714040 1000310339 B58 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714044 1000310346 V66 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714083 1000312026 B54 1.25" Grip;7" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
Z 714094 1000312064 Z37 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z40 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
Z 714235 1000312700 Z43 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B28 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714460 1000315095 V70 Label, Rom 6002 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714465 1000315136 V73 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714475 1000315275 B55 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714476 1000315276 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 150# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714477 1000315295 Z38 SCREW;HH;.313-18 x 4.00;ZN; No Model Compatibility List $3.85 / Each

2
714538 1000315894 V68 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714953 1000320079 B9 6"OD Counter Weight, Large No Model Compatibility List $160.52 / Each

3
715589 1000326590 V71 6002 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715590 1000326591 V71 6002 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716403 1000336505 Z53 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
717148 1000341986 B12 6000 GUARD - 47 5/16 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717377 1000344562 V68 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z73 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B29 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B65 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B21 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719300 1000359440 B56 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719578 1000362647 B10 3/16" PLASMA - CHROMED No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719682 1000363760 V67 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V67 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719728 1000364330 Weight Stack 7 Weldment;Cable Pivot;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
719803 1000365773 B24 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720725 1000375388 B13 1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
720993 1000379407 B7 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721951 1000386770 B11 3/4" x 1 1/2" F.S. - 1 1/4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721968 1000386883 AB2 WELDMENT, SEAT FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
721969 1000386884 AB2 WELDMENT, SEAT FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721970 1000386885 AB2 WELDMENT, SEAT FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
721971 1000386898 AB1 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721972 1000386899 AB1 WELDMENT, MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721973 1000386900 AB1 WELDMENT, MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721974 1000386913 AB6 6002 HAMMER SUB ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721975 1000386914 AB6 6002 HAMMER SUB ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721976 1000386915 AB6 6002 HAMMER SUB ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721977 1000386927 AB4 6040 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
721978 1000386928 AB4 6040 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
721979 1000386929 AB4 6040 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
721980 1000386942 AB3 6002/7002 CAM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721981 1000386943 AB3 6002/7002 CAM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721982 1000386944 AB3 6002/7002 CAM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
729261 See Pad Matrix J63 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
