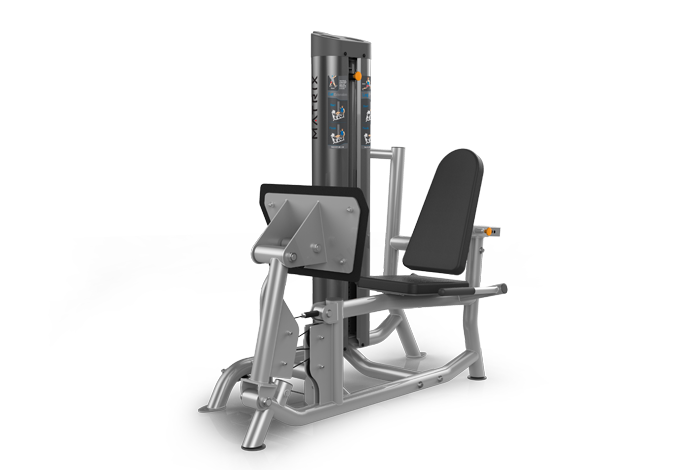

Matrix Commercial - VY-6003-02 - 2013

Repair Parts for Matrix Commercial VY-6003-02 VYGM311

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6003-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B30 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z28 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B23 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B24 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B74 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B27 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B8 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z46 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z26 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z32 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z41 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
713825 1000308443 Z49 SCREW;FH;.375-16 x 1.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713826 1000308444 Z33 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
V 713842 1000308473 V68 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z37 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z43 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z45 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z31 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713954 1000309910 B9 1" CRR - 6" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
713955 1000309930 B25 SET COLLAR - 1"ID No Model Compatibility List $59.12 / Each

1
Z 713967 1000309953 Z35 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
713969 1000309973 B10 1" CRR - 4 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
B 713986 1000310083 B21 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 713991 1000310088 Z48 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713996 1000310095 B18 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z63 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z36 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z40 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B16 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B31 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714024 1000310289 B20 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714026 1000310302 B22 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714030 1000310306 B78 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714034 1000310314 Z44 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B17 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B56 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z39 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714088 1000312042 B54 1.25" Grip;7.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714093 1000312062 Z75 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714098 1000312072 Z34 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
714109 1000312099 Z38 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z47 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B19 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B15 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V69 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714451 1000314828 B57 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714465 1000315136 V72 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714478 1000315296 Z42 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $3.35 / Each

2
714482 1000315319 B61 CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714483 1000315323 B11 1" CRR - 8 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714484 1000315356 V67 6000 STACK DECALS, HEAVY No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6
714485 1000315357 V70 6003 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714486 1000315358 V71 6003 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V65 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715591 1000326664 V70 6003 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715592 1000326671 V71 6003 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715593 1000326678 Weight Stack Set WEIGHT STACK 6003 CRIMP CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716313 1000335318 B62 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717377 1000344562 V65 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z76 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B60 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717520 1000345726 B13 Plate;Leg Press;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717650 1000346601 B55 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B29 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B12 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B12 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B12 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718299 1000350329 AB6 Seat Post w/ ROM Decal;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
718300 1000350330 AB6 Seat Post w/ ROM Decal;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
718301 1000350331 AB6 Seat Post w/ ROM Decal;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,4,5,6,12,13,14
719230 1000358061 B75 Screw;Set;.250-20 x 0.3125 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719300 1000359440 B59 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719302 1000359445 B7 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V66 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V66 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B73 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V64 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722010 1000387128 AB2 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722011 1000387129 AB2 WELDMENT, MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722012 1000387130 AB2 WELDMENT, MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722013 1000387144 AB3 WELDMENT, LEG PRESS PIVOT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
722014 1000387145 AB3 WELDMENT, LEG PRESS PIVOT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722015 1000387146 AB3 WELDMENT, LEG PRESS PIVOT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722016 1000387159 B5 Pivot Arm Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
722017 1000387160 B5 Pivot Arm Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722018 1000387161 B5 Pivot Arm Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722019 1000387174 B4 Leg Press Platform Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722020 1000387175 B4 Leg Press Platform Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722021 1000387176 B4 Leg Press Platform Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722022 1000387189 AB1 WELDMENT, WEIGHT STACK;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722023 1000387190 AB1 WELDMENT, WEIGHT STACK;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722024 1000387191 AB1 WELDMENT, WEIGHT STACK;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722025 1000387203 B14 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722026 1000387204 Weight Stack 7 CENTER STICK, CABLE - 18 PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J53 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
