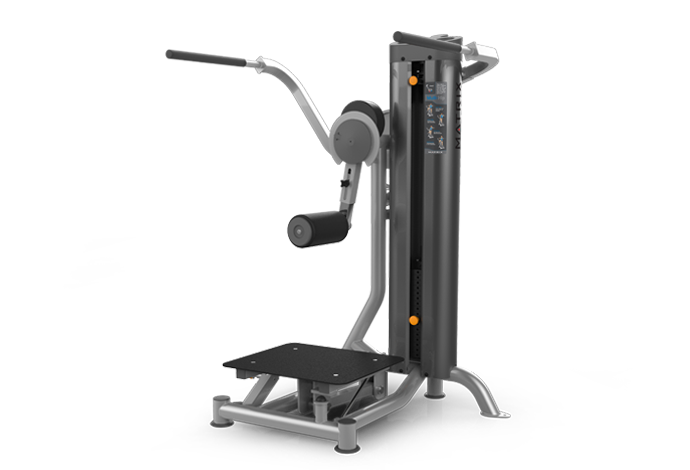

Matrix Commercial - VY-6010-02 - 2013

Repair Parts for Matrix Commercial VY-6010-02 VYGM312

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6010-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B49 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B19 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B52 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B18 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z39 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z22 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z29 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713824 1000308442 Z90 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z25 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z45 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V77 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713940 1000309847 Z62 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713941 1000309848 Z30 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
713943 1000309851 Z28 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z86 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z88 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713959 1000309942 B14 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B15 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713961 1000309945 B82 8" CRR - 3 1/4" No Model Compatibility List $174.04 / Each

1
Z 713967 1000309953 Z21 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713986 1000310083 B20 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713987 1000310084 B43 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713989 1000310086 B85 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B46 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
714003 1000310105 B58 1 3/4" x 1 3/4" F.S. - 1 3/4" No Model Compatibility List $65.88 / Each

1
B 714004 1000310106 B96 STAR HANDLE No Model Compatibility List $60.22 / Each

11
714009 1000310116 Weight Stack 5 Take-up Bolt Slotted HHCS 1_2-13 x 3 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714017 1000310270 B35 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
714019 1000310277 AB26 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714026 1000310302 B37 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714030 1000310306 B44 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
B 714032 1000310308 B17 4" FOOT (LONG) No Model Compatibility List $18.23 / Each

9,3
Z 714033 1000310313 Z42 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z41 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B59 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B69 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714044 1000310346 V76 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714052 1000310559 B64 Lever Lock Pin Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714058 1000310652 B50 1" CRR - 5" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714079 1000311963 Z27 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 714089 1000312044 B65 MASTER LINK No Model Compatibility List $10.11 / Each

3
714093 1000312062 Z87 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714107 1000312095 Z32 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
714108 1000312097 Z31 SCREW;HH;.500-13 x 3.75;ZN; No Model Compatibility List $5.04 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z40 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B51 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
B 714154 1000312235 B66 PLASTISOL ENVELOPE No Model Compatibility List $5.46 / Each

1
B 714176 1000312298 B61 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
B 714178 1000312302 B83 3/8" FLANGE BUSHING - 3/8" No Model Compatibility List $3.28 / Each

8
714183 1000312312 B86 Ball Joint No Model Compatibility List $6.73 / Each

1
Z 714235 1000312700 Z24 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z98 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B13 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V81 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
B 714349 1000313917 B55 1 1/4" ID - 20 1/2" Rubber Grip (9" With No Model Compatibility List $36.48 / Each

11
714451 1000314828 B68 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714465 1000315136 V73 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714479 1000315298 V97 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714523 1000315610 B48 RANGE LIMITER COVER No Model Compatibility List $54.05 / Each

9
714538 1000315894 V74 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714729 1000317713 Z63 1/2" x 1 1/4" SHOULDER BOLT No Model Compatibility List $6.73 / Each

2
715265 1000321947 Z57 SCREW;FH;.500-13 x 1.50;ZN; No Model Compatibility List $5.04 / Each

2
715522 1000324942 B71 CABLE 6010 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715523 1000324989 V78 Label, Rom 6010 Clockwise No Model Compatibility List $0.00 / Each
Out Of Stock 		1
715524 1000324990 V79 Label, Rom 6010 C-Clockwise No Model Compatibility List $0.00 / Each
Out Of Stock 		1
715525 1000324991 V80 6010 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
716054 1000331645 Z84 BOLT; SHOULDER; 3/8"-16 x 1.25" No Model Compatibility List $0.00 / Each
Out Of Stock 		2
716134 1000333200 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716135 1000333201 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716136 1000333202 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716146 1000333337 V80 6010 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716403 1000336505 B92 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
716406 1000336510 B84 1.127ID x 1.377OD x 1" BRASS BUSHING No Model Compatibility List $18.23 / Each

8
717377 1000344562 V74 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z97 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717456 1000345269 B54 Shock No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717500 1000345600 B36 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B72 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B47 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719230 1000358061 Z96 Screw;Set;.250-20 x 0.3125 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719246 1000358344 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V75 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V75 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B81 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720298 1000371230 Z56 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
720725 1000375388 B93 1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721999 1000387051 B94 1" CRR;1 1/8"; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722025 1000387203 B16 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722037 1000387335 AB4 WELDMENT, ROM ADJ;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722038 1000387336 AB4 WELDMENT, ROM ADJ;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722039 1000387337 AB4 WELDMENT, ROM ADJ;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722040 1000387349 AB5 2" x 2" .109 Wall Tube - 11 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722041 1000387351 AB3 WELDMENT; LINK ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722042 1000387352 AB3 WELDMENT; LINK ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722043 1000387353 AB3 WELDMENT; LINK ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722044 1000387365 B7 D-plate - 22" x 26" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722045 1000387367 AB2 WELDMENT; PLATFORM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722046 1000387368 AB2 WELDMENT; PLATFORM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722047 1000387369 AB2 WELDMENT; PLATFORM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722048 1000387381 AB9 ROLLER BRACKET;Chrome No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,8,3,4,5,6,12,13,14
722049 1000387397 AB6 Slide Housing Assembly;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722050 1000387398 AB6 Slide Housing Assembly;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722051 1000387399 AB6 Slide Housing Assembly;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722052 1000387412 AB60 WELDMENT; ADJ HANDEL;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722053 1000387413 AB60 WELDMENT; ADJ HANDEL;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722054 1000387414 AB60 WELDMENT; ADJ HANDEL;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722055 1000387426 AB8 WELDMENT; ROM AXLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
722056 1000387428 AB12 Weldment, Cam Assembly, J6010;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722057 1000387429 AB12 Weldment, Cam Assembly, J6010;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722058 1000387430 AB12 Weldment, Cam Assembly, J6010;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722059 1000387443 AB10 WELDMENT; LEFT ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722060 1000387444 AB10 WELDMENT; LEFT ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722061 1000387445 AB10 WELDMENT; LEFT ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722062 1000387458 AB11 WELDMENT; RIGHT ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722063 1000387459 AB11 WELDMENT; RIGHT ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722064 1000387460 AB11 WELDMENT; RIGHT ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722065 1000387472 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722066 1000387473 B53 1/4" Plasma (36 sq. in.);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722067 1000387474 B53 1/4" Plasma;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722068 1000387475 B53 1/4" Plasma;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
729261 See Pad Matrix J67 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
