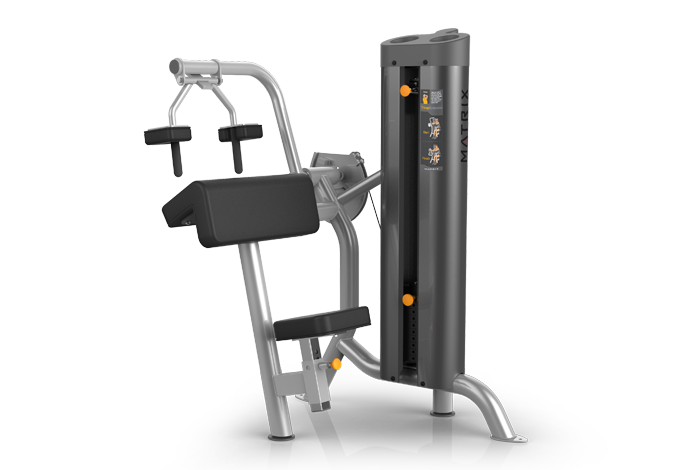

Matrix Commercial - VY-6012-02 - 2013

Repair Parts for Matrix Commercial VY-6012-02 VYGM314

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6012-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B8 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B16 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B4 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z20 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Z33 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z29 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z24 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V57 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z27 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713950 1000309858 Z21 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713985 1000310020 Z32 SCREW;FH;.313-18 x 1.25;ZN; No Model Compatibility List $3.35 / Each

2
B 713986 1000310083 B7 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713989 1000310086 Z9 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B10 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
713997 1000310096 Z39 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714001 1000310103 Z31 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714008 1000310115 Z41 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
Z 714016 1000310219 Z40 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B14 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B19 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714026 1000310302 B12 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714029 1000310305 Z25 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 B18 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714033 1000310313 Z42 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z23 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B45 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714039 1000310338 B47 5/8" GUIDE ROD - 46 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714040 1000310339 B48 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z26 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714093 1000312062 Z30 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
Z 714094 1000312064 Z36 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z35 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B11 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
B 714176 1000312298 B6 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
Z 714235 1000312700 Z22 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714239 1000312815 Weight Stack 7 CENTER STICK, CABLE - 11 PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714242 1000312831 B41 6 3/8" GRIP No Model Compatibility List $0.00 / Each
Out Of Stock 		11
714247 1000312877 B62 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V58 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714465 1000315136 V55 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714487 1000315366 B46 CABLE 6012 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714488 1000315367 Weight Stack Set SUB-ASSEMBLY; 126LB WS 11+1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714491 1000315373 V56 6012 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V54 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715600 1000326804 V56 6012 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715601 1000326805 V56 6012 PLACARD;German No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715602 1000326806 V56 6012 PLACARD;Italian No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715603 1000326807 V56 6012 PLACARD;Portuguese No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715604 1000326808 V56 6012 PLACARD;Japanese No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715605 1000326809 V56 6012 PLACARD;Dutch No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715606 1000326810 V56 6012 PLACARD;Spanish No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716313 1000335318 B44 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
716403 1000336505 B65 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
717148 1000341986 B5 6000 GUARD - 47 5/16 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717377 1000344562 V54 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z43 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B42 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B51 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B13 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719079 1000355656 AB61 ADJUSTMENT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719300 1000359440 B49 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V53 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V53 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B60 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720725 1000375388 B15 1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
721051 1000380091 Z80 SCREW;HH;.500-13 x 8.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
721552 1000384006 V52 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721951 1000386770 B63 3/4" x 1 1/2" F.S. - 1 1/4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721983 1000386957 AB1 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721984 1000386958 AB1 WELDMENT, MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721985 1000386959 AB1 WELDMENT, MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722027 1000387289 AB43 Weldment, Cam Assembly, J6012;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722028 1000387290 AB43 Weldment, Cam Assembly, J6012;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722029 1000387291 AB43 Weldment, Cam Assembly, J6012;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722030 1000387304 AB2 WELDMENT, 3012 ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722031 1000387305 AB2 WELDMENT, 3012 ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722032 1000387306 AB2 WELDMENT, 3012 ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722033 1000387319 AB3 WELDMENT, 6012 HANDLE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,11
722034 1000387320 AB3 WELDMENT, 6012 HANDLE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
722035 1000387321 AB3 WELDMENT, 6012 HANDLE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,11
722036 1000387333 B64 1.25OD x 1ID Black Nylon 2.5" No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
729261 See Pad Matrix J38 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
