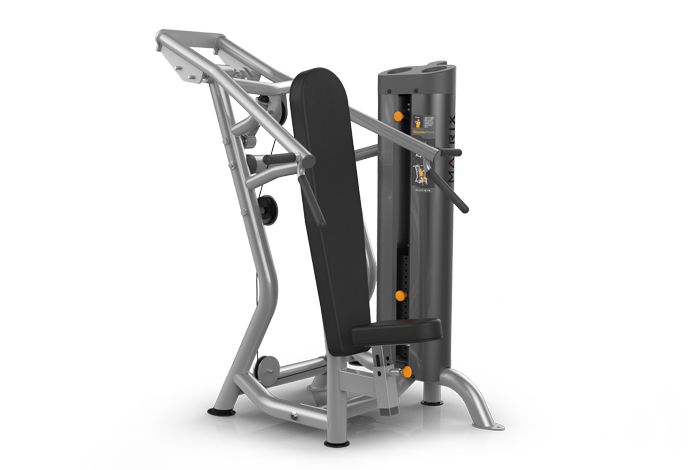

Matrix Commercial - VY-6014-02 - 2013

Repair Parts for Matrix Commercial VY-6014-02 VYGM315

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6014-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B22 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z24 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B29 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B17 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B5 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z41 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z23 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z42 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z38 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713824 1000308442 Z65 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
V 713842 1000308473 V63 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z33 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713945 1000309853 Z45 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z46 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z47 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z69 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 713967 1000309953 Z36 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
B 713986 1000310083 B28 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713990 1000310087 Z26 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z39 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
Z 713992 1000310089 Z35 SCREW;HH;.500-13 x 4.00;ZN; No Model Compatibility List $5.04 / Each

2
713996 1000310095 B45 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z12 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z37 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z13 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B14 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B27 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714024 1000310289 B19 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z34 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B20 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
Z 714033 1000310313 Z31 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z32 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B53 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714039 1000310338 B56 5/8" GUIDE ROD - 46 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714040 1000310339 B57 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z30 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714093 1000312062 Z58 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z40 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B25 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B30 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714252 1000312890 B16 1" Grip;8" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714302 1000313470 V64 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714465 1000315136 V61 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714492 1000315383 B52 CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714493 1000315384 B7 1" CRR - 10 7/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714494 1000315411 V62 6014 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V59 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715610 1000326877 V62 6014 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715629 1000327275 B4 BEARING FIXING;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
715630 1000327276 B4 BEARING FIXING;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
715631 1000327277 B4 BEARING FIXING;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
716313 1000335318 B8 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717148 1000341986 B11 6000 GUARD - 47 5/16 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717377 1000344562 V59 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717500 1000345600 B18 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B51 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B21 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B10 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B10 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B10 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719079 1000355656 B9 ADJUSTMENT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719230 1000358061 Z70 Screw;Set;.250-20 x 0.3125 No Model Compatibility List $0.00 / Each
Out Of Stock 		2
719247 1000358346 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719300 1000359440 B55 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719302 1000359445 AB6 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V60 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V60 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B50 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V58 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722071 1000387517 AB2 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722072 1000387518 AB2 WELDMENT, MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722073 1000387519 AB2 WELDMENT, MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722074 1000387532 AB3 WELDMENT, 6045 MAIN ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722075 1000387533 AB3 WELDMENT, 6045 MAIN ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722076 1000387534 AB3 WELDMENT, 6045 MAIN ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722077 1000387547 AB1 WELDMENT, WEIGHT STACK;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722078 1000387548 AB1 WELDMENT, WEIGHT STACK;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722079 1000387549 AB1 WELDMENT, WEIGHT STACK;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722080 1000387561 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J49 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
