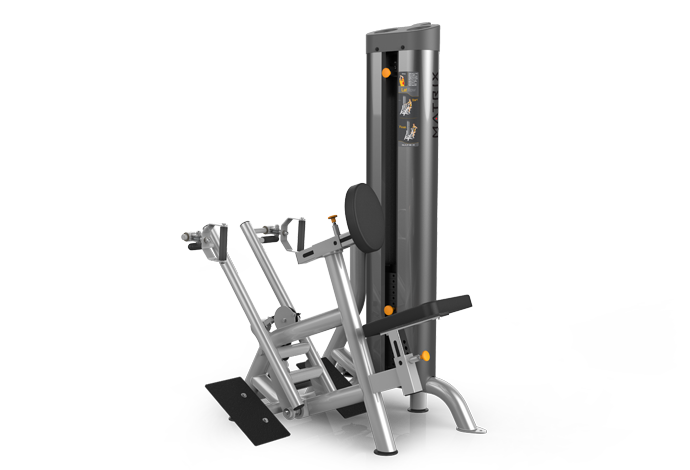

Matrix Commercial - VY-6020-02 - 2013

Repair Parts for Matrix Commercial VY-6020-02 VYGM316

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6020-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 Z23 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z17 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B22 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B63 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B18 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B6 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z38 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z64 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z36 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z29 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713825 1000308443 Z69 SCREW;FH;.375-16 x 1.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713826 1000308444 Z35 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
Z 713828 1000308446 Z45 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z42 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V57 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z32 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713945 1000309853 Z30 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z40 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z41 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z31 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 713967 1000309953 Z66 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
B 713986 1000310083 B16 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713989 1000310086 Z24 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B25 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
713996 1000310095 B14 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z53 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z28 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
Z 714016 1000310219 Z54 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B13 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B19 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714026 1000310302 B15 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714029 1000310305 Z33 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
Z 714033 1000310313 Z67 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z34 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B46 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B48 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z68 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714086 1000312036 B12 1 1/4"OD x 1"ID PLASTIC TUBE - 2" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714093 1000312062 Z65 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
Z 714094 1000312064 Z37 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
B 714153 1000312233 B21 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B62 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V58 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714451 1000314828 B47 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714461 1000315102 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714462 1000315104 B43 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714463 1000315105 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714464 1000315110 B5 1" CRR - 9 7/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714465 1000315136 V60 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714466 1000315137 V59 6020 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
714538 1000315894 V56 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715996 1000330543 AB1 WELDMENT; 6020 MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715997 1000330544 AB1 WELDMENT; 6020 MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715998 1000330545 AB1 WELDMENT; 6020 MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716002 1000330576 V59 6020 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716313 1000335318 B44 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717234 1000343293 B4 Swivel Handle Set;Ridge Black No Model Compatibility List $395.43 / Each

4,5,6,11
717377 1000344562 V56 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717500 1000345600 B20 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717779 1000347532 B26 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B9 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B9 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B9 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719300 1000359440 B49 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V55 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V55 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B61 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720213 1000369294 AB7 Chest Chrome Tube Assy; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
721552 1000384006 V54 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721933 1000386665 AB3 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
722025 1000387203 B10 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722082 1000387564 AB8 SEAT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
722083 1000387565 B11 DIAMOND PLATE;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722084 1000387567 B2 Arm Assy;6020;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722085 1000387568 B2 Arm Assy;6020;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722086 1000387569 B2 Arm Assy;6020;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J51 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
