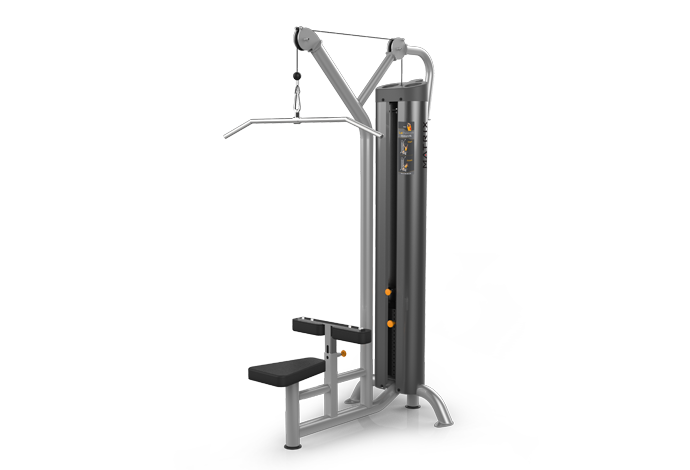

Matrix Commercial - VY-6021-02 - 2013

Repair Parts for Matrix Commercial VY-6021-02 VYGM317

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6021-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713811 1000308424 B3 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z17 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z28 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713830 1000308448 Z18 5/16" X 1 1/2" BOLT No Model Compatibility List $1.43 / Each

2
V 713842 1000308473 V37 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z21 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
V 713946 1000309854 V34 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z26 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
Z 713967 1000309953 Z43 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713996 1000310095 B10 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z27 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z20 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B9 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B13 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
Z 714033 1000310313 Z24 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z25 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B8 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B5 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z22 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B11 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

2,9
B 714334 1000313766 B12 HARD CHROME 48" LAT BAR No Model Compatibility List $339.66 / Each

7,12,13,14
714465 1000315136 V40 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714467 1000315146 B4 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714468 1000315147 B6 5/8" GUIDE ROD - 70 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714470 1000315166 V39 6021 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V35 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715611 1000326884 AB1 WELDMENT 6021 M;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
715612 1000326885 AB1 WELDMENT 6021 M;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715613 1000326886 AB1 WELDMENT 6021 M;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715615 1000326925 V39 6021 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717377 1000344562 V35 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

7,3,4,5,6
717443 1000345209 Z40 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B15 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B39 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 Z19 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717825 1000347900 AB33 339-701 w/ ROM Decal No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3

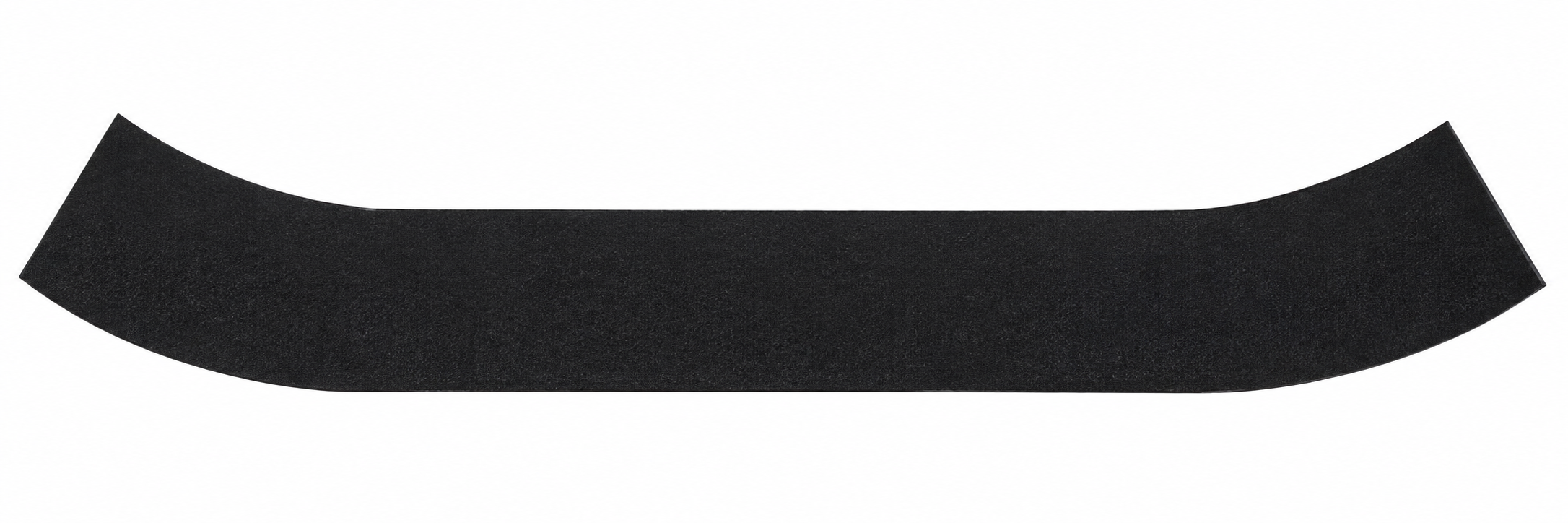

718282 1000350082 B42 3M safety walk; 4" x 18" No Model Compatibility List $0.00 / Each
Out Of Stock 		9
719246 1000358344 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719300 1000359440 B2 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V36 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V36 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B41 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V42 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722065 1000387472 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722081 1000387563 B7 6000 GUARD - 71 5/16" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722427 1000391928 B16 6021 & 6046 Top Plastic w/cable hole No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
729261 See Pad Matrix J31 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
