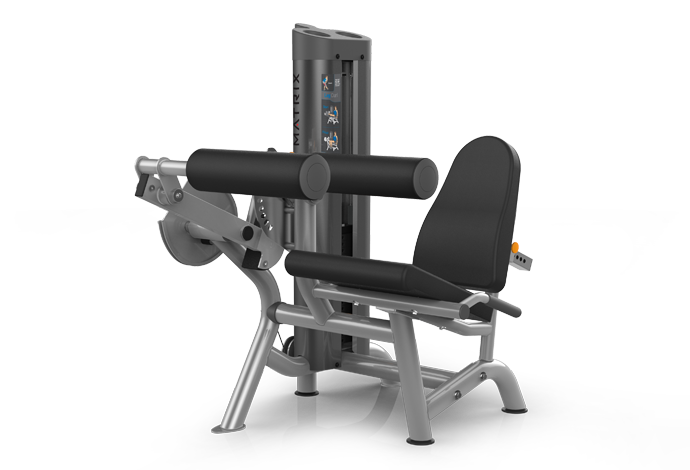

Matrix Commercial - VY-6027-02 - 2013

Repair Parts for Matrix Commercial VY-6027-02 VYGM320

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6027-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 Z28 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B20 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B24 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713811 1000308424 B7 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z45 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z75 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713823 1000308441 Z42 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713827 1000308445 Z36 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
Z 713828 1000308446 Z76 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
713835 1000308453 Z54 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V70 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713946 1000309854 Z78 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713948 1000309856 B12 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z53 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z52 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713959 1000309942 B31 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B32 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713961 1000309945 B13 8" CRR - 3 1/4" No Model Compatibility List $174.04 / Each

1
B 713967 1000309953 B50 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713985 1000310020 Z71 SCREW;FH;.313-18 x 1.25;ZN; No Model Compatibility List $3.35 / Each

2
B 713986 1000310083 B27 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713989 1000310086 Z29 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 Z30 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z51 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713997 1000310096 Z39 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714001 1000310103 Z41 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714002 1000310104 Z38 SCREW;HH;.500-13 x 1.00;ZN; No Model Compatibility List $2.18 / Each

2
714012 1000310207 Z34 SCREW;HH;.375-16 x 2.50;ZN; No Model Compatibility List $3.02 / Each

2
Z 714016 1000310219 Z33 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B11 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B26 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 B8 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714024 1000310289 B25 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714026 1000310302 B18 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714029 1000310305 Z37 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 Z21 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714033 1000310313 Z49 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z48 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B59 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714039 1000310338 B62 5/8" GUIDE ROD - 46 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714040 1000310339 B63 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714088 1000312042 B9 1.25" Grip;7.75" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714093 1000312062 Z83 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
Z 714095 1000312066 Z77 SCREW;HH;.313-18 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 714101 1000312084 Z50 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714128 1000312165 Z81 3/8" SPLIT LOCK WASHER No Model Compatibility List $1.43 / Each

2
Z 714235 1000312700 Z44 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B73 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714255 1000312927 B10 1 1/4"OD x 1"ID PLASTIC TUBE - 1" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714256 1000312928 B15 1/4" PLASMA - (76.5 sq. in.) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714257 1000312929 B19 1 7/8" ROUND END CAP No Model Compatibility List $0.00 / Each
Out Of Stock 		9
714258 1000312931 B56 CABLE 6027 - 128" No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714302 1000313470 V71 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714461 1000315102 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714463 1000315105 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714465 1000315136 V68 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714479 1000315298 V69 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714538 1000315894 B67 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715328 1000324056 Z35 SCREW;BH; .50-13 X .75 No Model Compatibility List $11.80 / Each

2
715581 1000326443 AB14 Seat Post;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
715582 1000326444 AB14 Seat Post;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
715583 1000326445 AB14 Seat Post;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
715620 1000327100 V72 6027 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715621 1000327101 V72 6027 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716313 1000335318 B23 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
716403 1000336505 B80 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
717148 1000341986 B17 6000 GUARD - 47 5/16 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717443 1000345209 Z82 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B61 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B60 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B22 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719300 1000359440 B75 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V66 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V66 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B74 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720993 1000379407 B83 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 V65 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721951 1000386770 B16 3/4" x 1 1/2" F.S. - 1 1/4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722109 1000387720 AB2 WELDMENT; USER FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722110 1000387721 AB2 WELDMENT; USER FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722111 1000387722 AB2 WELDMENT; USER FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722112 1000387735 AB3 6027 ROLLER - KNEE HOLD DOWN;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
722113 1000387736 AB3 6027 ROLLER - KNEE HOLD DOWN;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722114 1000387737 AB3 6027 ROLLER - KNEE HOLD DOWN;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722115 1000387750 AB4 6027 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
722116 1000387751 AB4 6027 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722117 1000387752 AB4 6027 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722118 1000387765 AB6 6027 HAMMER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722119 1000387766 AB6 6027 HAMMER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722120 1000387767 AB6 6027 HAMMER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722121 1000387780 AB5 CAM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722122 1000387781 AB5 CAM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722123 1000387782 AB5 CAM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722124 1000387795 AB1 6027 MAIN FRAME WEIGHT SIDE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722125 1000387796 AB1 6027 MAIN FRAME WEIGHT SIDE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722126 1000387797 AB1 6027 MAIN FRAME WEIGHT SIDE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J58 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
