Matrix Commercial - VY-6036-02 - 2013

Repair Parts for Matrix Commercial VY-6036-02 VYGM321

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6036-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B17 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
A 713805 1000308416 Arm 10 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B16 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B51 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
A 713810 1000308421 Arm 8 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B6 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z33 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Arm18 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
713817 1000308435 Arm 12 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
Z 713818 1000308436 Z24 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Arm 11 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
A 713828 1000308446 Arm 31 WASHER;FLT;USS;Diam.0.281XDiam.0.734X.06 No Model Compatibility List $1.43 / Each

2
V 713842 1000308473 V43 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713939 1000309846 Z30 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
Z 713940 1000309847 Z21 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713945 1000309853 Z26 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z32 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z34 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z28 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 713967 1000309953 Z25 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
713984 1000310019 Pulley Set 4 SCREW;HH;.500-13 x 2.00;ZN; No Model Compatibility List $3.02 / Each

2
B 713986 1000310083 B11 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
A 713988 1000310085 Arm 5 1"ID x 1 1/4"OD" FLANGED BUSHING No Model Compatibility List $10.92 / Each

8
713996 1000310095 B10 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z31 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714015 1000310213 Arm 27 SHCS - 1/4"-20 x 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
A 714016 1000310219 Arm 21 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B13 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714032 1000310308 B14 4" FOOT (LONG) No Model Compatibility List $18.23 / Each

9,3
Z 714033 1000310313 Z22 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z23 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B39 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B46 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z27 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
A 714094 1000312064 Arm 26 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 5 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714126 1000312159 Pulley Set 8 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714128 1000312165 Z50 3/8" SPLIT LOCK WASHER No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B12 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
A 714176 1000312298 Arm 6 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
P 714189 1000312326 Pulley Set 12 4" CABLE PULLEY - 3/8" HOLE No Model Compatibility List $27.01 / Each

8,4,5,6
A 714235 1000312700 Arm 24 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
714240 1000312817 Weight Stack 4 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714246 1000312876 Pulley Set 3 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

2
714249 1000312880 Weight Stack 3 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V44 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714465 1000315136 V47 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714500 1000315472 B38 CABLE 6036 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714503 1000315475 W Stack Set SUB-ASSEMBLY; 216LB WS No Model Compatibility List $1.30 / Each

3
714504 1000315479 B35 5/8" Guide Rod - 58.25" No Model Compatibility List $197.70 / Each

3
714505 1000315504 Arm 25 1/2" SHOULDER BOLT - 3 1/2" No Model Compatibility List $10.11 / Each

2
714506 1000315505 Z29 SCREW; BH; .50-13 X 1.00 No Model Compatibility List $2.18 / Each

2
714507 1000315510 Right Arm 29 Label, Rom 6036 Clockwise No Model Compatibility List $10.11 / Each

1
714508 1000315511 Left Arm 29 Label, Rom 6036 C-Clockwise No Model Compatibility List $8.42 / Each

1
714509 1000315512 V45 6036 PLACARD No Model Compatibility List $28.70 / Each

4,5,6
714510 1000315513 V46 6036 PLACARD No Model Compatibility List $28.70 / Each

4,5,6
714538 1000315894 V41 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715622 1000327148 V45 6036 PLACARD;French No Model Compatibility List $6.73 / Each

4,5,6
715623 1000327155 V46 6036 PLACARD;French No Model Compatibility List $1.33 / Each

4,5,6
716043 1000331358 Arm 14 1.25 Grip;6" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
716313 1000335318 Arm 19 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717500 1000345600 B5 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717533 1000345937 Left Arm 1 Selector Plate Assy;Pec Deck;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3

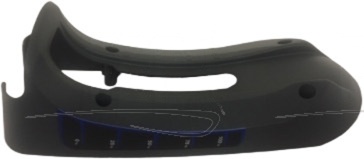

717534 1000345938 Left Arm 1 Selector Plate Assy;Pec Deck;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717535 1000345939 Left Arm 1 Selector Plate Assy;Pec Deck;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717536 1000345955 Right Arm 1 Selector Plate;Pec Deck;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717537 1000345956 Right Arm 1 Selector Plate;Pec Deck;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717538 1000345957 Right Arm 1 Selector Plate;Pec Deck;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717650 1000346601 B18 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B9 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B20 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B20 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B20 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718283 1000350084 B48 SAFETY TAPE 1" X 3" No Model Compatibility List $0.00 / Each
Out Of Stock 		9
718555 1000351404 Arm 30 Nylon Tube;1";Black No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719078 1000355639 V46 6036 placard (rear delt)- French-English No Model Compatibility List $40.53 / Each

4,5,6
719322 1000359722 Weight Stack 7 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719447 1000361650 AB1 Main Frame;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719448 1000361651 AB1 Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719449 1000361652 AB1 Main Frame;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719682 1000363760 V40 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V40 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
720191 1000369204 Weight Stack 6 Center Stick - 18" C125, J6036, Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720316 1000371529 Right Arm 3 WELDMENT ARM ASSEMBLY (LEFT);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720317 1000371530 Right Arm 3 Weldment;Arm Assy;Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720318 1000371531 Right Arm 3 Weldment;Arm Assy;Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720319 1000371545 Left Arm 3 Arm Assy;Left;6036;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720320 1000371546 Left Arm 3 Arm Assy;Left;6036;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720321 1000371547 Left Arm 3 Arm Assy;Left;6036;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720993 1000379407 Arm 4 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721279 1000381491 Left Arm 2 WELDMENT CAM ASSEMBLY (Left);Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
721280 1000381492 Left Arm 2 Weldment;Cam Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721281 1000381493 Left Arm 2 Weldment;Cam Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V42 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721634 1000384891 Pulley Set 1 Weldment;Head Plate Pulley No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
721920 1000386596 Pulley Set WEIGHT STACK PULLEY ASSEMBLY No Model Compatibility List $217.98 / Each

8,3,4,5,6
721921 1000386597 Pulley Set 2 HCS 1/4"-20 x 3.00" Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722025 1000387203 B19 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722146 1000388097 AB2 SEAT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
722147 1000388099 Right Arm 2 WELDMENT CAM ASSEMBLY (RIGHT);Iced Silve No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722148 1000388100 Right Arm 2 Cam Assy;Right;936;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722149 1000388101 Right Arm 2 Cam Assy;Right;936;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722425 1000391926 B15 Top Plastic;6036 w/ Cable Holes; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
723241 1000405694 Arm 9 5/8" HOLE PLUG; NYLON BLACK No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
728998 Order Components Separately Arm Set Right Seat Post Adjustment Set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
729261 See Pad Matrix J8 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
