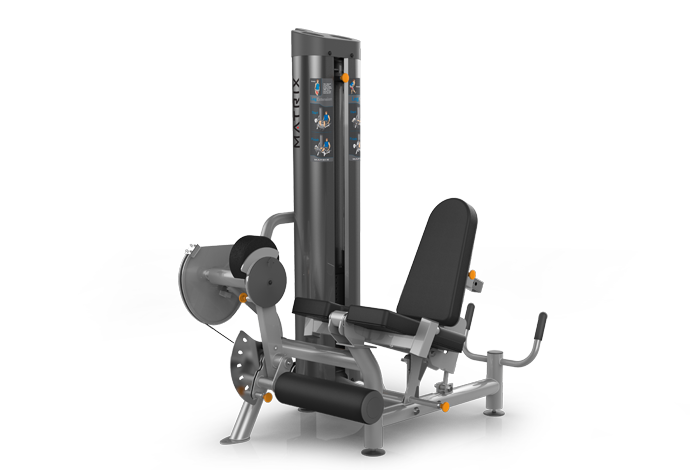

Matrix Commercial - VY-6040-02 - 2013

Repair Parts for Matrix Commercial VY-6040-02 VYGM323

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6040-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B47 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713806 1000308417 B35 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B41 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B39 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
Z 713814 1000308428 Z77 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z52 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713822 1000308440 B16 8" CRR - 3 1/4" No Model Compatibility List $152.10 / Each

1
713823 1000308441 Z26 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 713826 1000308444 Z56 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
713827 1000308445 Z61 5/16" - 3" BOLT No Model Compatibility List $2.18 / Each

2
713835 1000308453 Z78 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V87 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z60 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713948 1000309856 B15 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z79 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z85 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z27 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713959 1000309942 B45 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B46 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Z 713967 1000309953 Z71 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713970 1000309992 B74 Orange PULL KNOB No Model Compatibility List $10.92 / Each

1
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713985 1000310020 Z28 SCREW;FH;.313-18 x 1.25;ZN; No Model Compatibility List $3.35 / Each

2
713987 1000310084 B48 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713989 1000310086 B49 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B50 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z72 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713997 1000310096 Z54 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714001 1000310103 Z29 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714016 1000310219 Z55 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B22 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B43 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 B11 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714024 1000310289 B76 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z62 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B37 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714029 1000310305 Z64 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 B51 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714033 1000310313 Z69 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z70 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B84 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B96 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z59 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714093 1000312062 Z97 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714107 1000312095 Z63 SCREW;HH;.500-13 x 3.25;ZN; No Model Compatibility List $5.04 / Each

2
714111 1000312103 Z96 SCREW;HH;.500-13 x 5.50;ZN; No Model Compatibility List $6.73 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z68 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B40 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
B 714176 1000312298 B44 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714182 1000312310 B75 11/16"OD x 5" LONG SPRING No Model Compatibility List $8.42 / Each

2
Z 714235 1000312700 Z58 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z53 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B13 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714302 1000313470 V88 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
B 714349 1000313917 B24 1 1/4" ID - 20 1/2" Rubber Grip (9" With No Model Compatibility List $36.48 / Each

11
714451 1000314828 B95 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714460 1000315095 V91 Label, Rom 6002 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714461 1000315102 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714463 1000315105 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714465 1000315136 V89 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714479 1000315298 Z86 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714523 1000315610 B25 RANGE LIMITER COVER No Model Compatibility List $54.05 / Each

9
714538 1000315894 V33 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714758 1000317853 V92 Instruction Sticker;;;;;;;6040 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
714759 1000317854 V93 Instruction Sticker;;;;;;;6040 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
715966 1000329763 B73 WELDMENT 911 SHAFT;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716003 1000330615 V92 6040 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716004 1000330622 V93 6040 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6

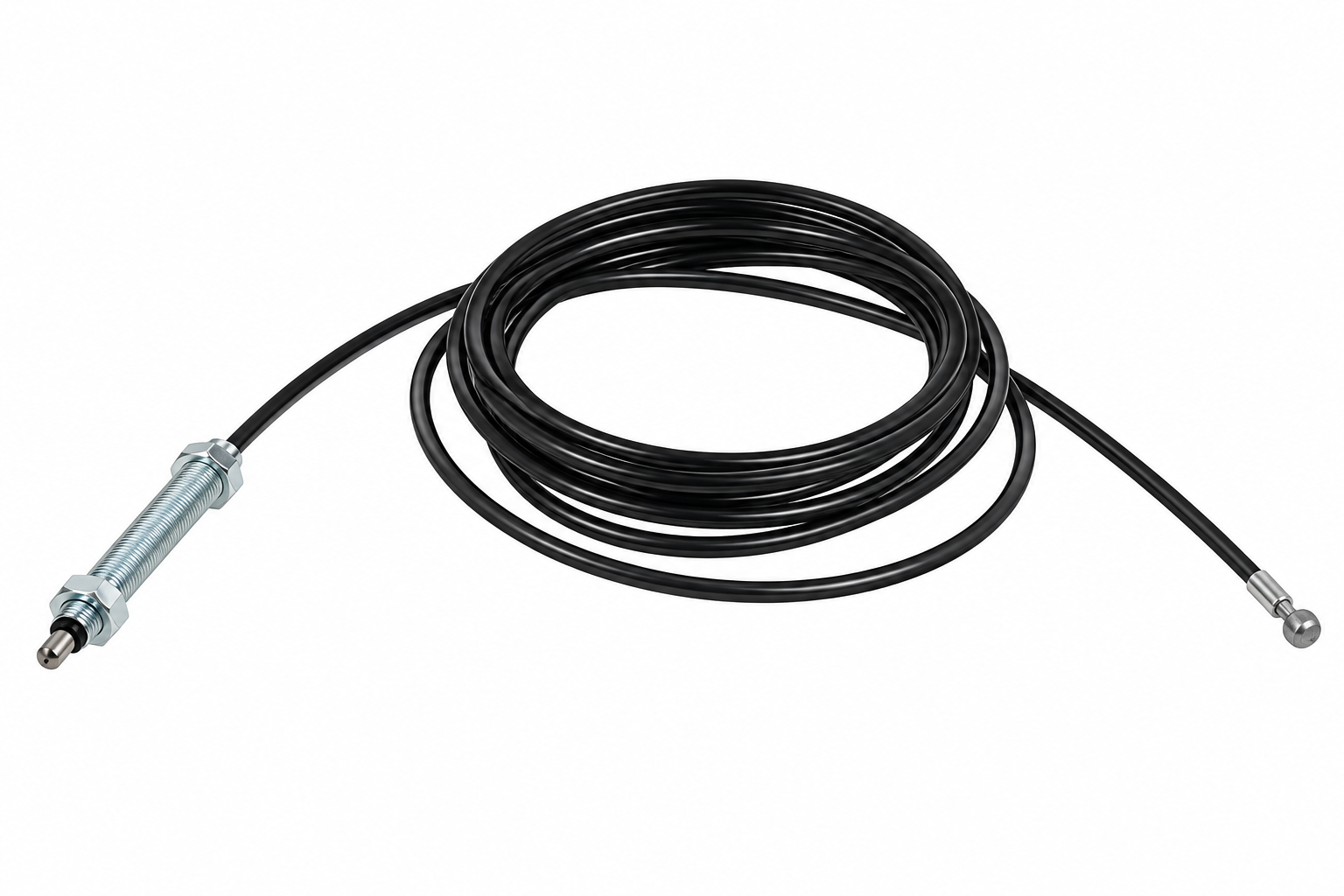

716188 1000334188 B34 CABLE 6040 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716189 1000334203 B19 1/4" PLASMA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716261 1000335049 AB8 WELDMENT, 6040 SELECTOR;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716313 1000335318 B14 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
716403 1000336505 B98 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
716406 1000336510 B92 1.127ID x 1.377OD x 1" BRASS BUSHING No Model Compatibility List $18.23 / Each

8
717394 1000344756 V90 Label, Rom 6043 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717500 1000345600 B36 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B85 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B38 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
719300 1000359440 B94 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719417 1000361149 AB9 6040 CAM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719418 1000361150 AB9 6040 CAM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719419 1000361151 AB9 6040 CAM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719578 1000362647 B17 3/16" PLASMA - CHROMED No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719682 1000363760 V32 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V32 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B12 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720719 1000375164 B18 SPRING PIN No Model Compatibility List $0.00 / Each
Out Of Stock 		2,12,13,14
720725 1000375388 B23 1 1/4"OD x 1"ID PLASTIC TUBE - 3.375" 15deg No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
720993 1000379407 B99 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 V31 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721951 1000386770 B83 3/4" x 1 1/2" F.S. - 1 1/4";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721977 1000386927 AB7 6040 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
721978 1000386928 AB7 6040 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
721979 1000386929 AB7 6040 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
722025 1000387203 B21 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722200 1000389064 AB2 WELDMENT, 6040 MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722201 1000389065 AB2 WELDMENT, 6040 MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722202 1000389066 AB2 WELDMENT, 6040 MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722203 1000389079 AB4 WELDMENT, SEAT PIVOT BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
722204 1000389080 AB4 WELDMENT, SEAT PIVOT BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6,12,13,14
722205 1000389081 AB4 WELDMENT, SEAT PIVOT BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6,12,13,14
722206 1000389094 AB5 WELDMENT, 6040 SEAT BACK FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722207 1000389095 AB5 WELDMENT, 6040 SEAT BACK FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722208 1000389096 AB5 WELDMENT, 6040 SEAT BACK FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722209 1000389108 B20 WELDMENT, SEAT ADJUSTER No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722210 1000389110 AB3 WELDMENT, 6040 SEAT FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722211 1000389111 AB3 WELDMENT, 6040 SEAT FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722212 1000389112 AB3 WELDMENT, 6040 SEAT FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722213 1000389125 AB6 6040 HAMMER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722214 1000389126 AB6 6040 HAMMER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722215 1000389127 AB6 6040 HAMMER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722216 1000389141 AB1 WELDMENT, 6040 WEIGHT STACK FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722217 1000389142 AB1 WELDMENT, 6040 WEIGHT STACK FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722218 1000389143 AB1 WELDMENT, 6040 WEIGHT STACK FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J82 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
