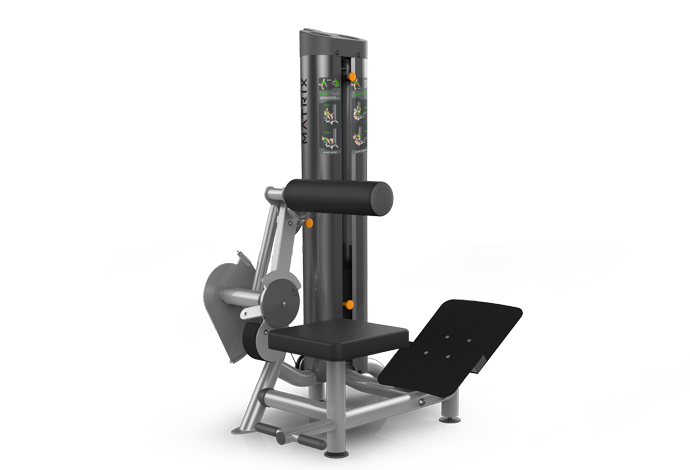

Matrix Commercial - VY-6041-02 - 2013

Repair Parts for Matrix Commercial VY-6041-02 VYGM324

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6041-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B25 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
B 713807 1000308418 B23 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
B 713810 1000308421 B34 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
Z 713814 1000308428 Z49 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z56 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713823 1000308441 Z52 SCREW;FH;.500-13 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
713825 1000308443 Z53 SCREW;FH;.375-16 x 1.25;ZN; No Model Compatibility List $2.18 / Each

2
713835 1000308453 Z57 1 9/16"OD x 7/16"ID WASHER No Model Compatibility List $3.28 / Each

2
V 713842 1000308473 V75 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
713943 1000309851 Z37 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
Z 713946 1000309854 Z84 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713948 1000309856 B8 1" CRR - 5 1/8" No Model Compatibility List $79.40 / Each

1
Z 713949 1000309857 Z58 BHSCS 3/8 x 3/4" No Model Compatibility List $3.02 / Each

1
Z 713950 1000309858 Z41 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713959 1000309942 B35 ROLLER END CAP w/ 2" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
713960 1000309943 B36 ROLLER END CAP w/ 5/16" HOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
Z 713967 1000309953 Z59 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713987 1000310084 B21 BEARING - 1 1/8" No Model Compatibility List $15.18 / Each

8
713989 1000310086 Z22 Machine Bushing 1 5/8" OD x 1.135 ID 14ga Zinc No Model Compatibility List $3.02 / Each

8,4,5,6
713990 1000310087 B32 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z47 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713997 1000310096 Z82 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z83 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
714001 1000310103 Z55 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Z 714016 1000310219 Z81 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B18 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B27 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714022 1000310286 B61 STOP No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714023 1000310287 B16 1 1/4" x 1" PLASTIC PIPE - 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		9
714024 1000310289 B28 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z38 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B33 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
714027 1000310303 B11 3/4" x 1 1/2" F.S. - 1 1/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714029 1000310305 B40 SCREW;HH;.375-16 x 1.75;ZN; No Model Compatibility List $2.18 / Each

2
714030 1000310306 B30 1 5/8" ID Vinyl Cap No Model Compatibility List $5.04 / Each

9
Z 714033 1000310313 Z45 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z46 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B69 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B66 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z39 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714086 1000312036 B88 1 1/4"OD x 1"ID PLASTIC TUBE - 2" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
714093 1000312062 Z78 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
Z 714094 1000312064 Z51 5/16" x 1" BOLT No Model Compatibility List $1.33 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z48 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
Z 714236 1000312711 Z50 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B20 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714451 1000314828 B65 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714463 1000315105 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714465 1000315136 V74 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714479 1000315298 V85 DECAL; PIVOT POINT No Model Compatibility List $5.04 / Each

7,8,3
714518 1000315584 B60 CABLE 6041 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714523 1000315610 B26 RANGE LIMITER COVER No Model Compatibility List $54.05 / Each

9
714524 1000315611 V76 Label, Rom 6041 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714525 1000315612 V77 6041 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
714538 1000315894 V73 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
714953 1000320079 B9 6"OD Counter Weight, Large No Model Compatibility List $160.52 / Each

3
716043 1000331358 B17 1.25 Grip;6" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
716184 1000334133 AB5 WELDMENT, 6041 SELECTOR;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716185 1000334160 V77 6041 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716186 1000334167 V78 6041 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716187 1000334168 V78 6041 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716313 1000335318 B80 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
716403 1000336505 B36 1/4" x 1/4" x 1 1/2" KEY No Model Compatibility List $6.73 / Each

9
716406 1000336510 B86 1.127ID x 1.377OD x 1" BRASS BUSHING No Model Compatibility List $18.23 / Each

8
717395 1000344757 V79 Decal;Lower ROM;2040 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717443 1000345209 Z79 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
717500 1000345600 B19 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B62 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B29 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
718773 1000353372 AB3 Cam Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718774 1000353373 AB3 CAM Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718775 1000353374 AB3 Cam Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719128 1000356181 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719300 1000359440 B67 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719682 1000363760 V72 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V72 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B63 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720298 1000371230 Z54 Screw;HH;.375-16 x 3;ZN No Model Compatibility List $0.00 / Each
Out Of Stock 		2
720874 1000377699 AB6 ROLLER;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
720875 1000377700 AB6 ROLLER;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
720876 1000377701 AB6 ROLLER;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
720993 1000379407 B7 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 V71 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722025 1000387203 B13 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722321 1000390974 AB2 WELDMENT, 6041 SEAT FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722322 1000390975 AB2 WELDMENT, 6041 SEAT FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722323 1000390976 AB2 WELDMENT, 6041 SEAT FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722324 1000390988 B14 3/16" DIA PLATE - (300 sq in) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722325 1000390989 B15 3/16" DIA PLATE - (182.5 sq in) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722326 1000390991 B12 1 1/2" x 3" TUBE - 17 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722327 1000390992 B10 7ga PLASMA (31.5 sq.in.) No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722328 1000390994 AB4 6041 HAMMER SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722329 1000390995 AB4 6041 HAMMER SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722330 1000390996 AB4 6041 HAMMER SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722331 1000391010 AB1 WELDMENT, 6041 STACK FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722332 1000391011 AB1 WELDMENT, 6041 STACK FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722333 1000391012 AB1 WELDMENT, 6041 STACK FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J70 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
