Matrix Commercial - VY-6043-02 - 2013

Repair Parts for Matrix Commercial VY-6043-02 VYGM326

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6043-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713801 1000308375 B6 1" PILLOW BLOCK No Model Compatibility List $62.04 / Each

1
713802 1000308395 B38 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z36 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B55 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
B 713807 1000308418 B57 1 1/2" x 3" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B66 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B62 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B42 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z33 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z37 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
Z 713818 1000308436 Z20 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713821 1000308439 Z30 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z19 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
V 713842 1000308473 V88 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
B 713938 1000309842 B56 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713943 1000309851 Z22 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713945 1000309853 Z25 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z40 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z32 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z23 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
Z 713967 1000309953 Z64 SCREW;HH;.313-18 x 1.25;ZN; No Model Compatibility List $2.37 / Each

2
B 713986 1000310083 B53 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
Z 713991 1000310088 Z52 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713996 1000310095 B49 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713998 1000310097 Z26 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
714001 1000310103 Z46 SCREW;FH;.375-16 x 1.00;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714010 1000310165 B94 1/2" x 1 1/2" F.S. - 2 1/4" No Model Compatibility List $87.85 / Each

1
714017 1000310270 B15 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
714024 1000310289 B51 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z28 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B31 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
Z 714031 1000310307 Z21 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
B 714032 1000310308 B50 4" FOOT (LONG) No Model Compatibility List $18.23 / Each

9,3
Z 714033 1000310313 Z71 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z72 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B82 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714039 1000310338 B79 5/8" GUIDE ROD - 46 3/4" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714040 1000310339 B80 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714044 1000310346 V87 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714093 1000312062 Z29 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714109 1000312099 Z27 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z35 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B54 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
714181 1000312308 B43 1" SPLIT COLLAR No Model Compatibility List $16.87 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714246 1000312876 Z24 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

2
714247 1000312877 B12 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1

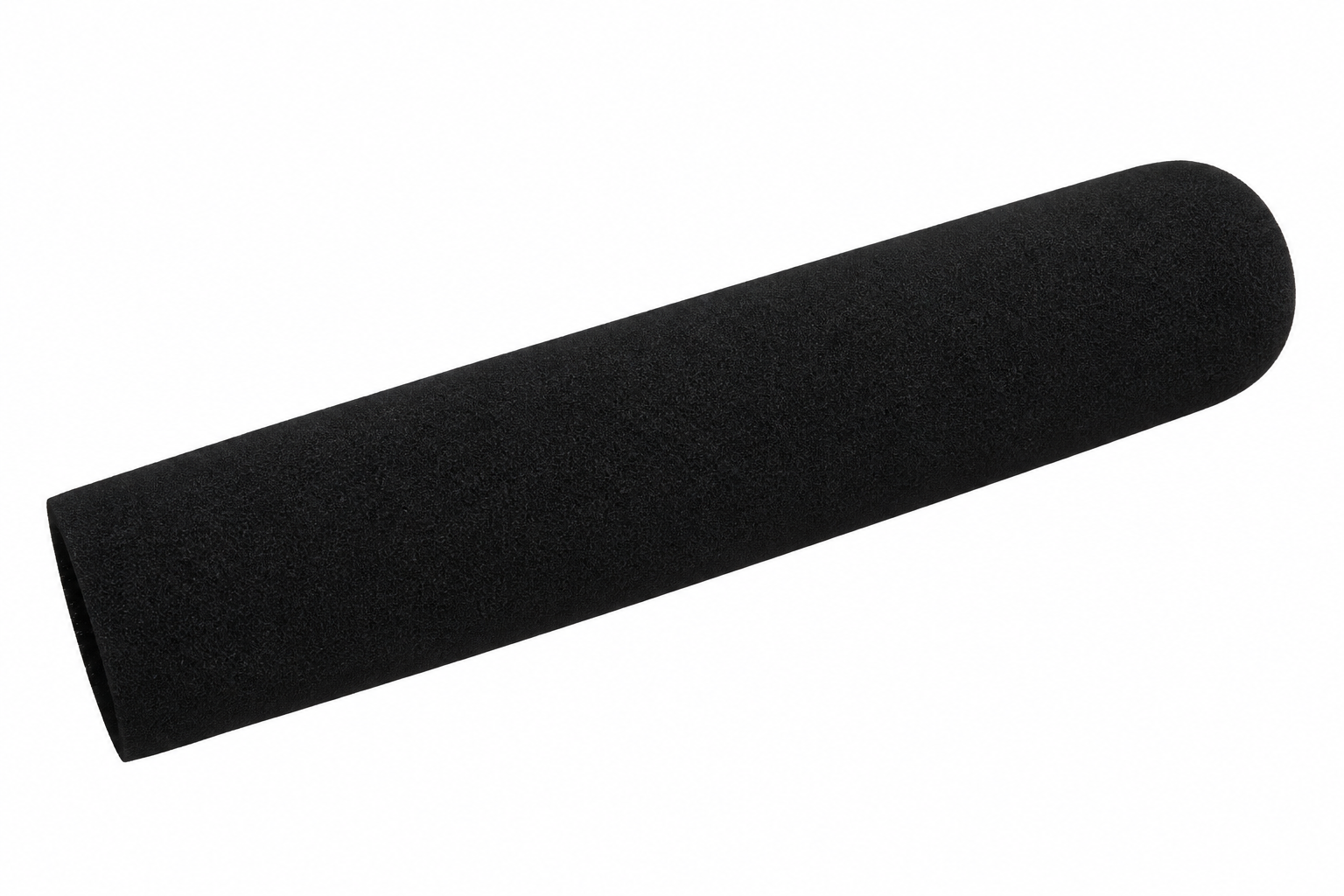

714252 1000312890 B58 1" Grip;8" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
Z 714254 1000312901 Z41 SHCS - 1/4-20 x 1 1/4" No Model Compatibility List $2.24 / Each

1
714302 1000313470 V89 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714465 1000315136 V92 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714477 1000315295 Z65 SCREW;HH;.313-18 x 4.00;ZN; No Model Compatibility List $3.85 / Each

2
714538 1000315894 V86 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715514 1000324851 B67 CABLE 6043 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715515 1000324852 B68 ASSEMBLY; USER FRAME CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715516 1000324853 B69 CABLE 6043 FIGURE 8 No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715517 1000324854 Weight Stack Set WEIGHT STACK 6043 15+1 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
715519 1000324902 V90 6043 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
715520 1000324903 V91 6043 PLACARD No Model Compatibility List $21.94 / Each

4,5,6
716012 1000330737 V90 6043 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716013 1000330744 V91 6043 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716043 1000331358 B59 1.25 Grip;6" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
716098 1000332635 B93 1/2" x 1 1/2" F.S. - 2 1/4" No Model Compatibility List $87.85 / Each

1
716099 1000332640 V84 Label, Rom 6043 No Model Compatibility List $6.73 / Each

1
716313 1000335318 B60 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717148 1000341986 B70 6000 GUARD - 47 5/16 No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
717500 1000345600 B16 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B83 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717669 1000346697 Z95 1/2-13 x 1 1/4" HCS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717779 1000347532 B47 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717832 1000347933 AB9 Adjuster Assy;6043;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717833 1000347934 AB9 Adjuster Assy;6043;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717834 1000347935 AB9 Adjuster Assy;6043;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717871 1000348153 AB10 Upper Cam Assy;6043;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717872 1000348154 AB10 Upper Cam Assy;6043;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717873 1000348155 AB10 Upper Cam Assy;6043;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717955 1000349022 B48 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B48 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B48 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719079 1000355656 AB14 ADJUSTMENT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719204 1000357142 AB7 Front Seat Weldment;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
719205 1000357143 AB7 2043 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719206 1000357144 AB7 2043 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719302 1000359445 B39 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719335 1000359880 B17 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719682 1000363760 V85 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V85 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719803 1000365773 B18 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720525 1000373392 B44 3/4" x 1 1/2" F.S. - 2" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720993 1000379407 B88 Spring Pin Assy;Body Spring Pin; No Model Compatibility List $35.46 / Each

2,12,13,14
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722340 1000391244 AB2 Main Frame - User Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722341 1000391245 AB2 Main Frame - User Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722342 1000391246 AB2 Main Frame - User Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722343 1000391259 AB11 Weldment, 6043 Cam lower;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722344 1000391260 AB11 Weldment, 6043 Cam lower;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722345 1000391261 AB11 Weldment, 6043 Cam lower;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722346 1000391275 AB5 Pulley Arm;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
722347 1000391276 AB5 Pulley Arm;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722348 1000391277 AB5 Pulley Arm;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
722349 1000391291 AB3 6043 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722350 1000391292 AB3 6043 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722351 1000391293 AB3 6043 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722352 1000391306 AB4 6043 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722353 1000391307 AB4 6043 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722354 1000391308 AB4 6043 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722355 1000391321 AB8 2043 SUB-ASSEMBLY;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722356 1000391322 AB8 2043 SUB-ASSEMBLY;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722357 1000391323 AB8 2043 SUB-ASSEMBLY;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722358 1000391380 B13 Weight Stack Riser No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722359 1000391381 Weight Stack 7 CENTER STICK;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722360 1000391382 B45 3/4" x 1 1/2" F.S. - 3" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722361 1000391384 AB1 Main Frame - Weight Stack Side;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722362 1000391385 AB1 Main Frame - Weight Stack Side;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722363 1000391386 AB1 Main Frame - Weight Stack Side;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J63 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
