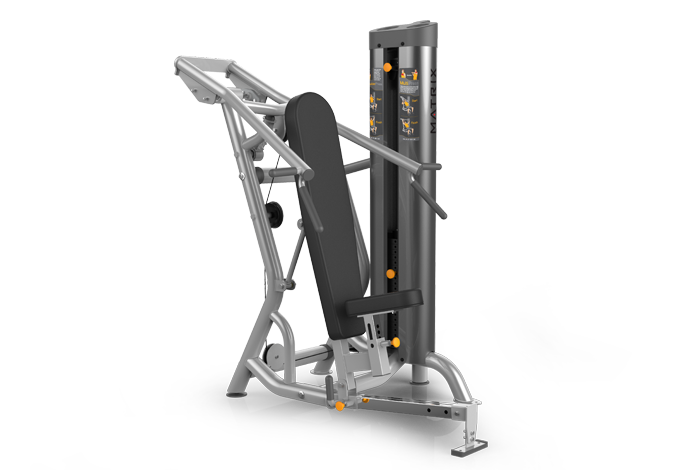

Matrix Commercial - VY-6045-02 - 2013

Repair Parts for Matrix Commercial VY-6045-02 VYGM327

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: VY-6045-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
713802 1000308395 B26 FLANGE BEARING - 1" No Model Compatibility List $21.89 / Each

8
Z 713805 1000308416 Z27 1" Ext. SNAP RING No Model Compatibility List $2.37 / Each

2
B 713806 1000308417 B23 2" x 2" END CAP No Model Compatibility List $5.46 / Each

9
713808 1000308419 B84 1" Vinyl Cap No Model Compatibility List $2.18 / Each

9
B 713810 1000308421 B28 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
B 713811 1000308424 B10 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z52 3/8" NUT No Model Compatibility List $1.43 / Each

2
713816 1000308434 Z25 1 1/64"ID MACHINE BUSHING No Model Compatibility List $1.43 / Each

8,4,5,6
713817 1000308435 Z81 1 21/64" O.D. x 1 1/64" I.D. 14GA No Model Compatibility List $2.37 / Each

1
Z 713819 1000308437 Z41 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713820 1000308438 Z40 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
713821 1000308439 Z59 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
713824 1000308442 Z80 SCREW;SET; .3125-18 X 1.00;SS No Model Compatibility List $1.43 / Each

2
Z 713826 1000308444 Z58 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
B 713834 1000308452 B22 7" RUBBER FOOT No Model Compatibility List $14.59 / Each

9,3
V 713842 1000308473 V73 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713940 1000309847 Z54 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713941 1000309848 Z46 SCREW;HH;.500-13 x 3.50;ZN; No Model Compatibility List $5.04 / Each

2
713943 1000309851 Z47 SCREW;HH;.375-16 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
713945 1000309853 Z44 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z50 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
Z 713950 1000309858 Z51 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
B 713986 1000310083 B37 2" ROUND END CAP No Model Compatibility List $5.04 / Each

9
713990 1000310087 B30 1 1/8" SPLIT COLLAR No Model Compatibility List $13.49 / Each

1
Z 713991 1000310088 Z49 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713996 1000310095 B24 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z55 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
713998 1000310097 Z45 SCREW;HH;.250-20 x 2.00;ZN; No Model Compatibility List $1.33 / Each

2
714012 1000310207 Z43 SCREW;HH;.375-16 x 2.50;ZN; No Model Compatibility List $3.02 / Each

2
B 714016 1000310219 B62 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B21 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714018 1000310273 B36 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
714024 1000310289 B34 3" Connector Joint No Model Compatibility List $10.11 / Each

1
714025 1000310301 Z39 SCREW;HH;.500-13 x 4.50;ZN; No Model Compatibility List $5.04 / Each

2
714026 1000310302 B33 6" CABLE PULLEY w/ NARROW BUSHING No Model Compatibility List $36.48 / Each

8,4,5,6
Z 714031 1000310307 Z42 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

2
Z 714033 1000310313 Z57 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z56 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B70 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B68 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714044 1000310346 V71 DECAL,SERIAL NUMBER NON-EN No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
714108 1000312097 Z82 SCREW;HH;.500-13 x 3.75;ZN; No Model Compatibility List $5.04 / Each

2
714109 1000312099 Z48 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
W 714118 1000312127 Weight stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
Z 714127 1000312161 Z53 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B32 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
B 714176 1000312298 B29 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

8
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B38 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714252 1000312890 B82 1" Grip;8" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714281 1000313144 B83 Grip;Closed End;3.5" No Model Compatibility List $0.00 / Each
Out Of Stock 		9,11
714302 1000313470 V74 Decal, ROM No Model Compatibility List $5.04 / Each

7,3
714451 1000314828 B66 5/8" GUIDE ROD - 58 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714465 1000315136 V79 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714526 1000315653 B63 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714527 1000315668 V75 Label, Rom universal No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714528 1000315669 V76 Label, Rom universal No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714529 1000315670 V77 6045 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714530 1000315671 V78 6045 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714538 1000315894 V72 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
715629 1000327275 AB4 BEARING FIXING;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
715630 1000327276 AB4 BEARING FIXING;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
715631 1000327277 AB4 BEARING FIXING;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
715632 1000327328 V77 6045 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715633 1000327334 V77 6045 PLACARD;Spanish No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715634 1000327335 V78 6045 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715635 1000327341 V78 6045 PLACARD;Spanish No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
715990 1000330502 AB8 FOOT SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
715991 1000330503 AB8 FOOT SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
715992 1000330504 AB8 FOOT SUPPORT;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
716313 1000335318 B60 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717367 1000344410 AB7 Bottom Slide Assy;6045;Iced Silver No Model Compatibility List $370.08 / Each

1
717368 1000344411 AB7 Bottom Slide Assy;6045;Black Glossy No Model Compatibility List $630.34 / Each

4,5,6
717369 1000344412 AB7 Bottom Slide Assy;6045;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717500 1000345600 B35 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717650 1000346601 B67 Stabilizer Foot;Black Ridge No Model Compatibility List $45.60 / Each

9,3,4,5,6
717779 1000347532 B31 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B16 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B16 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B16 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719079 1000355656 AB15 ADJUSTMENT POST - CHROMED; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,12,13,14
719247 1000358346 Weight Stack Set WEIGHT STACK 6000 CRIMP CABLE 222# No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719300 1000359440 B11 6000 ADD ON PLATE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719302 1000359445 AB13 CABLE CLIP ASSEMBLY;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719322 1000359722 Weight Stack 6 Cable Clip Top Half Assembly No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
719425 1000361210 AB6 CONNECT SET;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719426 1000361211 AB6 CONNECT SET;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719427 1000361212 AB6 CONNECT SET;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719682 1000363760 V82 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V82 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719786 1000365621 B14 1" CRR - 11 3/8" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
719803 1000365773 B12 3/16" Plasma - 16.2 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 Not Shown Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722025 1000387203 B17 6000 GUARD - 59 5/16";Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722074 1000387532 AB3 WELDMENT, 6045 MAIN ARM;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722075 1000387533 AB3 WELDMENT, 6045 MAIN ARM;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722076 1000387534 AB3 WELDMENT, 6045 MAIN ARM;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722080 1000387561 Weight Stack 7 WELDMENT; CENTER STICK No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722370 1000391582 AB9 WELDMENT, FOOT PLATE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722371 1000391583 AB9 WELDMENT, FOOT PLATE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
722372 1000391584 AB9 WELDMENT, FOOT PLATE;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
722373 1000391598 AB5 WELDMENT, SEAT FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
722374 1000391599 AB5 WELDMENT, SEAT FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722375 1000391600 AB5 WELDMENT, SEAT FRAME;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6,12,13,14
722376 1000391614 AB1 WELDMENT, MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722377 1000391615 AB1 Weldment;Main Frame;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722378 1000391616 AB1 WELDMENT, MAIN FRAME;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722379 1000391629 AB2 WELDMENT, WEIGHT STACK FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722380 1000391630 AB2 WELDMENT, WEIGHT STACK FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722381 1000391631 AB2 WELDMENT, WEIGHT STACK FRAME;LaceWhite No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729261 See Pad Matrix J65 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
