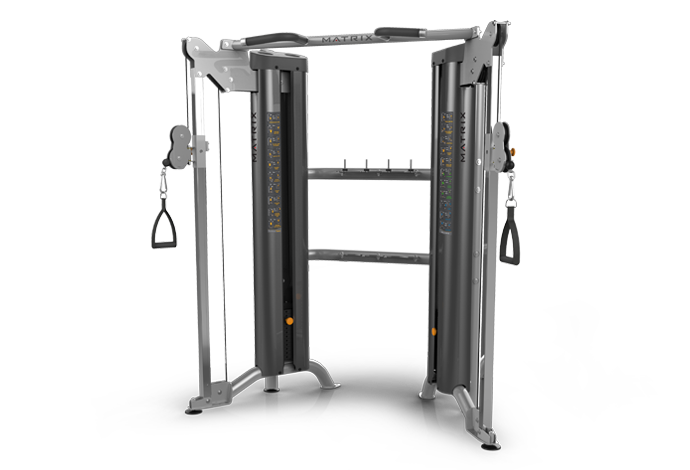

Matrix Commercial - VY-6047-02 - 2013

Repair Parts for Matrix Commercial VY-6047-02 VYMS209

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: VY-6047-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 713811 1000308424 DP 9 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

2,3,12,13,14
Z 713814 1000308428 Z42 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z43 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
713820 1000308438 Z40 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
D 713826 1000308444 DP 8 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
D 713842 1000308473 DP 12 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

2
P 713939 1000309846 Pulley 7 1/2" JAM NUT No Model Compatibility List $1.43 / Each

2
P 713940 1000309847 Pulley 11 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
P 713950 1000309858 Pulley 10 3/4" FLAT WASHER No Model Compatibility List $1.33 / Each

2
713953 1000309871 Z38 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
N 713975 1000310008 Not Shown ROUND LEVELER BOOT No Model Compatibility List $5.04 / Each

3
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

9,3
713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

3
713978 1000310011 K10 Teardrop Boot No Model Compatibility List $6.73 / Each

1
713979 1000310012 K9 Plastic Footpad No Model Compatibility List $6.73 / Each

9,3,12,13,14
713984 1000310019 Pulley 4 SCREW;HH;.500-13 x 2.00;ZN; No Model Compatibility List $3.02 / Each

2
Z 713991 1000310088 Z15 Washer, Curved, 1/2" No Model Compatibility List $3.02 / Each

2
713997 1000310096 Pulley 9 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
K 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

1
D 714016 1000310219 DP 15 SCREW;HH;.250-20 x 0.75;ZN; No Model Compatibility List $1.33 / Each

2
714017 1000310270 B22 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
Z 714018 1000310273 Z29 4" FOOT (SHORT) No Model Compatibility List $20.05 / Each

9,3
Z 714032 1000310308 Z30 4" FOOT (LONG) No Model Compatibility List $18.23 / Each

9,3
Z 714033 1000310313 Z33 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z34 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
B 714040 1000310339 B62 ROUND WEIGHT STACK BUMPER No Model Compatibility List $5.90 / Each

3,4,5,6
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z36 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714102 1000312086 Z37 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 714105 1000312091 Pulley 5 SCREW;HH;.500-13 x 1.75;ZN; No Model Compatibility List $3.28 / Each

2
714109 1000312099 Z35 HCS 1/2-13 x 4 1/4" No Model Compatibility List $5.04 / Each

1
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
714126 1000312159 Pulley 8 1/2 - 13 NUT No Model Compatibility List $1.33 / Each

2
Z 714127 1000312161 Z41 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714152 1000312231 B31 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
D 714175 1000312296 DP 10 Flange Bushing - 3/4"OD x 1/2"ID No Model Compatibility List $10.92 / Each

8
714193 1000312342 V64 DECAL,WARNING: BOLT DOWN;English No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714244 1000312871 DP 2 PULLEY SWIVEL No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714245 1000312875 B17 3/4"OD x 7/16"ID PIPE - 1" No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714246 1000312876 Pulley 3 SCREW;HH;.375-16 x 3.25;ZN; No Model Compatibility List $3.74 / Each

2
714247 1000312877 B32 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B46 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

2,9
714259 1000312963 B8 1/4" PLASMA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714260 1000312969 B21 5/8" GUIDE ROD - 64.25" No Model Compatibility List $184.18 / Each

3
714261 1000312970 B20 5/8" GUIDE ROD - 70 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714262 1000312972 B45 3/8 -16 Eye Nut No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714264 1000312974 Z24 1/2" RUBBER BUMPER No Model Compatibility List $6.73 / Each

1
B 714266 1000312976 B47 HANDLE W-STRAP D-RING (SHORT) No Model Compatibility List $25.98 / Each

11
714465 1000315136 V61 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714538 1000315894 V66 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
K 714766 1000318109 Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

11
714772 1000318166 Kit 2 KIT TEARDROP FOOT No Model Compatibility List $33.77 / Each

9,3
714903 1000319579 V68 6044/6047 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714904 1000319580 V68 6044/6047 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
714906 1000319600 AB10 Pulley Plate;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
714907 1000319601 AB10 Pulley Plate;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714908 1000319602 AB10 Pulley Plate;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714909 1000319610 AB12 Pulley Plate;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
714910 1000319611 AB12 Pulley Plate;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714911 1000319612 AB12 Pulley Plate;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714912 1000319620 AB9 Pulley Plate;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
714913 1000319621 AB9 Pulley Plate;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714914 1000319622 AB9 Pulley Plate;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
714915 1000319630 V64 DECAL,WARNING: BOLT DOWN;French No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,3
714920 1000319636 DP Set Right DOUBLE PULLEY 6000 SERIES RIGHT No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714921 1000319637 DP Set Left DOUBLE PULLEY 6000 SERIES LEFT No Model Compatibility List $0.00 / Each
Out Of Stock 		8
714922 1000319639 Weight Stack Se WEIGHT STACK 18+1 DUAL PULLEY 6000 SERIES No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
716313 1000335318 DP 13 CLAMP - COVER No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
717156 1000342316 B44 Rubber Stopper;Cable Ball;Drilled 3/8" f No Model Compatibility List $23.71 / Each

4,5,6
717462 1000345333 V51 Decal;Hi-low ROM No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717463 1000345334 V52 Decal;Hi-low ROM 17 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717500 1000345600 B23 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717672 1000346703 B49 Rope Assy;6047; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
717779 1000347532 Pulley 12 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
719579 1000362648 B59 GUARD - 6044/6047 LEFT FRONT;Charcoal Metallic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
719682 1000363760 V63 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V63 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719753 1000365174 66 D Ring;Purchased; No Model Compatibility List $13.49 / Each

1
719795 1000365701 AB57 6044/6047 REAR SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719796 1000365702 AB57 6044/6047 REAR SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719797 1000365703 AB57 6044/6047 REAR SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
719798 1000365716 AB3 Accessory Hooks;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719799 1000365717 AB3 Accessory Hooks;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
719800 1000365718 AB3 Accessory Hooks;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720307 1000371307 DP Left 1 Slide Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720308 1000371308 DP Left 1 Slide Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720309 1000371309 DP Left 1 Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720465 1000372992 DP Right 1 Slide Assy;Iced Silver No Model Compatibility List $527.25 / Each

1
720466 1000372993 DP Right 1 Slide Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720667 1000374560 AB4 2" x 2" TUBE - 75";Chrome No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
720671 1000374578 B58 16ga Sheet Metal Guard;Charcoal Metallic. No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
720672 1000374579 B60 GUARD - 6044/6047 RIGHT, BACK;Charcoal Metalic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3,4,5,6
720673 1000374580 B61 GUARD - 6044/6047 RIGHT, FRONT;Charcoal Metallic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
720684 1000374626 AB1 Main Frame - Left;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720685 1000374627 AB1 Main Frame - Left;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720686 1000374628 AB1 Main Frame - Left;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720687 1000374641 AB2 Main Frame - Right;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720688 1000374642 AB2 Main Frame - Right;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720689 1000374643 AB2 Main Frame - Right;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720762 1000375851 Weight Stack 7 Weldment;19x Center Stick; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720763 1000375855 B11 Pulley Plate;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
720764 1000375856 B11 Pulley Plate;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
720765 1000375857 B11 Pulley Plate;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
720766 1000375869 B18 3/4"OD x 7/16"ID PIPE - 2";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720767 1000375870 B13 1 1/2" x 3" TUBE - 3" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720768 1000375872 AB14 Chin Up Bar - 6044/6047;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720769 1000375873 AB14 Chin Up Bar - 6044/6047;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720770 1000375874 AB14 Chin Up Bar - 6044/6047;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
721552 1000384006 V65 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721634 1000384891 Pulley 1 Weldment;Head Plate Pulley No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
721921 1000386597 Pulley 2 HCS 1/4"-20 x 3.00" Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721939 1000386721 Pulley Set Pulley Set;Weight Stack;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,4,5,6
723853 1000412711 DP 16 Decal;Warning Pull Pin No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
