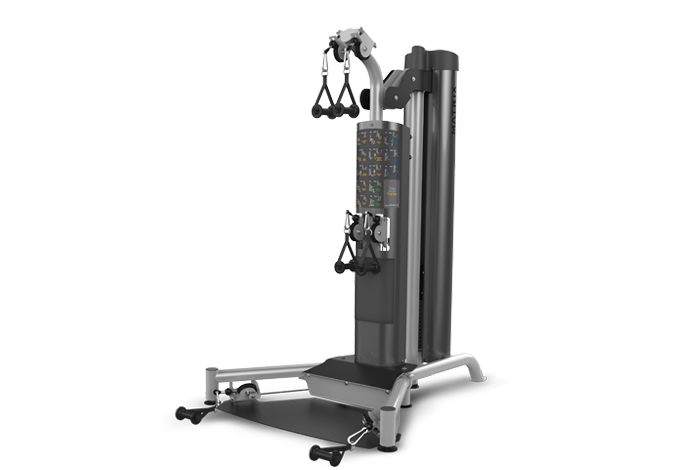

Matrix Commercial - VY-6099-02 - 2013

Repair Parts for Matrix Commercial VY-6099-02 VYGM329

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: VY-6099-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 713810 1000308421 B20 HALF-ROUND RUBBER BUMPER No Model Compatibility List $16.41 / Each

1
Z 713814 1000308428 Z44 3/8" NUT No Model Compatibility List $1.43 / Each

2
Z 713818 1000308436 Z33 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

2
Z 713819 1000308437 Z38 SCREW;HH;.375-16 x 1.50;ZN; No Model Compatibility List $2.37 / Each

2
713820 1000308438 Z43 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

2
713821 1000308439 DP Z7 NUT;NLK;.375-16;ZN; No Model Compatibility List $1.43 / Each

2
W 713826 1000308444 Weight Stack 6 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

2
S 713842 1000308473 Swivel Pull V9 Lable, hand pinch No Model Compatibility List $3.02 / Each

12,13,14
S 713940 1000309847 Swivel Pull Z5 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

2
713945 1000309853 Z42 SCREW;HH;.250-20 x 1.75;ZN; No Model Compatibility List $2.44 / Each

2
Z 713946 1000309854 Z45 NUT;NLK;.250-20;ZN; No Model Compatibility List $1.43 / Each

2
713953 1000309871 Z40 SCREW;HH;.375-16 x 2.00;ZN; No Model Compatibility List $2.18 / Each

2
713996 1000310095 DP B9 1/2" OD x 1/4" ID Plastic Spacer - 1" No Model Compatibility List $1.33 / Each

2,9,3,4,5,6
713997 1000310096 Z47 1/4" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714002 1000310104 Z39 SCREW;HH;.500-13 x 1.00;ZN; No Model Compatibility List $2.18 / Each

2
714017 1000310270 B27 1"OD x 5/8"ID NYLON PIPE - 3 1/2" No Model Compatibility List $21.94 / Each

1
B 714032 1000310308 B19 4" FOOT (LONG) No Model Compatibility List $18.23 / Each

9,3
Z 714033 1000310313 Z48 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

2,4,5,6
Z 714034 1000310314 Z49 BHSCS - 5 1/6-18 x 3/4" No Model Compatibility List $2.37 / Each

1
714037 1000310330 B31 FOOT; PLASTIC No Model Compatibility List $16.87 / Each

9,3
714038 1000310334 Weight Stack 1 6000 TOP PLATE No Model Compatibility List $78.47 / Each

3
714041 1000310343 Weight Stack 2 Orange SELECTOR PIN w/ 6 1/2" CORD No Model Compatibility List $25.53 / Each

4,5,6,12,13,14
714079 1000311963 Z37 Screw;HH;.375-16x1.25;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock 		2
714091 1000312057 Z41 SCREW;HH;.250-20 x 1.25;ZN;SAE 5 No Model Compatibility List $1.33 / Each

2
714093 1000312062 Z36 5/16" x 3/4" BOLT No Model Compatibility List $1.33 / Each

2
714112 1000312105 Swivel Pull Z2 SCREW;HH;.500-13 x 6.50;ZN; No Model Compatibility List $6.73 / Each

2
W 714118 1000312127 Weight Stack 4 BHS 5/16" - 1" No Model Compatibility List $5.46 / Each

1
S 714127 1000312161 Swivel Pull Z7 NUT;NLK;.500-13;ZN;TALL; No Model Compatibility List $1.43 / Each

2
B 714153 1000312233 B29 3" ROUND END CAP No Model Compatibility List $6.73 / Each

9
B 714156 1000312237 B22 3" FOOT No Model Compatibility List $16.87 / Each

9,3
S 714175 1000312296 Swivel Pull Z6 Flange Bushing - 3/4"OD x 1/2"ID No Model Compatibility List $10.92 / Each

8
Z 714235 1000312700 Z35 7/16" FLAT WASHER No Model Compatibility List $2.44 / Each

2
Z 714236 1000312711 Z59 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

1
714240 1000312817 Weight Stack 3 5/16" SPLIT LOCK WASHER No Model Compatibility List $1.33 / Each

2
714247 1000312877 B26 6000 Top Plastic No Model Compatibility List $170.66 / Each

9
714249 1000312880 Weight Stack 8 CAST IRON No Model Compatibility List $104.75 / Each

1
714253 1000312893 B30 3/8" SAFETY CLIP No Model Compatibility List $16.82 / Each

2,9
714261 1000312970 B28 5/8" GUIDE ROD - 70 1/2" No Model Compatibility List $0.00 / Each
Out Of Stock 		3
B 714266 1000312976 B7 HANDLE W-STRAP D-RING (SHORT) No Model Compatibility List $25.98 / Each

11
714268 1000313016 Swivel Pull AB1 WELDMENT PULLEY SINGLE 6099 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
714269 1000313032 DP B1 10 Gauge - 16.3 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714270 1000313033 DP B3 10ga Plasma - 5.1 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
714465 1000315136 V54 6000 STACK DECALS, MEDIUM No Model Compatibility List $30.39 / Each

7,3,4,5,6
714538 1000315894 V52 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

7,3,4,5,6
716153 1000333814 AB1 WELDMENT; MAIN FRAME;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716154 1000333815 AB1 WELDMENT; MAIN FRAME;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716155 1000333816 AB1 WELDMENT; MAIN FRAME;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
716156 1000333840 AB6 Weldment, Bracket base;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
716157 1000333841 AB6 Weldment, Bracket base;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
716158 1000333842 AB6 Weldment, Bracket base;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
716159 1000333853 AB7 Weldment, Bracket Platform Lt;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
716160 1000333854 AB7 Weldment, Bracket Platform Lt;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
716161 1000333855 AB7 Weldment, Bracket Platform Lt;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6

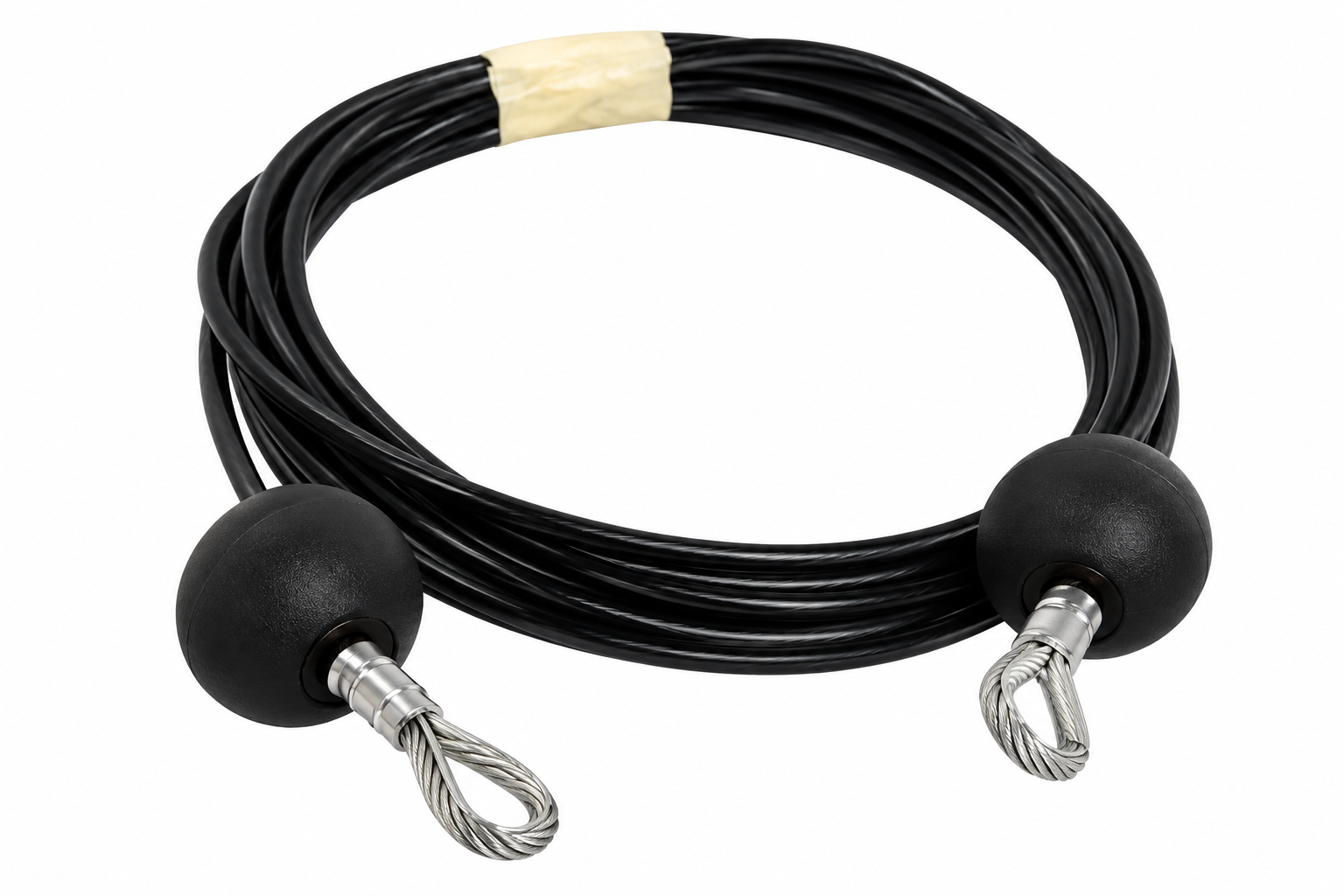

716162 1000333866 B9 ASSEMBLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6

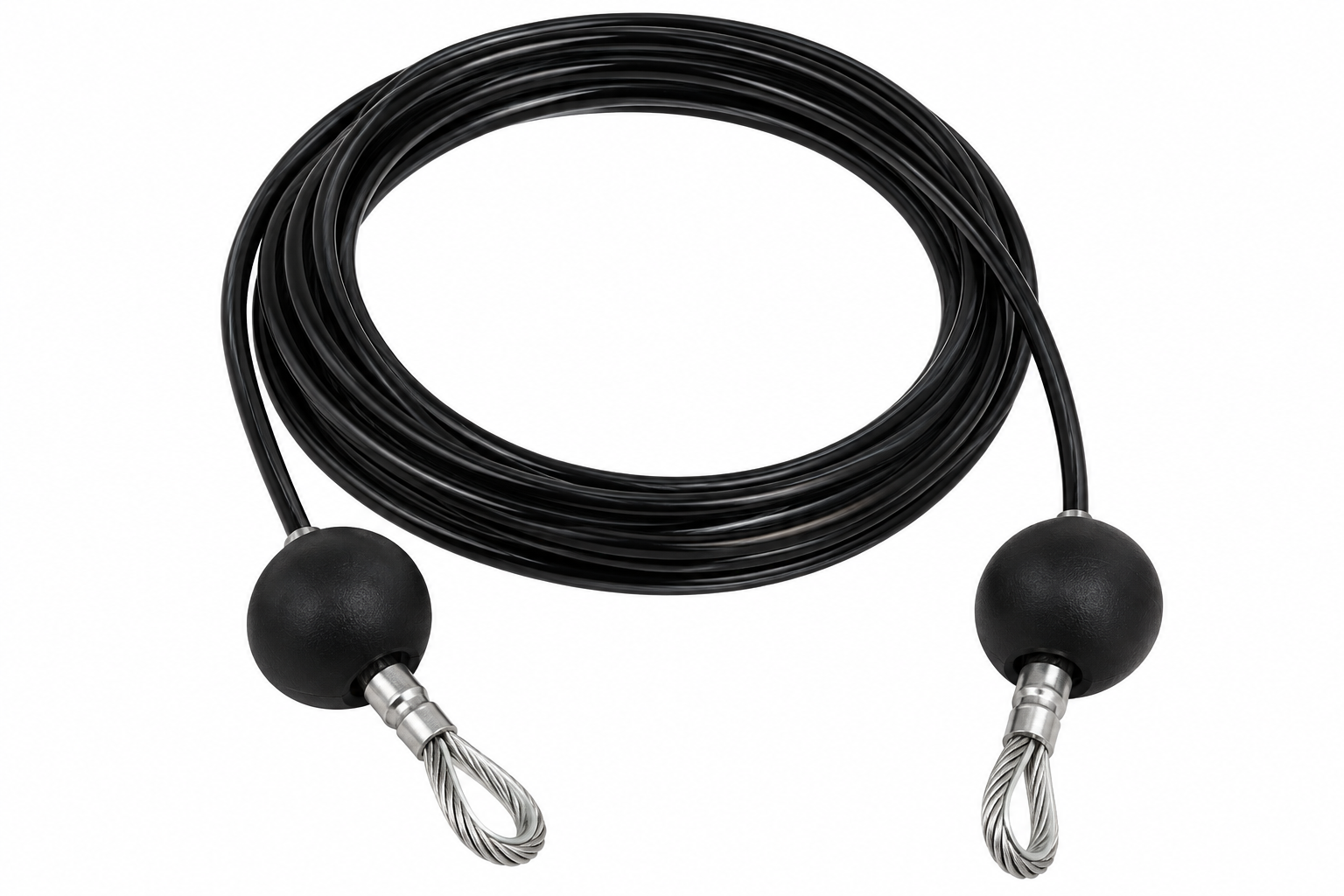

716163 1000333867 B10 ASSEBMLY; CABLE No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716164 1000333869 V53 6099 PLACARD;English No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716165 1000333870 V53 6099 PLACARD;French No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716166 1000333877 Single Pulley Set PULLEY SINGLE SWIVEL 6099;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		8
716167 1000333896 DP Set PULLEY DOUBLE FIXED 6099;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6
B 716585 1000337623 B8 Handle;Long;M564 (DP926-02) No Model Compatibility List $25.53 / Each

11
717500 1000345600 B12 5/8# Single Split Collar No Model Compatibility List $10.92 / Each

1
717771 1000347423 B14 SHEET METAL - 16 Gauge - 116.8 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717779 1000347532 Swivel Pull B4 4.5" Pulley for Rope / Cable No Model Compatibility List $18.56 / Each

8,4,5,6
717955 1000349022 B46 1/8" Plasma Cable Keeper;Ice Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717956 1000349023 B46 1/8" Plasma Cable Keeper;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717957 1000349024 B46 1/8" Plasma Cable Keeper;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
718302 1000350400 WS Pulley 1 Weldment;Floating Pulley No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
719682 1000363760 V50 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719683 1000363766 V50 Warning Label;Frame;;;PC;;French;GM40 No Model Compatibility List $5.04 / Each

3
719802 1000365772 B16 SHEET METAL - 16 Gauge - 116.8 SQ IN No Model Compatibility List $0.00 / Each
Out Of Stock 		3
719812 1000365839 Weight Stack Se Weight Stack Set; No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720305 1000371304 B57 ABS Guard;Sheet;6099; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
720306 1000371305 B58 Carpet Tape;6099; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
720691 1000374657 B18 3/4"OD x 7/16"ID PIPE - 1";Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721552 1000384006 V51 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
721920 1000386596 WS Pulley Set WEIGHT STACK PULLEY ASSEMBLY No Model Compatibility List $217.98 / Each

8,3,4,5,6
722250 1000390004 Weight Stack 7 WELDMENT 12X CENTER STICK WITH COLLAR No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722392 1000391762 B5 User Platform;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722393 1000391767 AB2 Weldment, User platform;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722394 1000391768 AB2 Weldment, User platform;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722395 1000391769 AB2 Weldment, User platform;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722396 1000391781 B3 Weldment, User platform;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
722397 1000391829 B23 10 Guage Plasma - 38.1 SQ IN;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
722398 1000391830 B23 10 Guage Plasma - 38.1 SQ IN;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722399 1000391831 B23 10 Guage Plasma - 38.1 SQ IN;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
722400 1000391844 B15 Guard w/ Placard & ABS Sheet;6099;Charco No Model Compatibility List $748.64 / Each

9,3,4,5,6
722401 1000391845 B24 6000 GUARD - 1097.2 SQ IN;Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722402 1000391846 B25 6000 GUARD - 1097.2 SQ IN;Charcoal No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
722539 1000393892 Z21 1/2" OD x 1/4"ID Plastic Spacer; 1" Black No Model Compatibility List $0.00 / Each
Out Of Stock 		2,9,3,4,5,6
722540 1000393893 B61 5/8"GUIDE ROD X1.875" W/TAP No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722547 1000393922 B63 .406"OD x .265" ID Nylon Spacer; .50" No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,4,5,6
